Removal Procedure

  1. Remove the front compartment side sight shield. Refer to Front Compartment Side Sight Shield Replacement .
  2. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .

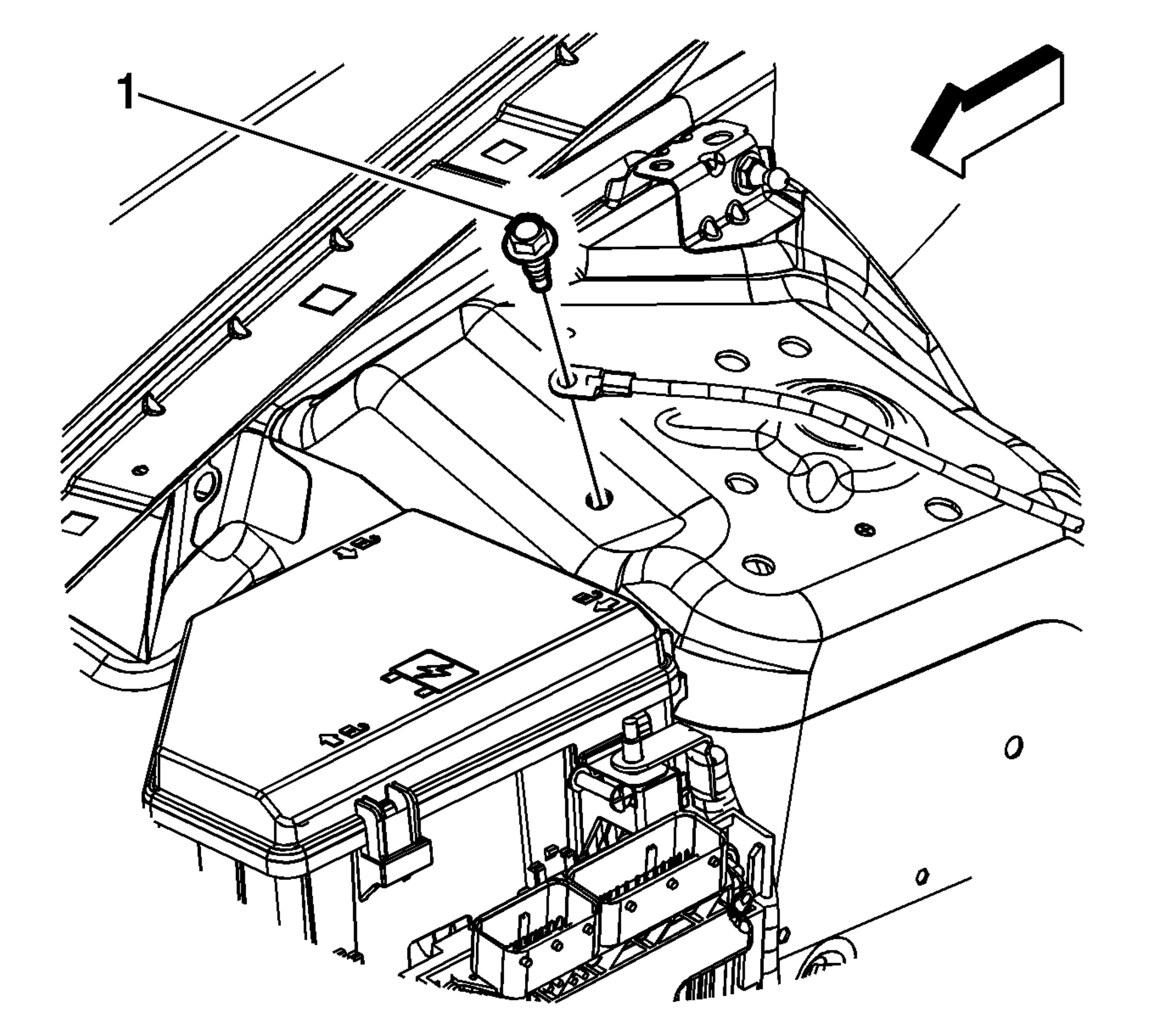

    3. Fig 1: Identifying Battery Negative Cable Ground Bolt
    GM2008902Courtesy of GENERAL MOTORS CORP.
  3. Remove the battery negative cable ground bolt (1).
  4. Lift the vehicle. Refer to Lifting and Jacking the Vehicle .

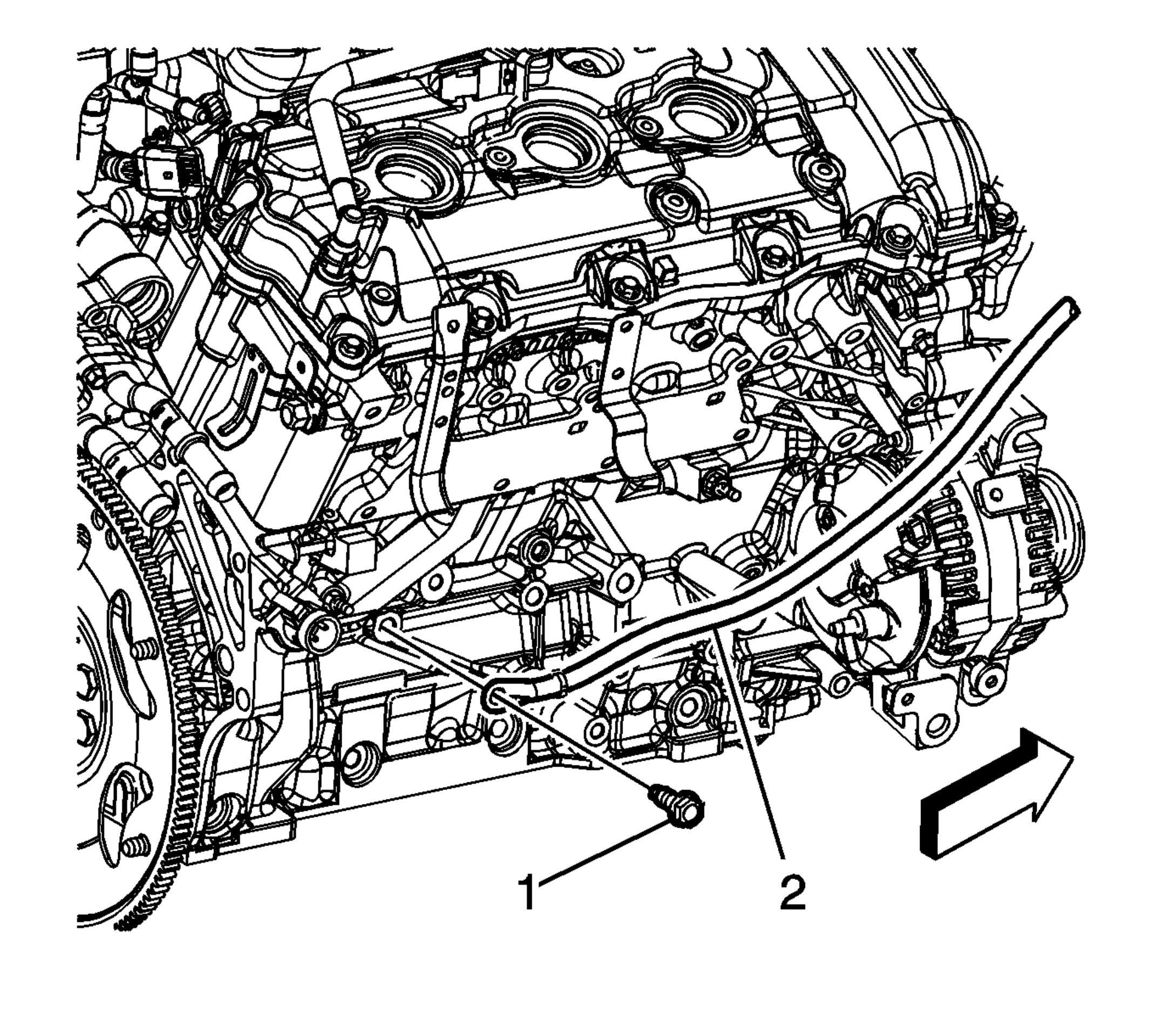

    5. Fig 2: Identifying Battery Cable Terminal Bolt
    GM2008918Courtesy of GENERAL MOTORS CORP.
  5. Remove the Battery Cable Terminal Bolt (1).
  6. Note the routing of the battery negative cable extension cable (2) and remove it from the vehicle.
