Steering Wheel Secondary/Configurable Control Schematics

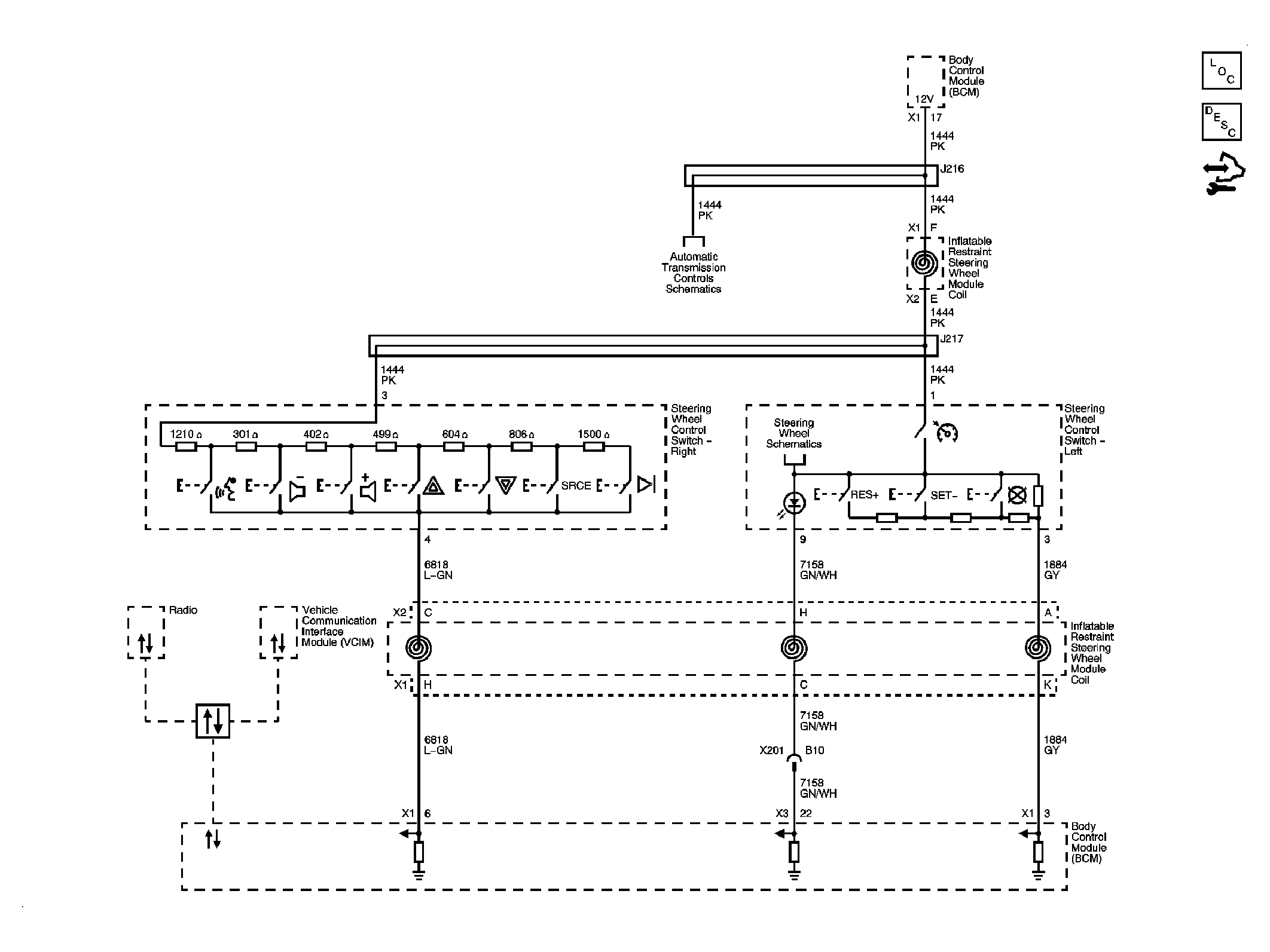

Fig 1: Steering Wheel Secondary/Configurable Control Schematic
GM2075197Courtesy of GENERAL MOTORS CORP.
