Trailer Brake Control System
›
Schematic and Routing Diagrams
›
Trailer Brake Control Schematics
Trailer Brake Control Schematics

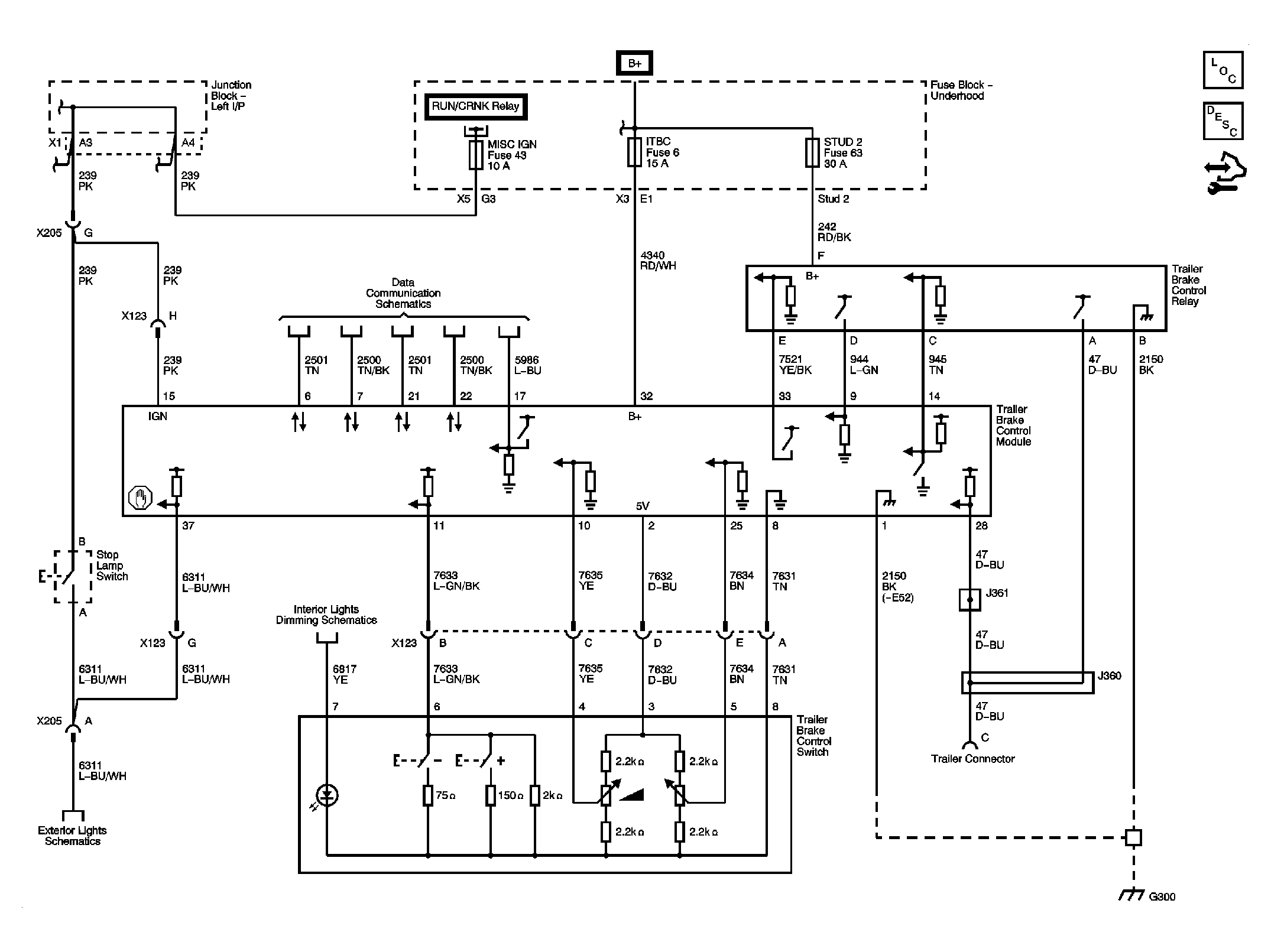

Fig 1: Trailer Brake Control System - E52
Courtesy of GENERAL MOTORS CORP.

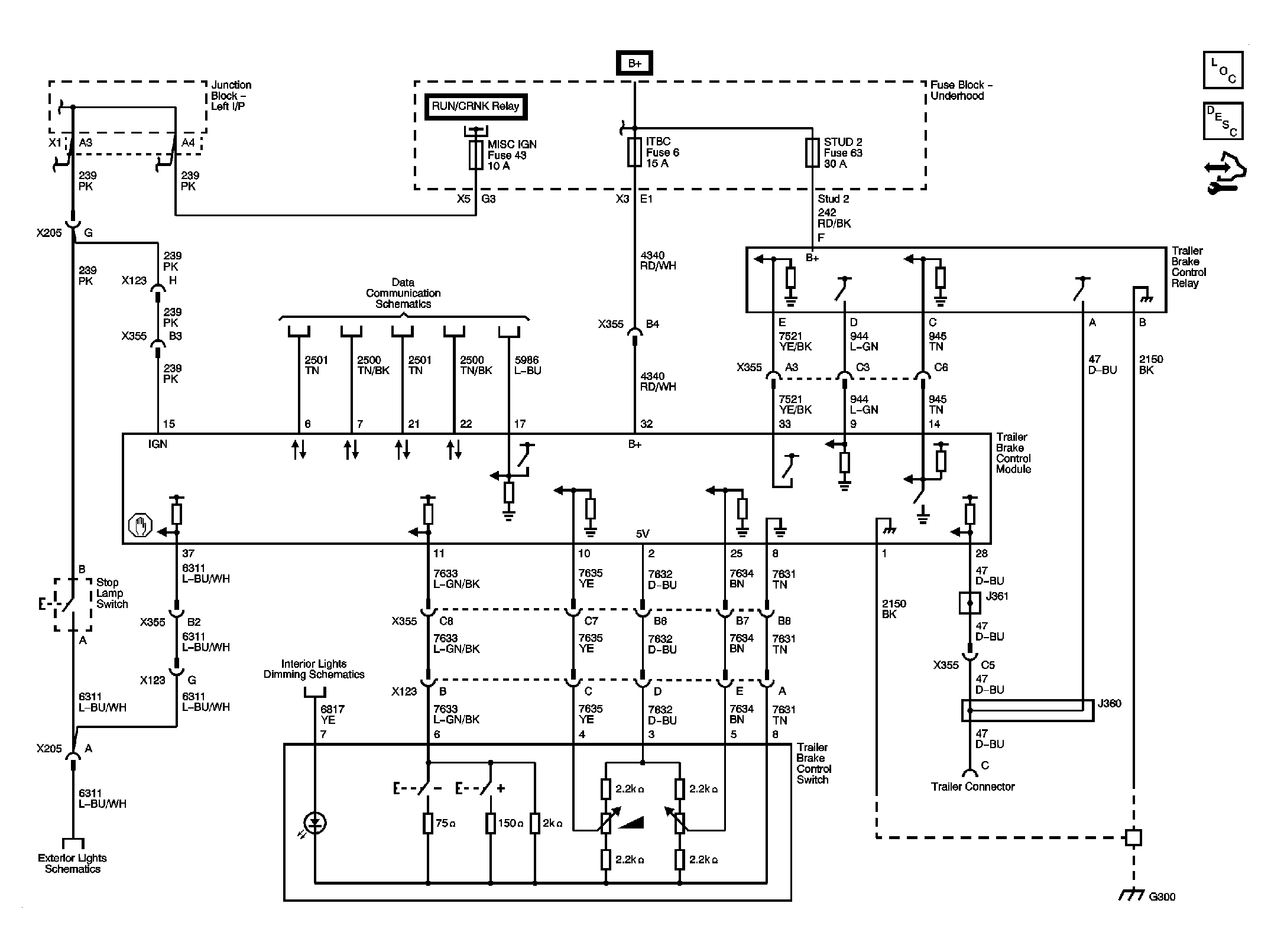

Fig 2: Trailer Brake Control System - without E52
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
