Driver Seat Schematics

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 GMC Yukon XL, 2010 GMC Yukon, 2010 Chevrolet Tahoe, 2010 Chevrolet Suburban, and 2010 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: 6-Way Power

GM2241558

Courtesy of GENERAL MOTORS CORP.

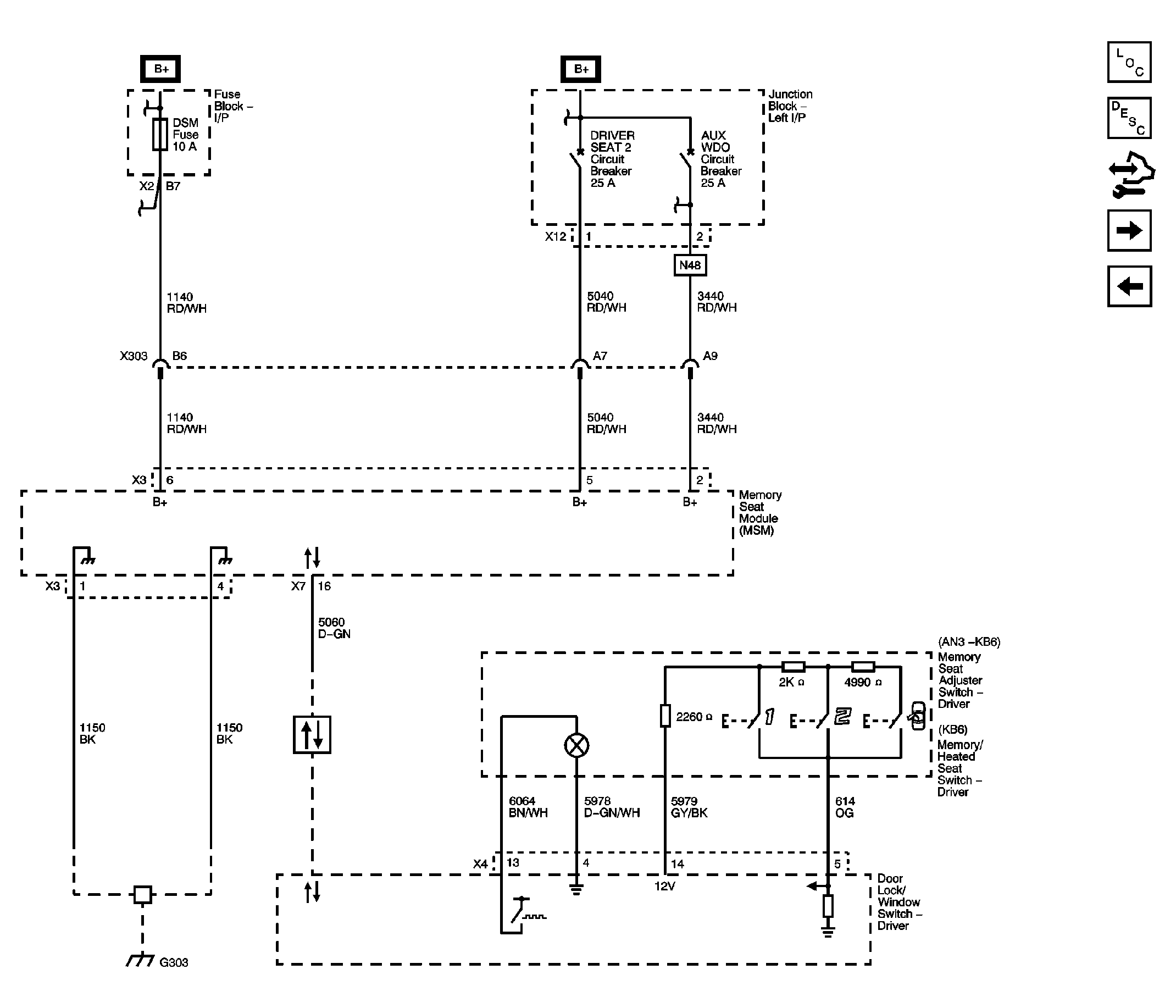

Fig 2: Module Power, Ground, Serial Data, and Memory Switch

GM2241561

Courtesy of GENERAL MOTORS CORP.

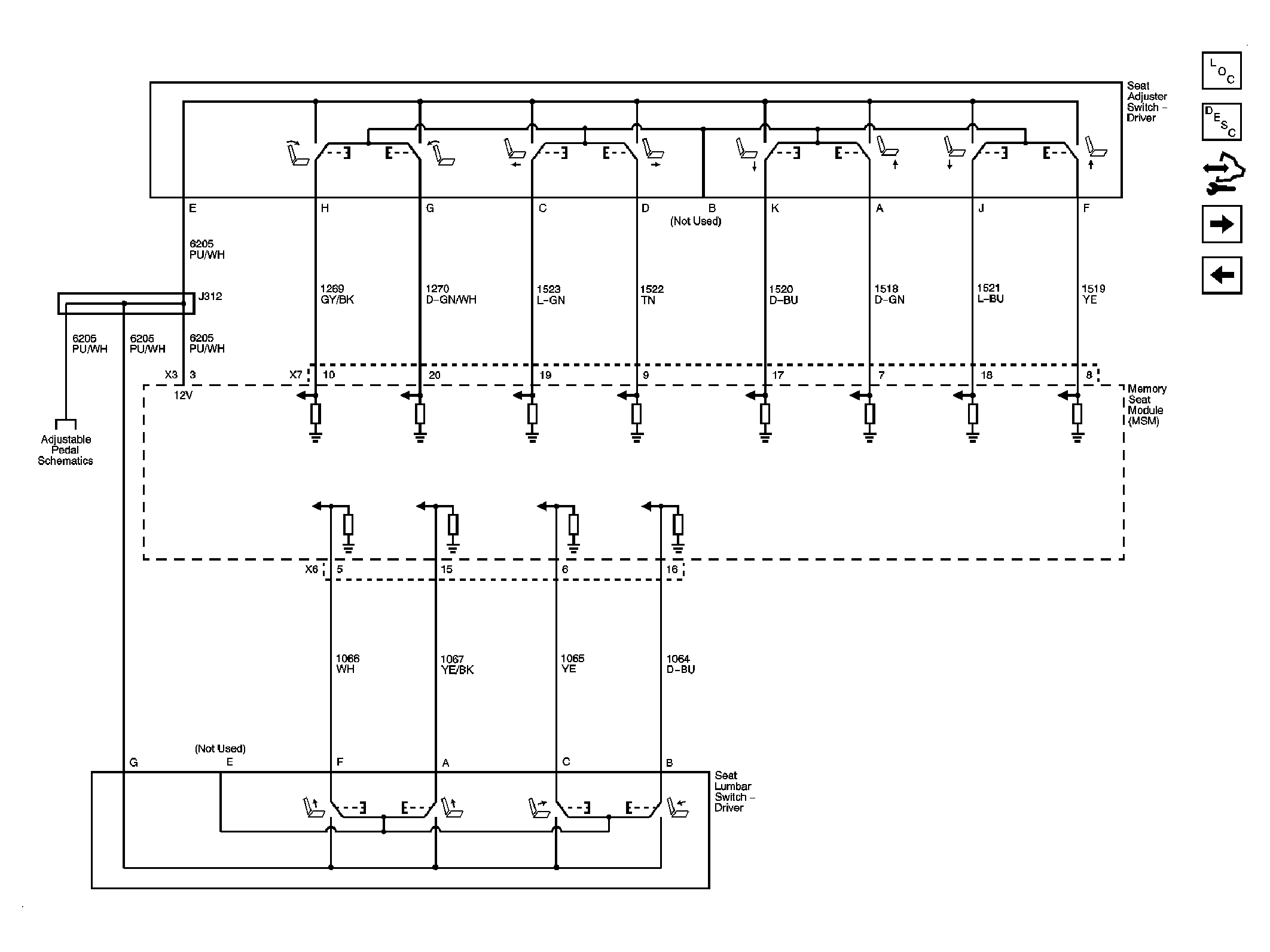

Fig 3: Seat Adjuster Switches (AN3)

GM2241562

Courtesy of GENERAL MOTORS CORP.

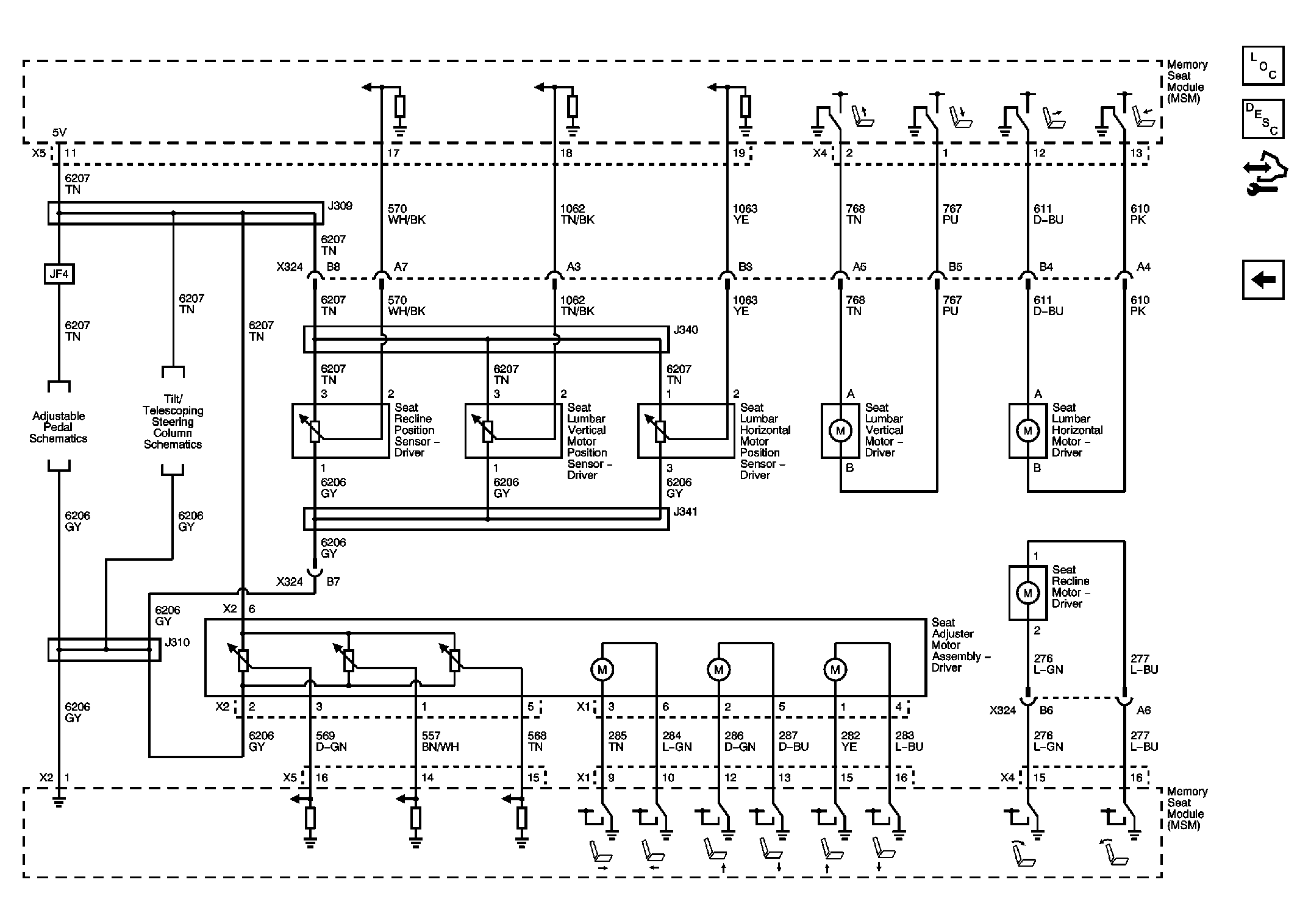

Fig 4: Motors and Position Sensors (AN3)

GM2241563

Courtesy of GENERAL MOTORS CORP.

Fig 5: 6-Way Power (HP2)

GM2241564

Courtesy of GENERAL MOTORS CORP.
