Object Detection Schematics

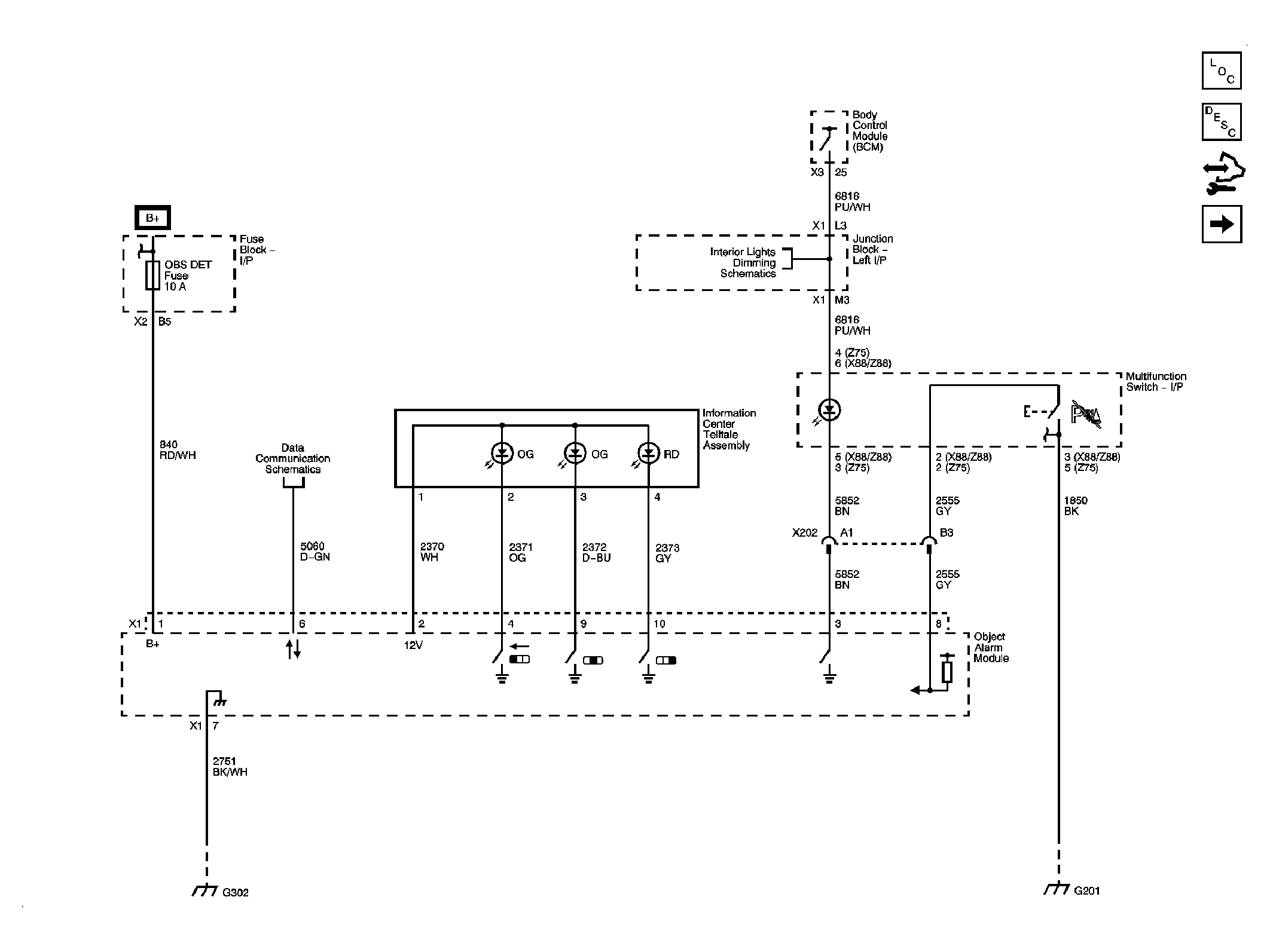

Fig 1: Rear Object Sensing (UD7)

Courtesy of GENERAL MOTORS CORP.

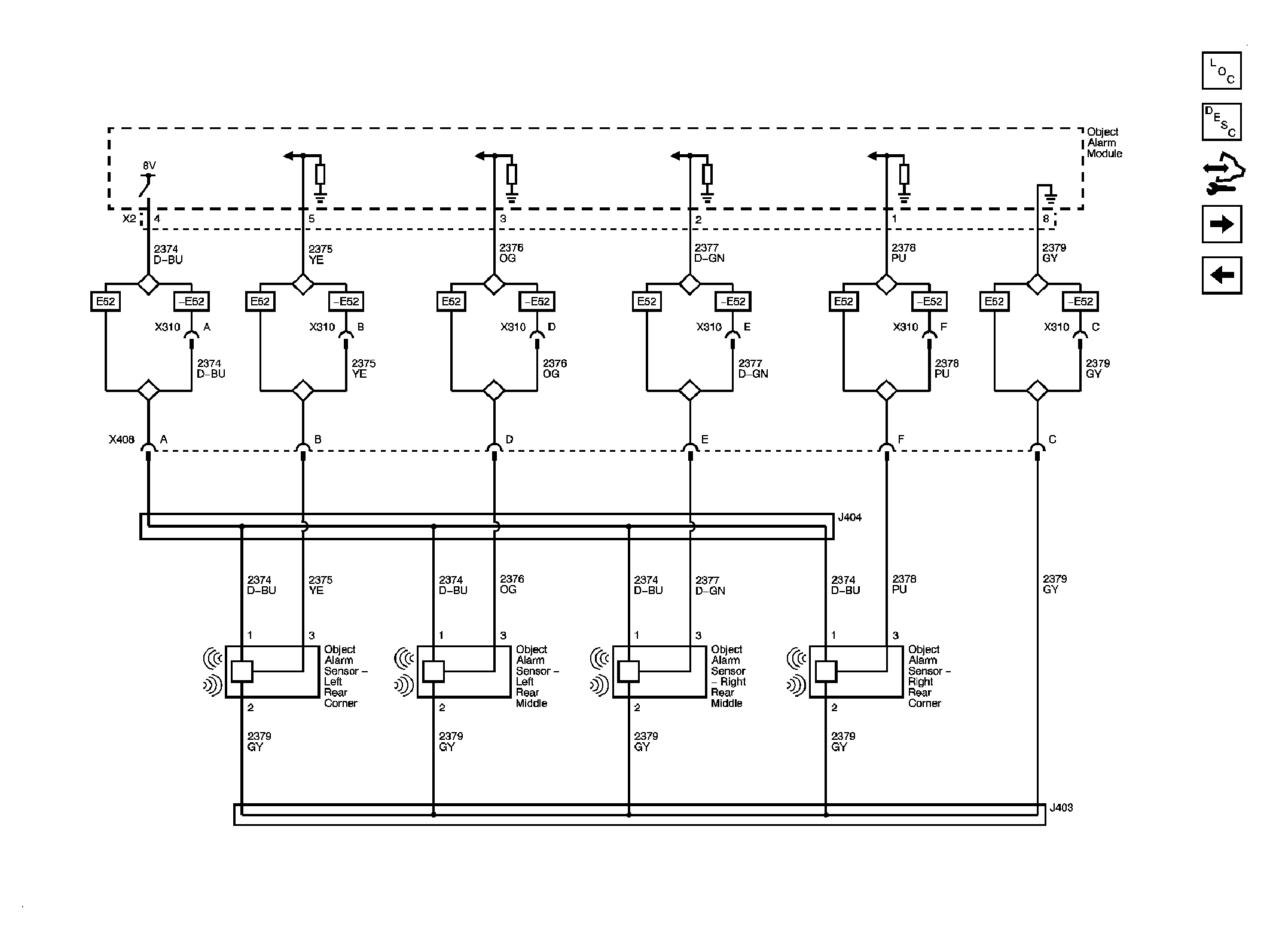

Fig 2: Rear Object Sensors (UD7)

Courtesy of GENERAL MOTORS CORP.

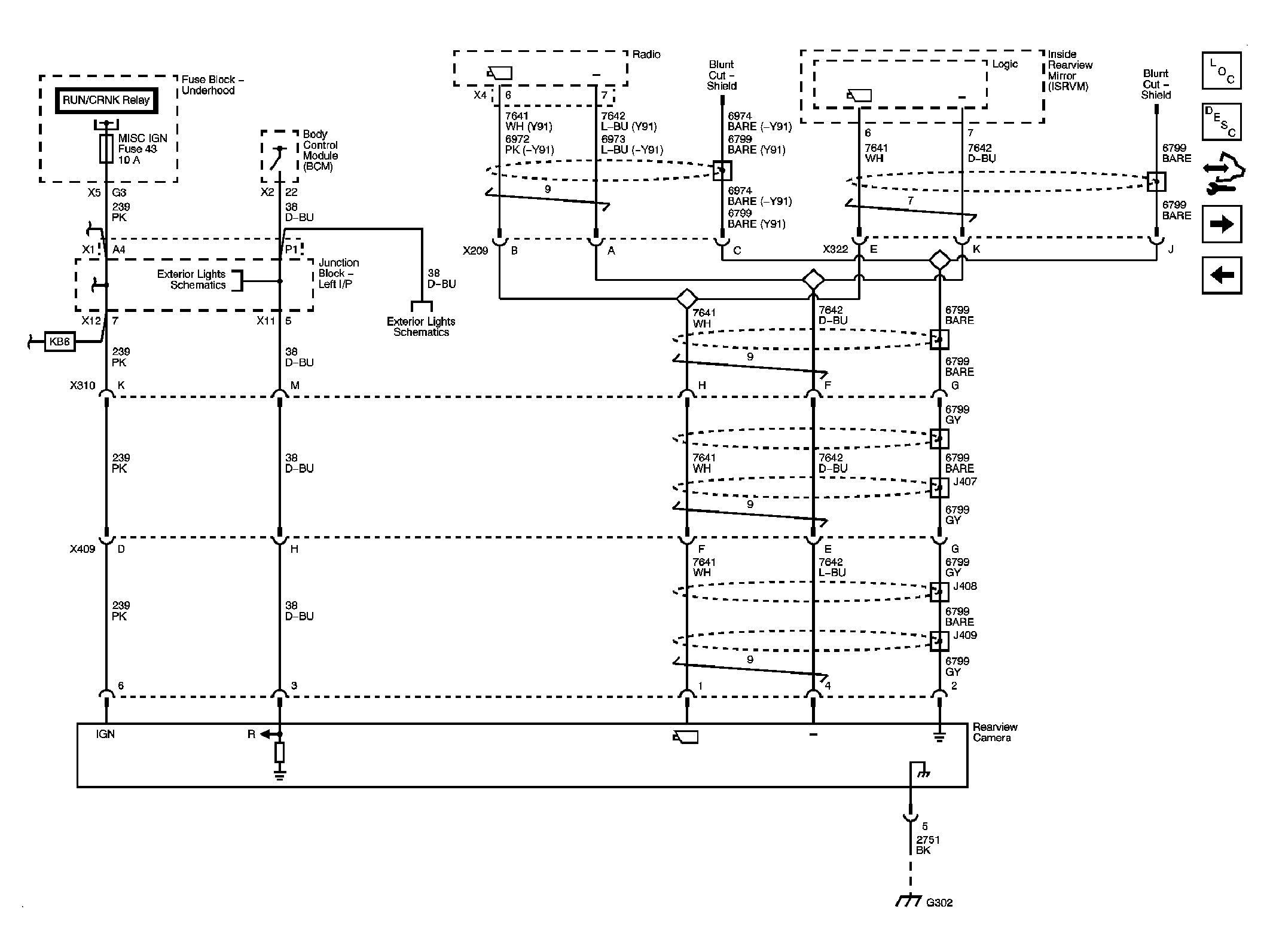

Fig 3: Rear Video Camera - 1 of 2 (UVC)

Courtesy of GENERAL MOTORS CORP.

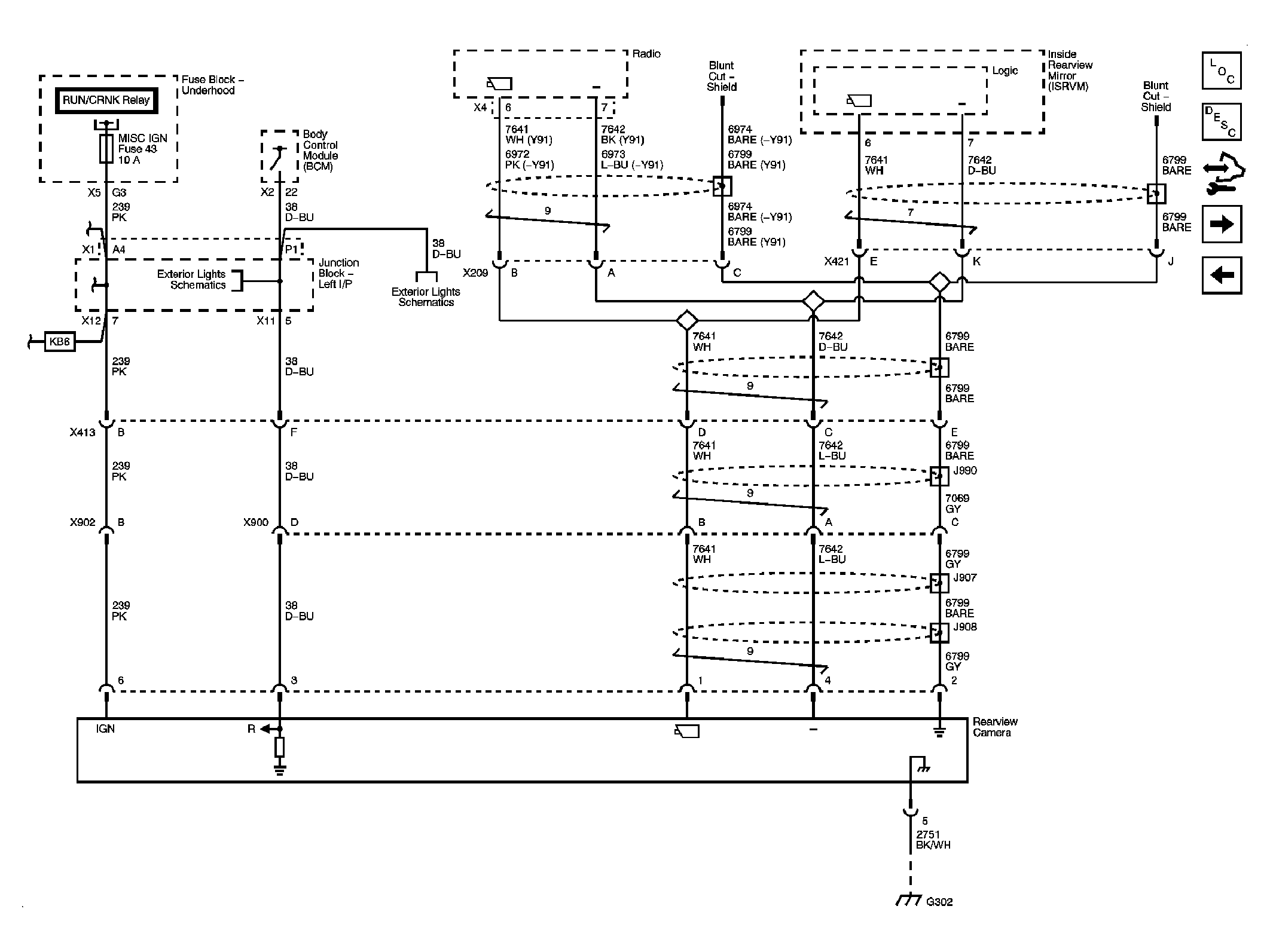

Fig 4: Rear Video Camera 2 of 2 (UVC)

Courtesy of GENERAL MOTORS CORP.

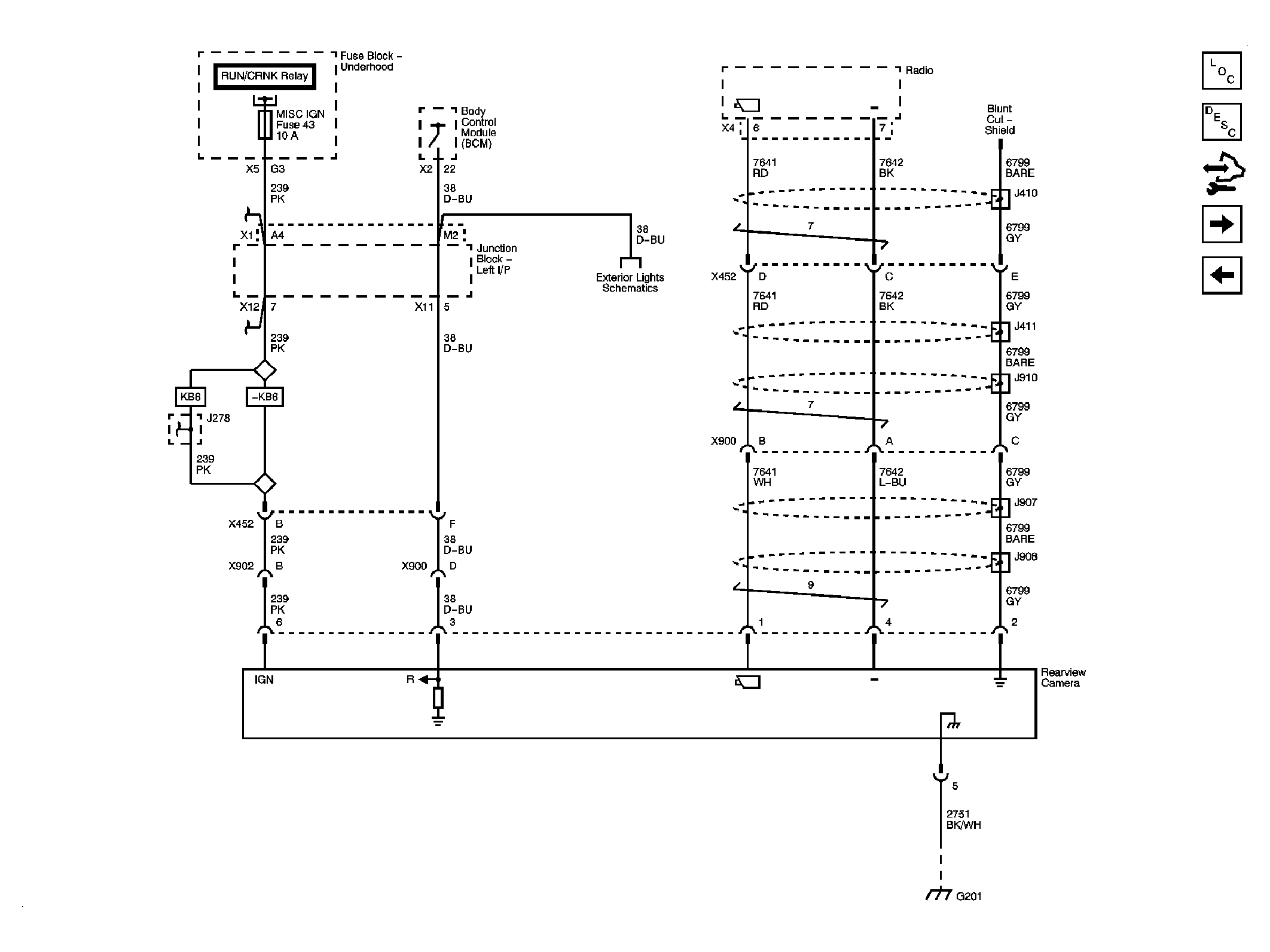

Fig 5: SPO Accessory Rear Vision Camera

Courtesy of GENERAL MOTORS CORP.

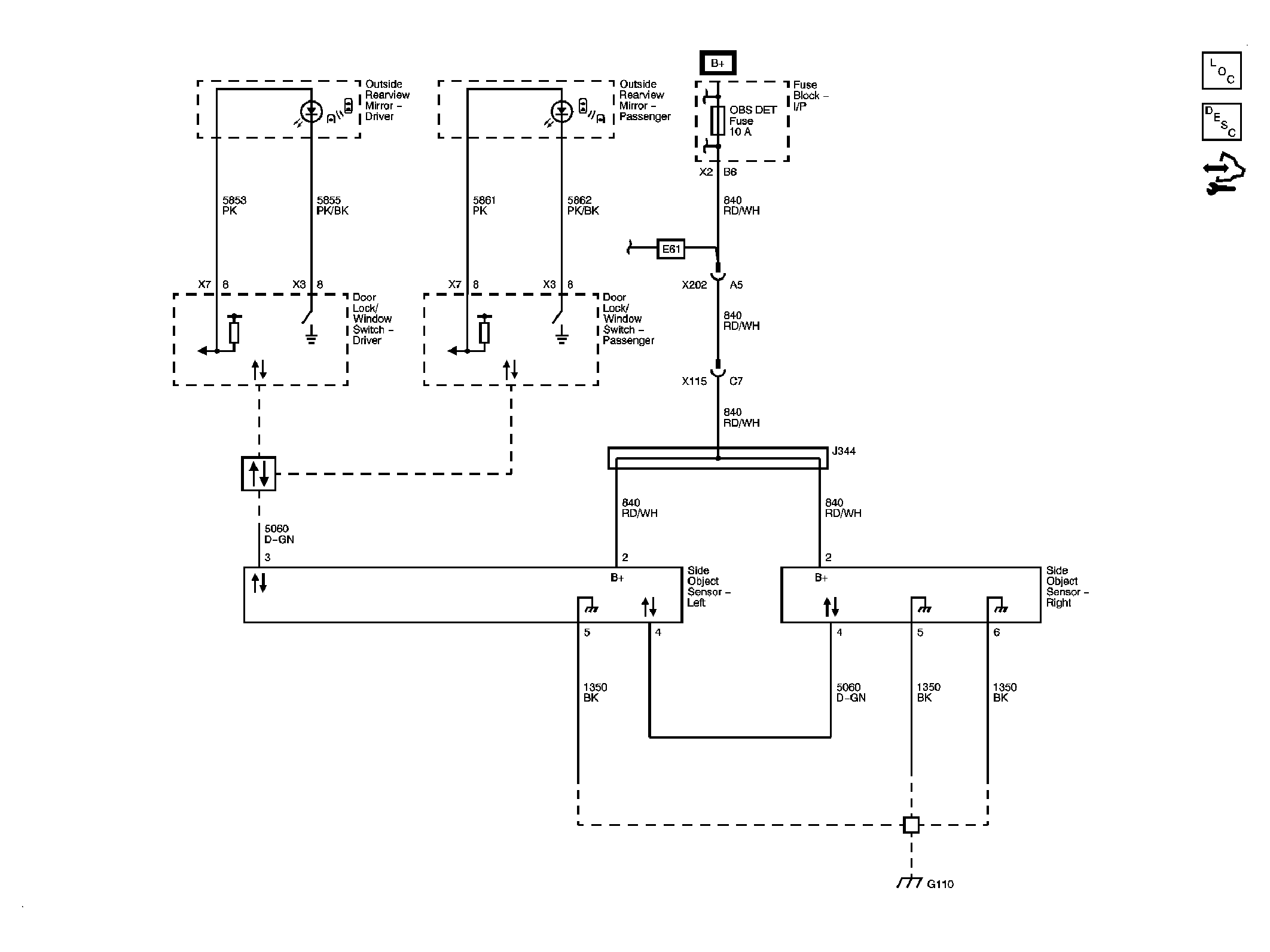

Fig 6: Side Object Detection - UFT

Courtesy of GENERAL MOTORS CORP.
