Moveable Window Schematics

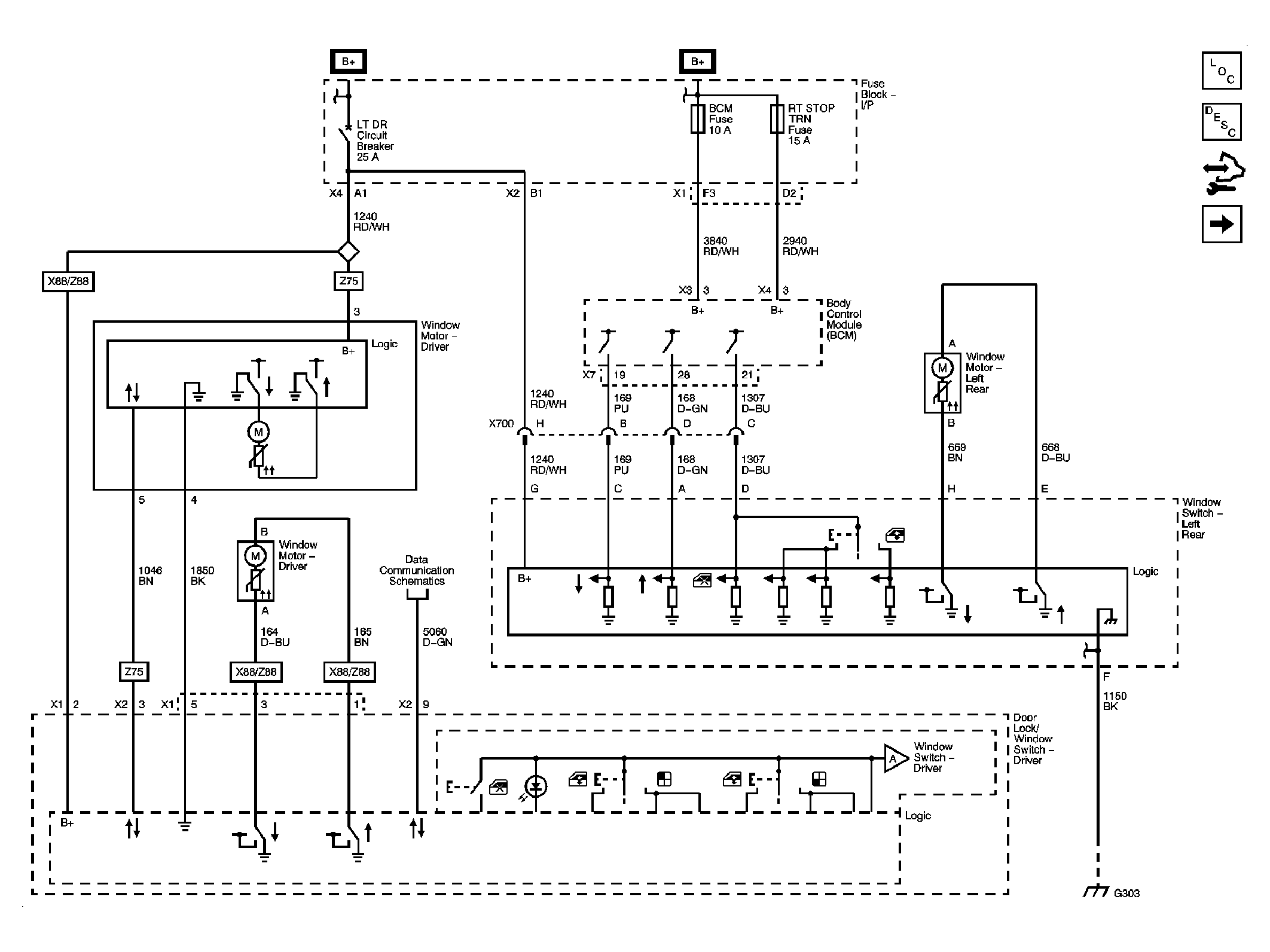

Fig 1: Left
GM2075235Courtesy of GENERAL MOTORS CORP.

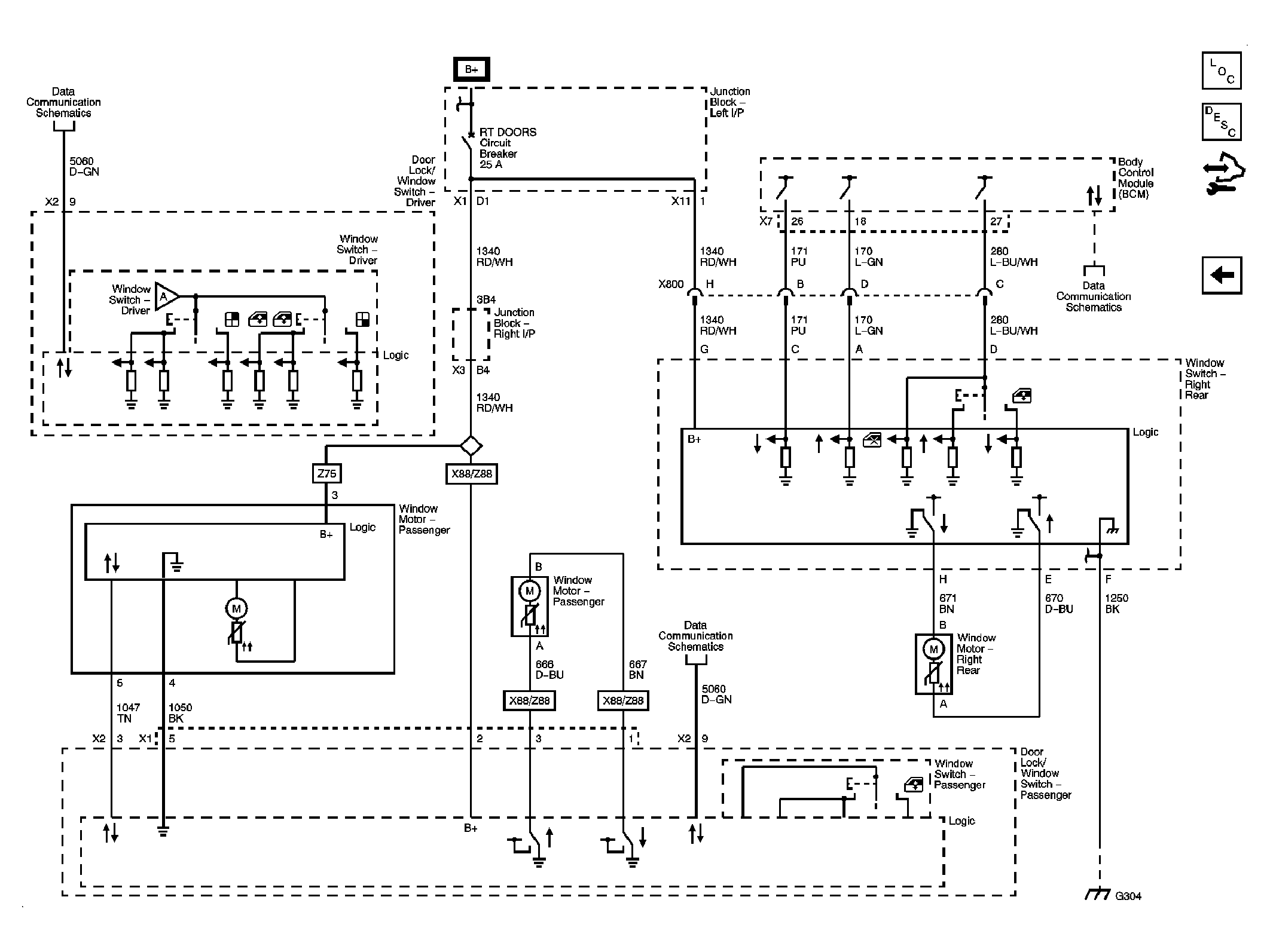

Fig 2: Right
GM2075237Courtesy of GENERAL MOTORS CORP.
