Resonator Replacement (2-Mode)

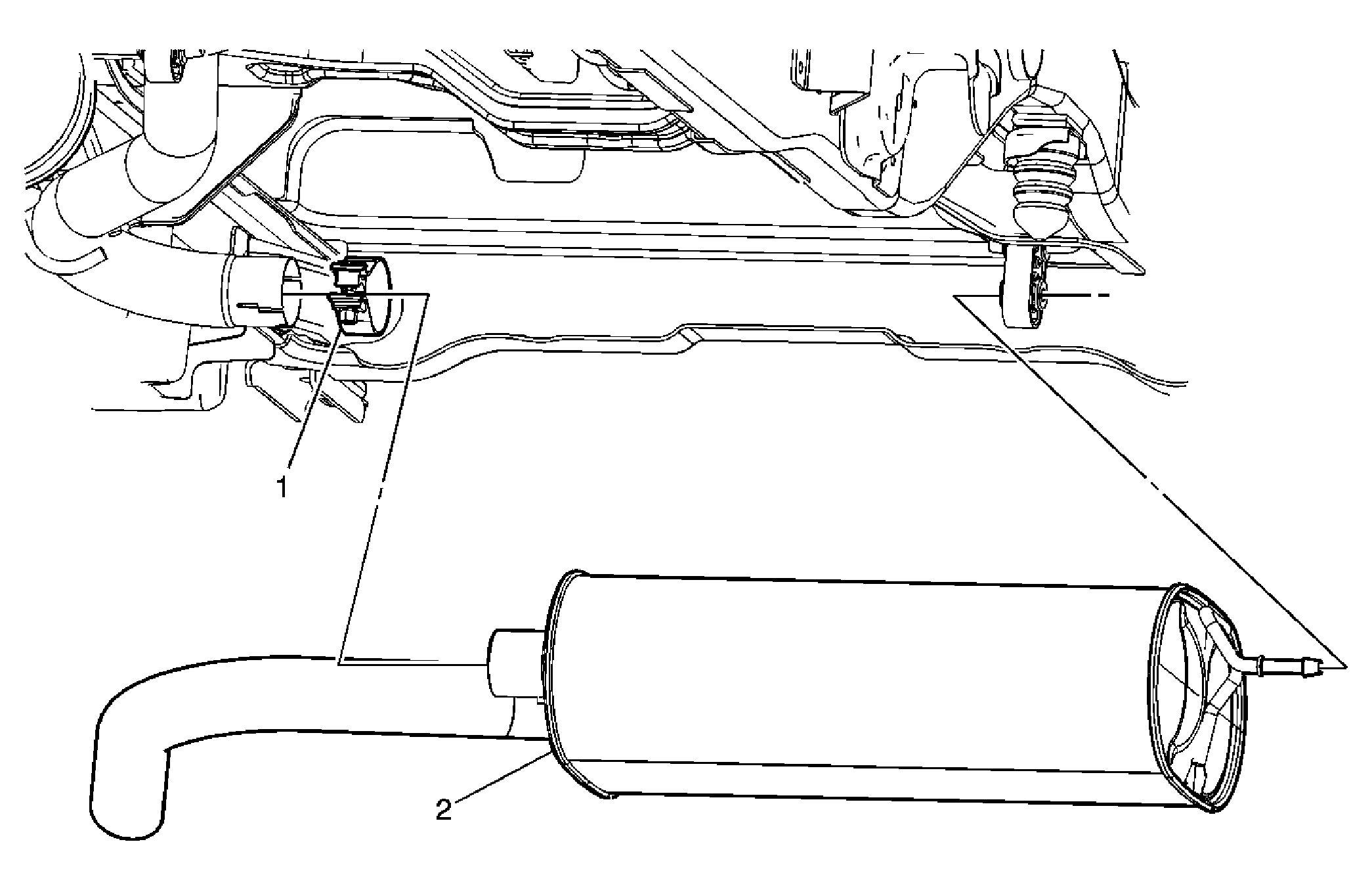

Fig 1: Resonator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
1	Clamp CAUTION: Refer to Fastener Caution . Tighten:  55 N.m (40 lb ft)
2	Exhaust Resonator Procedure:  Disengage the resonator from the insulators.
