Cadillac
›
2009
›
SRX 3.6 7, AWD
›
Repair and Diagnosis
›
Accessories & Equipment
›
Collision/Avoidance
›
Object Detection System
›
Schematic and Routing Diagrams
›
Object Detection Schematics
Object Detection Schematics

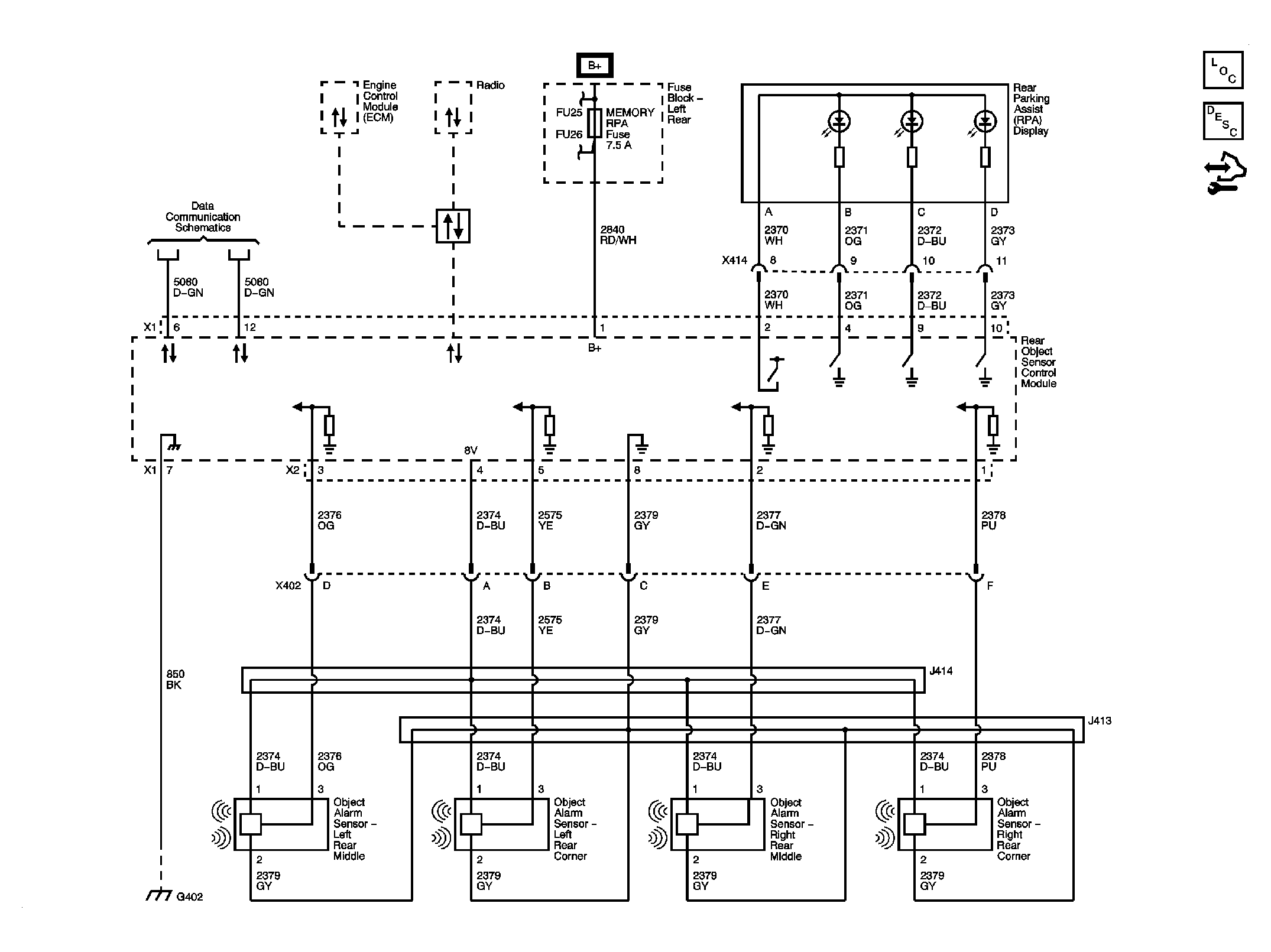

Fig 1: Object Detection Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
