Installation Procedure

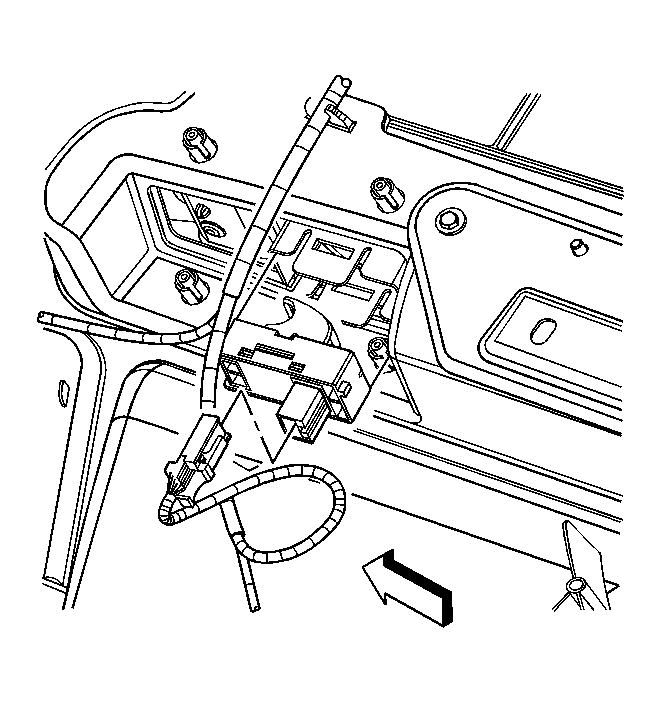

    Fig 1: View Of Rear Door Power Window Switch
    GM1464756Courtesy of GENERAL MOTORS CORP.
  1. Push the switch into the door trim panel in order to secure the mounting tabs.
  2. Connect the electrical connectors.
  3. Install the door trim panel. Refer to Rear Side Door Trim Panel Replacement .
