Boost Control System Description: Notes

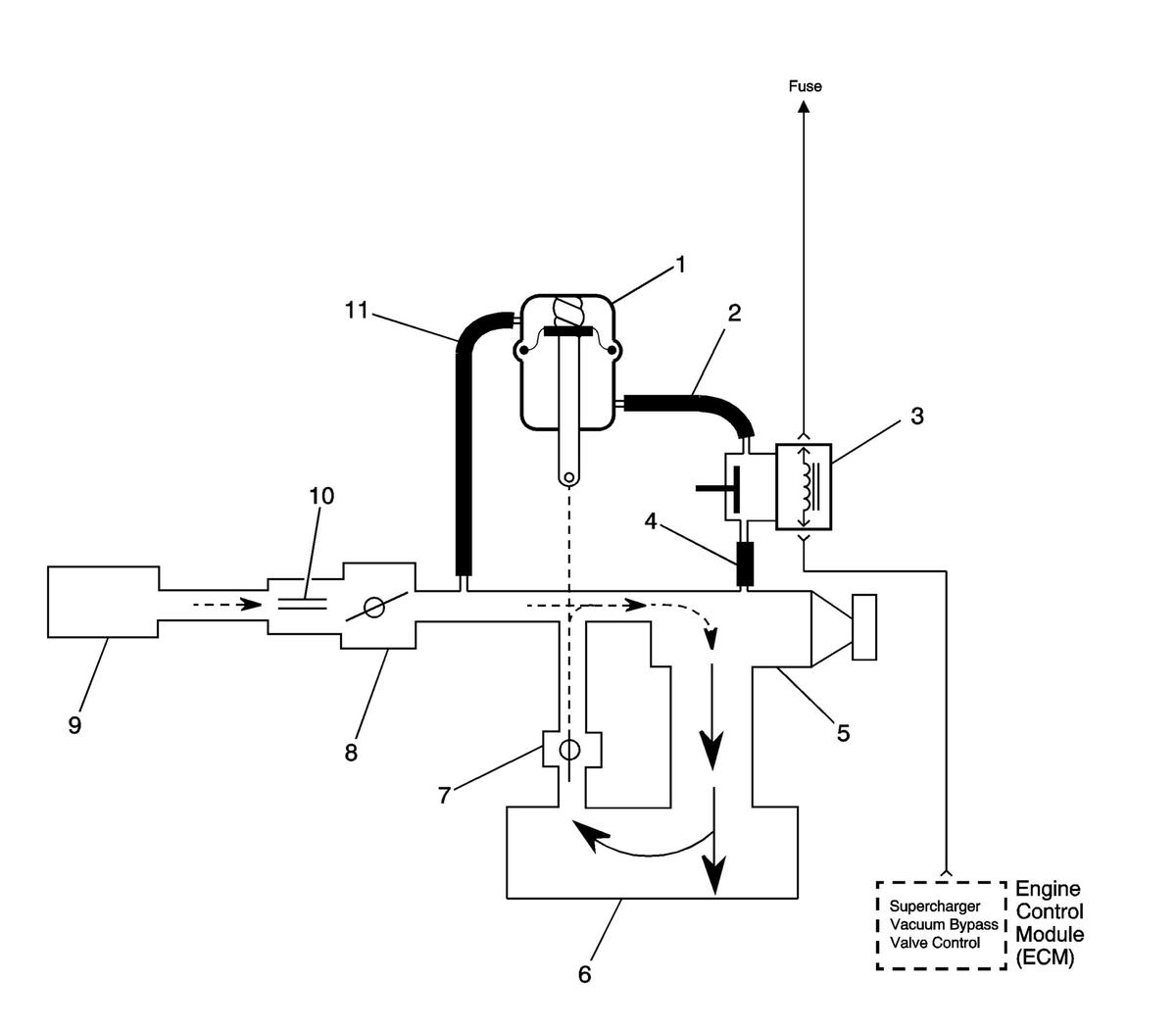

Fig 1: Identifying Boost Control System (By-Pass Valve Open)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	By-pass Valve Actuator
2	Boost Signal
3	Boost Control Solenoid
4	Boost Vacuum Source
5	Supercharger
6	Intake Plenum
7	By-pass Valve (normally closed)
8	Throttle Body
9	Air Cleaner
10	MAF Sensor
11	Inlet Vacuum Signal
