Front Passenger Door Module

WARNING: This page is about a different car, the 2013 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

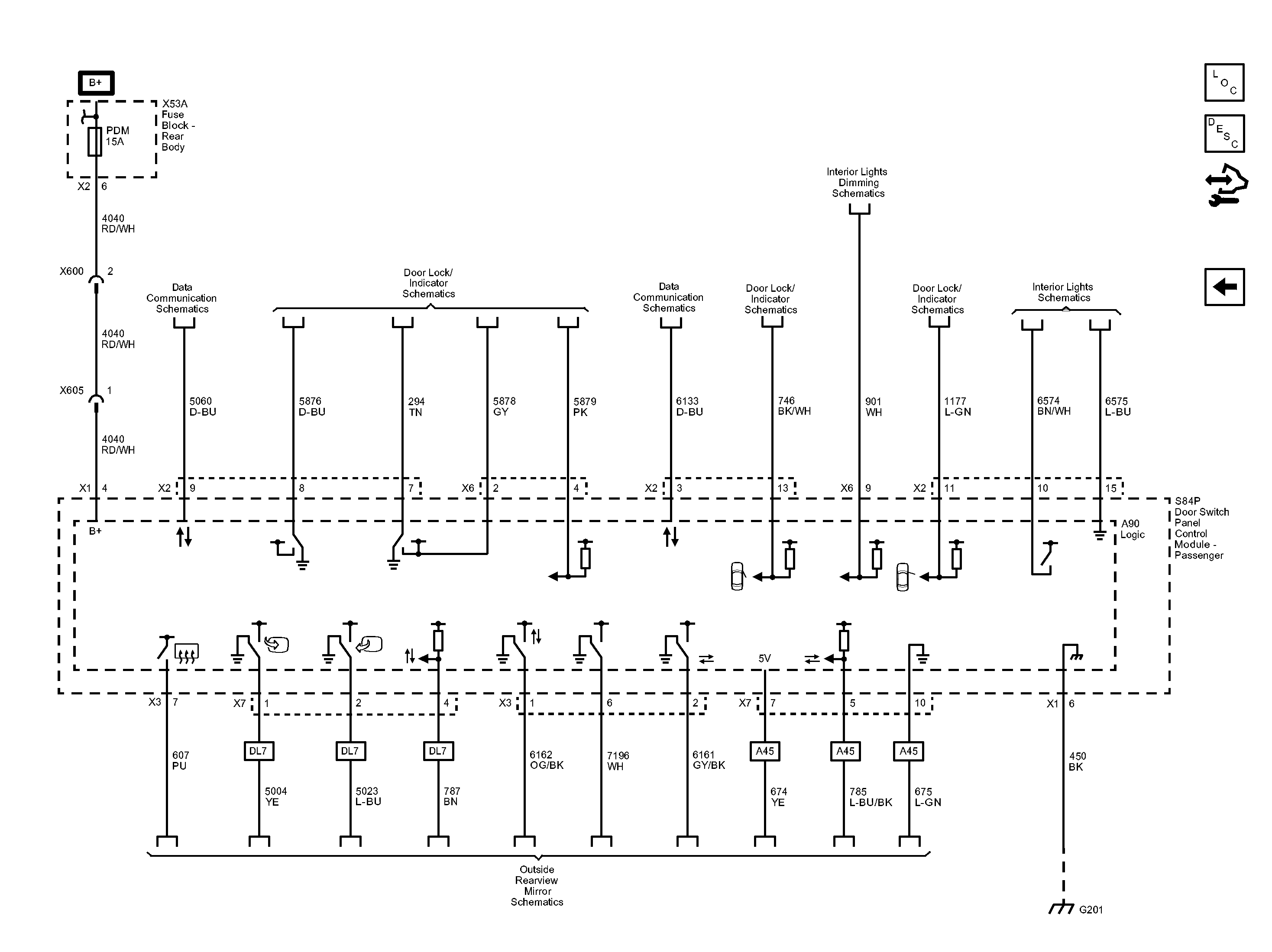

Fig 1: Front Passenger Door Module Wiring Schematics
GM2778988Courtesy of GENERAL MOTORS COMPANY
