Installation Procedure

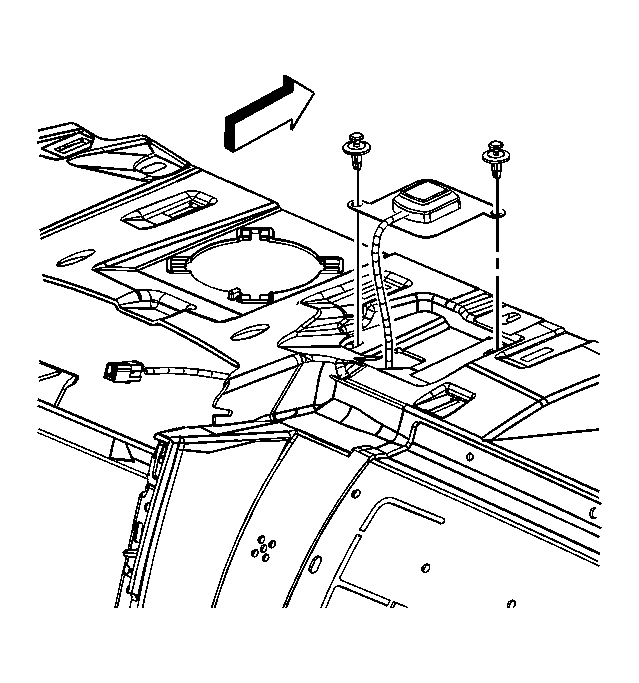

Fig 1: View Of Global Positioning System Antenna & Plastic Rivet Retainers

Courtesy of GENERAL MOTORS CORP.

Install the GPS antenna and the coaxial lead to the I/P carrier and route the coaxial lead to the radio.
Install the GPS antenna loop lead to the HVAC duct work.
Install the GPS antenna to the retaining clip at the rear of the radio.
Install the radio. Refer to Radio Replacement .
Install 2 plastic rivets to secure the GPS antenna to the I/P carrier.
Install the I/P trim pad. Refer to Instrument Panel Trim Pad Replacement .
