Moveable Window Schematics

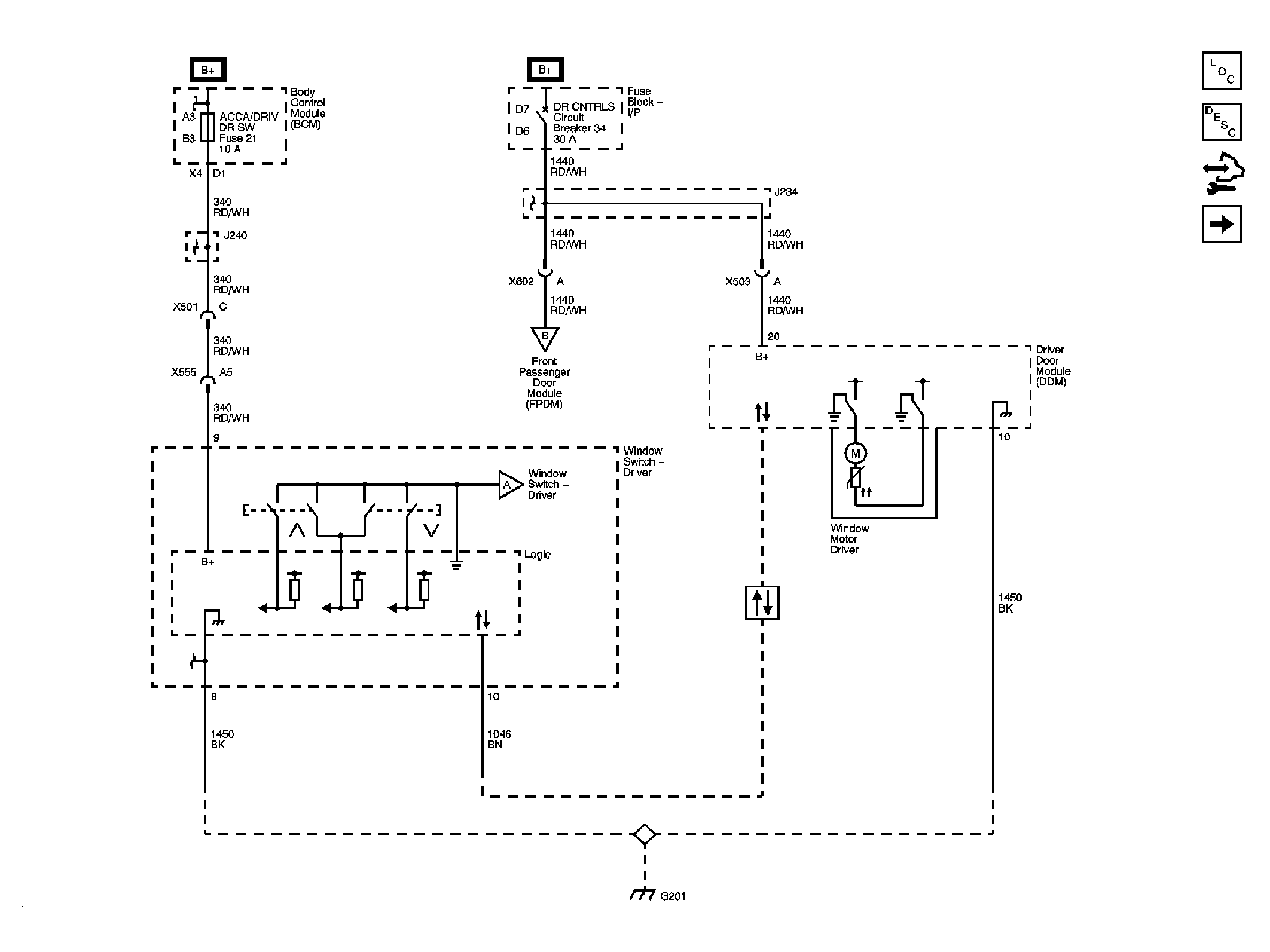

Fig 1: Driver
GM2075844Courtesy of GENERAL MOTORS CORP.
Fig 2: Passenger
GM2075846Courtesy of GENERAL MOTORS CORP.
