Body Control System Schematics

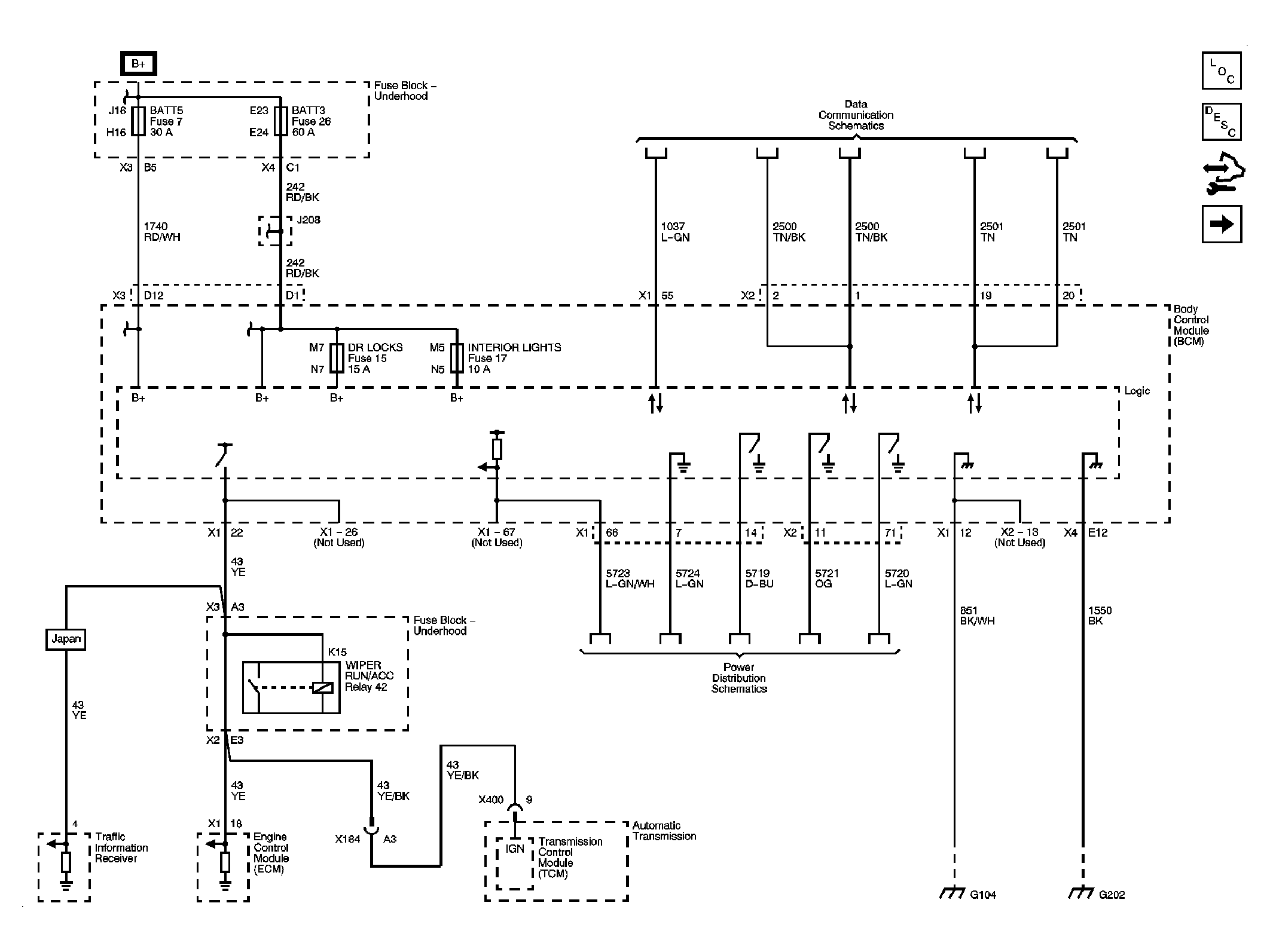

Fig 1: Power, Ground & DLC

Courtesy of GENERAL MOTORS CORP.

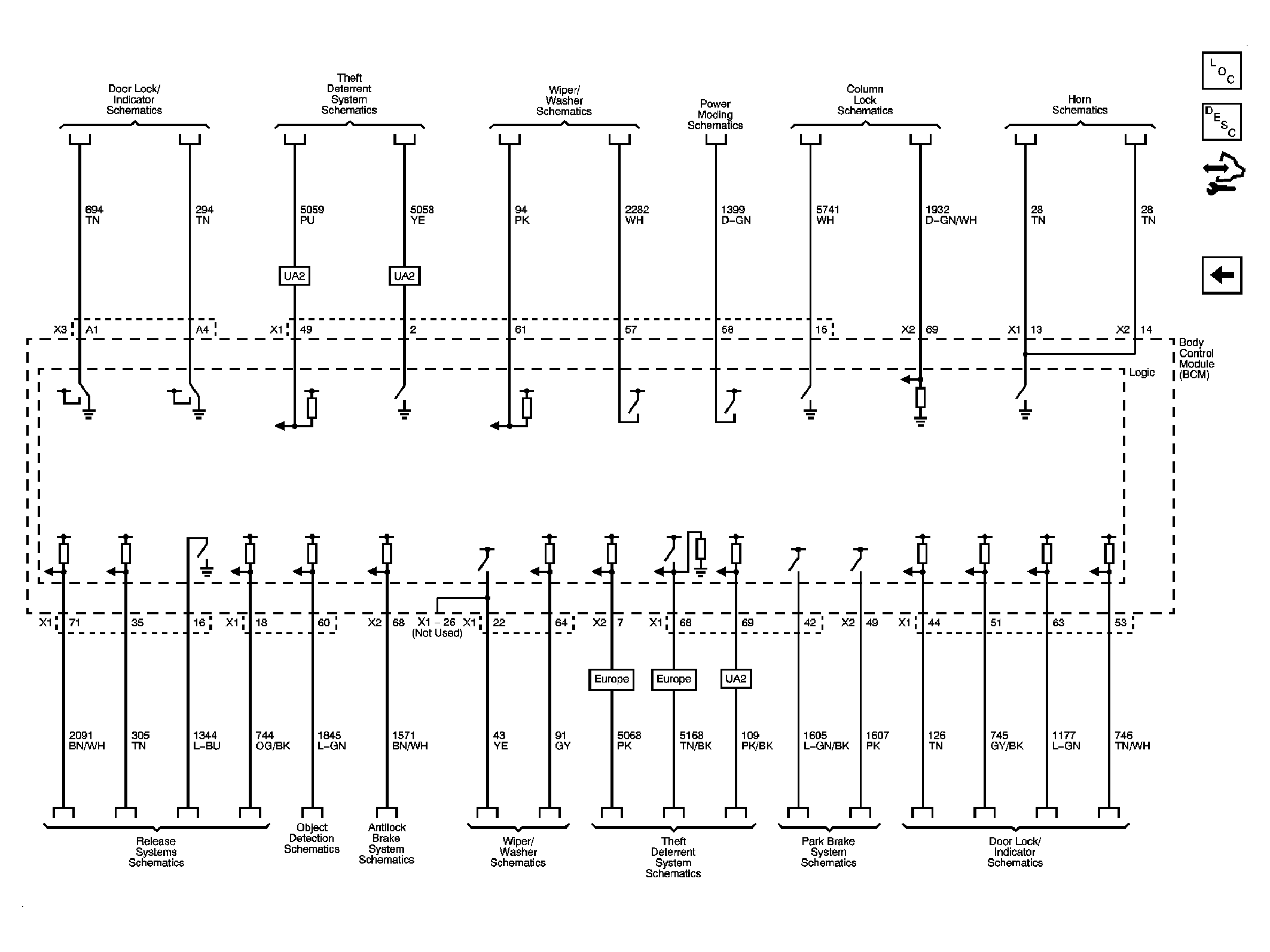

Fig 2: Headlights/DRL & Exterior Lights References (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

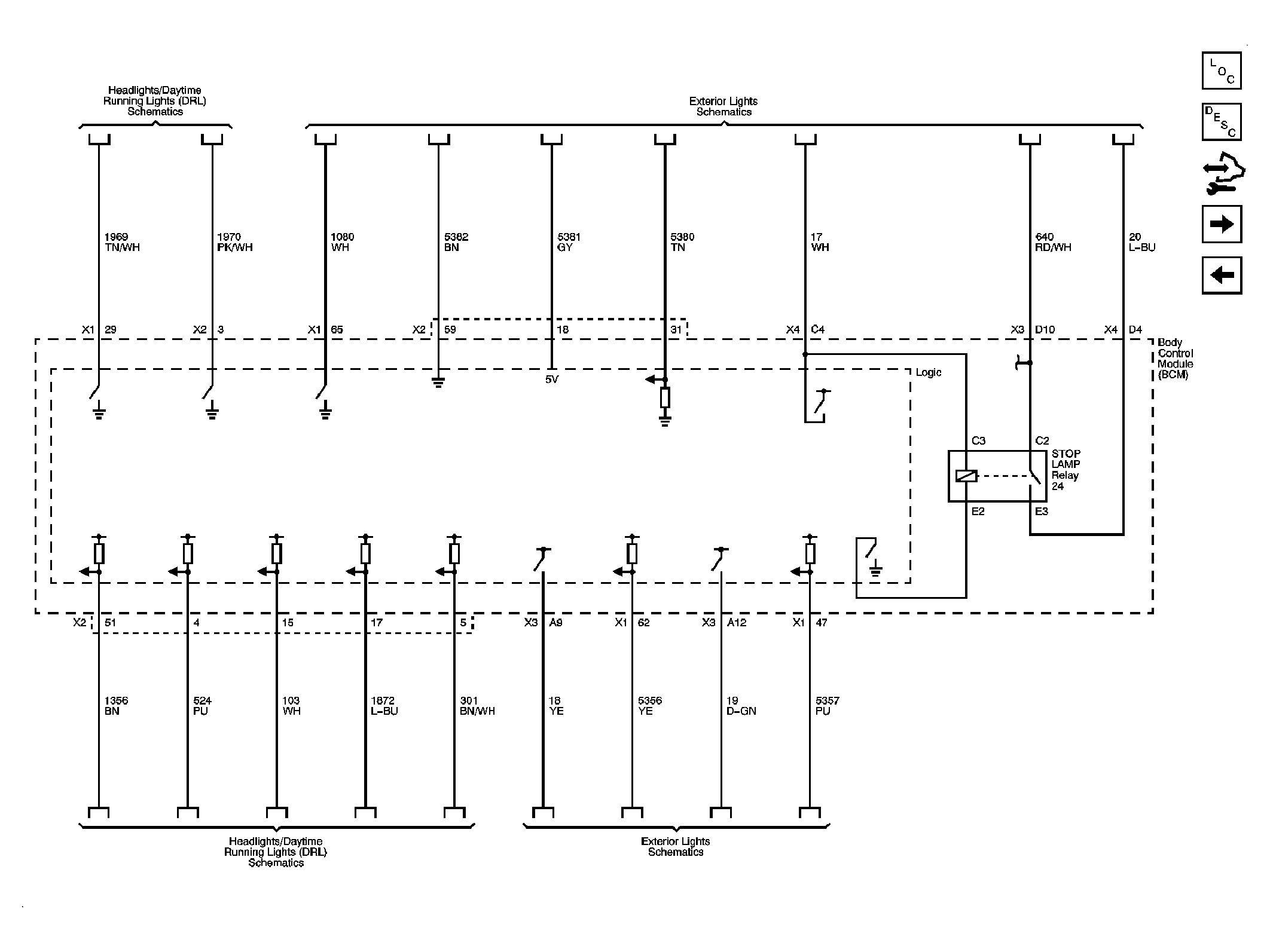

Fig 3: Exterior Lights (2 Of 2), Interior Lights & Fog Lights References

Courtesy of GENERAL MOTORS CORP.

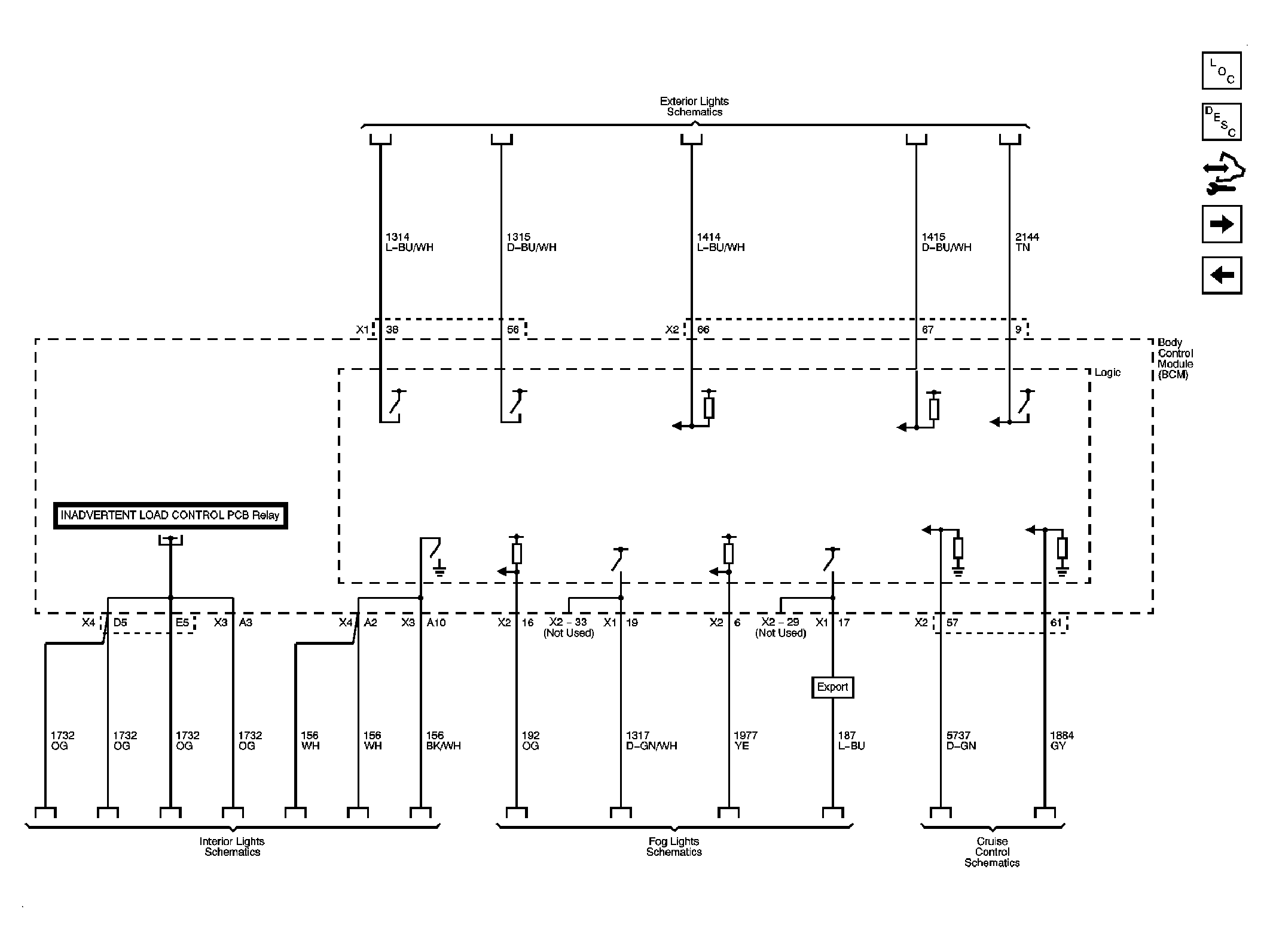

Fig 4: Other Subsystem References

Courtesy of GENERAL MOTORS CORP.
