Data Communication System
›
Schematic and Routing Diagrams
›
Data Communication Schematics
Data Communication Schematics

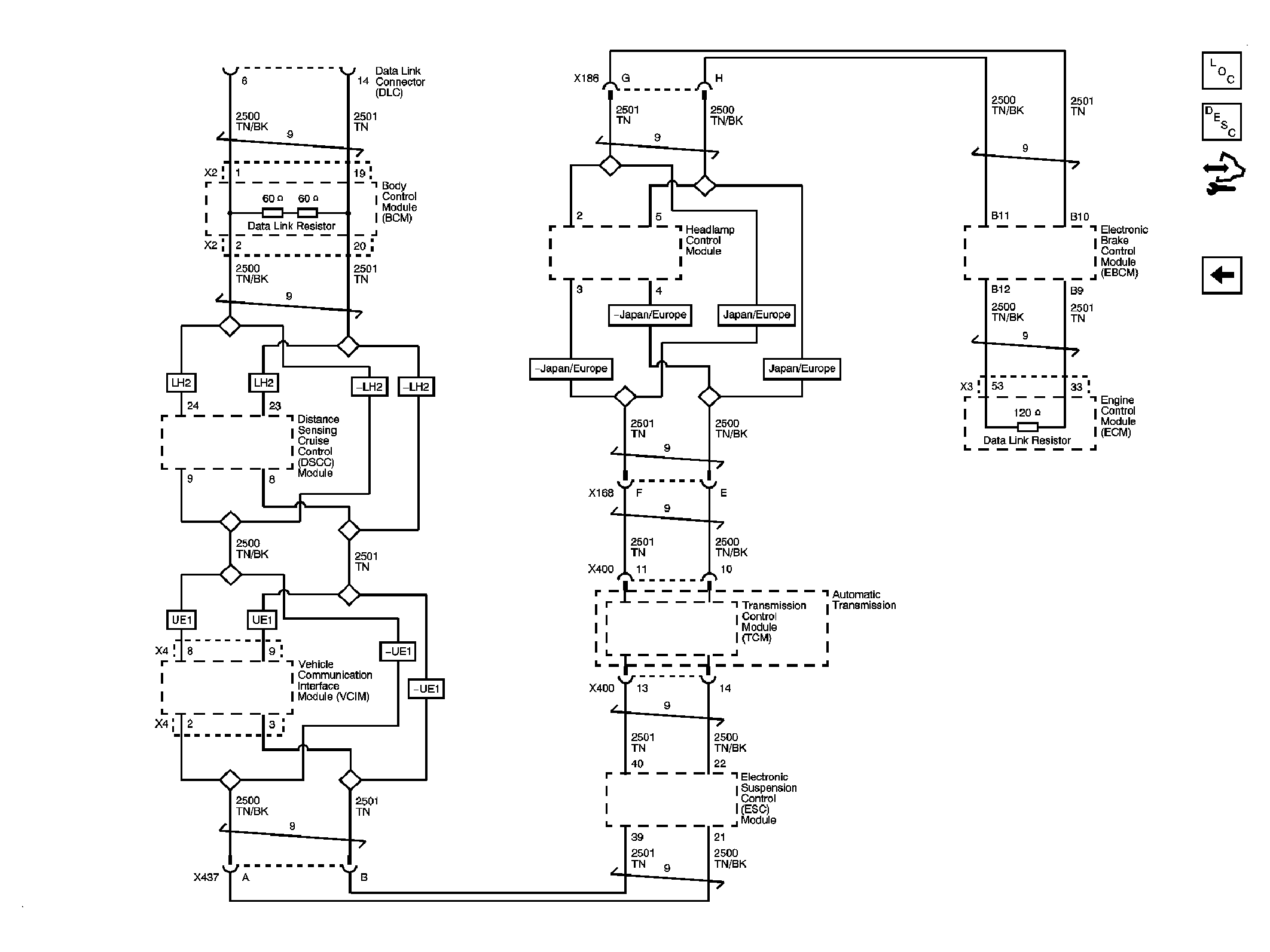

Fig 1: Power, Ground, & Class 2
Courtesy of GENERAL MOTORS CORP.

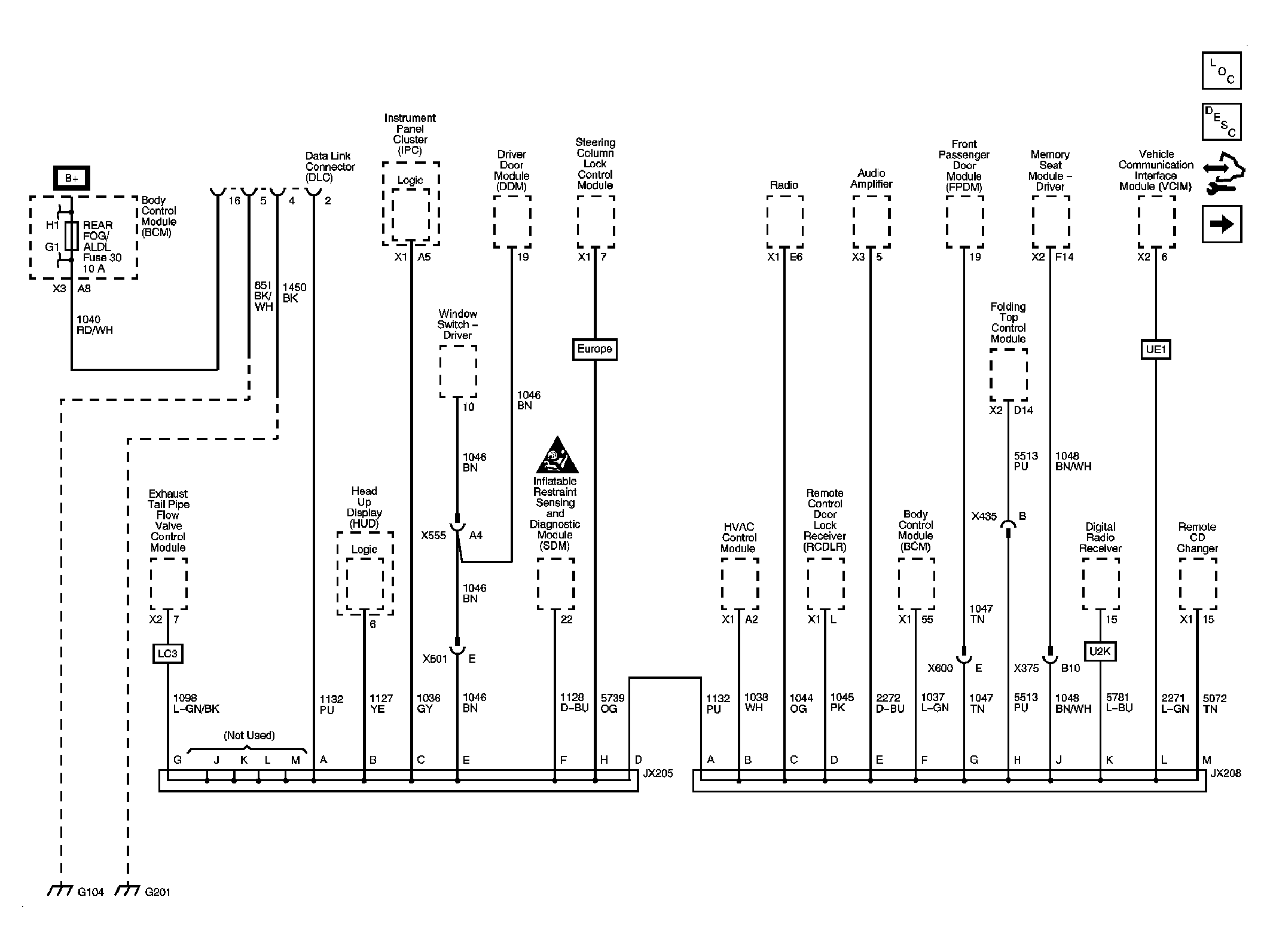

Fig 2: GMLAN
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
