Video System Schematics

WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

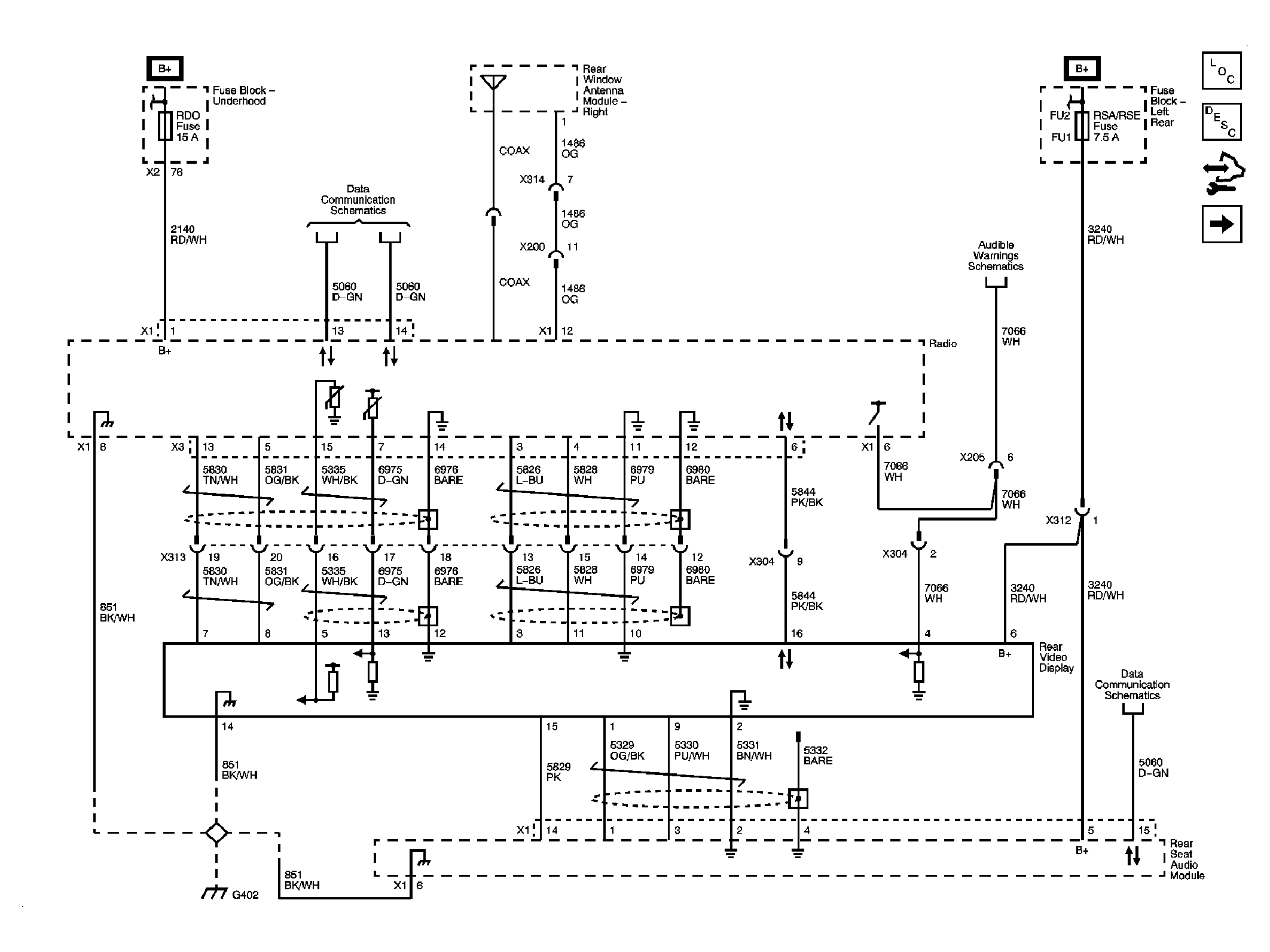

Fig 1: Rear Video Display U42

Courtesy of GENERAL MOTORS CORP.

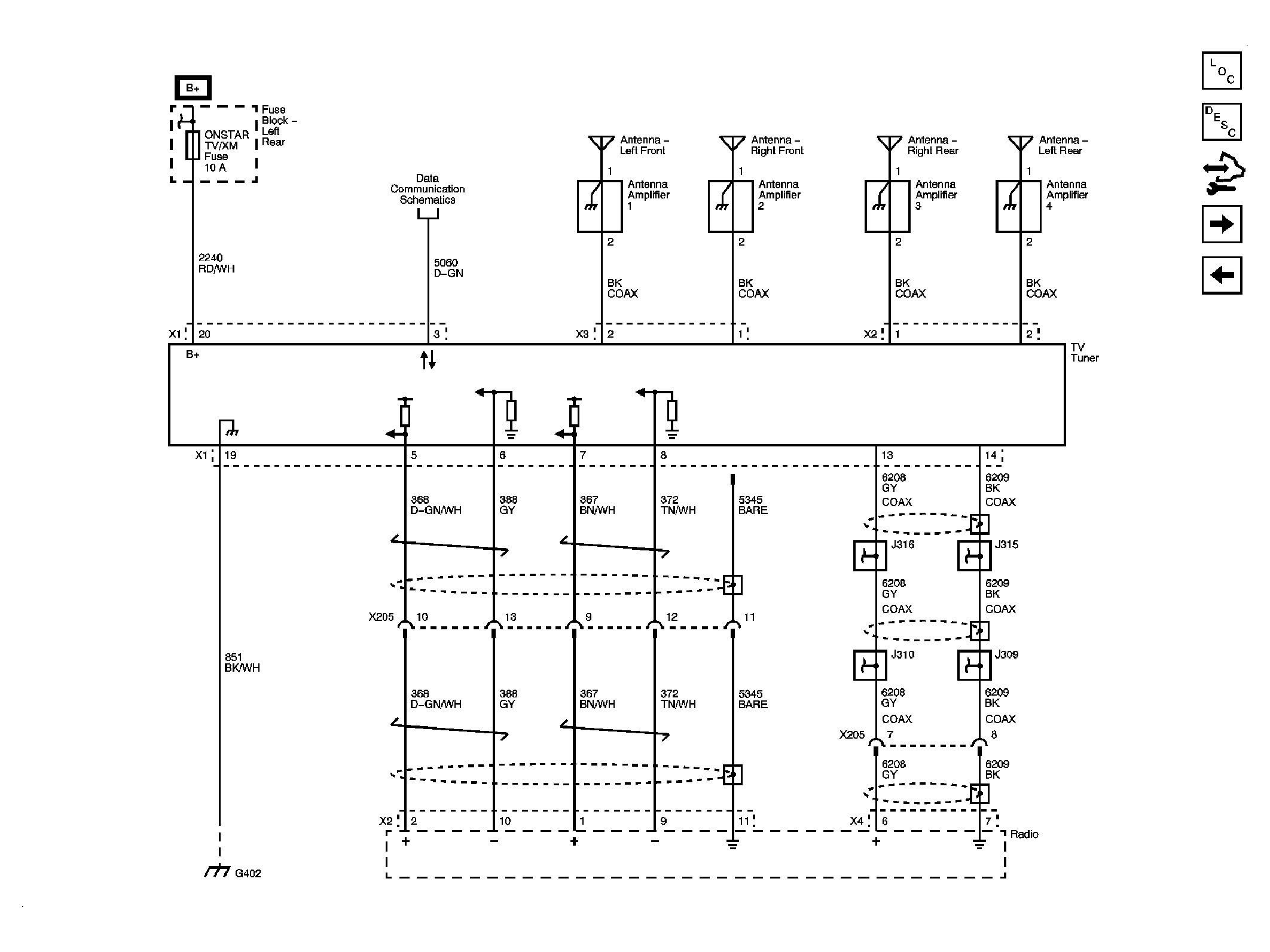

Fig 2: TV Tuner Export

Courtesy of GENERAL MOTORS CORP.

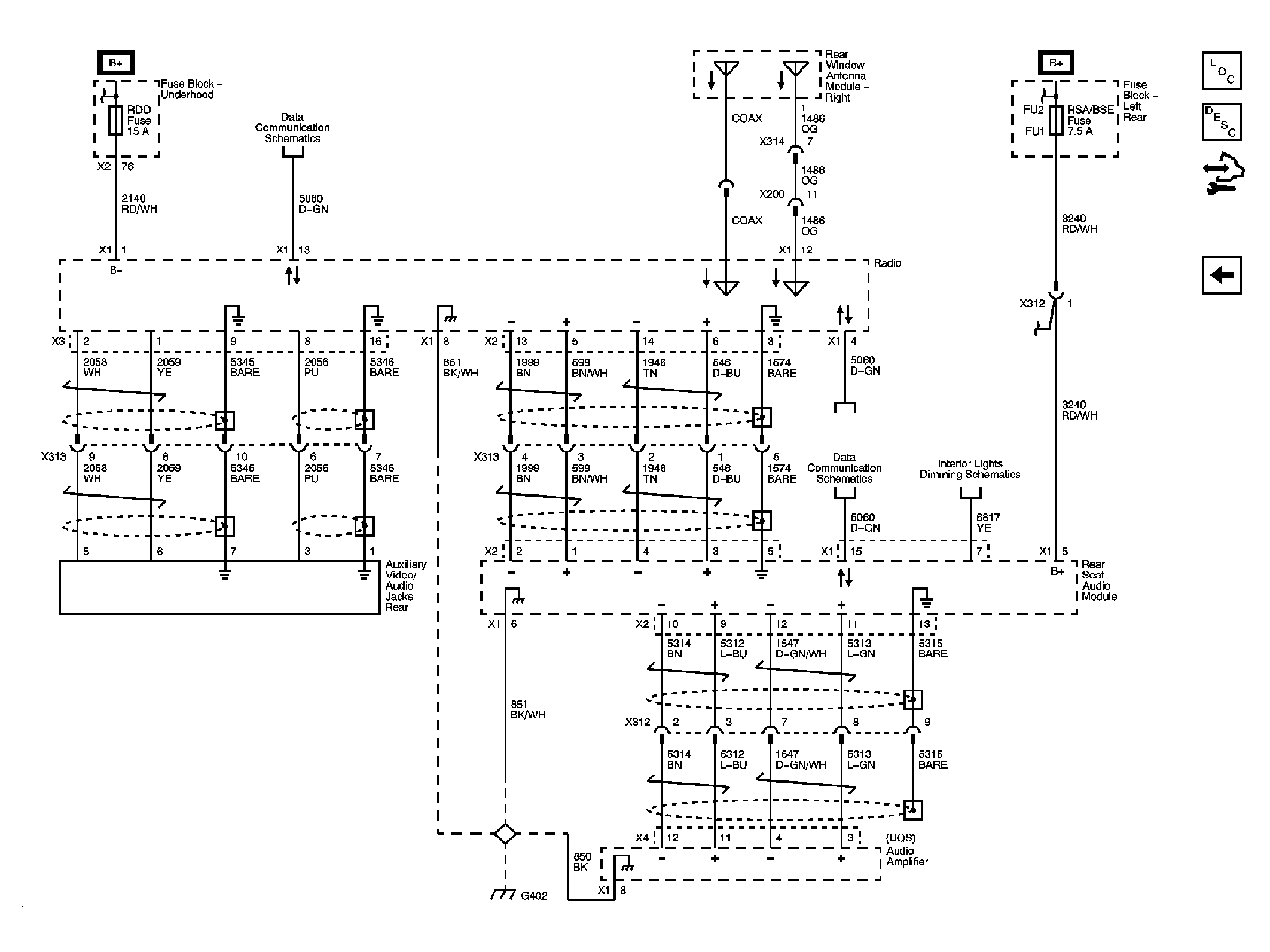

Fig 3: Rear Seat Audio and Audio/Video Jacks

Courtesy of GENERAL MOTORS CORP.
