Object Detection Schematics

WARNING: This page is about a different car, the 2008 Cadillac XLR. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Power, Ground, DLC, and Sensor Signals

Courtesy of GENERAL MOTORS CORP.

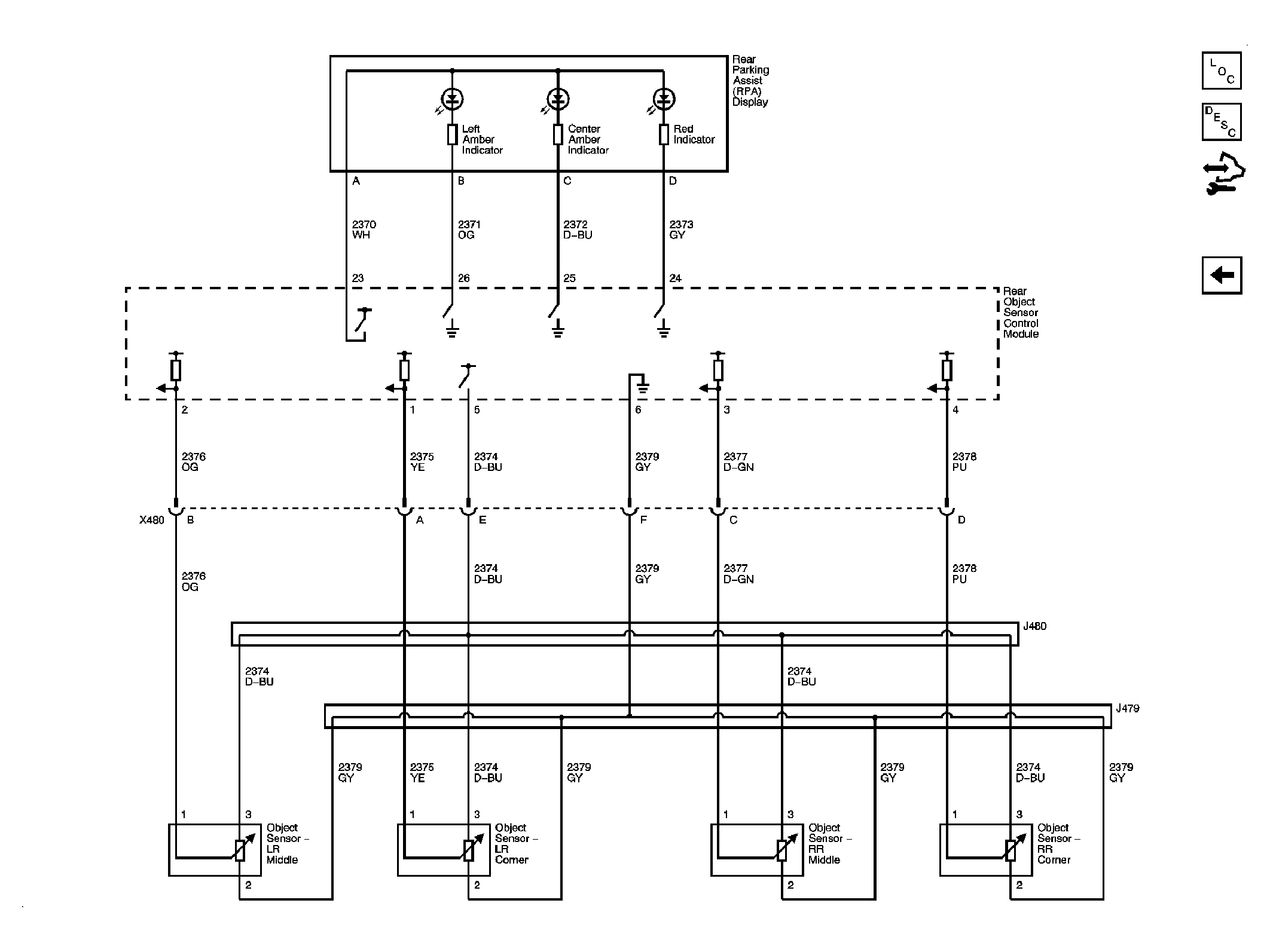

Fig 2: Display and Sensors

Courtesy of GENERAL MOTORS CORP.
