Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Washer Solvent Level Sensor Switch & Grommet
    GM786883Courtesy of GENERAL MOTORS CORP.
  1. Install the new washer solvent level sensor switch grommet (3) into the container.
  2. Install the washer solvent level sensor switch (1) into the washer solvent container.
    3. IMPORTANT: The square side (2) of the level sensor switch must point upward upon installation.
  3. Apply equal inward pressure in order to seat the level sensor switch to the grommet.

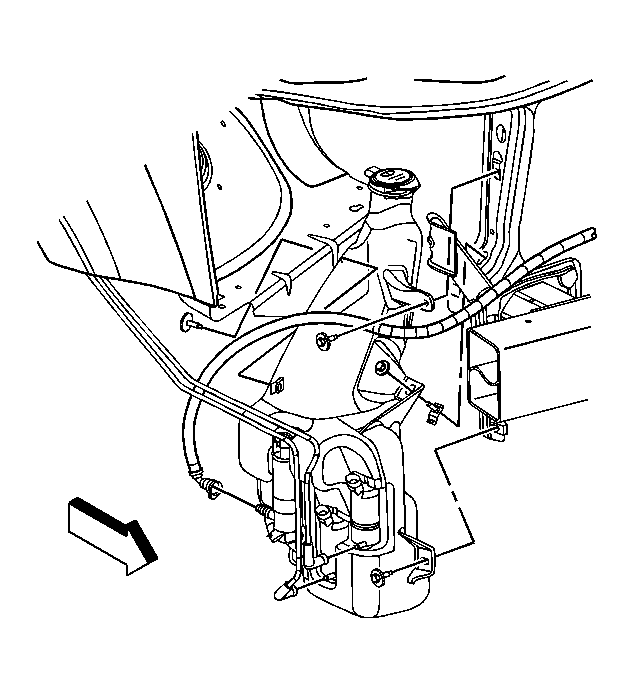

    4. Fig 2: View Of Washer Solvent Container
    GM1204260Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical connector to the washer solvent level sensor switch.
  5. Install the lower air deflector. Refer to Front Air Deflector Replacement .
  6. Fill the washer solvent container with washer solvent.
