Distance Sensing Cruise Control Module Replacement

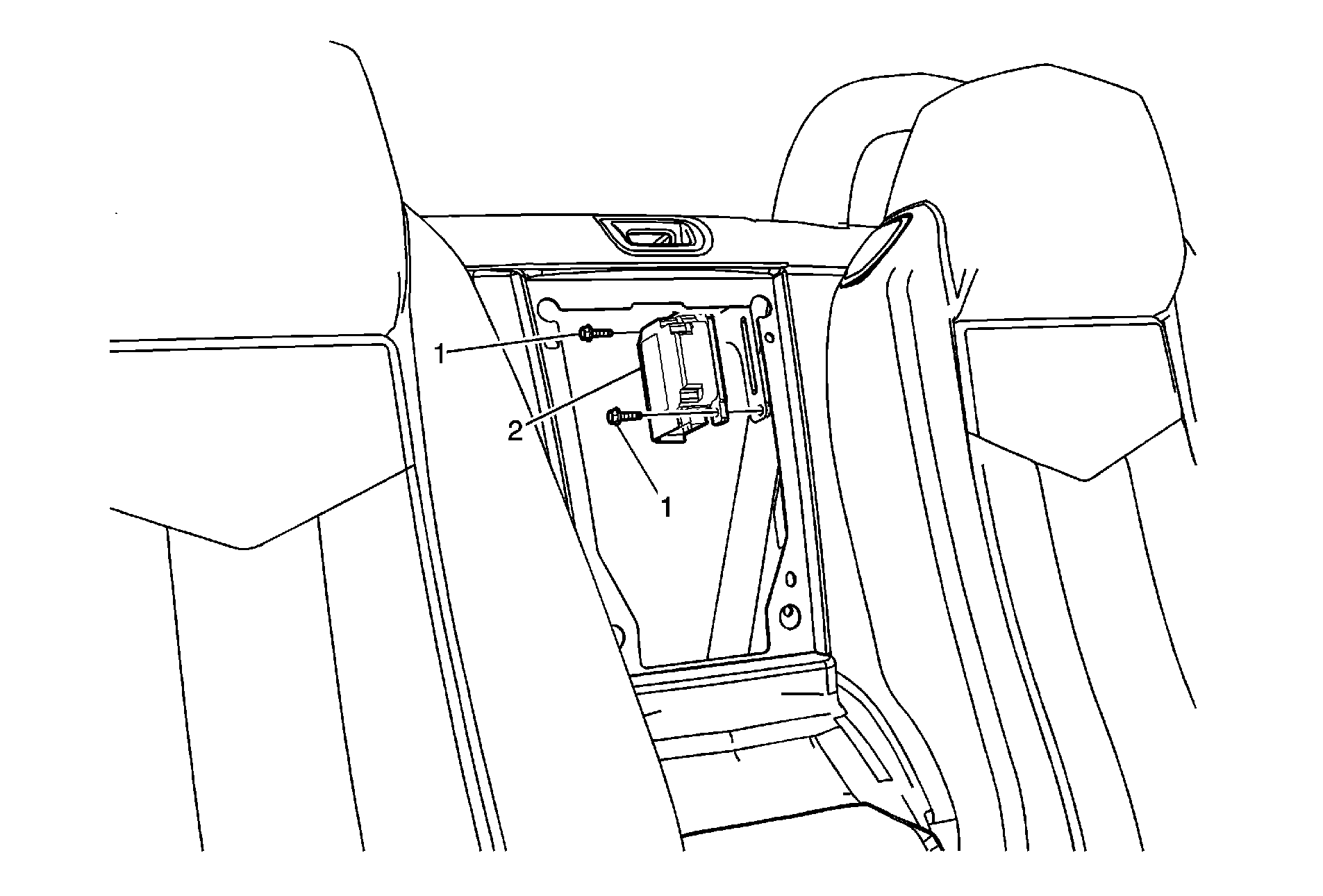

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the body rear compartment. Refer to BODY REAR COMPARTMENT REPLACEMENT . |
|
| 1 | Cruise Control Module Bolt (Qty: 2)
CAUTION:
Refer to FASTENER CAUTION
Tighten: 3 N.m (27 lb in) |
| 2 | Cruise Control Module Tip: Disconnect the electrical connector. Refer to Control Module References for programming and setup information. |
