Fuel Pump Flow Control Module Replacement (Wagon)

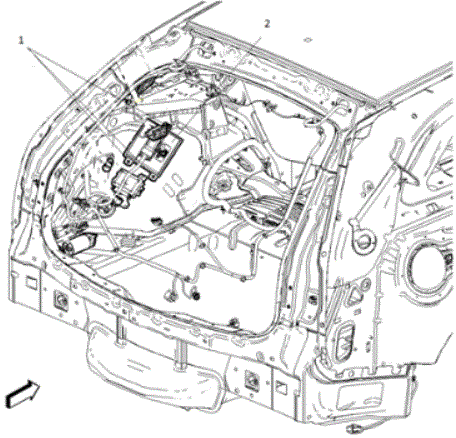

Fig 1: Identifying Fuel Pump Flow Control Module Replacement (Wagon)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: REAR COMPARTMENT FLOOR STOWAGE COMPARTMENT REPLACEMENT (WAGON) .
1	Fuel Pump Flow Control Module Fasteners (Qty 3) CAUTION: Refer to FASTENER CAUTION . Tighten 9 Nm (80 lb in). Procedure Disconnect the electrical connector. If replacing, reprogram the control module. Refer to SERVICE PROGRAMMING SYSTEM (SPS) .

Callout

Component Name

Fuel Pump Flow Control Module Fasteners (Qty 3)

CAUTION: Refer to FASTENER CAUTION .
Tighten 9 Nm (80 lb in).

Procedure

Disconnect the electrical connector.
If replacing, reprogram the control module. Refer to SERVICE PROGRAMMING SYSTEM (SPS) .
