Installation Procedure

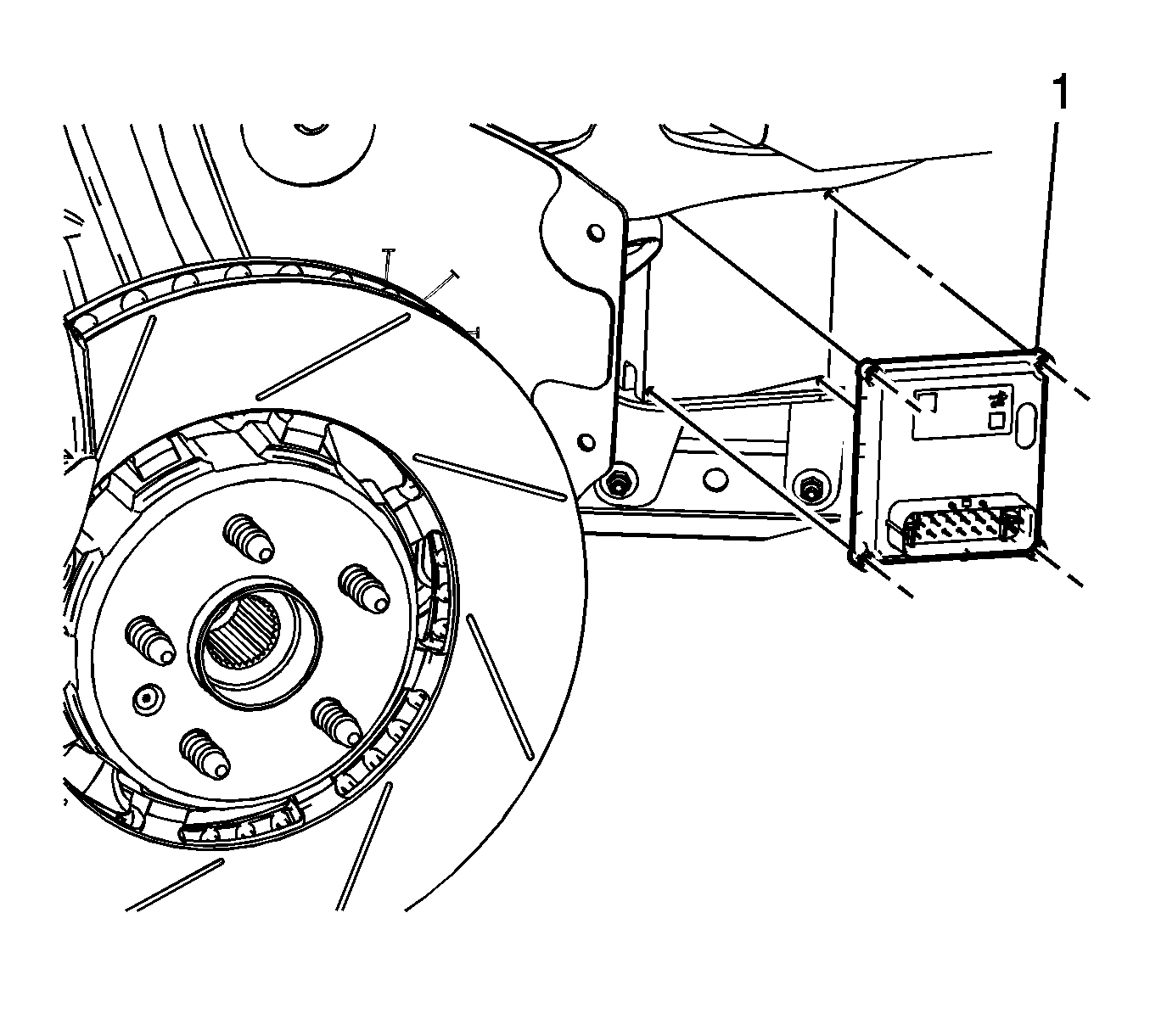

    Fig 1: View Of EBCM & Brake Pressure Modulator Valve
    GM2090845Courtesy of GENERAL MOTORS CORP.
  1. Clean the sealing surfaces of the BPMV and the EBCM.
  2. Install the EBCM (1) to the BPMV.

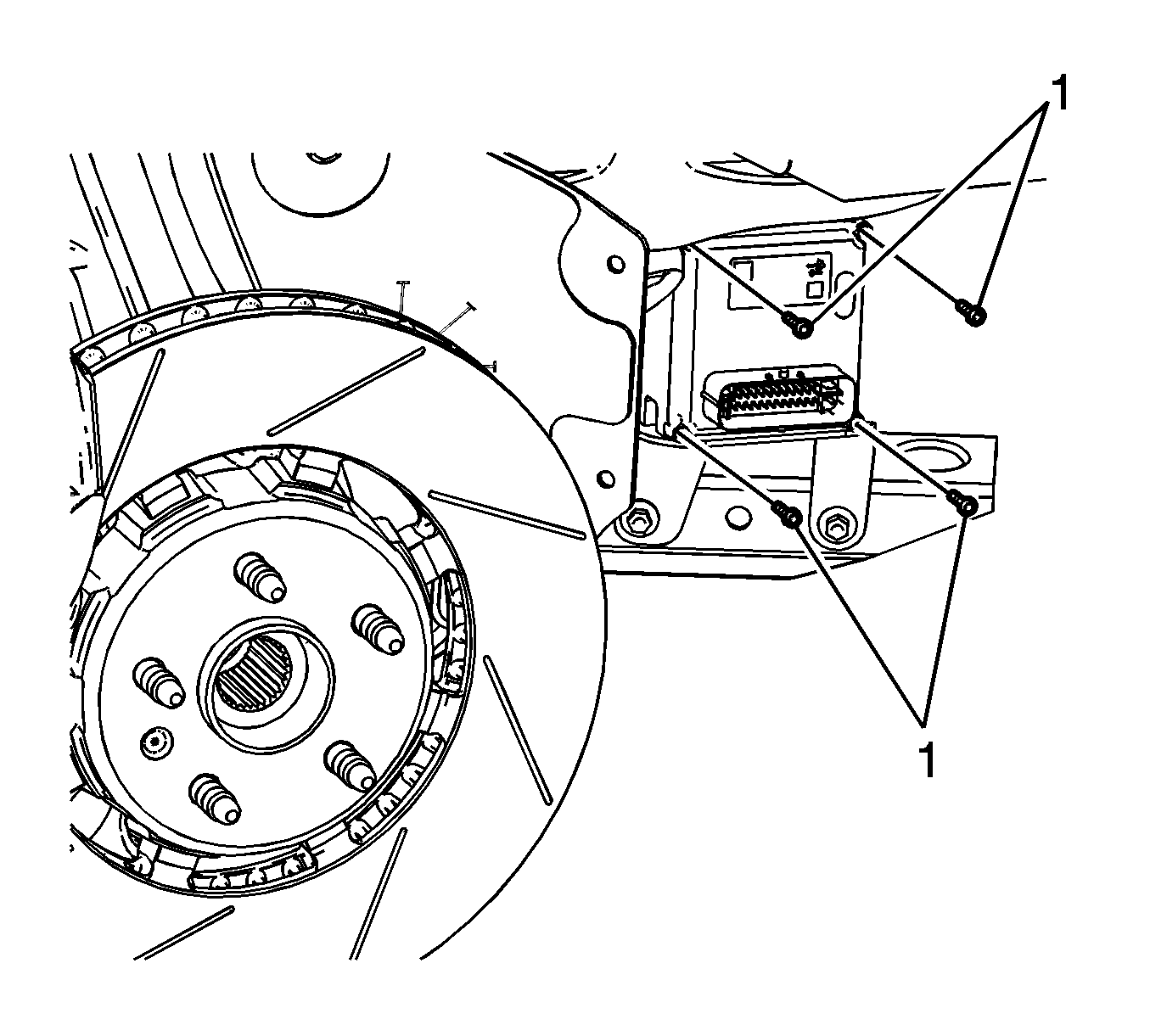

    3. Fig 2: Identifying EBCM Screws
    GM2090843Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  3. Install the EBCM screws (1) and tighten in a cross pattern to 5 N.m (44 lb in).
  4. Connect the EBCM electrical connector.
  5. Position the washer solvent container and install the fasteners. Refer to Windshield Washer Solvent Container Replacement (With CE4) or Windshield Washer Solvent Container Replacement (Without CE4) .
  6. Install the right front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
  7. Lower the vehicle.
  8. If installing a new EBCM, program the EBCM. Refer to Control Module References .
  9. Perform the Diagnostic System Check - Vehicle .
