Front of Vehicle/Engine Compartment Component Views

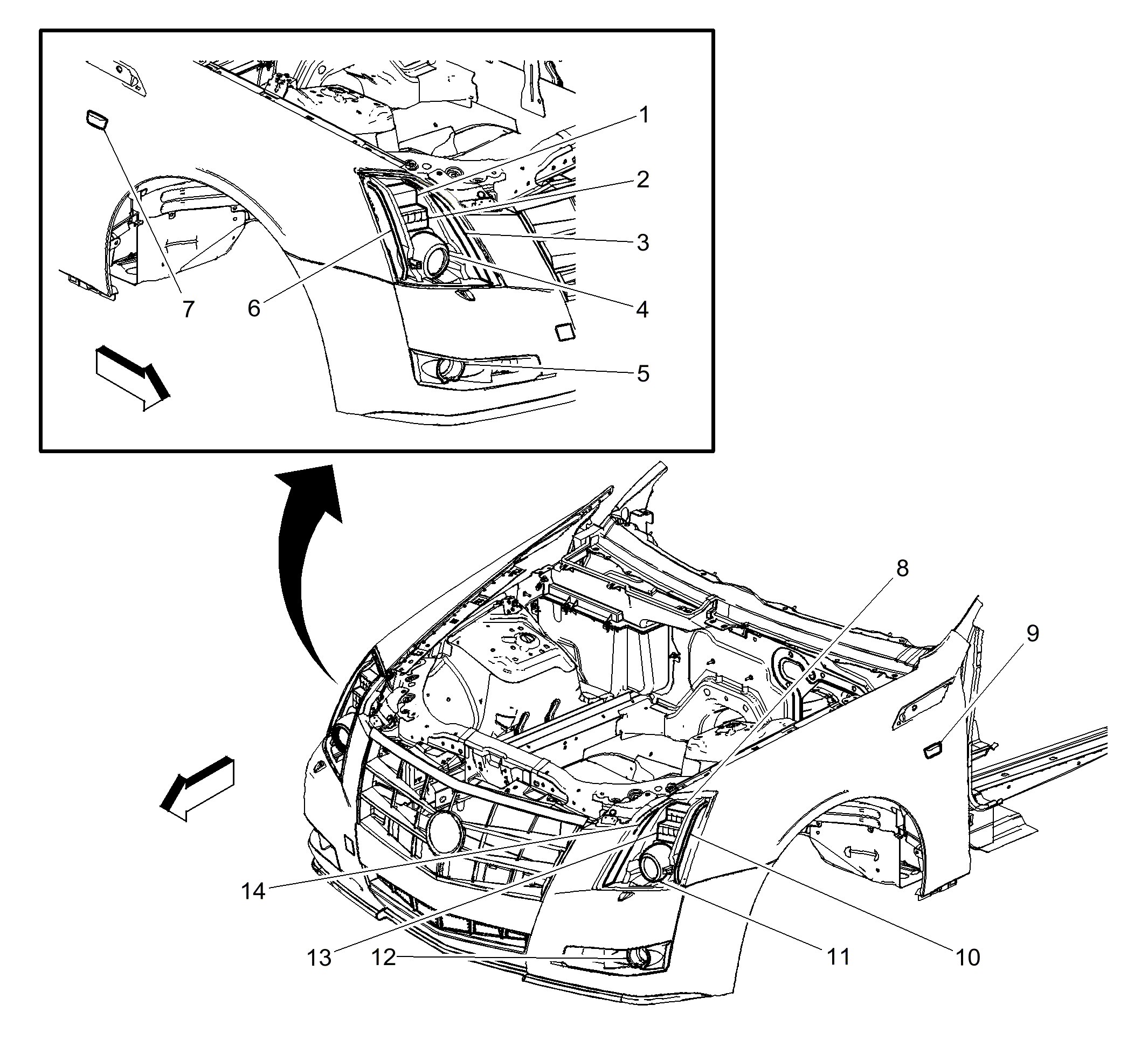

Fig 1: Front Fascia Components (except V-Series)
GM2218171Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Turn Signal Lamp - Right Front
2 Daytime Running Lamp (DRL) - Right (T4F)
3 Side Marker Lamp - Right Front (without T90)
4 Headlamp - Right High/Low Beam
5 Fog Lamp - Right Front (T96)
6 Park Lamp - Right Front
7 Turn Signal Repeater Lamp - Right Front (T90)
8 Turn Signal Lamp - Left Front
9 Turn Signal Repeater Lamp - Left Front (T90)
10 Park Lamp - Left Front
11 Headlamp - Left High/Low Beam
12 Fog Lamp - Left Front (T96)
13 Daytime Running Lamp (DRL) - Left (T4F)
14 Side Marker Lamp - Left Front (without T90)

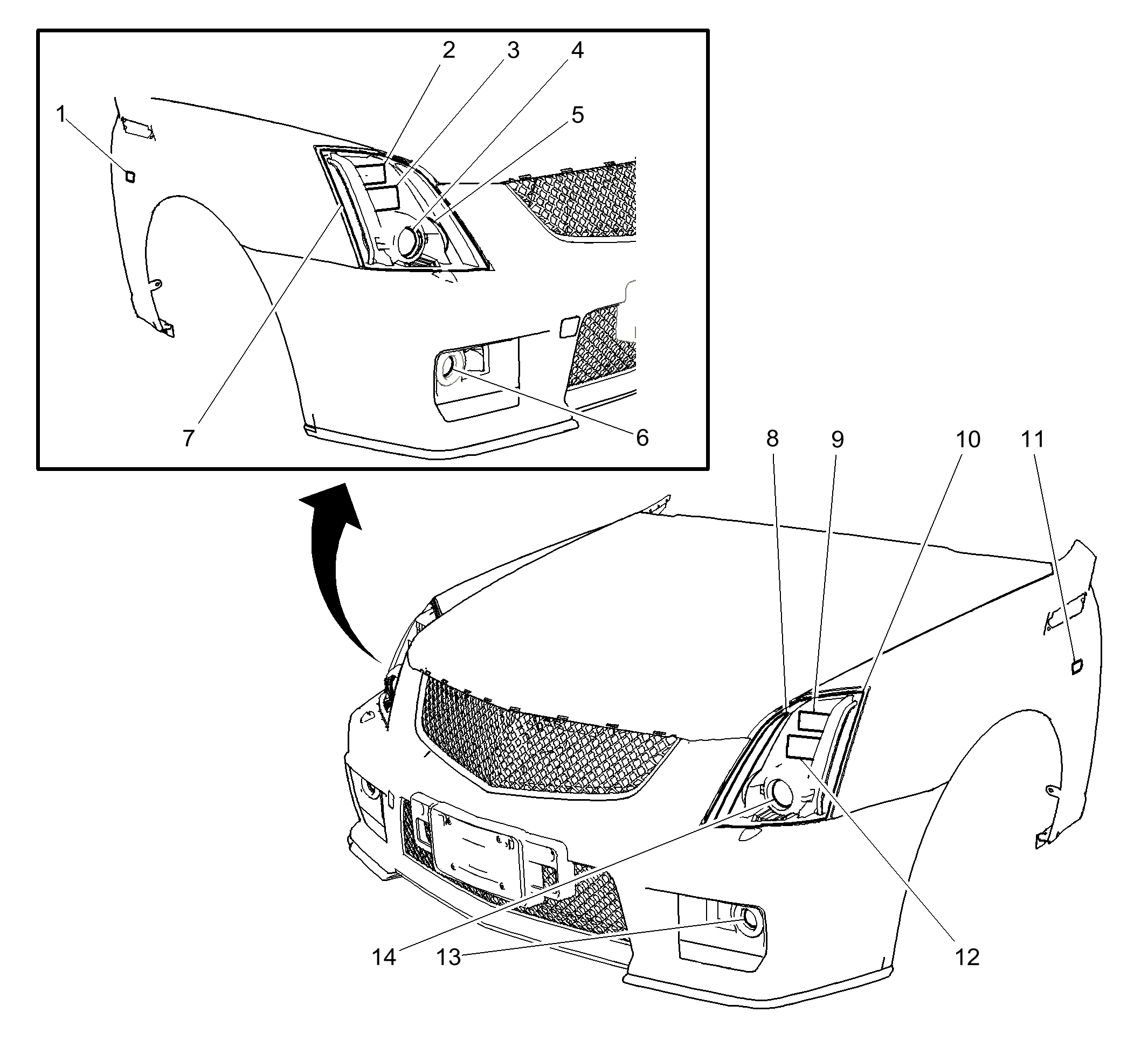

Fig 2: Front Fascia Components (V-Series)
GM2180717Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Turn Signal Repeater Lamp - Right Front (T90)
2 Turn Signal Lamp - Right Front
3 Daytime Running Lamp (DRL) - Right (T4F)
4 Headlamp - Right High/Low Beam
5 Side Marker Lamp - Right Front
6 Fog Lamp - Right Front (T96)
7 Park Lamp - Right Front
8 Side Marker Lamp - Left Front
9 Turn Signal Lamp - Left Front
10 Park Lamp - Left Front
11 Turn Signal Repeater Lamp - Left Front (T90)
12 Daytime Running Lamp (DRL) - Left (T4F)
13 Fog Lamp - Left Front (T96)
14 Headlamp - Left High/Low Beam

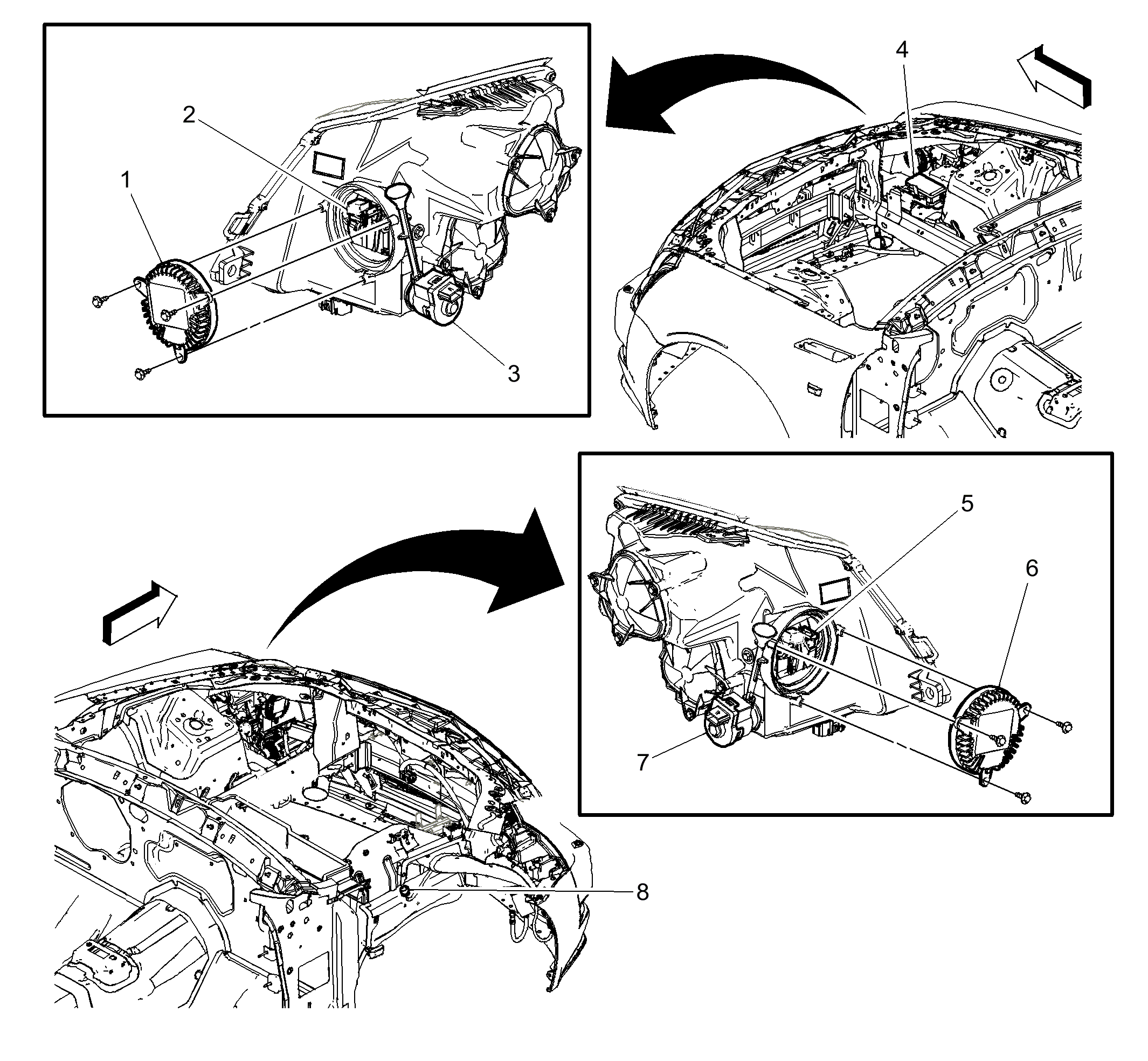

Fig 3: Headlamp Components (TR7 or T4F)
GM2218177Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headlamp Ballast - Right (T4F)
2 Headlamp Motor - Right (TR7 with T4F)
3 Headlamp Leveling Actuator - Right (TR7)
4 Headlamp Control Module (T4F)
5 Headlamp Motor - Left (TR7 with T4F)
6 Headlamp Ballast - Left (T4F)
7 Headlamp Leveling Actuator - Left (TR7)
8 Headlamp Leveling Sensor - Front (TR7 without F55) or Suspension Position Sensor - Right Front (F55)

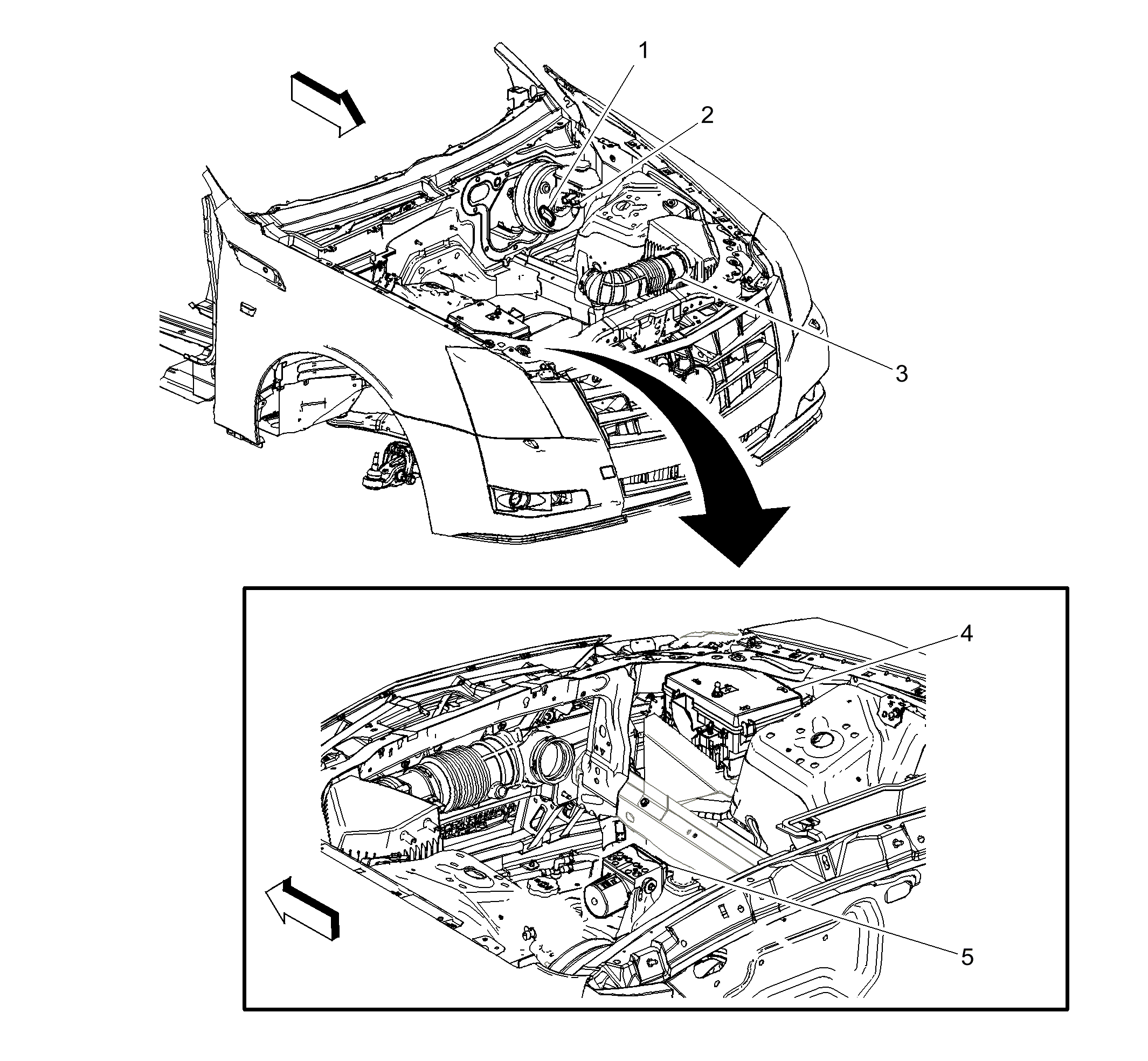

Fig 4: Engine Compartment Components (LF1 or LLT)
GM2321992Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Brake Booster Vacuum Sensor
2 Brake Fluid Level Switch
3 Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
4 Fuse Block - Underhood
5 Engine Control Module (ECM)
6 Electronic Brake Control Module (EBCM)

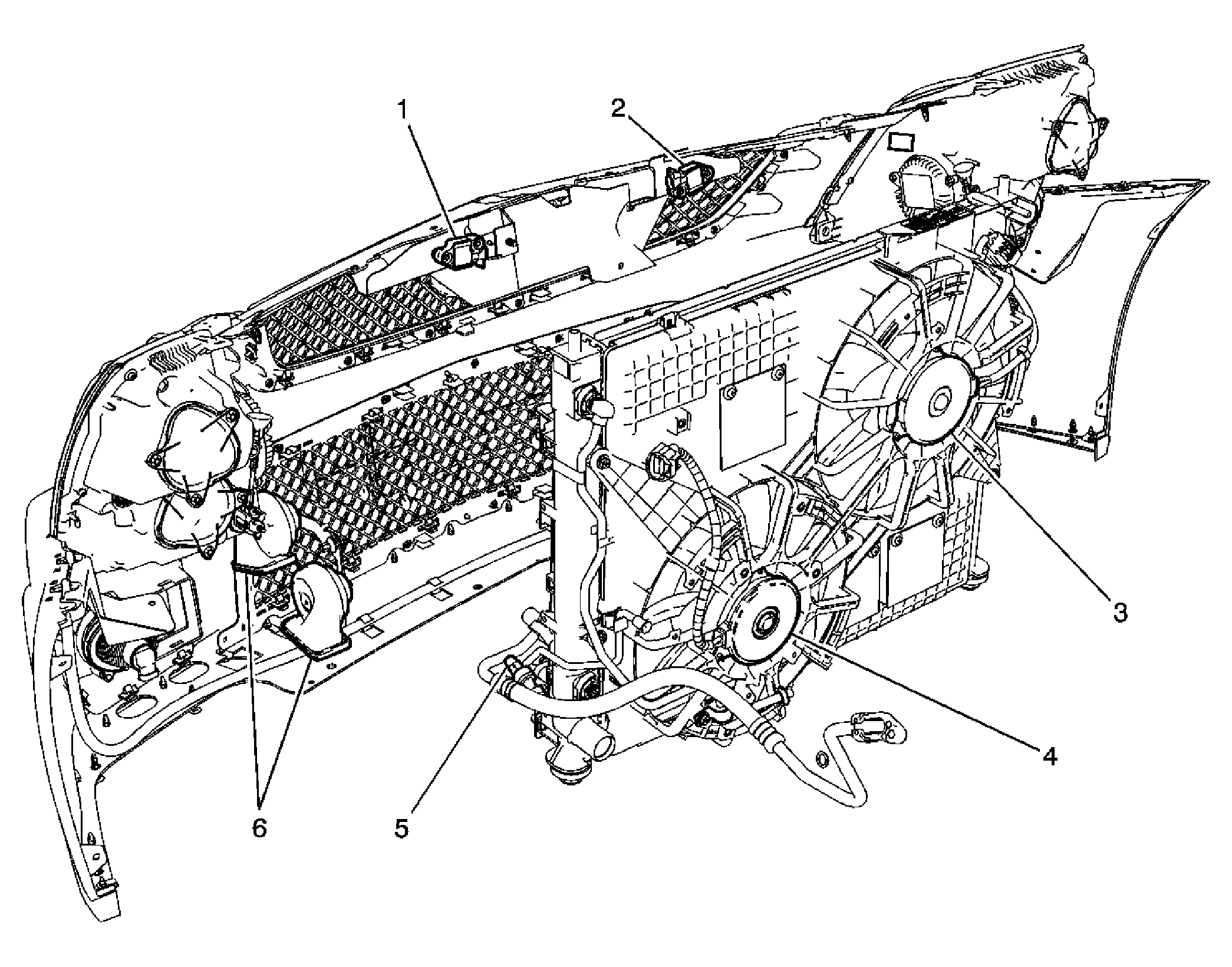

Fig 5: Engine Compartment Components - Front
GM2180685Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Front End Sensor - Left
2 Inflatable Restraint Front End Sensor - Right
3 Engine Cooling Fan - Right (LSA)
4 Engine Cooling Fan - Left (LSA)
5 A/C Refrigerant Pressure Sensor
6 Horn Assembly

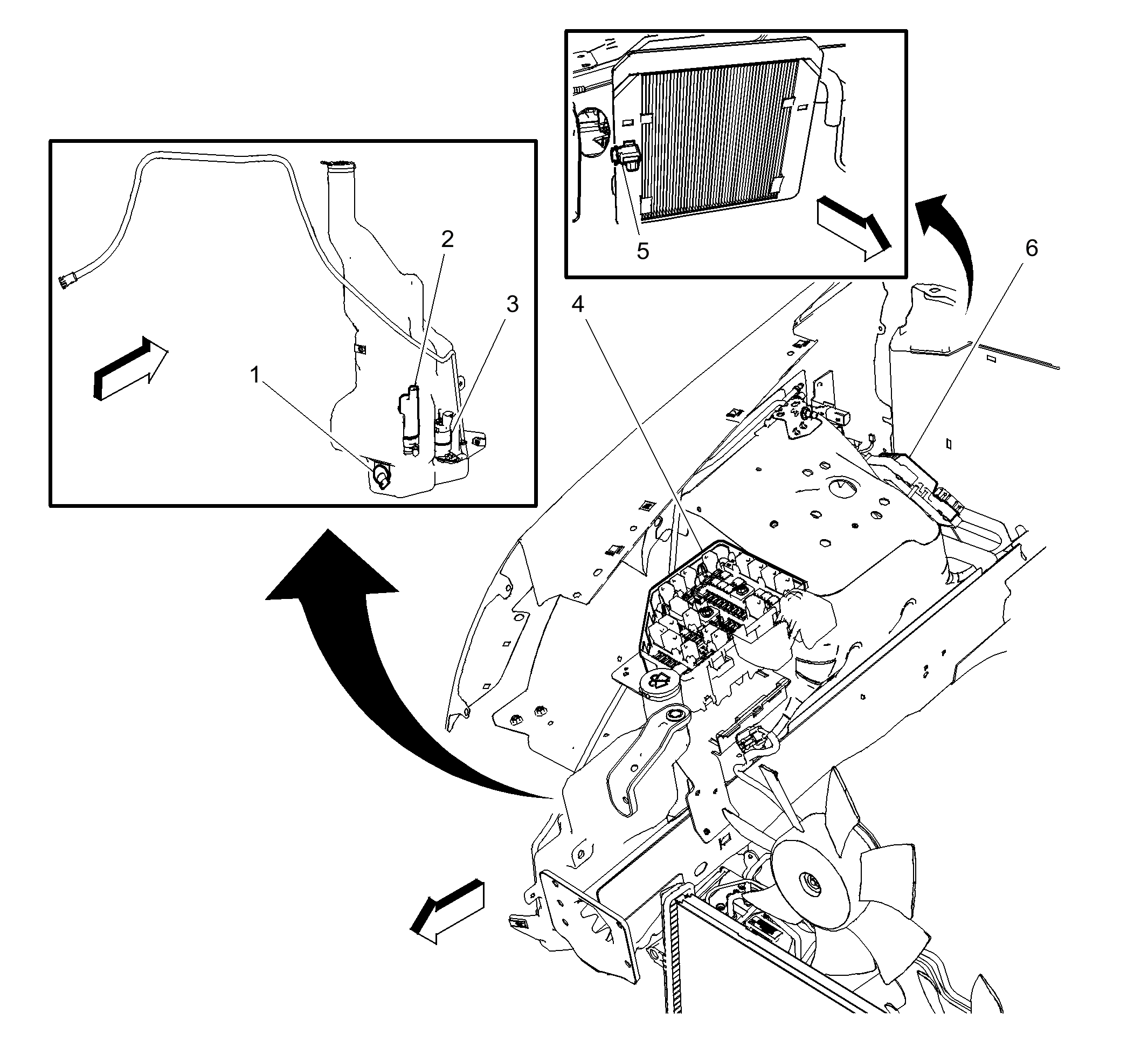

Fig 6: Engine Compartment Components - Right Side
GM2233153Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Windshield Washer Fluid Level Switch
2 Headlamp Washer Fluid Pump (CE4)
3 Windshield Washer Fluid Pump
4 Fuse Block - Underhood
5 Air Quality Sensor (K14)
6 Engine Control Module (ECM) (LSA)

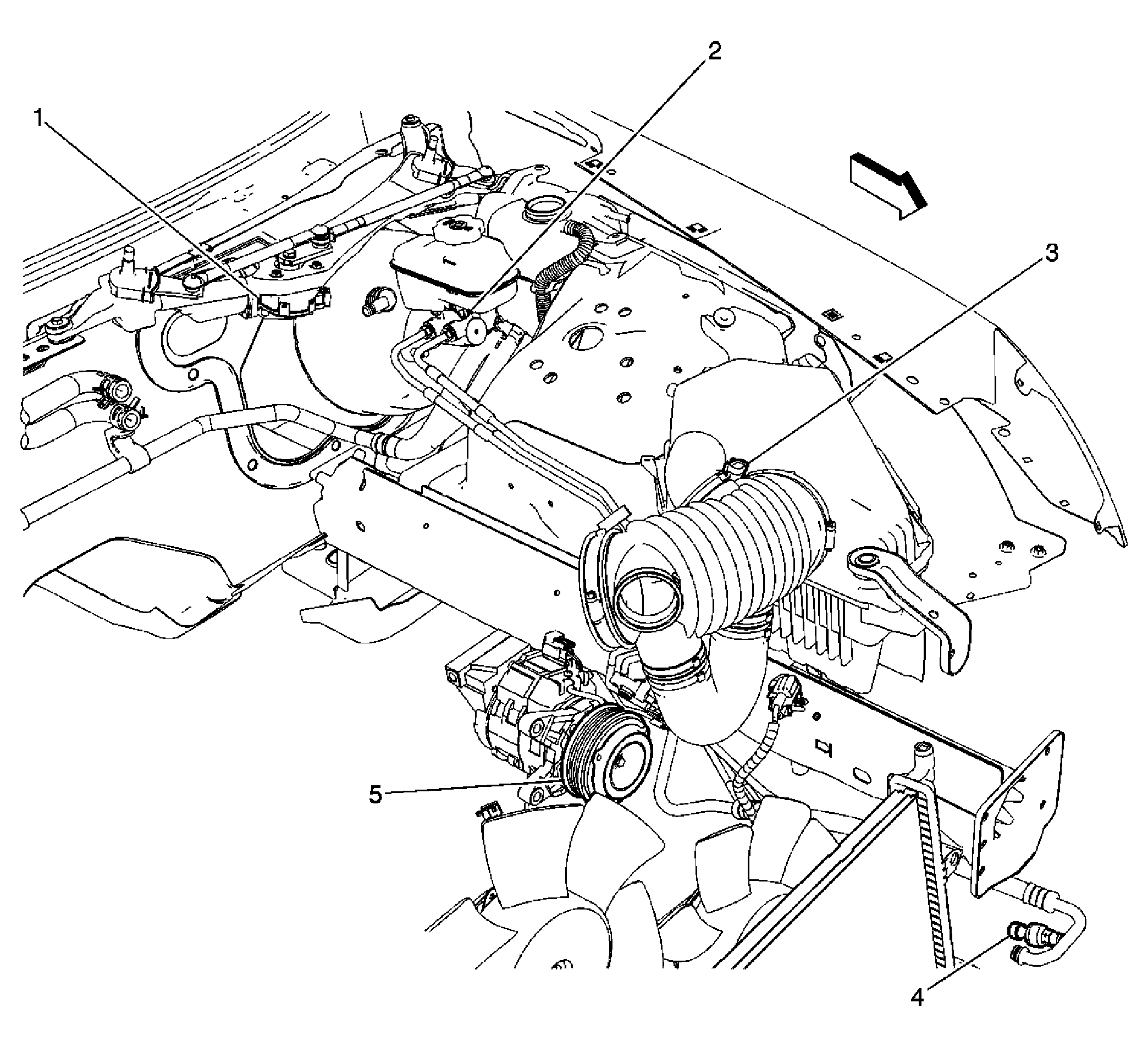

Fig 7: Engine Compartment Components - Left Side (V-Series)
GM2180732Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Windshield Wiper Motor (Left Hand Drive)
2 Brake Fluid Level Switch
3 Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
4 A/C Refrigerant Pressure Sensor
5 A/C Compressor Clutch (LLT or LF1)
