CTS V, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communication System
›
Schematic and Routing Diagrams
›
Data Communication Schematics
Data Communication Schematics

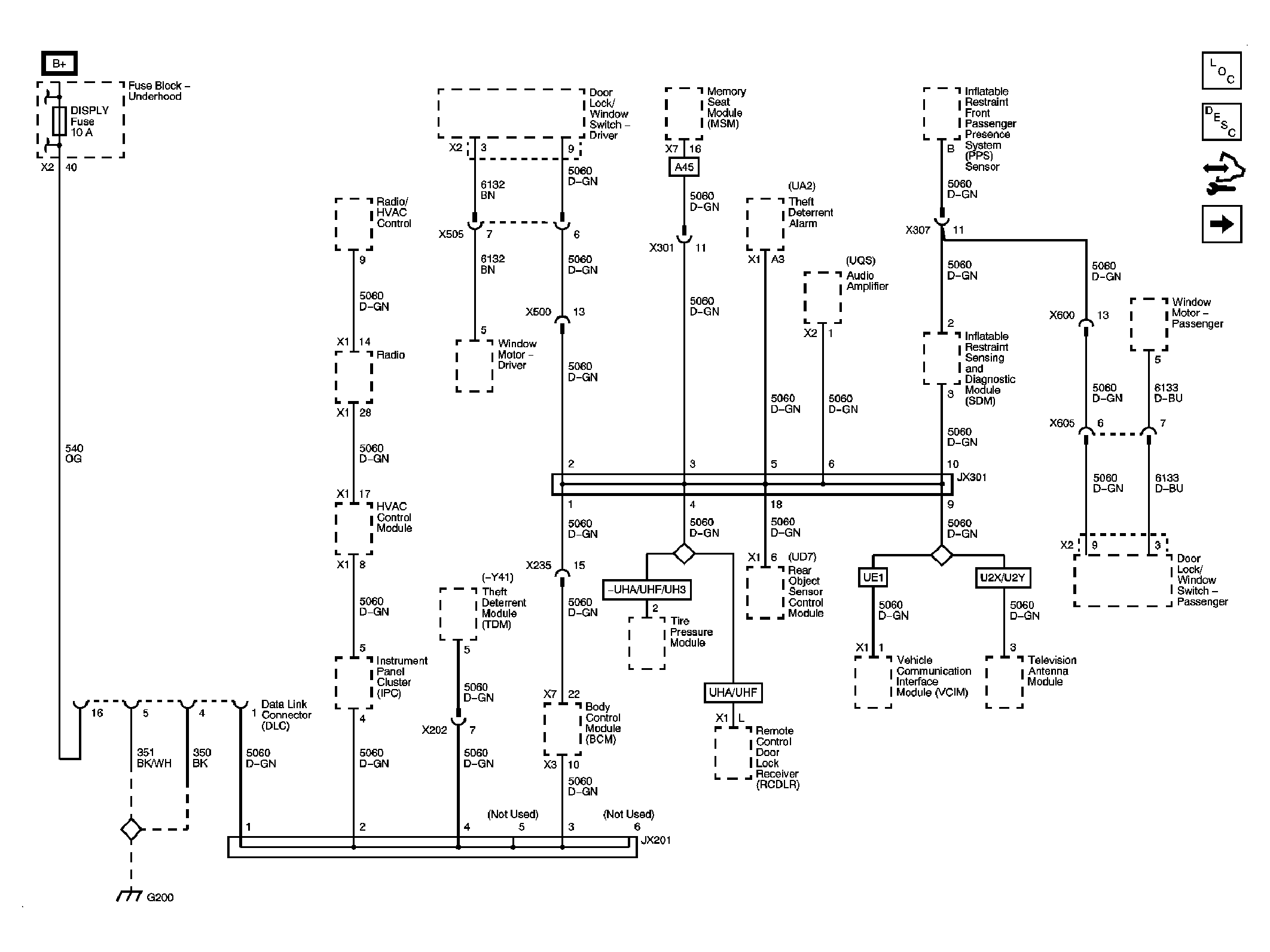

Fig 1: Low Speed GMLAN
Courtesy of GENERAL MOTORS CORP.

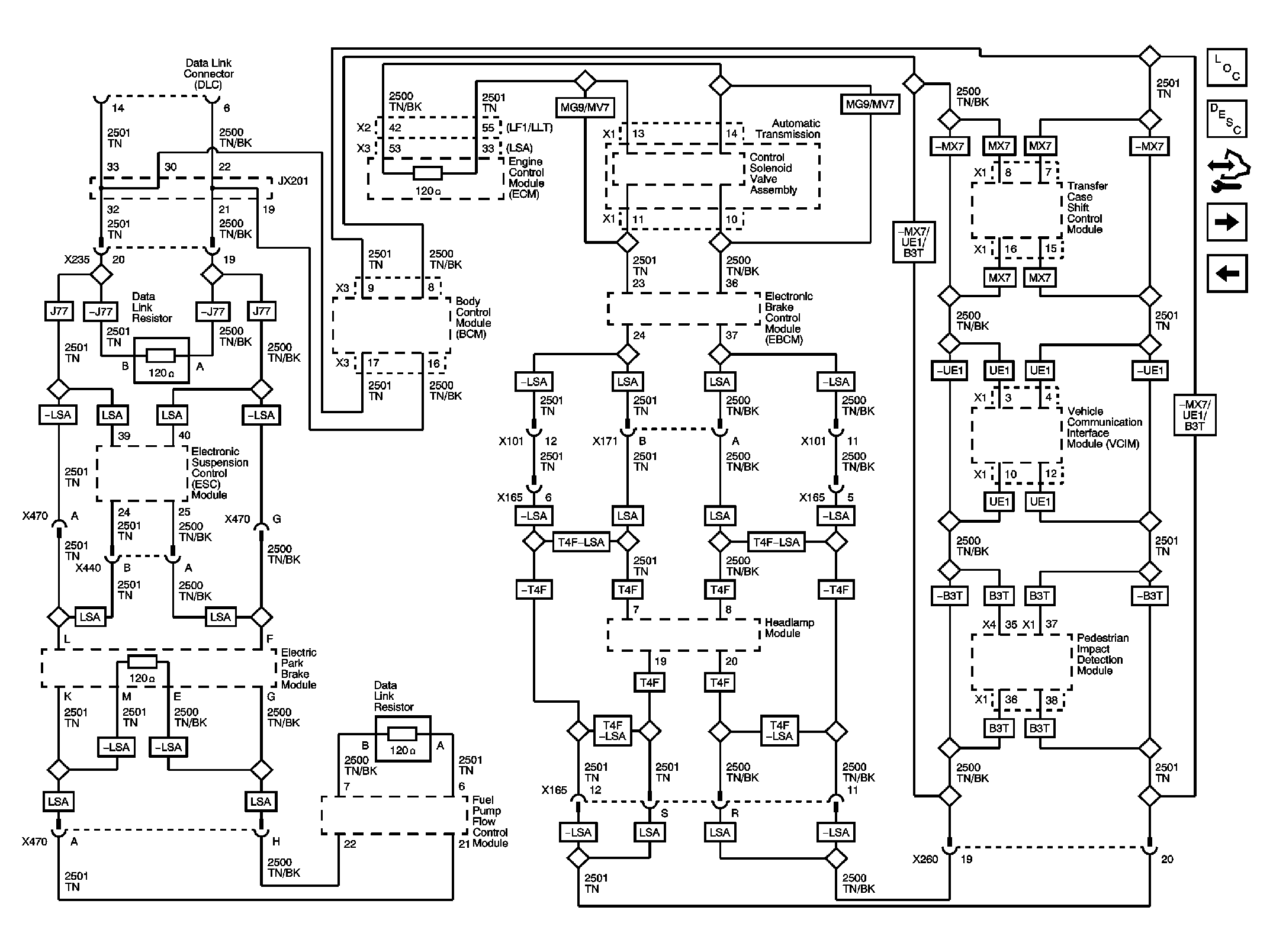

Fig 2: High Speed GMLAN
Courtesy of GENERAL MOTORS CORP.

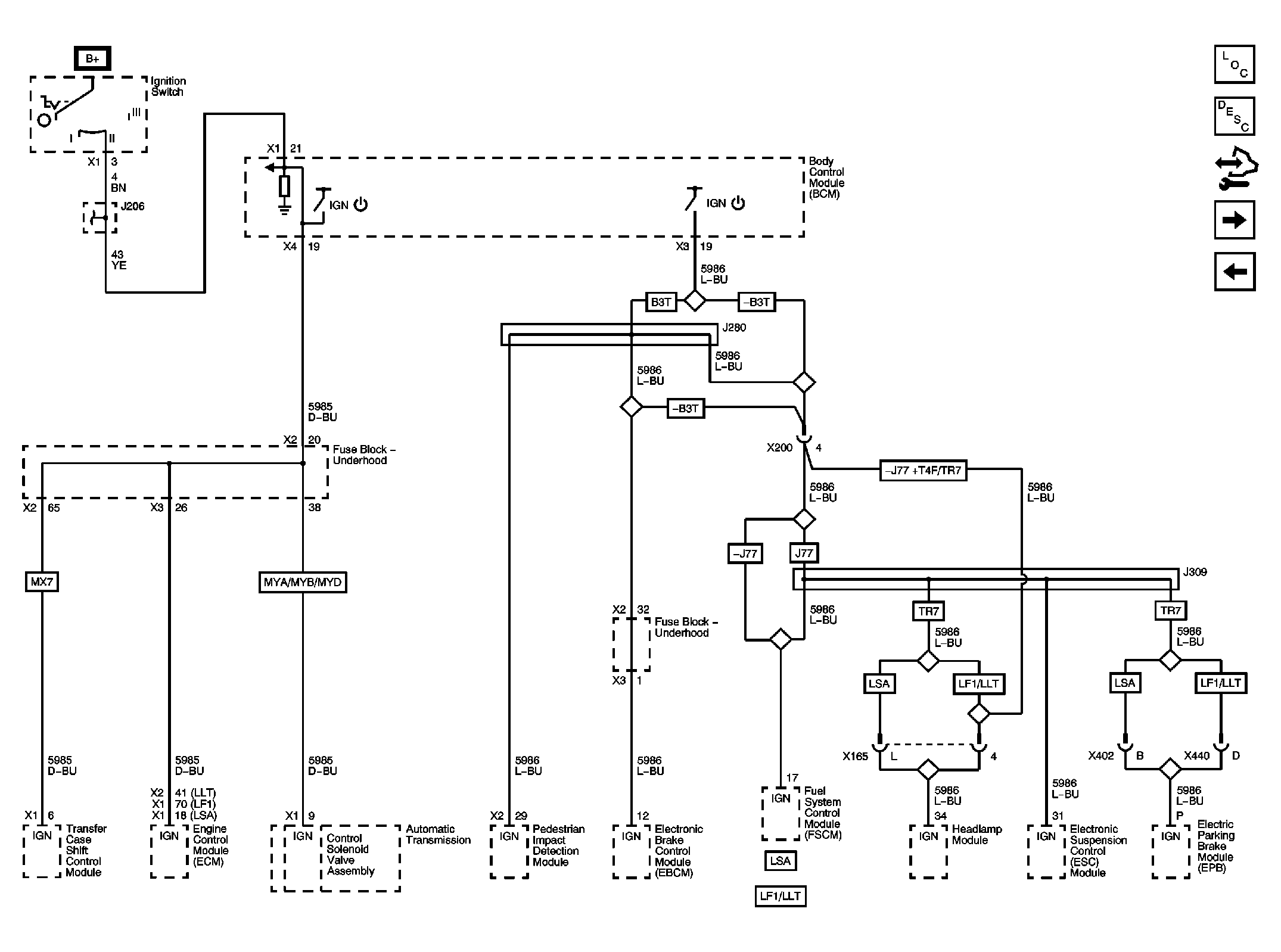

Fig 3: Communications Enable
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
