Auxiliary Body Control Module Replacement (UA2)

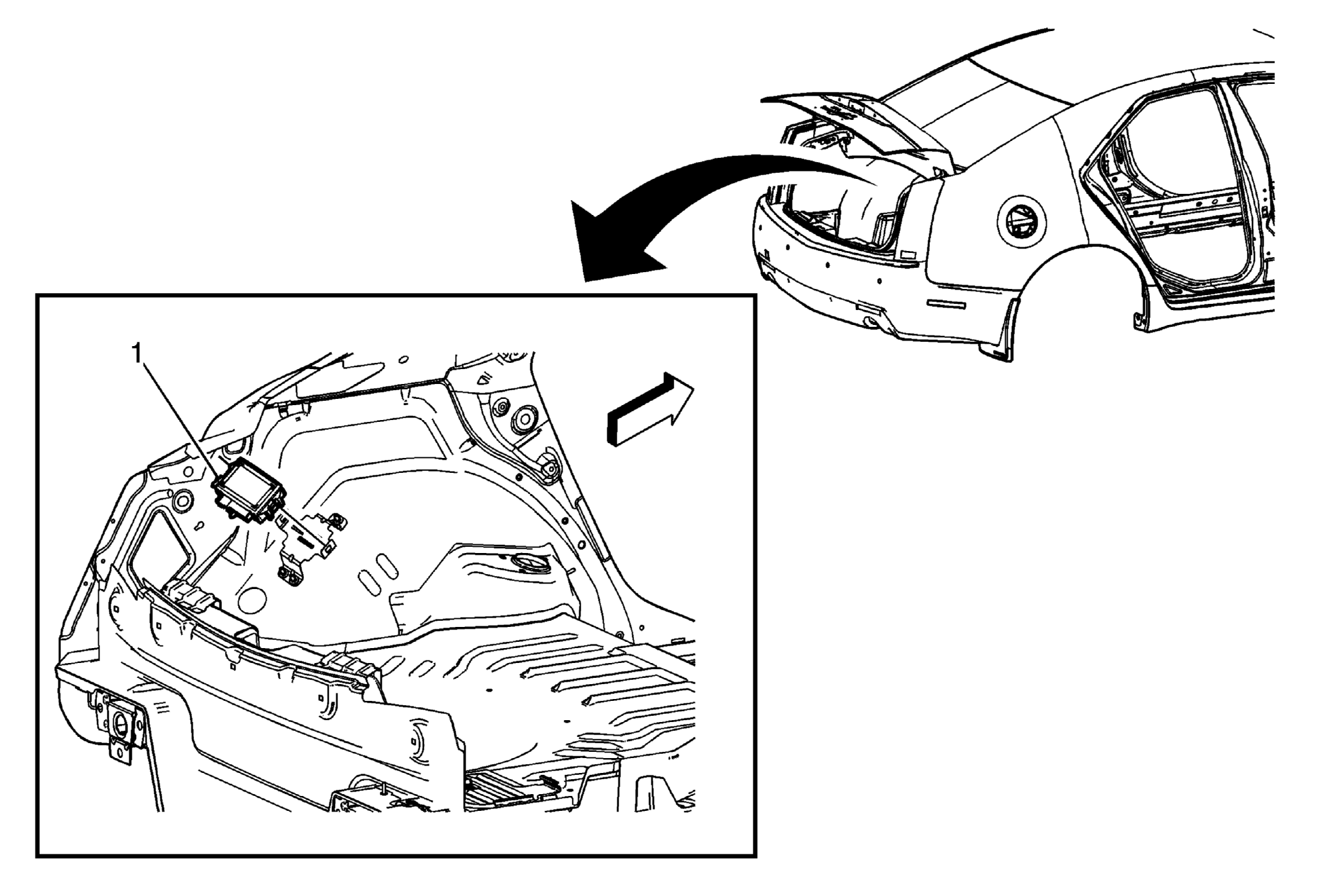

Fig 1: Auxiliary Body Control Module (UA2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear compartment side trim panel. Refer to Rear Compartment Side Trim Panel Replacement .
1	Auxiliary Body Control Module Procedure Disconnect the electrical connectors. Refer to Control Module References for programming and set-up information.

Callout

Component Name

Preliminary Procedure:
Remove the rear compartment side trim panel. Refer to Rear Compartment Side Trim Panel Replacement .

Auxiliary Body Control Module

Procedure
