Front of Vehicle/Engine Compartment Component Views

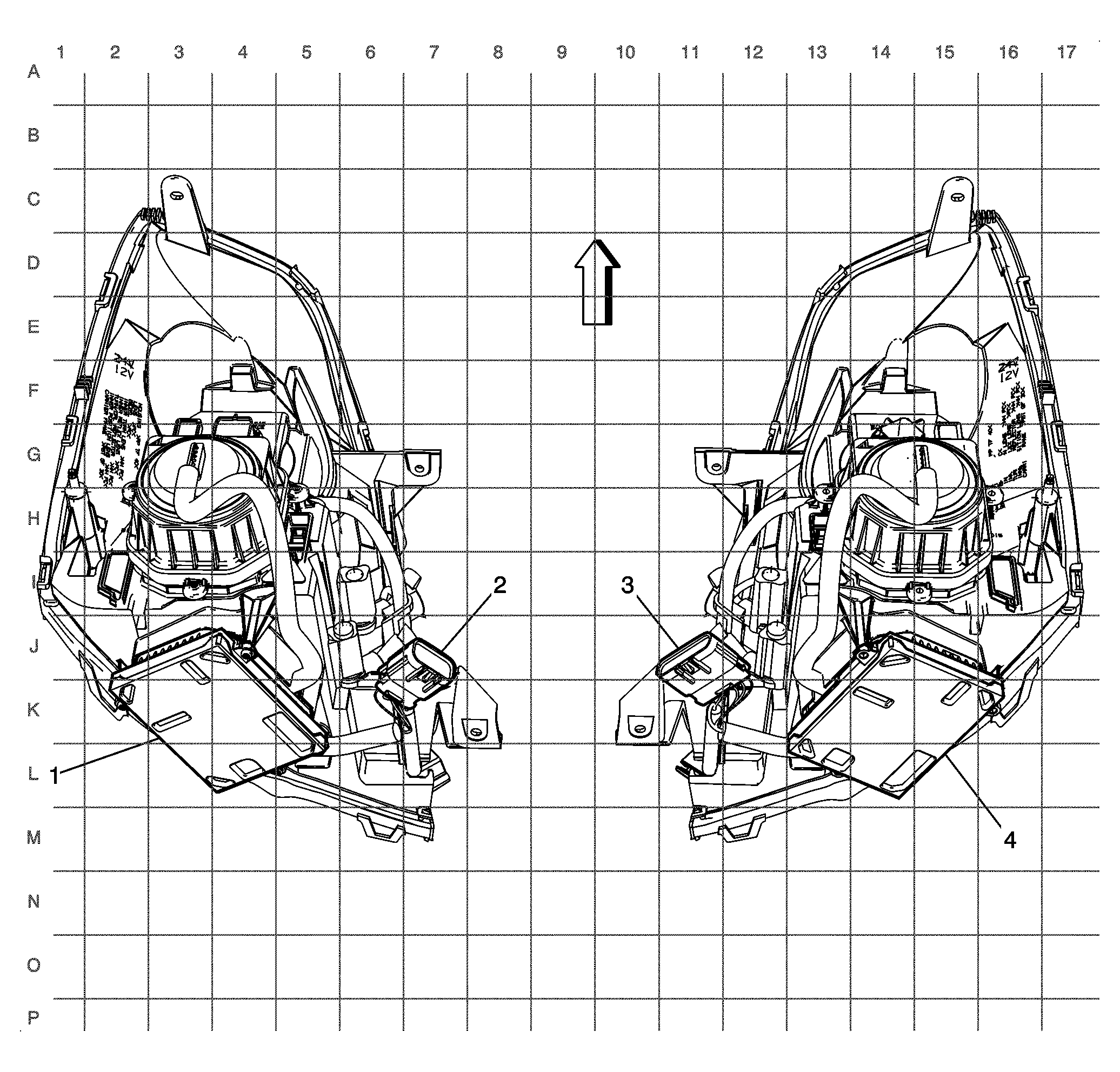

Fig 1: Headlamp Assemblies Harness Routing

Courtesy of GENERAL MOTORS CORP.

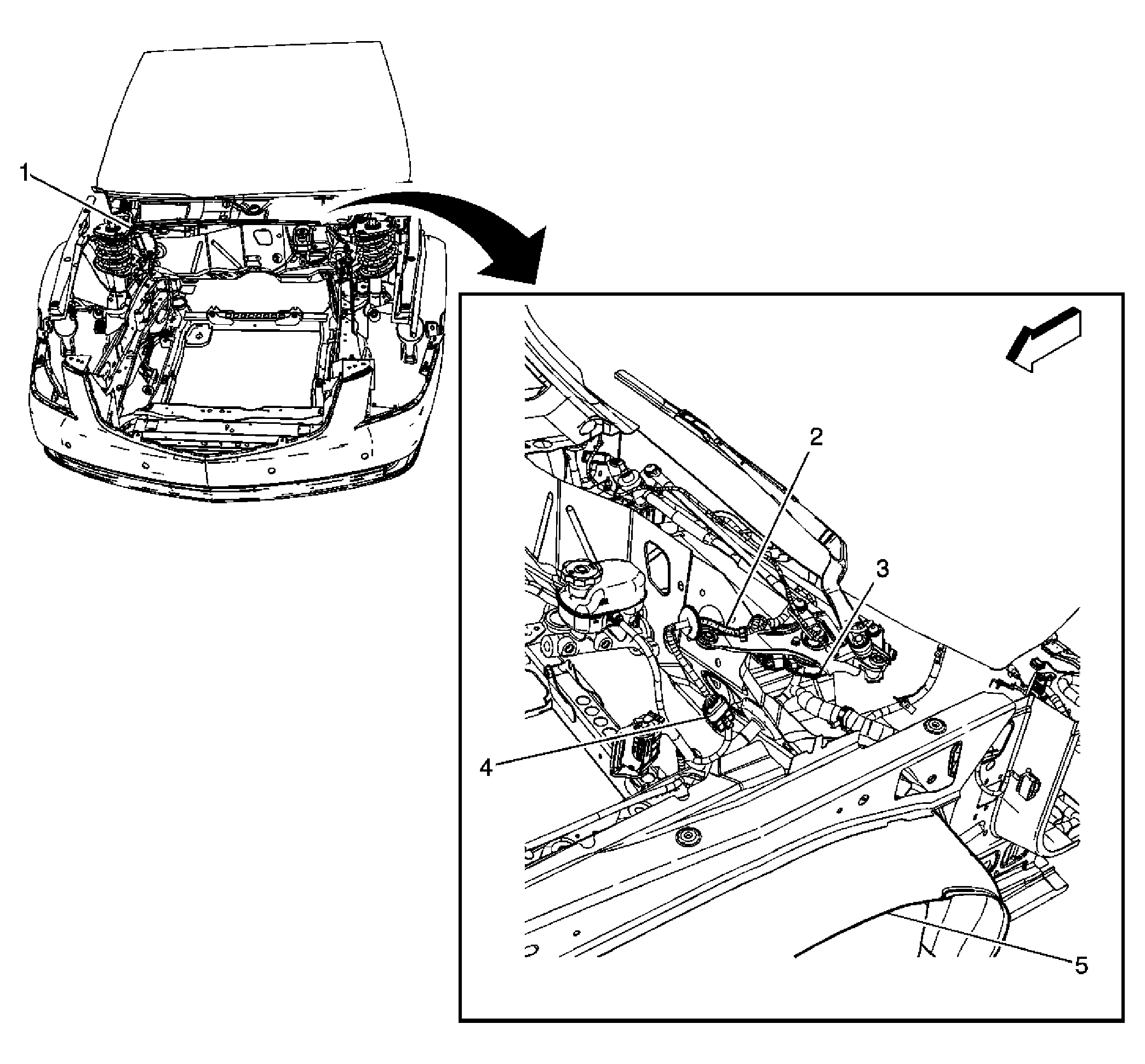

Callout	Component Name
1	Headlamp Ballast-Left (without T72)
2	X114
3	X113
4	Headlamp Ballast-Right (without T72)

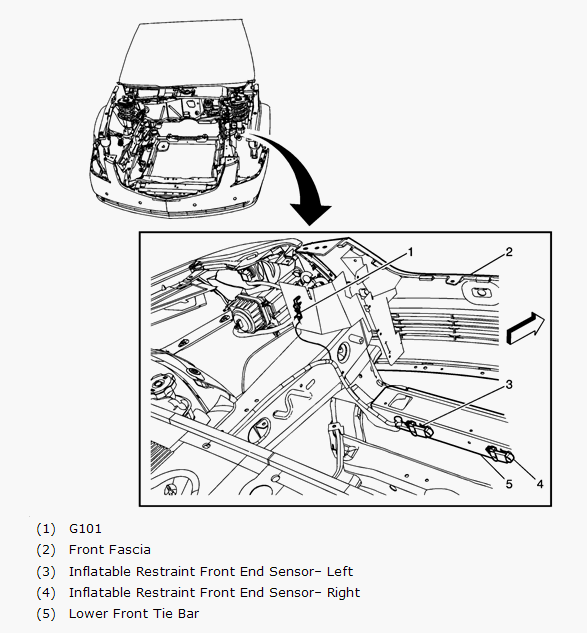

Fig 2: Left Side Of Engine Compartment (1 of 2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G101
2	Front Fascia
3	Inflatable Restraint Front End Sensor - Left
4	Inflatable Restraint Front End Sensor - Right
5	Lower Front Tie Bar

Fig 3: Left Side Of Engine Compartment (2 of 2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Cleaner-Filter
2	Engine Control Module (ECM)
3	Windshield

Fig 4: Rear Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Washer Solvent Heater (XA7)
2	Windshield Wiper Motor Jumper Harness
3	Windshield Wiper Motor
4	X100 Wiper Motor Jumper Harness to Body Harness
5	Left Front Wheel Well

Fig 5: Front Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Fluid Switch
2	Suspension Position Sensor - Left Front (F55)
3	Wheel Speed Sensors (WSS) - Left Front
4	Suspension Damper - Left Front (F55)
5	Suspension Damper - Right Front (F55)
6	Wheel Speed Sensors (WSS) - Right Front
7	Suspension Position Sensor - Right Front (F55)

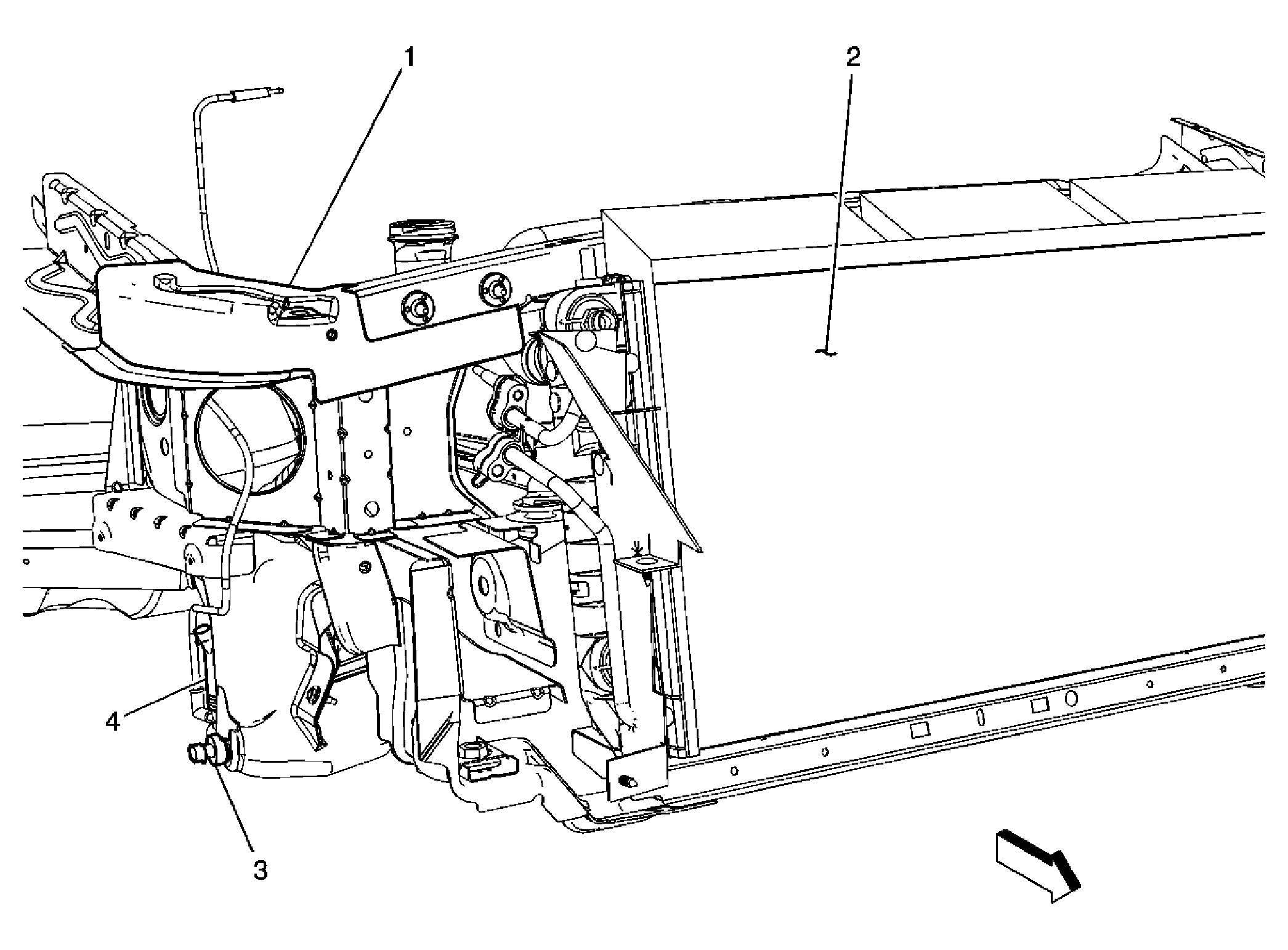

Fig 6: Washer Reservoir Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radiator Support
2	Condenser
3	Windshield Washer Fluid Level Switch
4	Windshield Washer Fluid Pump

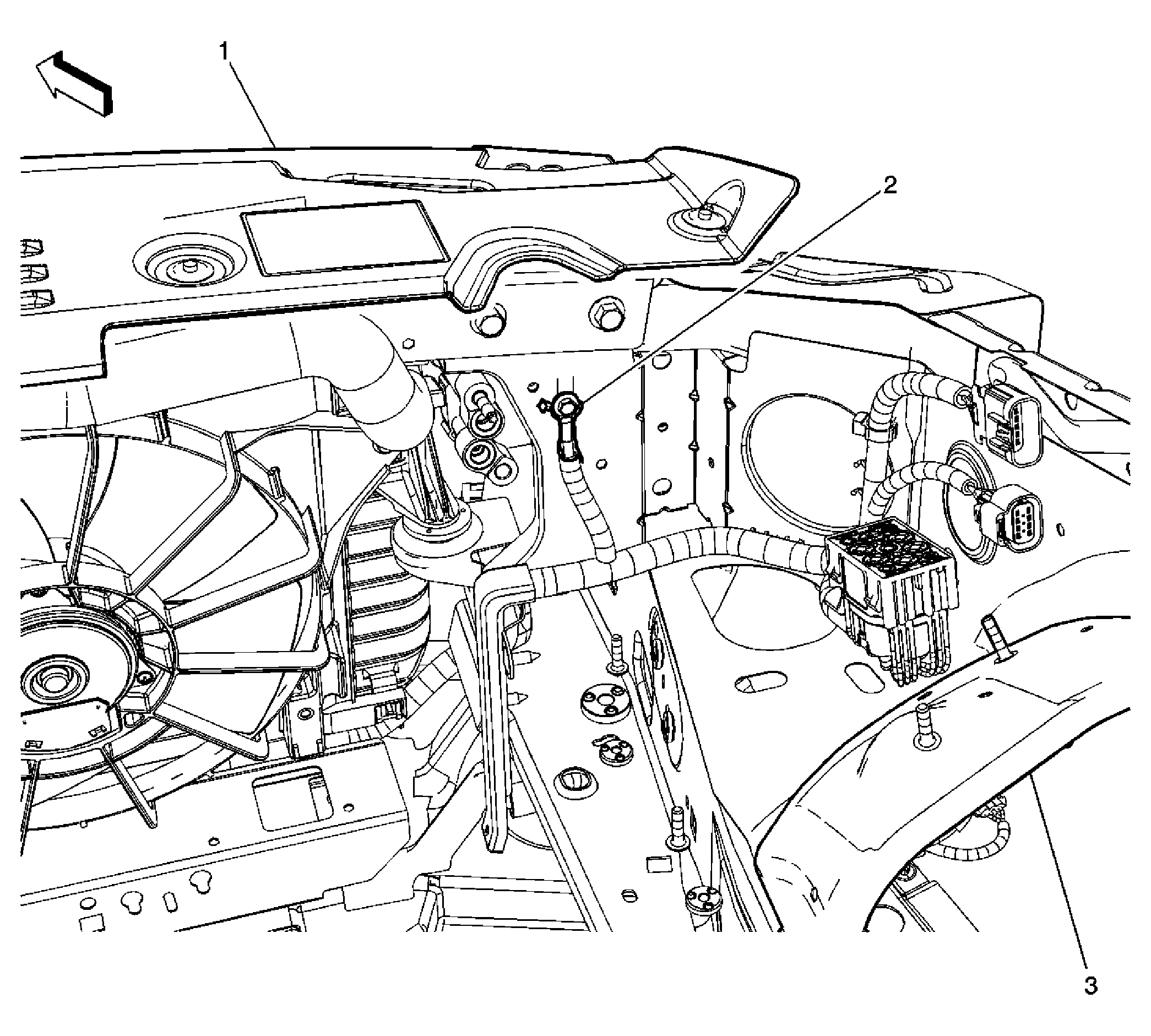

Fig 7: G104

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Upper Radiator Trim
2	G104
3	Right Front Wheel Panel

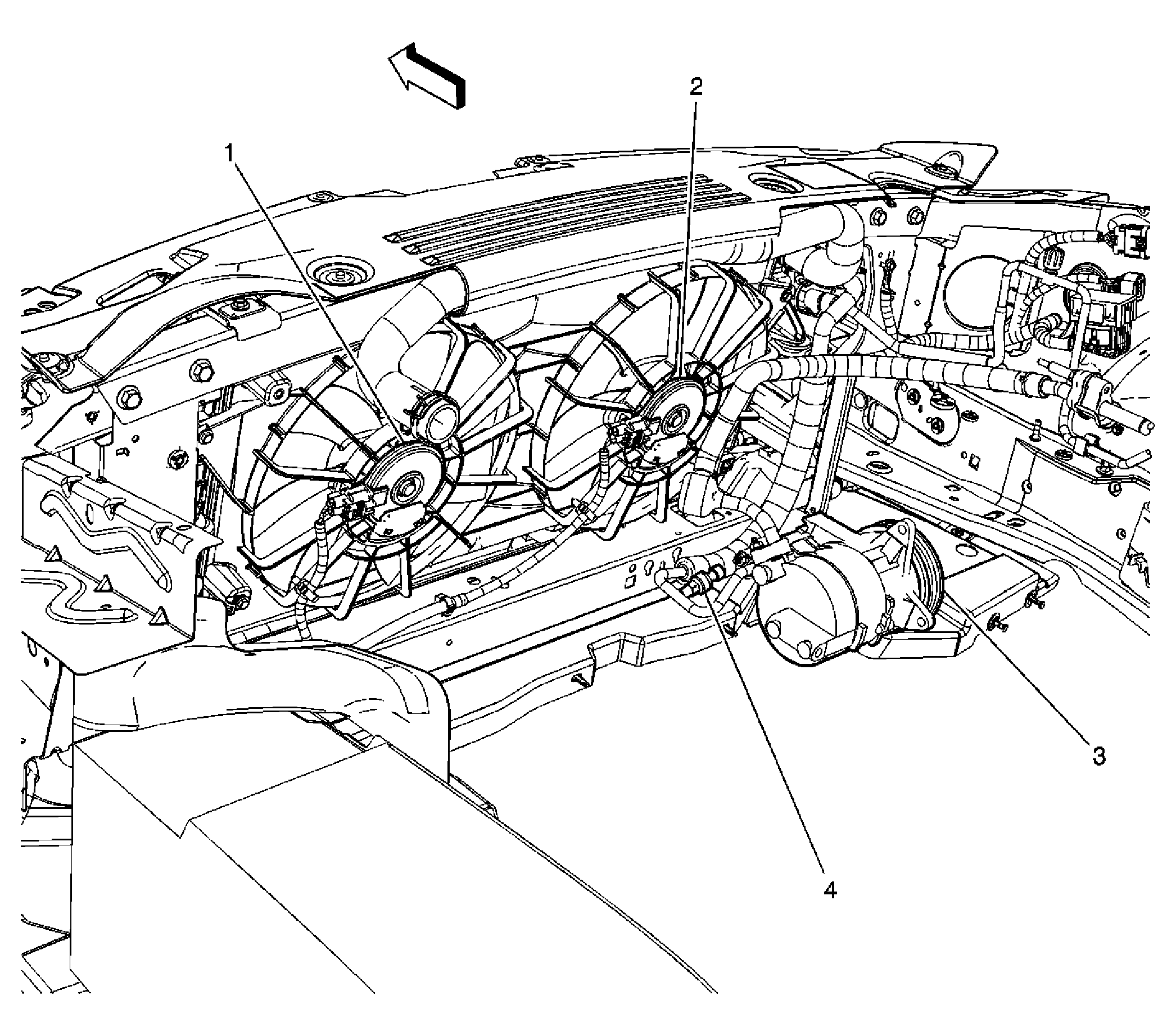

Fig 8: Cooling Fans & Exterior A/C Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Cooling Fan - Left
2	Engine Cooling Fan - Right
3	A/C Compressor Clutch
4	A/C Refrigerant Pressure Sensor

Fig 9: Lower Left Front Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Lower Air Cleaner Box
2	Electronic Brake Control Module (EBCM)

Fig 10: Left Instrument Panel Area & Left Rear Engine Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Angle Sensor (JL4)
2	Electronic Brake Control Module (EBCM)
3	Variable Effort Steering Actuator Connector (L37)
4	Power Steering Rack
5	Steering Column Assembly

Fig 11: Left Rear Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transmission Control Module (TCM)
2	Fasteners
3	Transmission Control Module (TCM) Bracket

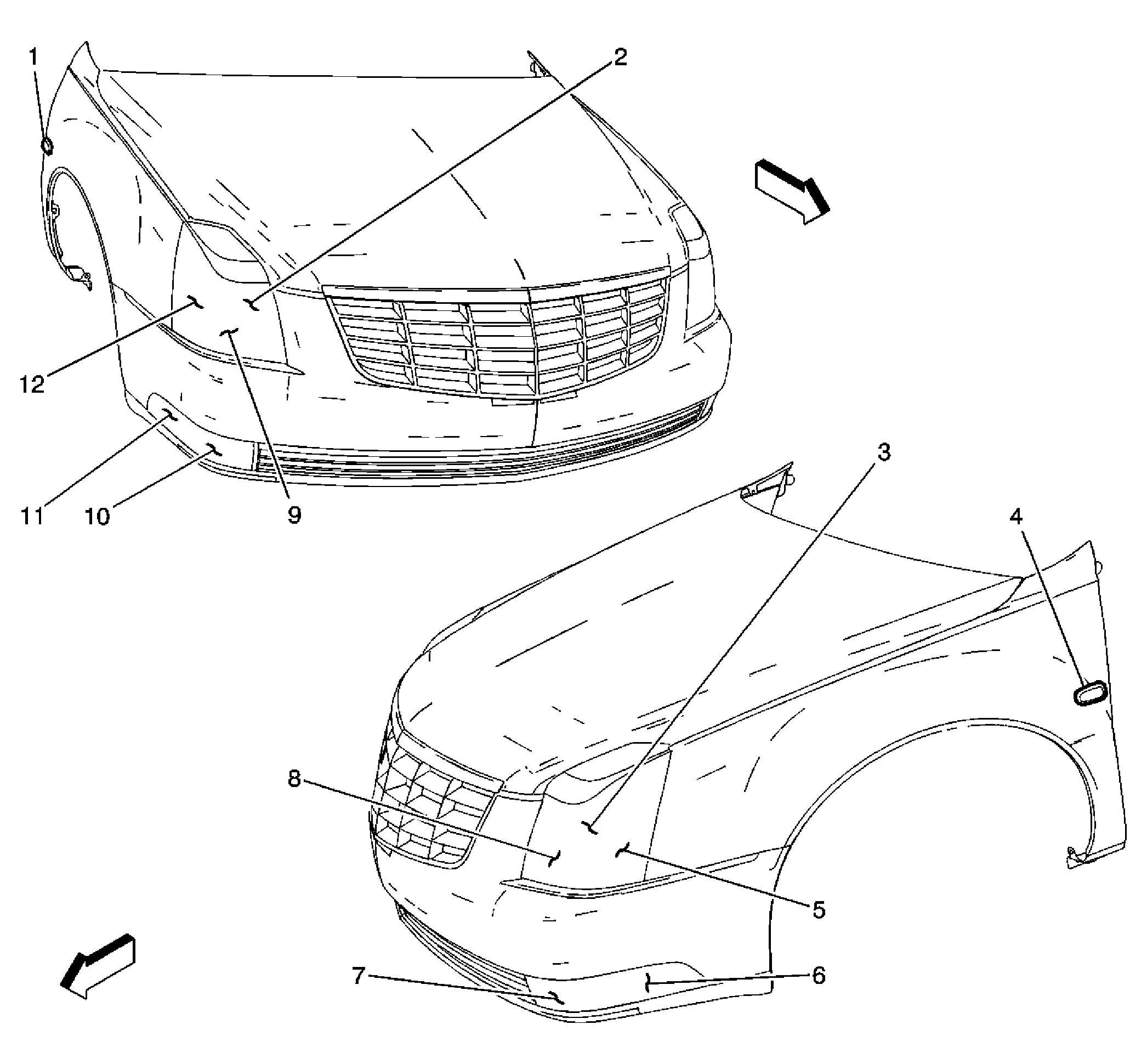

Fig 12: Front Lights

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Repeater Lamp - Right (EXP)
2	Turn Signal / DRL Lamp - Right Front
3	Turn Signal / DRL Lamp - Left Front
4	Repeater Lamp - Left (EXP)
5	Marker Lamp - Left Front
6	Cornering Lamp - Left Front
7	Fog Lamp - Left Front
8	Headlamp High / Low - Left Front
9	Headlamp High / Low - Right Front
10	Fog Lamp - Right Front
11	Cornering Lamp - Right Front
12	Marker Lamp - Right Front

Fig 13: Front Of Radiator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radiator Cover
2	Distance Sensing Cruise Control Module (K59)
3	Ambient Air Temperature Sensor

Fig 14: Front Fascia

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Object Alarm Sensor - Left Front Corner (UFR)
2	Object Alarm Sensor - Left Front Middle (UFR)
3	Object Alarm Sensor - Right Front Middle (UFR)
4	Object Alarm Sensor - Right Front Corner (UFR)

Fig 15: Below Center Of Hood

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hood Latch Assembly
2	Hood Ajar Switch

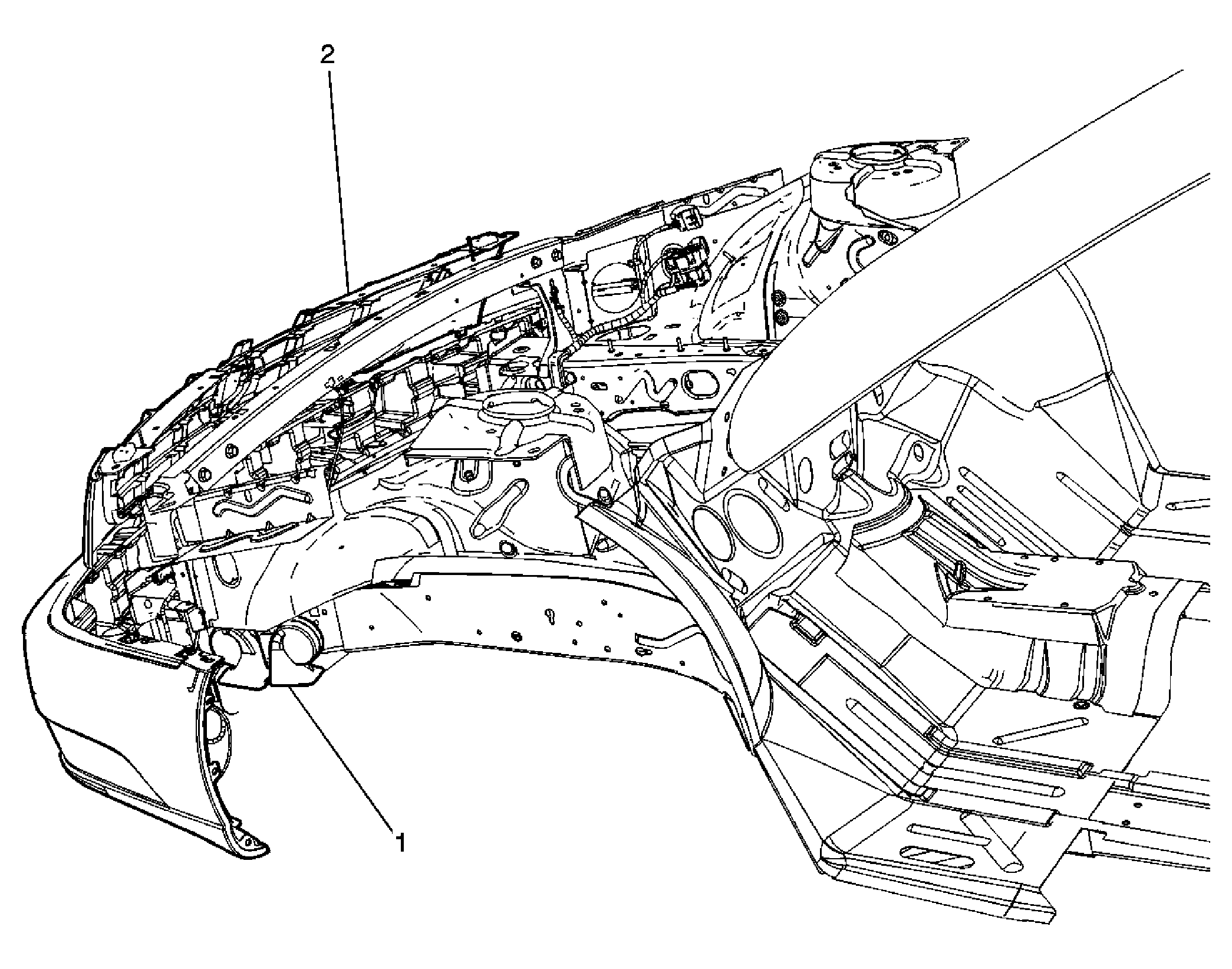

Fig 16: Behind Left Front Fascia

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Horn Assembly
2	Front Fascia
