Instrument Panel/Center Console Component Views

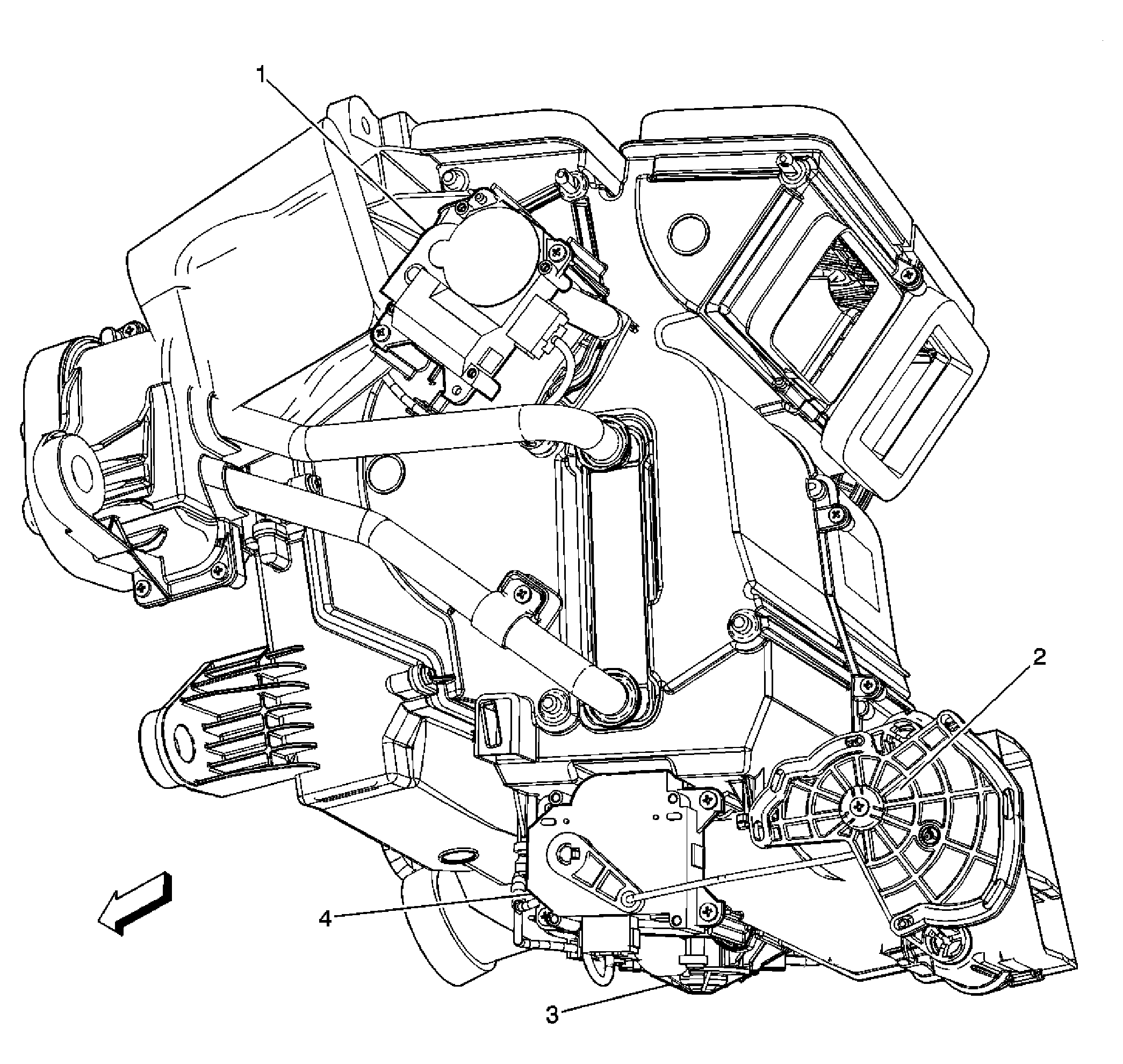

Fig 1: HVAC Module Components (1 of 2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Temperature Actuator - Driver
2	Blower Motor - Auxiliary (CJ4+AQ9)
3	Blower Motor - Auxiliary (CJ4+AV8)
4	Mode Actuator - Auxiliary (CJ4)

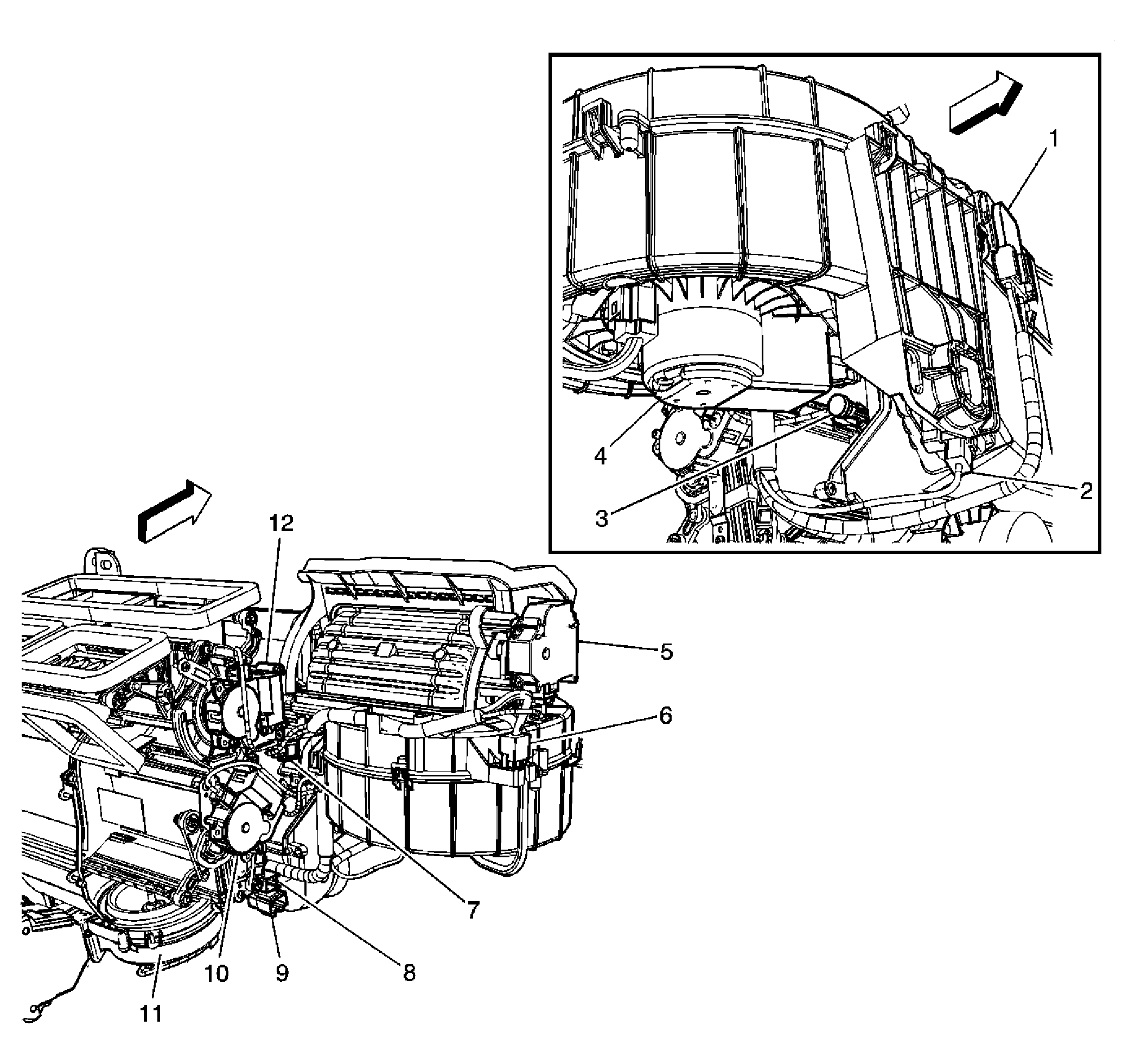

Fig 2: HVAC Module Components (2 of 2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Blower Motor Control Module
2	Blower Motor Control Module - Auxiliary (CJ4)
3	Evaporative Temperature Sensor
4	Blower Motor
5	Recirculation Actuator
6	X206 HVAC Harness to Body Harness
7	Air Temperature Actuator - Front Passenger
8	X204 HVAC Harness to I/P Harness
9	X202 HVAC Harness to I/P Harness
10	Air Temperature Actuator - Rear Passenger
11	Blower Motor - Auxiliary (CJ4)
12	Mode Actuator

Fig 3: Under Front Floor Console

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/T Shift Lock Control Solenoid (AQ9)
2	Reverse Lockout Solenoid X1 (AQ9)
3	Reverse Lockout Solenoid
4	Reverse Lockout Solenoid X2 (AQ9)
5	Automatic Transmission Shift Indicator Lamp (AQ9)
6	HVAC Control Module - Auxiliary (CJ4)
7	Auxiliary Power Outlet - Console (AQ9)
8	Traction Control Switch (AQ9)
9	Cigar Lighter (AQ9 with DT4) Auxiliary Power Outlet (AQ9 without DT4)

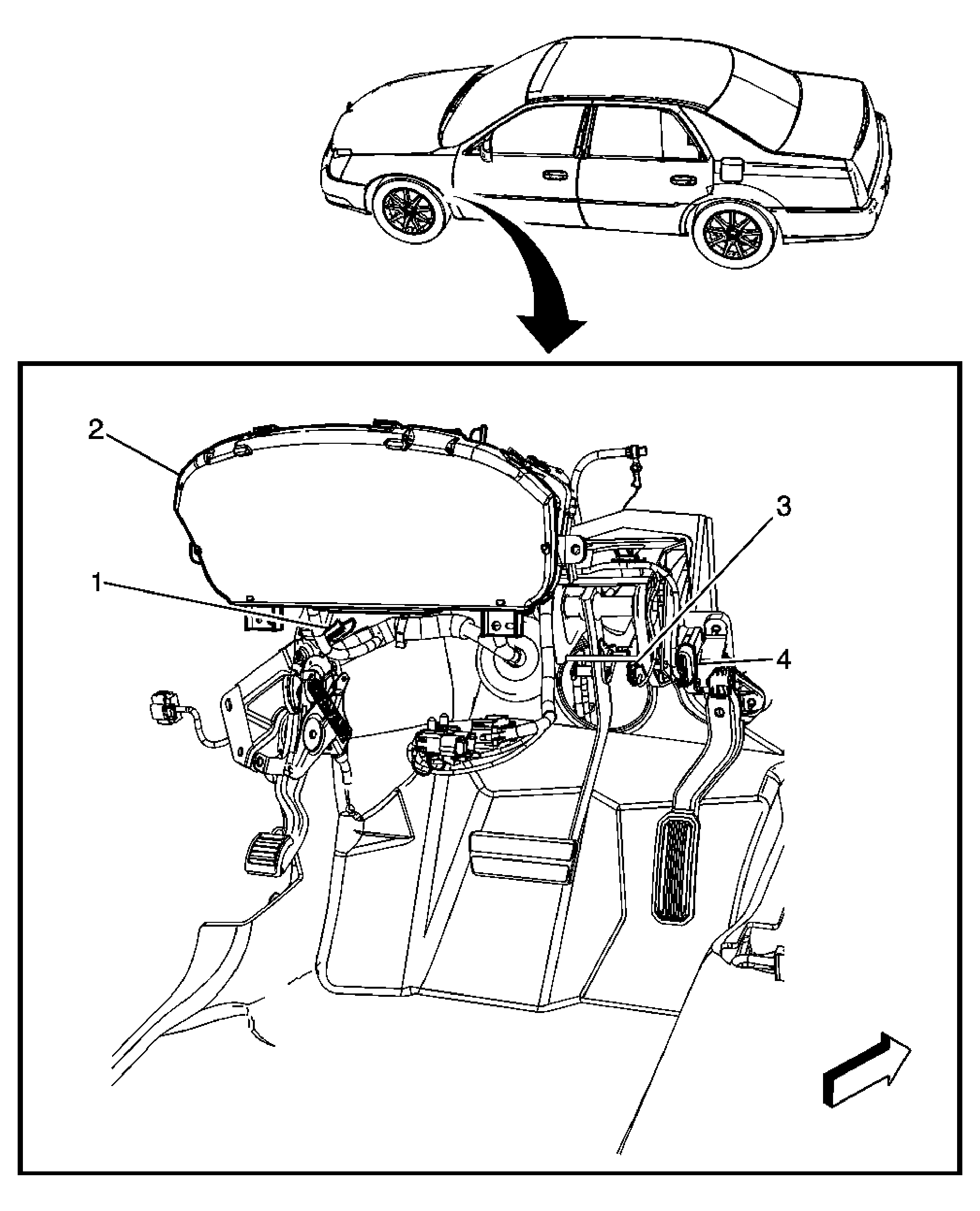

Fig 4: Lower Left Side of I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Brake Switch
2	Instrument Cluster
3	Brake Pedal Position Sensor
4	Accelerator Pedal Position (APP) Sensor

Fig 5: Steering Column Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Traction Control Switch (AV8)
3	Column Shifter Shift Lock Control Solenoid (AV8)
4	Ignition Key Alarm Switch
5	Theft Deterrent Module (TDM)
6	Ignition Switch
7	Inflatable Restraint Steering Wheel Module Coil
8	Steering Angle Sensor (JL4)
9	Telescoping Actuator (N37)
10	Tilt Actuator (N37)
11	Tilt/Telescope Switch (N37)

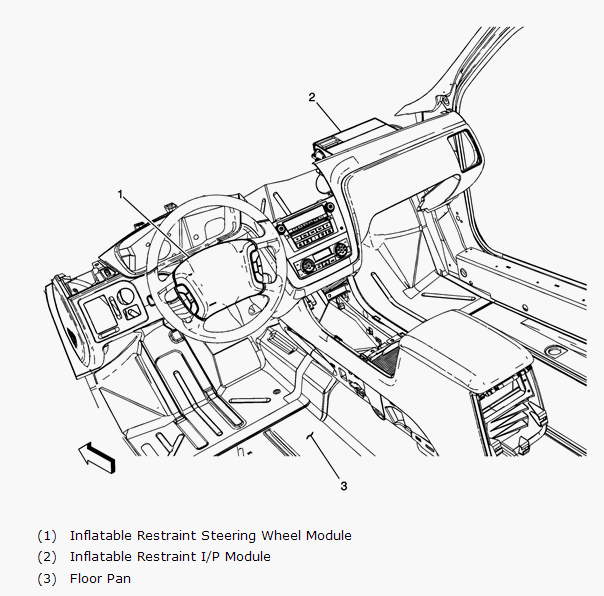

Fig 6: Air Bag Components - I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module
2	Inflatable Restraint I/P Module
3	Floor Pan

Fig 7: Behind I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Control Module (BCM)
2	I/P Trim
3	I/P Compartment Assembly

Fig 8: I/P Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Cluster (IPC)
2	Hazard Switch
3	Sunload Twilight Sensor
4	Speaker - Front Center
5	I/P Compartment Lamp
6	Valet Switch
7	Radio/Navigation Unit (U3Q)
8	Auxilary Power Outlet (AV8-DT4), Cigar Lighter (AV8+DT4)
9	Ashtray Lamp (AV8)
10	HVAC Control Module
11	Data Link Connector (DLC)
12	Air Temperature Sensor - Inside
13	Rear Compartment Lid Release Switch
14	Driver Information Center (DIC) Switch
15	Headlamp Switch

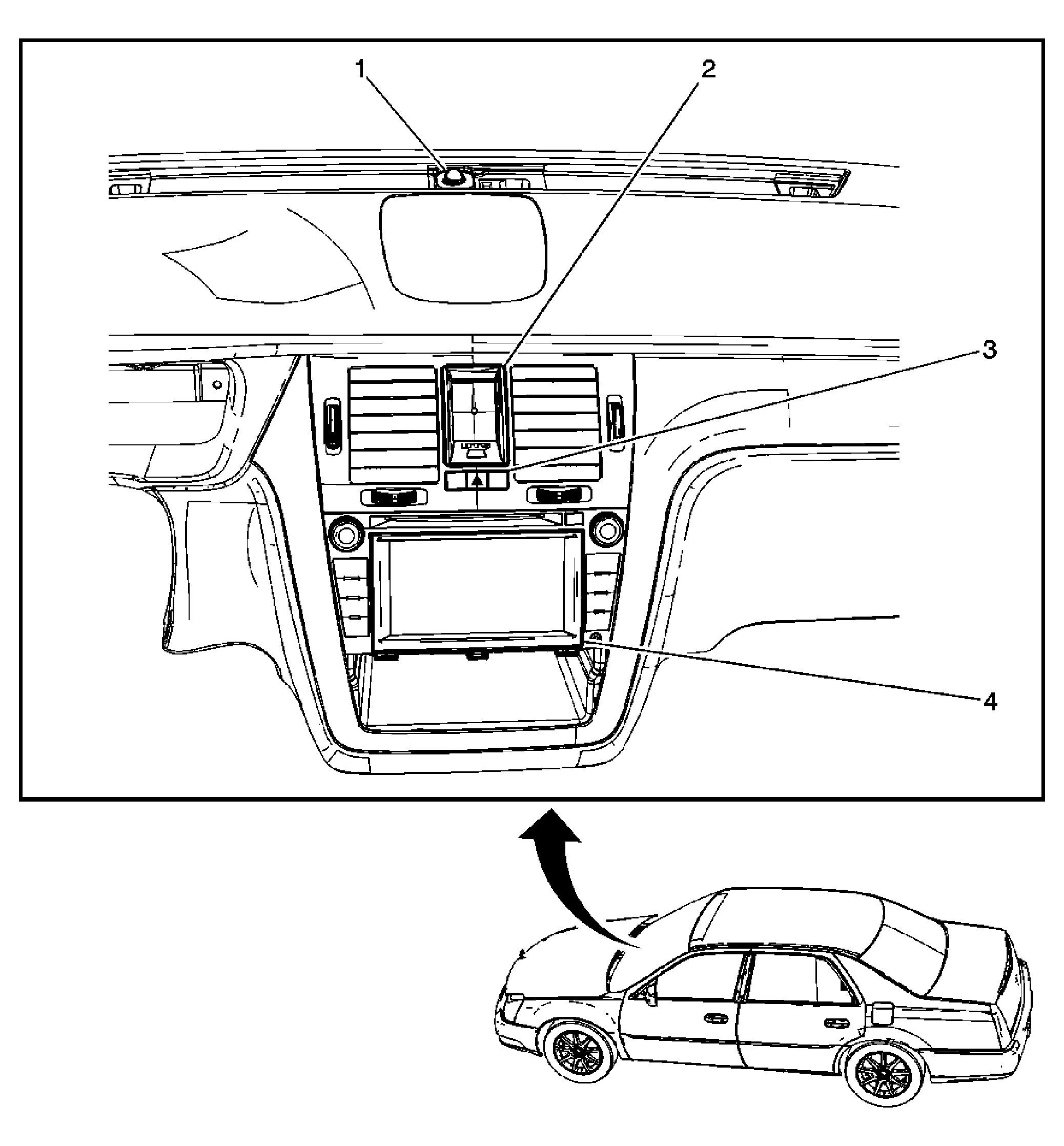

Fig 9: Center Of Console Extension

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunload Twilight Sensor
2	Clock
3	Hazard Switch
4	Radio/Navigation (U3Q/U3R)

Fig 10: Center Of Dash Pad

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Light/Sunload Sensor
2	Telltale Assembly Info Center (UFR)

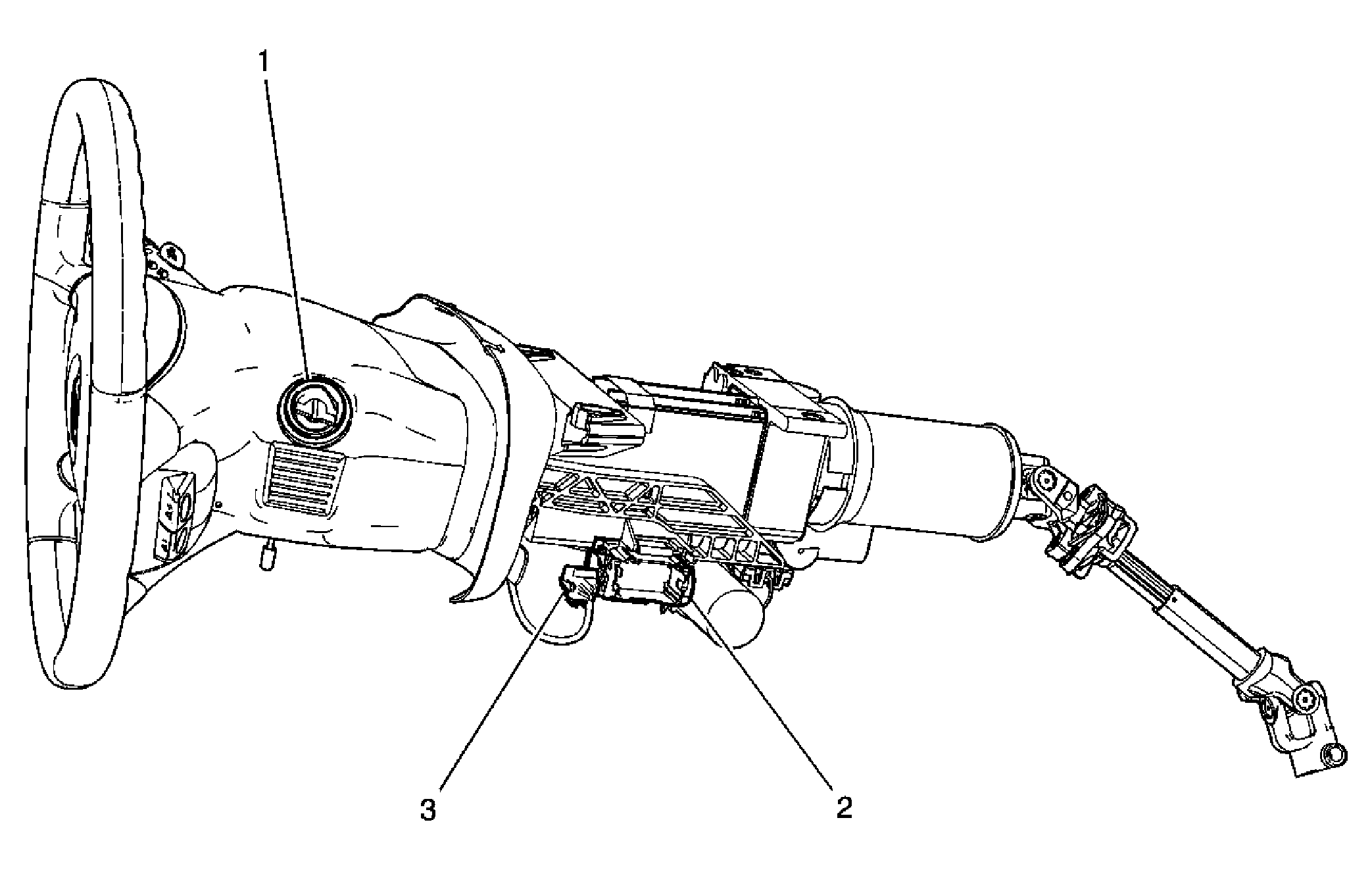

Fig 11: Steering Column Inlines

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Key Cylinder
2	X205
3	X207

Fig 12: Steering Wheel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Steering Wheel (N30)
2	Horn Switch
3	Heated Steering Wheel Module (N30)
4	Steering Wheel Control Switch - Right
5	Steering Wheel Control Switch - Right
6	Heated Steering Wheel Element (N30)
7	Heated Steering Wheel Switch (N30)
8	Steering Wheel Control Switch - Left

Fig 13: Global Positioning System (GPS) Antenna

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Global Positioning System (GPS) Antenna (U3R)
