Data Communication Schematics

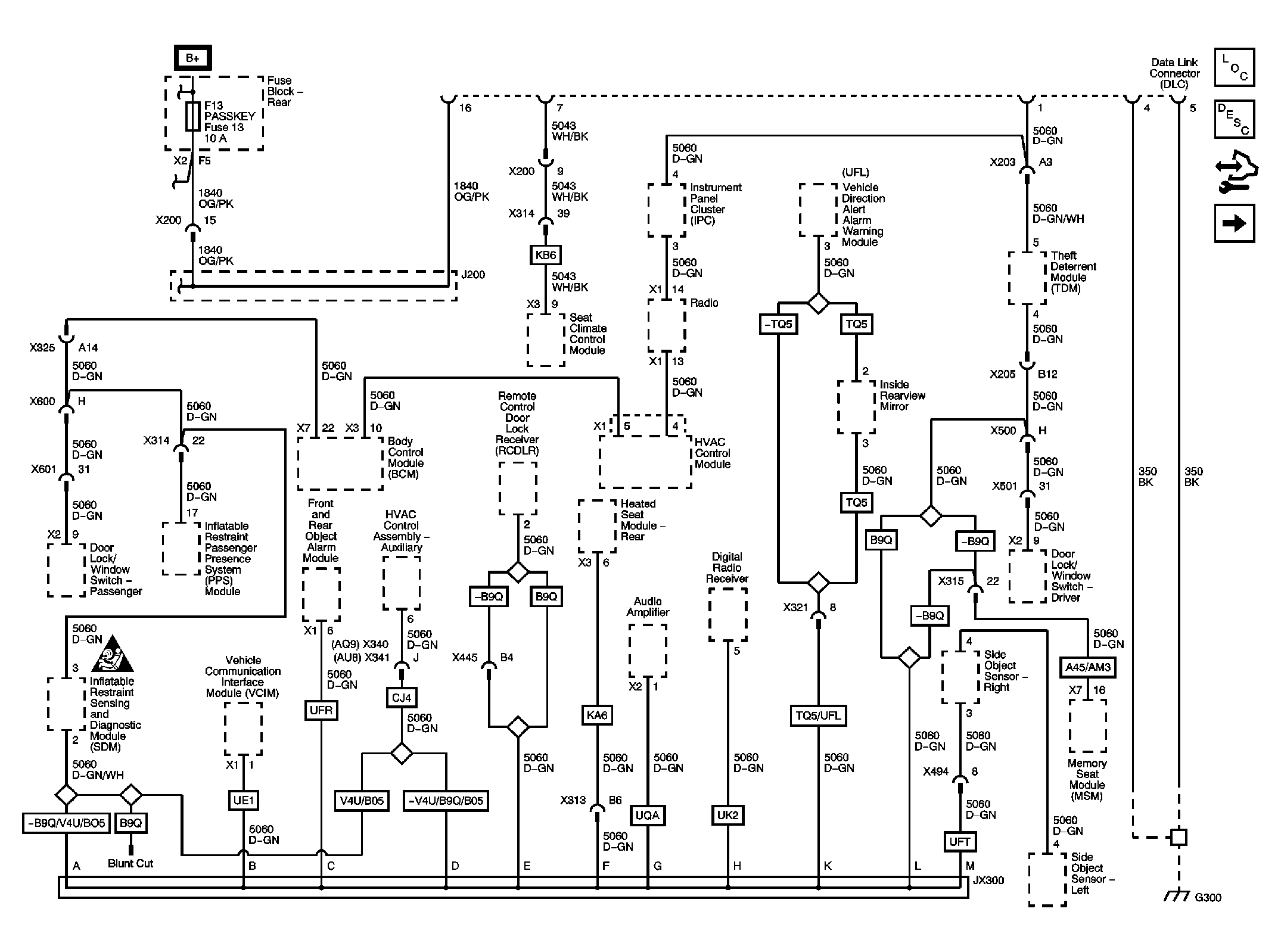

Fig 1: Power, Ground and Low Speed GMLAN
Courtesy of GENERAL MOTORS CORP.

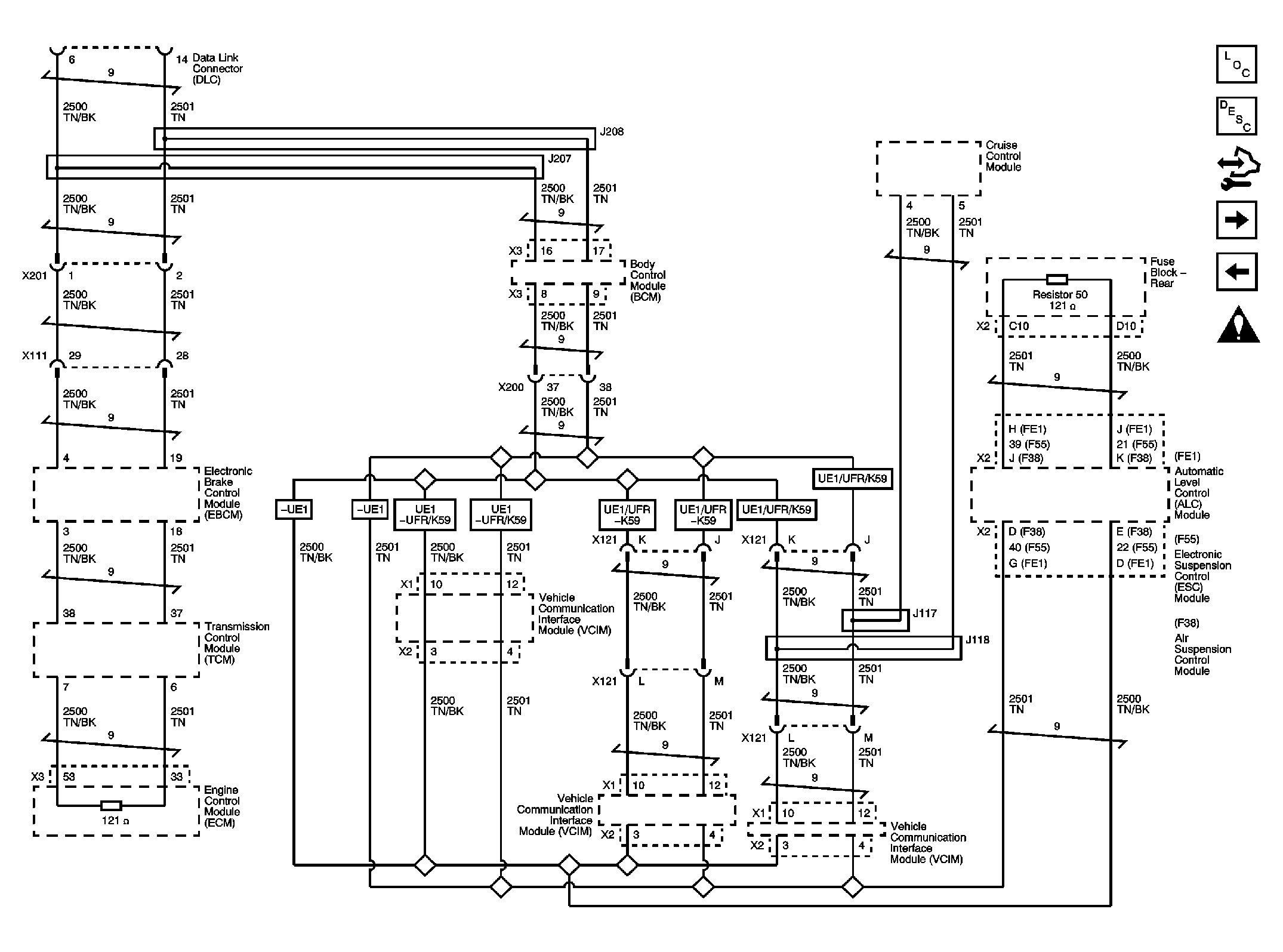

Fig 2: High Speed Serial Data
Courtesy of GENERAL MOTORS CORP.

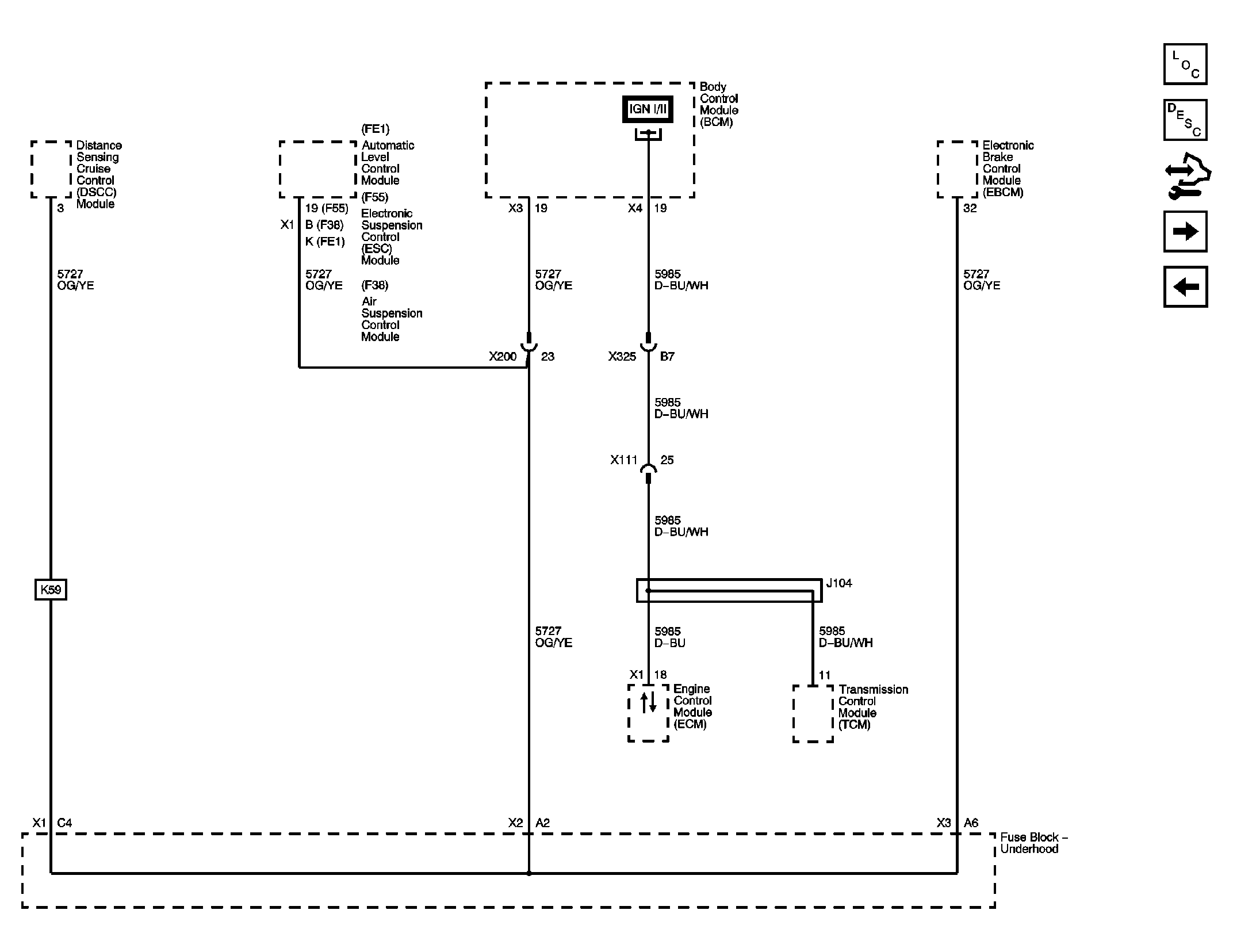

Fig 3: High Speed Serial Data, Wake up
Courtesy of GENERAL MOTORS CORP.

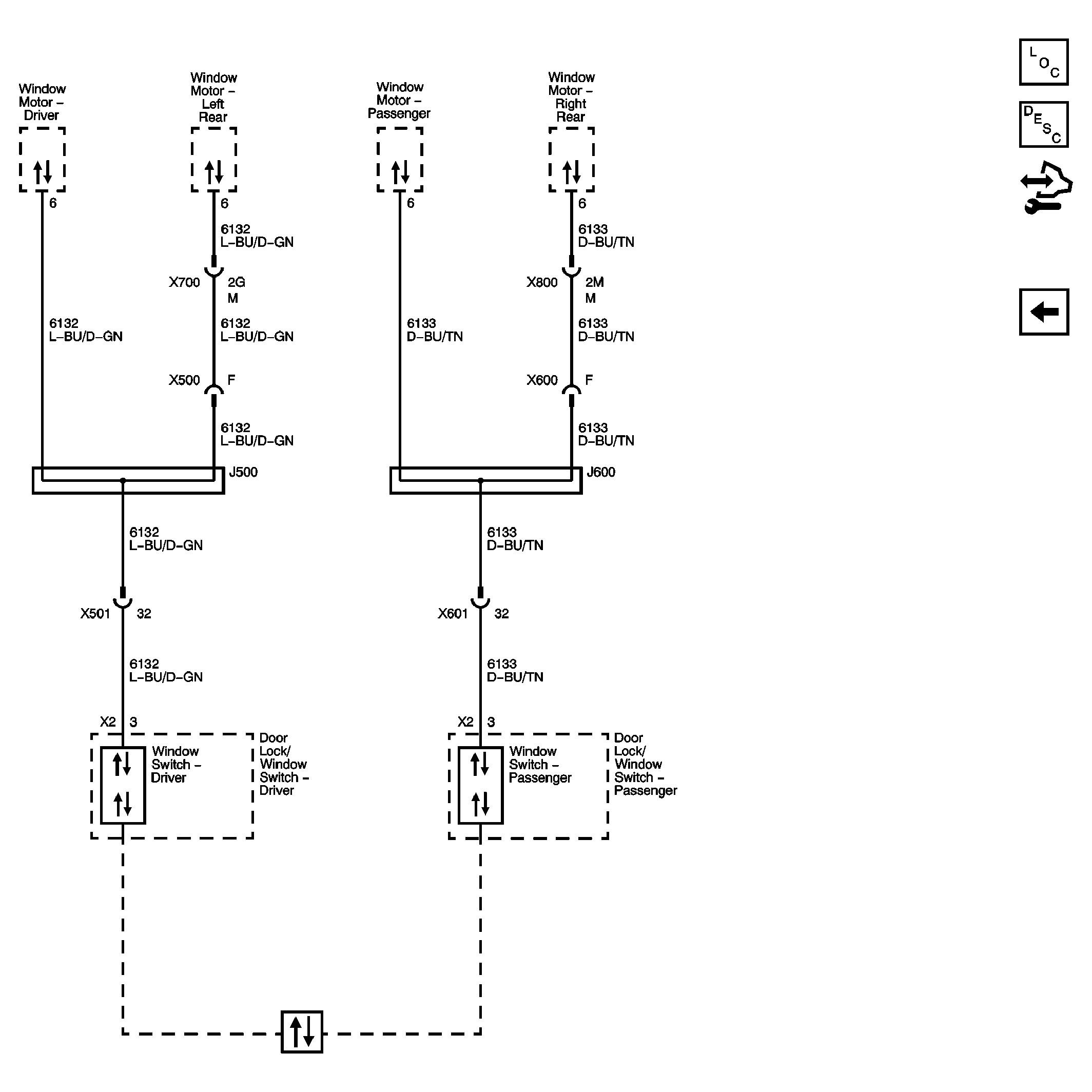

Fig 4: Local Interconnect Network Bus
Courtesy of GENERAL MOTORS CORP.
