Door Control Module Schematics

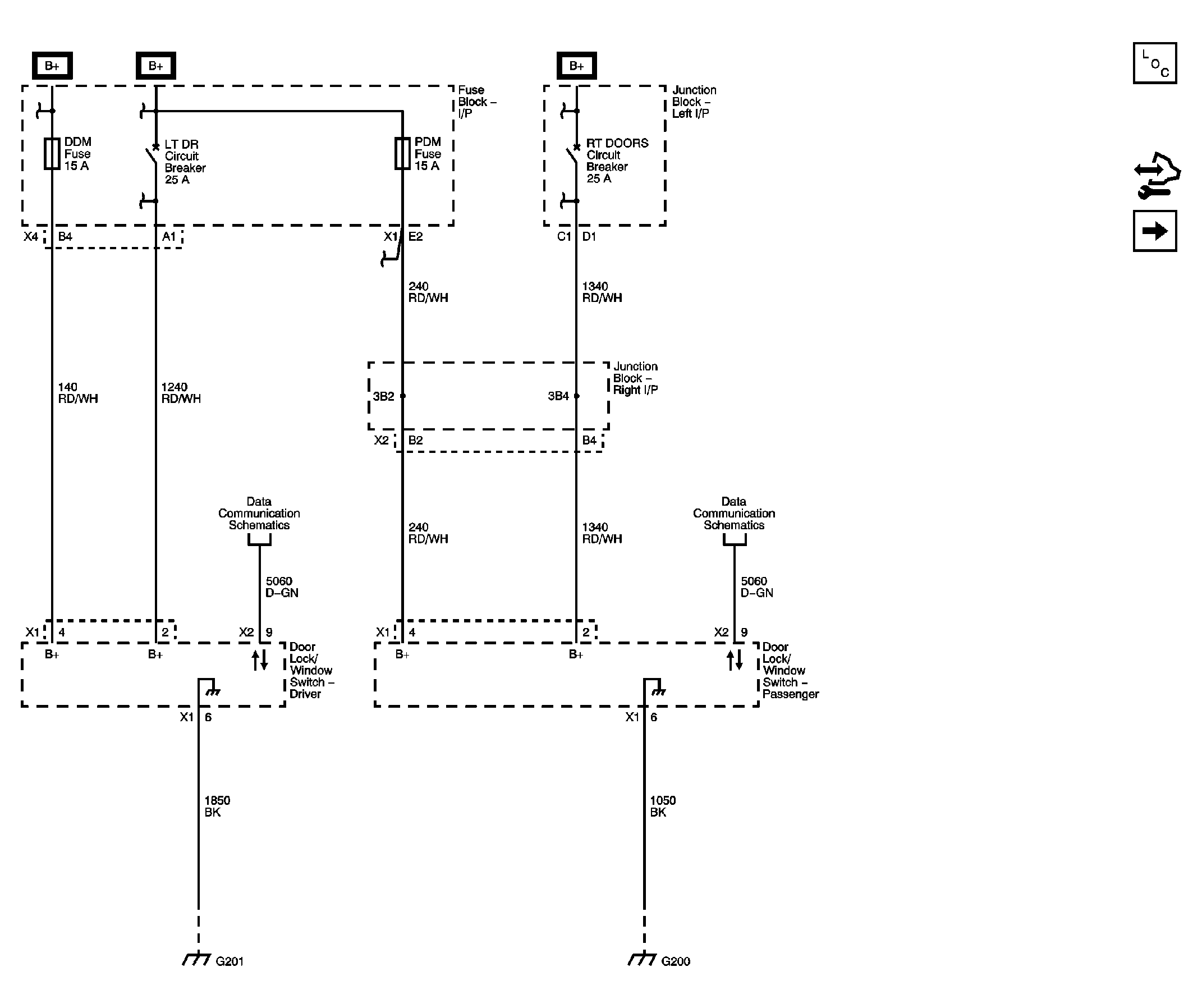

Fig 1: Power, Ground, and Serial Data

Courtesy of GENERAL MOTORS CORP.

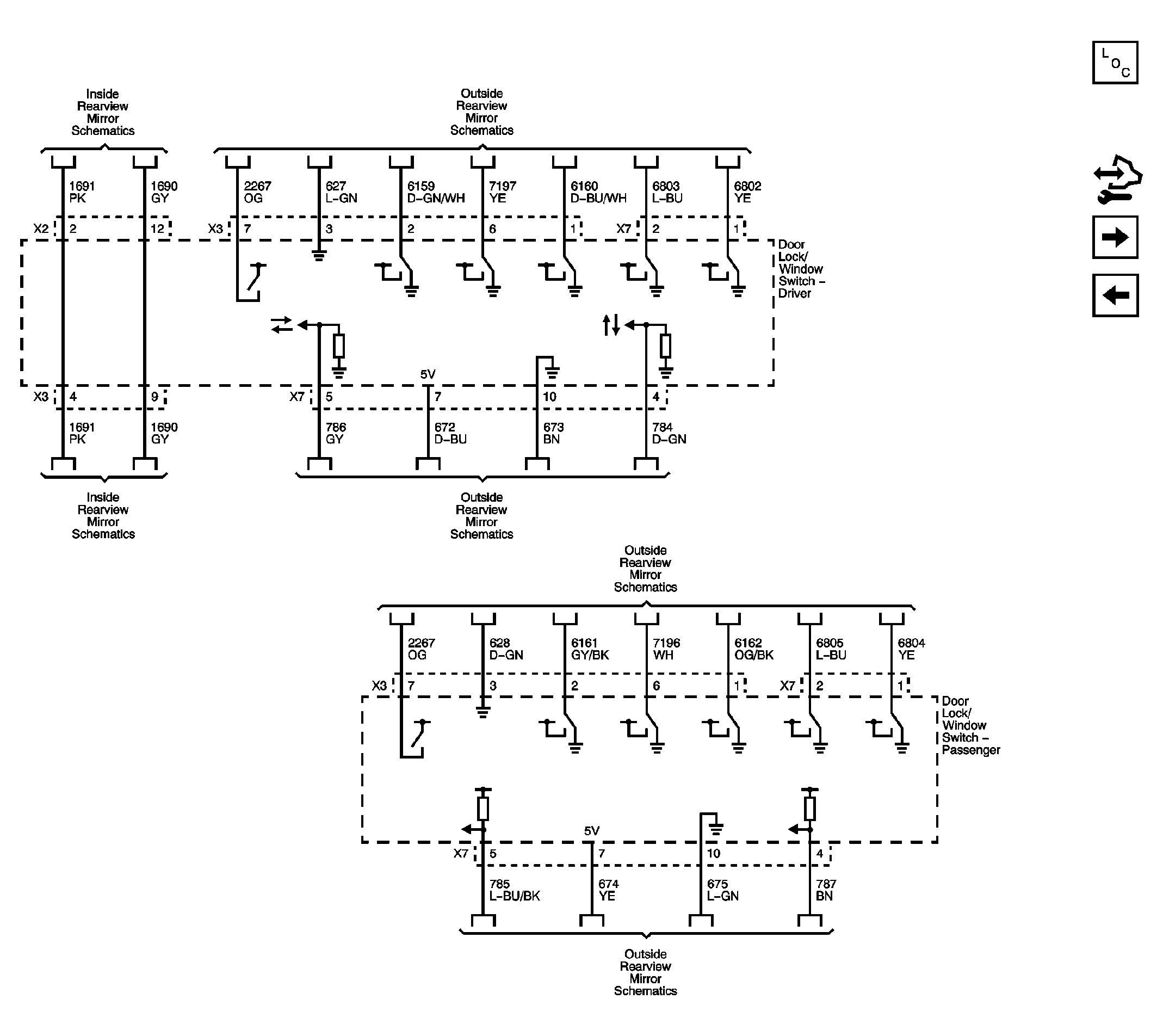

Fig 2: Outside Rearview Mirror References

Courtesy of GENERAL MOTORS CORP.

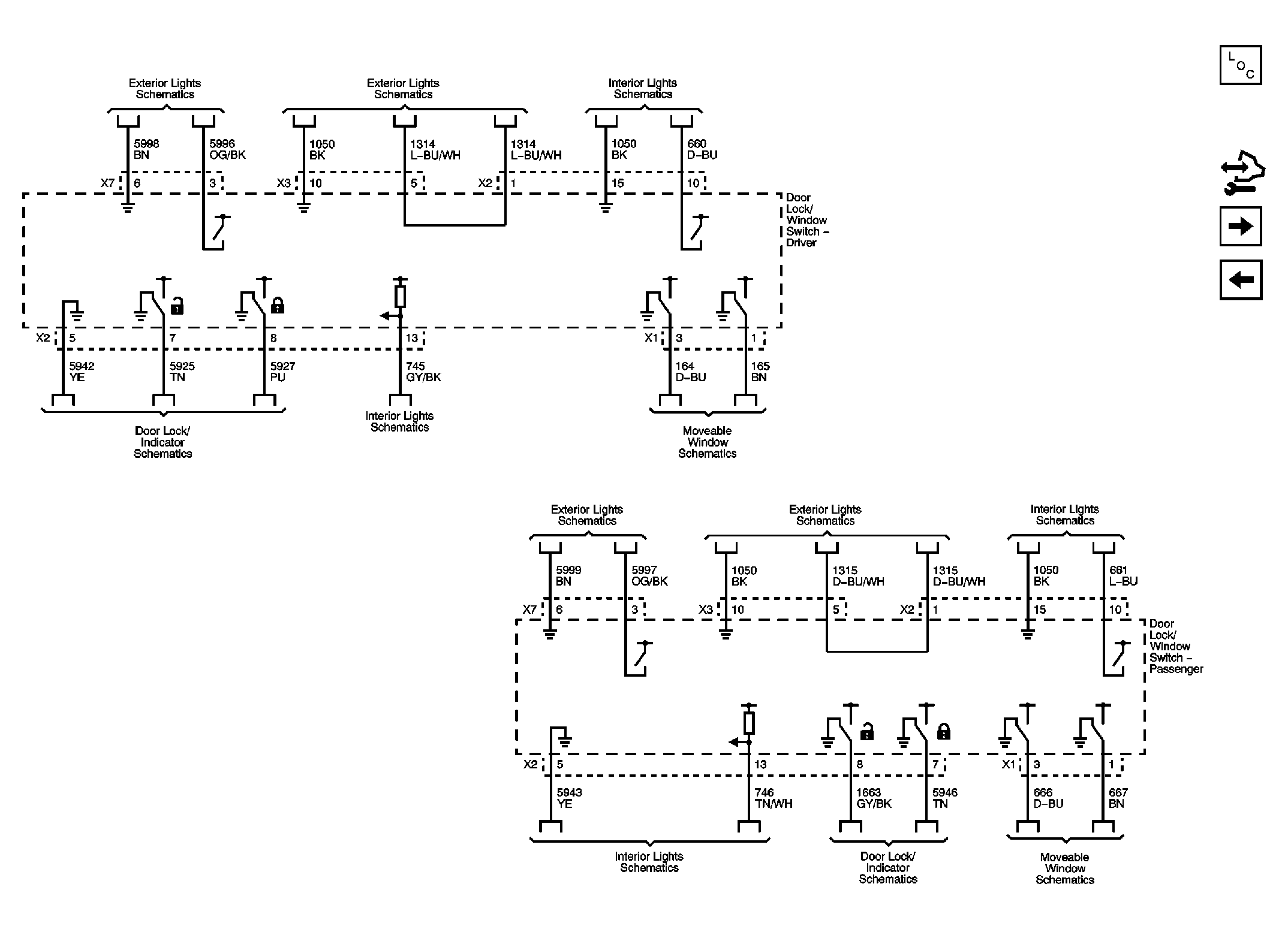

Fig 3: Door Lock, Window, and Lighting System References

Courtesy of GENERAL MOTORS CORP.

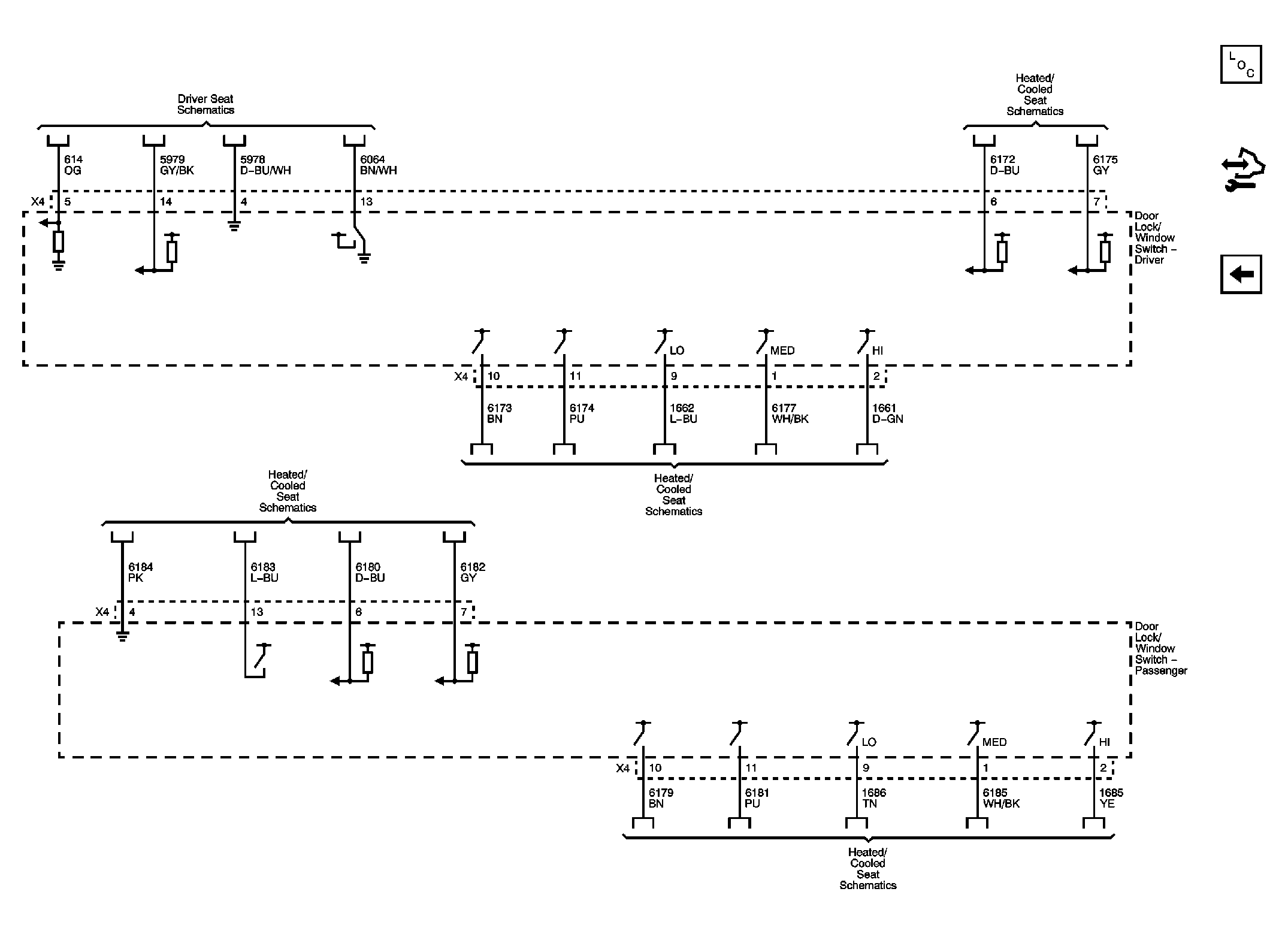

Fig 4: Heated Seat References

Courtesy of GENERAL MOTORS CORP.
