Liftgate Trim Panel Replacement

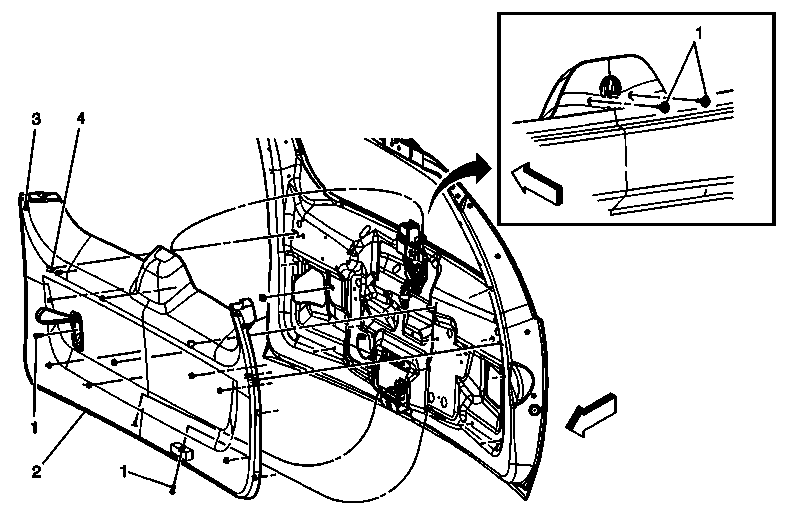

Fig 1: View Of Liftgate Trim Finish Panel Assembly & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove liftgate window upper garnish molding. Refer to Liftgate Garnish Molding Replacement .
1	Liftgate Trim Finish Panel Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Liftgate Trim Finish Panel Assembly Tip: Pull outward to disengage retainers and clips. Disconnect electrical connector.
3	Liftgate Trim Finish Panel Retainer (Qty: 12)
4	Liftgate Trim Finish Panel Clip (Qty: 5)
