Cadillac
›
2010
›
Escalade EXT
›
Repair and Diagnosis
›
Body & Frame
›
Towing Systems
›
Trailer Brake Control System
›
Schematic and Routing Diagrams
›
Trailer Brake Control Schematics
Trailer Brake Control Schematics

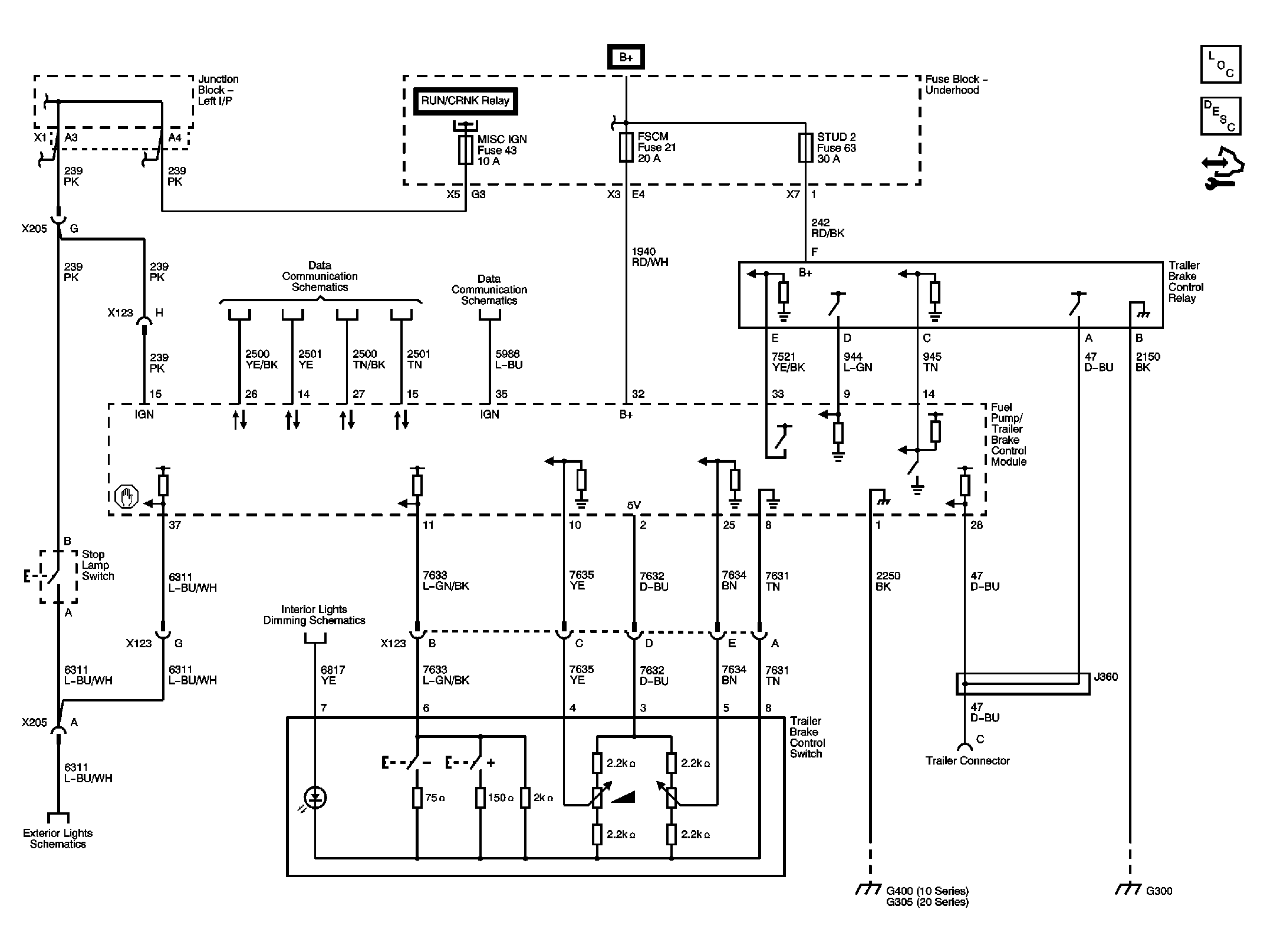

Fig 1: Trailer Brake Control Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
