Instrument Panel/Center Console Component Views

Fig 1: Identifying Behind Instrument Panel Components
GM2296986Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 K28 Headlamp Leveling Control Module (TT6, TT7 or TT8)
2 K9 Body Control Module
3 B22 Brake Pedal Position Sensor
4 M16 Adjustable Pedal Assembly (JF4)
5 B107 Accelerator Pedal Position Sensor
6 K73 Telematics Communication Interface Control Module (UE1)
7 T15 Navigation Antenna Signal Splitter
8 K82 Mobile Telephone Control Module (UPH)
9 T4S Wireless Communication Antenna - Bluetooth
Fig 2: Identifying Instrument Panel & Console Components
GM2296964Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 P16 Instrument Cluster
2 P19B Speaker - Center Instrument Panel
3 B10B Ambient Light/Sunload Sensor
4 P17 Info Display Module
5 F105 Passenger Instrument Panel Air Bag
6 E1H Accent Lamp - Right Instrument Panel (TSQ)
7 A20 Radio/HVAC Controls
8 A13 Rear Audio Control Module (ULD )
9 X80H Accessory Power Receptacle - Center Console
10 X82 Audio/Video Input Adapter (UWG)
11 X80G Accessory Power Receptacle - Instrument Panel
12 S38 Ignition Mode Switch
13 S30 Headlamp Switch
14 E1G Accent Lamp - Left Instrument Panel (TSQ)
Fig 3: Identifying Instrument Panel Upper & Lower Components
GM2297021Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 P19H Speaker - Left Front Tweeter
2 P19V Speaker - Right Front Tweeter
3 E27 Instrument Panel Compartment Lamp
4 S40 Passenger Air Bag Disable Switch (C99)
5 E8K Instrument Panel Courtesy Lamp - Right
6 E1K Accent Lamp - Right Lower Instrument Panel (TSQ)
7 E8J Instrument Panel Courtesy Lamp - Left
8 E1J Accent Lamp - Left Lower Instrument Panel (TSQ)
9 X84 Data Link Connector
Fig 4: Identifying HVAC Module Components
GM2296980Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 B7H Air Temperature Sensor - Duct Left Upper
2 M37 Mode Door Actuator
3 B7D Air Temperature Sensor - Duct Left Lower
4 K33 HVAC Control Module
5 B7E Air Temperature Sensor - Duct Right Lower
6 B7J Air Temperature Sensor - Duct Right Upper
7 M46 Air Recirculation Door Motor
8 M8 Blower Motor
9 K8 Blower Motor Control Module
10 B39 A/C Evaporator Temperature Sensor
11 M6R Air Temperature Door Actuator - Right
12 M37D Mode Door Actuator - Auxiliary
13 M6B Air Temperature Door Actuator - Auxiliary
14 M6L Air Temperature Door Actuator - Left
Fig 5: Identifying Steering Column Components
GM2296960Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X85 Steering Wheel Air Bag Coil
2 S82 Windshield Wiper/Washer Switch
3 S1 Adjustable Pedal Control Switch (JF4)
4 K60 Steering Column Lock Control Module (ULS)
5 B99 Steering Wheel Angle Sensor
6 S78 Turn Signal/Multi-Function Switch

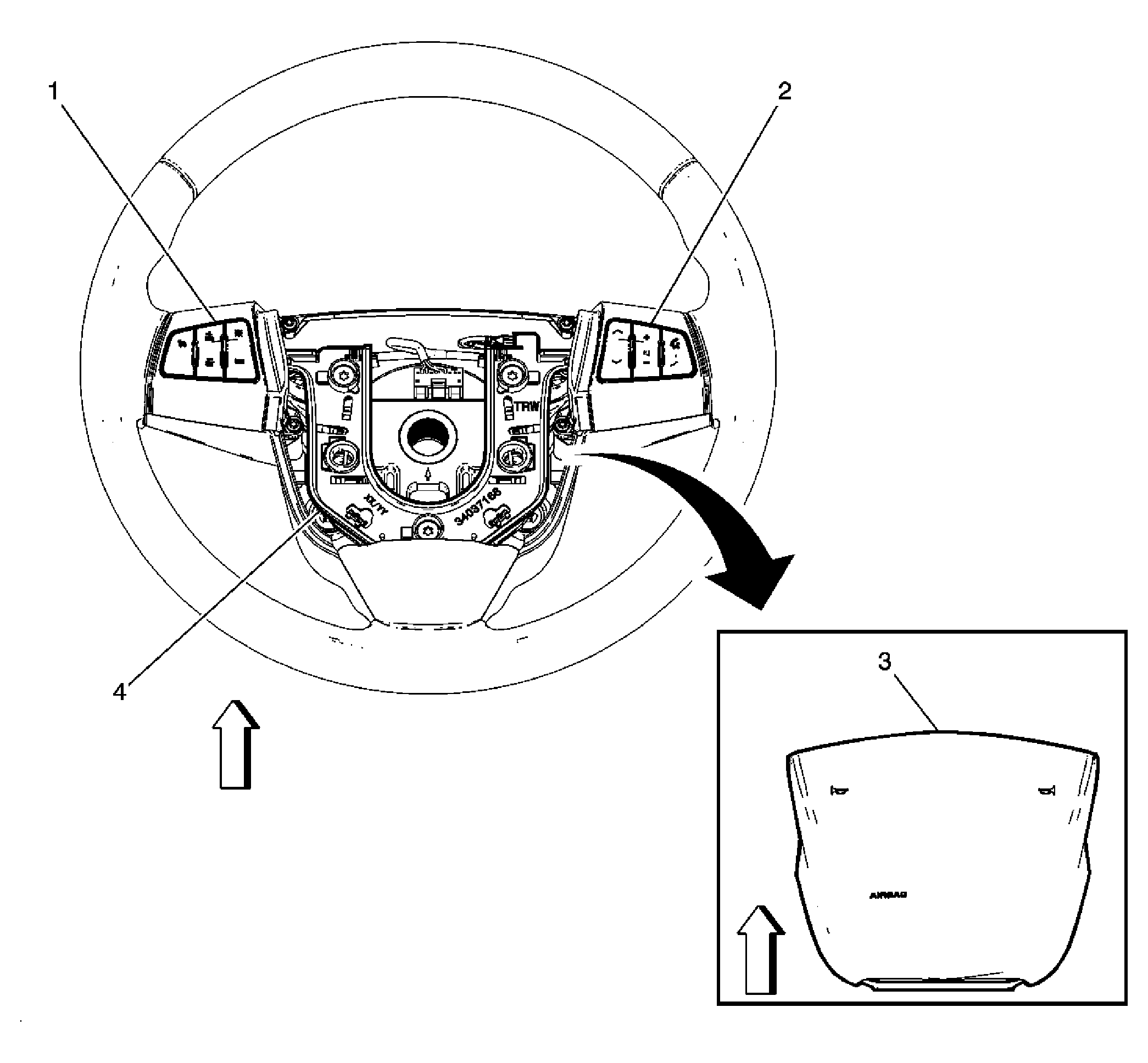

Fig 6: Identifying Steering Wheel Components
GM2296972Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 S70L Steering Wheel Controls Switch - Left
2 S70R Steering Wheel Controls Switch - Right
3 F107 Steering Wheel Air Bag
4 S33 Horn Switch
Fig 7: Identifying Floor Console Components
GM2296969Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 S48E Multi-Function Switch - Center Console
2 X80D Accessory Power Receptacle - Center Console Compartment
3 X83 Auxiliary Audio Input
4 S3 Transmission Shift Lever
5 B81B Park Position Switch
6 M7 Transmission Shift Lock Control Solenoid Actuator
7 S91 Park Brake Control Switch
8 P2 Transmission Shift Lever Position Indicator
Fig 8: Identifying Floor Console Internal Components
GM2296975Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 B7F Air Temperature Sensor - Duct Upper
2 T10J Keyless Entry Antenna - Center Console Front
3 T11 Multimedia Player Interface Module (UTE or UYK or UYI)
4 X51A Fuse Block - Instrument Panel
5 M8B Blower Motor - Auxiliary
6 B7B Air Temperature Sensor - Duct Lower
7 K8A Blower Motor Control Module - Auxiliary
8 T10K Keyless Entry Antenna - Center Console Rear
