Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

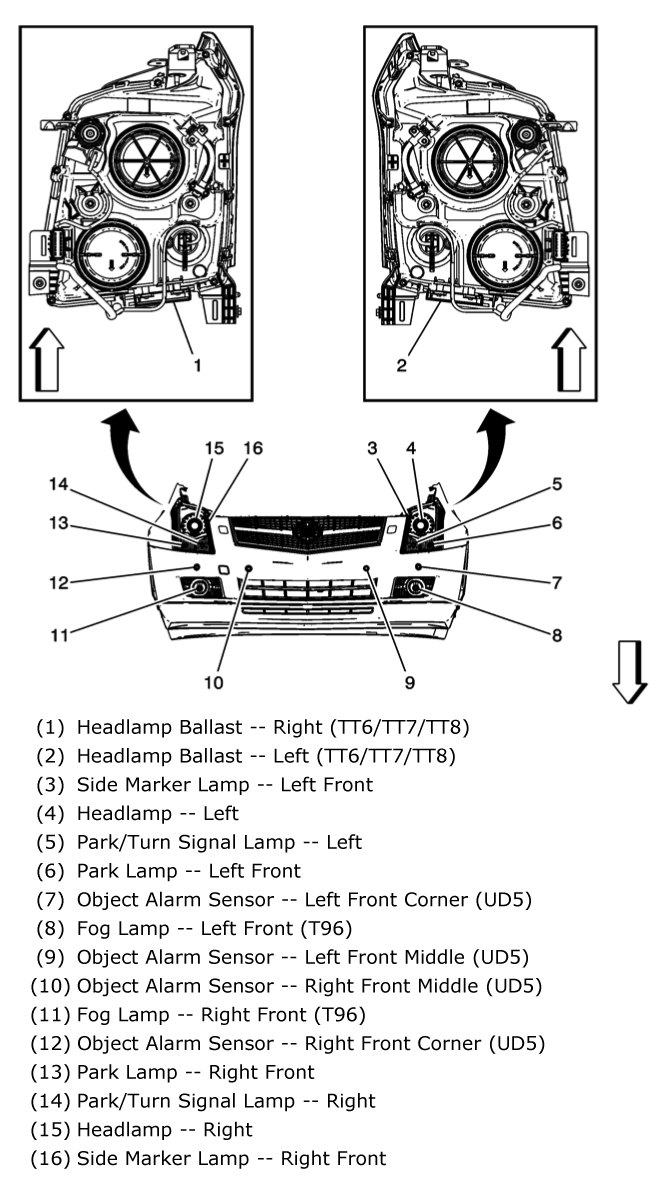

Fig 1: Front Fascia

G00478090

Courtesy of GENERAL MOTORS CORP.

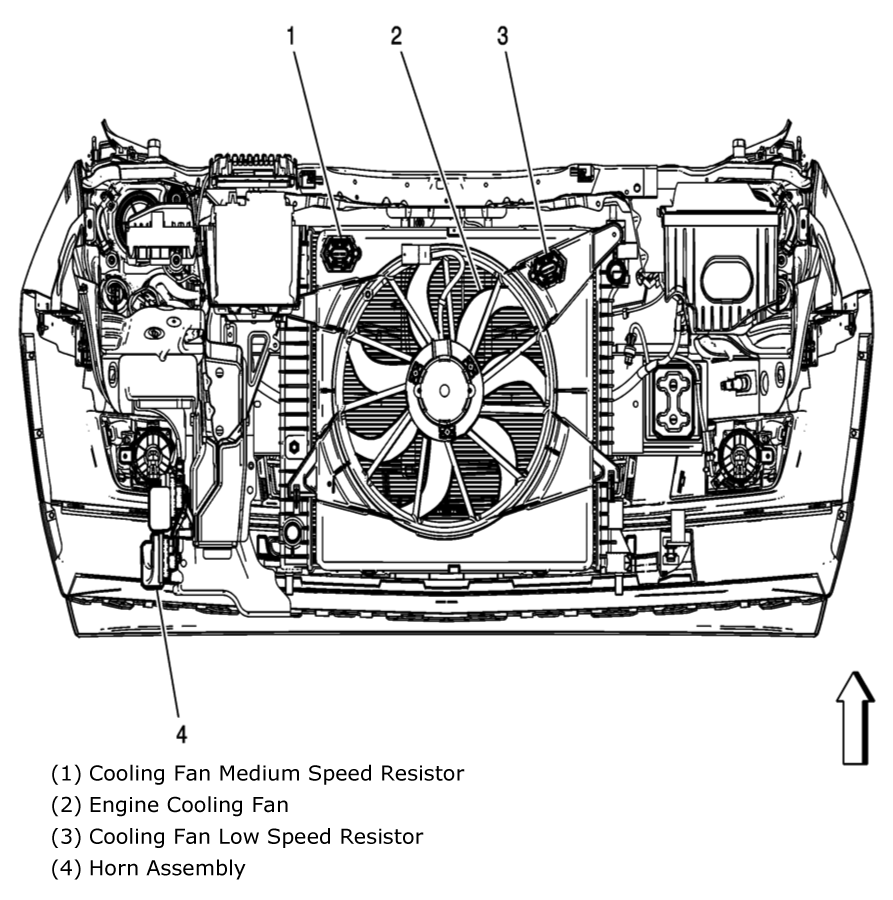

Fig 2: Front Of Engine Compartment

G00478091

Courtesy of GENERAL MOTORS CORP.

Fig 3: Engine Compartment

G00478092

Courtesy of GENERAL MOTORS CORP.

Fig 4: Engine Compartment

G00478093

Courtesy of GENERAL MOTORS CORP.

Fig 5: Dash

G00478094

Courtesy of GENERAL MOTORS CORP.

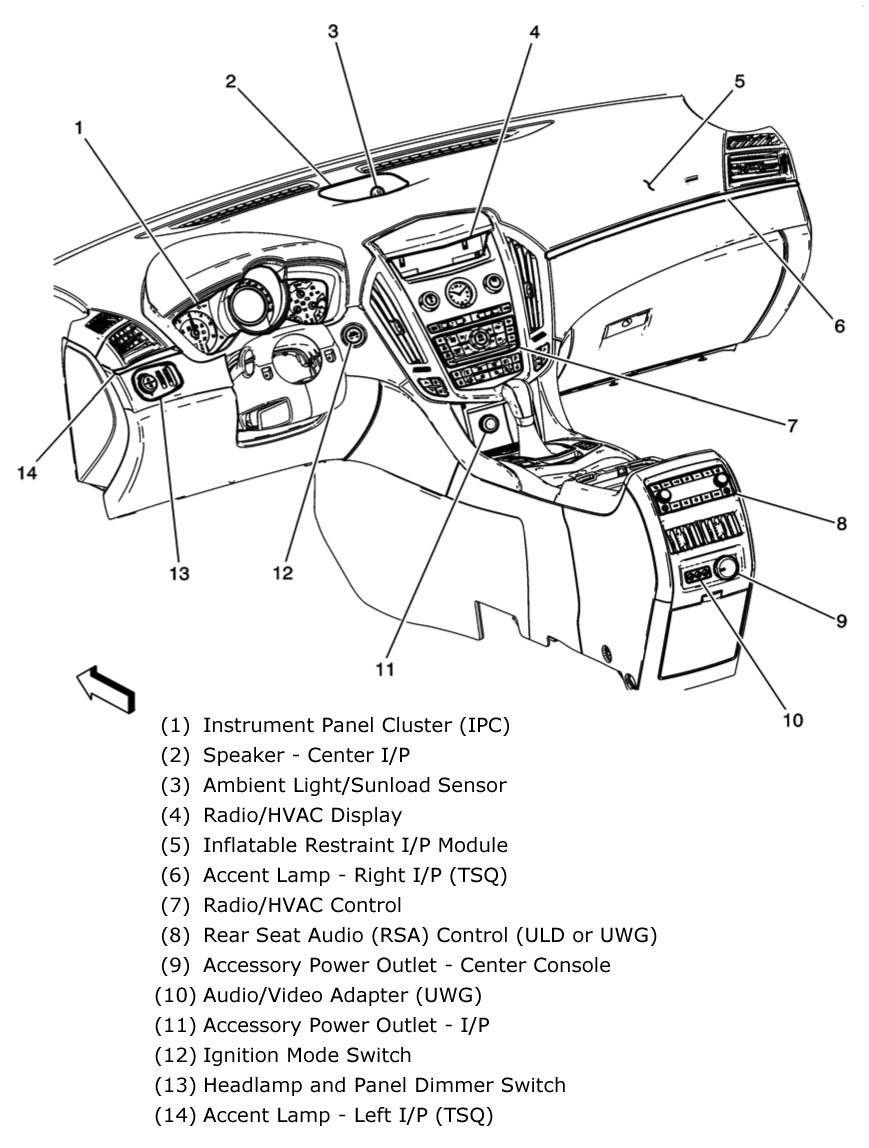

Fig 6: Dash & Console

G00478095

Courtesy of GENERAL MOTORS CORP.

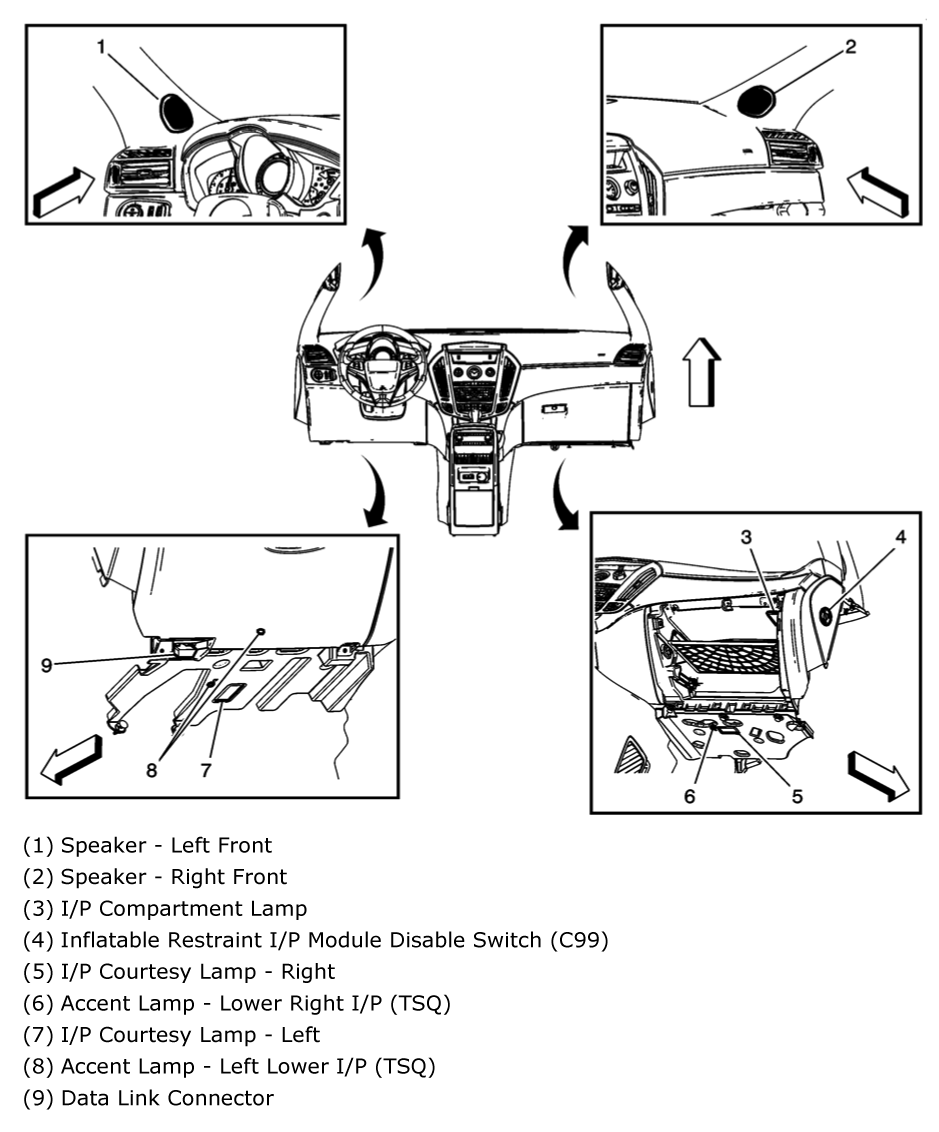

Fig 7: Dash

G00478096

Courtesy of GENERAL MOTORS CORP.

Fig 8: HVAC Module

G00478097

Courtesy of GENERAL MOTORS CORP.

Fig 9: Steering Column

G00478098

Courtesy of GENERAL MOTORS CORP.

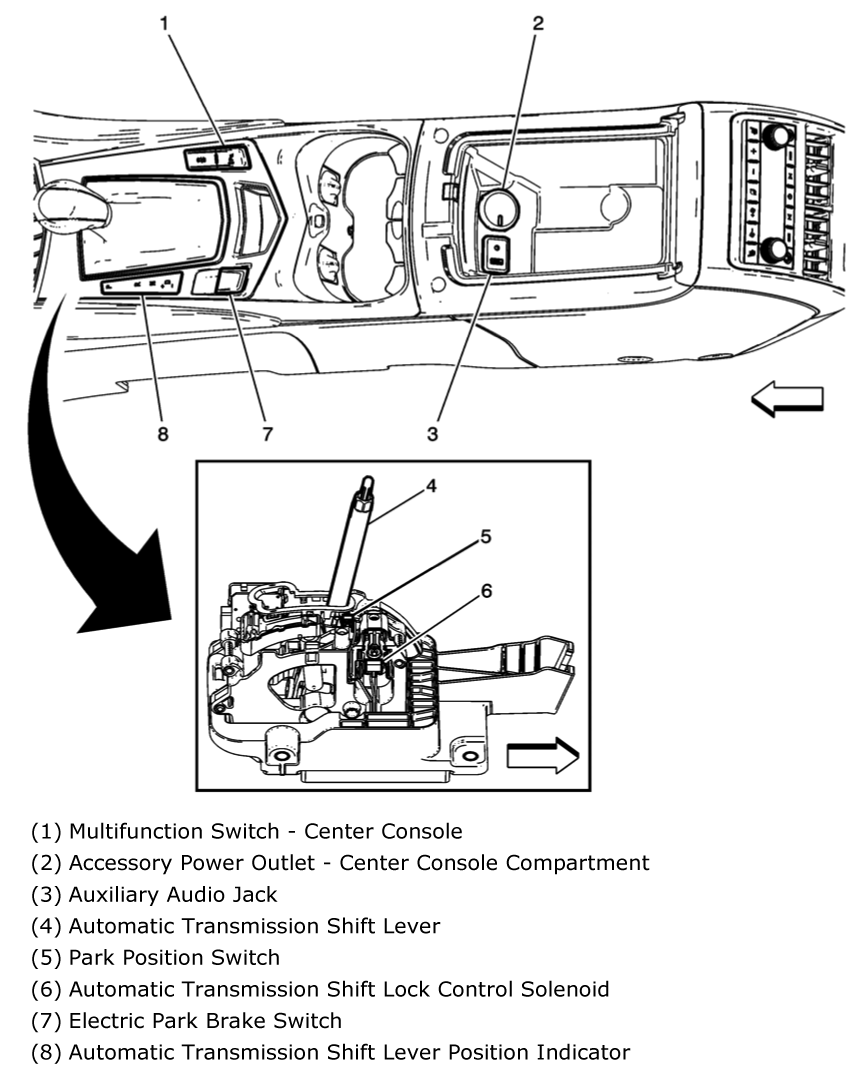

Fig 10: Center Console

G00478099

Courtesy of GENERAL MOTORS CORP.

Fig 11: Center Console

G00478100

Courtesy of GENERAL MOTORS CORP.

Fig 12: Driver Seat

G00478101

Courtesy of GENERAL MOTORS CORP.

Fig 13: Driver Seat

G00478102

Courtesy of GENERAL MOTORS CORP.

Fig 14: Passenger Seat

G00478103

Courtesy of GENERAL MOTORS CORP.

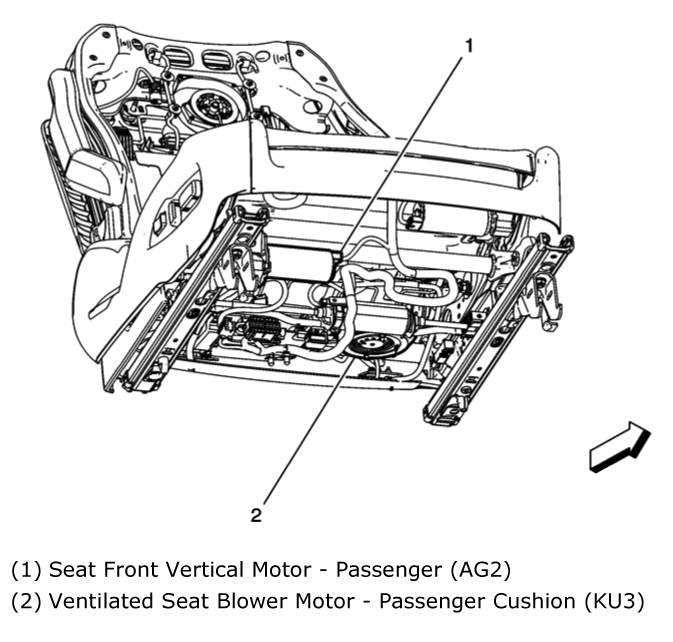

Fig 15: Passenger Seat

G00478104

Courtesy of GENERAL MOTORS CORP.

Fig 16: Rear Seats

G00478105

Courtesy of GENERAL MOTORS CORP.

Fig 17: Body Frame

G00478107

Courtesy of GENERAL MOTORS CORP.

Fig 18: Rear Body Frame

G00478108

Courtesy of GENERAL MOTORS CORP.

Fig 19: Driver Door

G00478109

Courtesy of GENERAL MOTORS CORP.

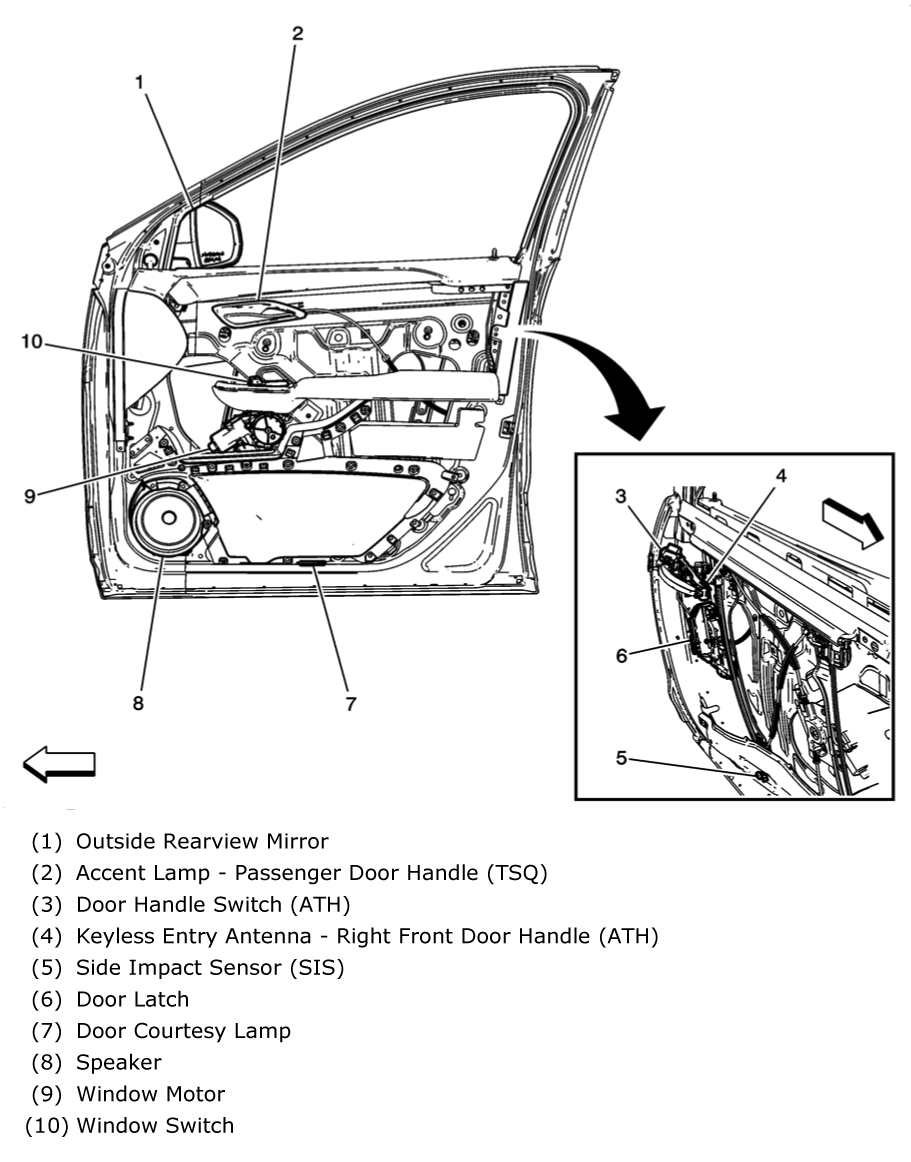

Fig 20: Passenger Door

G00478110

Courtesy of GENERAL MOTORS CORP.

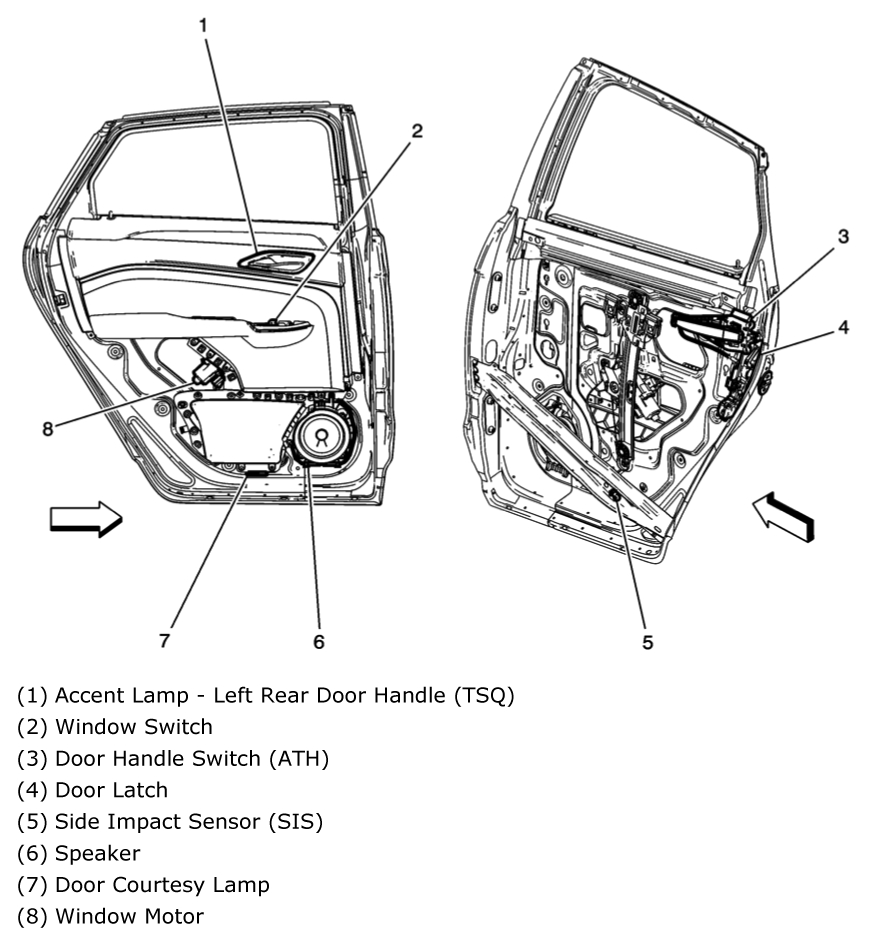

Fig 21: Left Rear Door

G00478111

Courtesy of GENERAL MOTORS CORP.

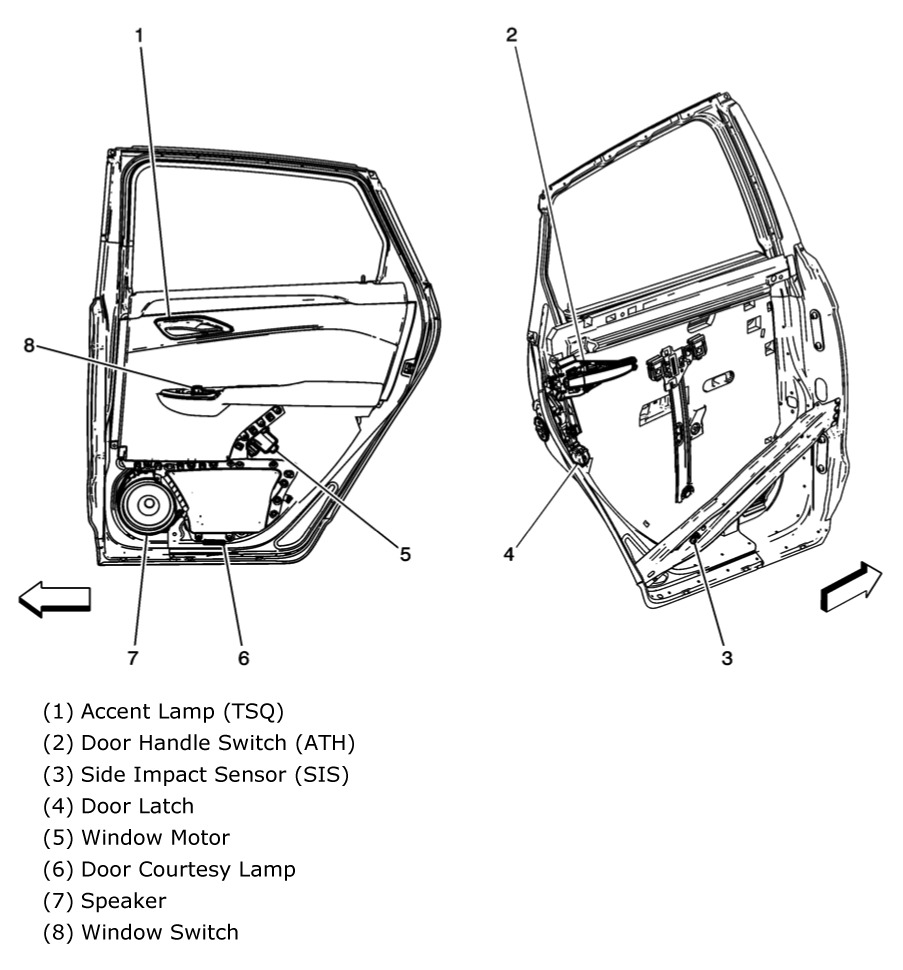

Fig 22: Right Rear Door

G00478112

Courtesy of GENERAL MOTORS CORP.

Fig 23: Rear Body Frame

G00478113

Courtesy of GENERAL MOTORS CORP.

Fig 24: Right Cargo Area

G00478114

Courtesy of GENERAL MOTORS CORP.

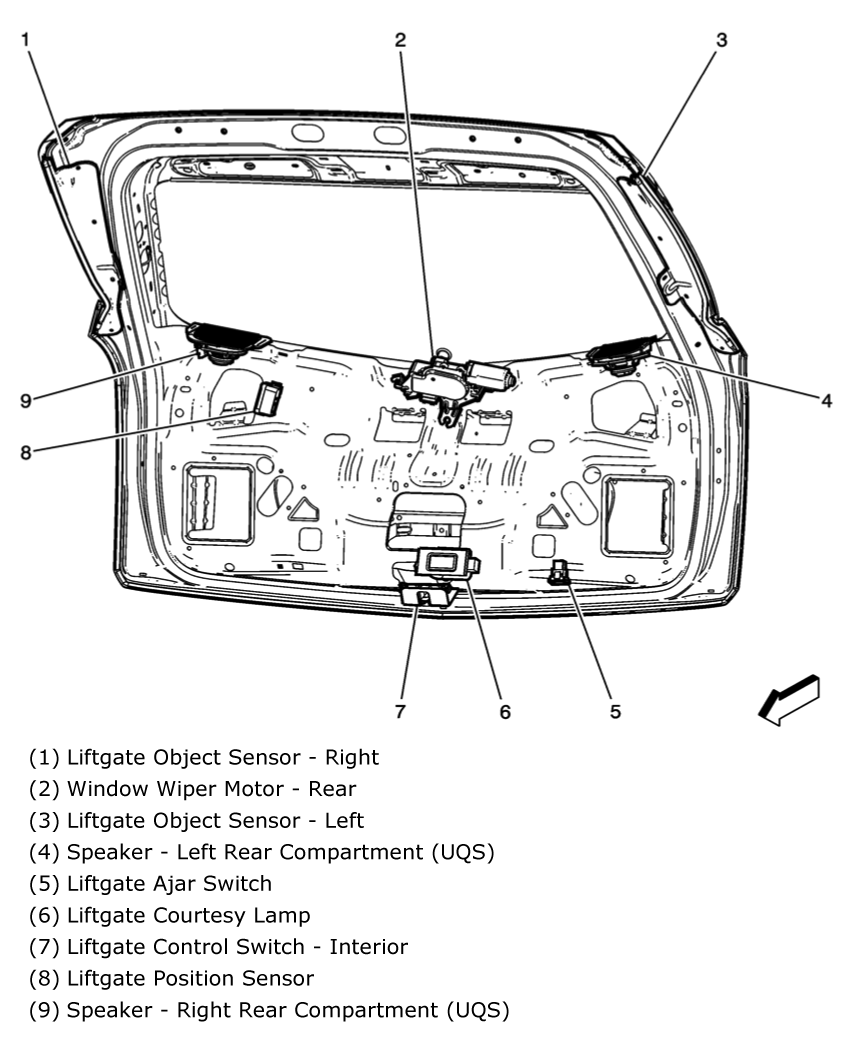

Fig 25: Liftgate

G00478115

Courtesy of GENERAL MOTORS CORP.

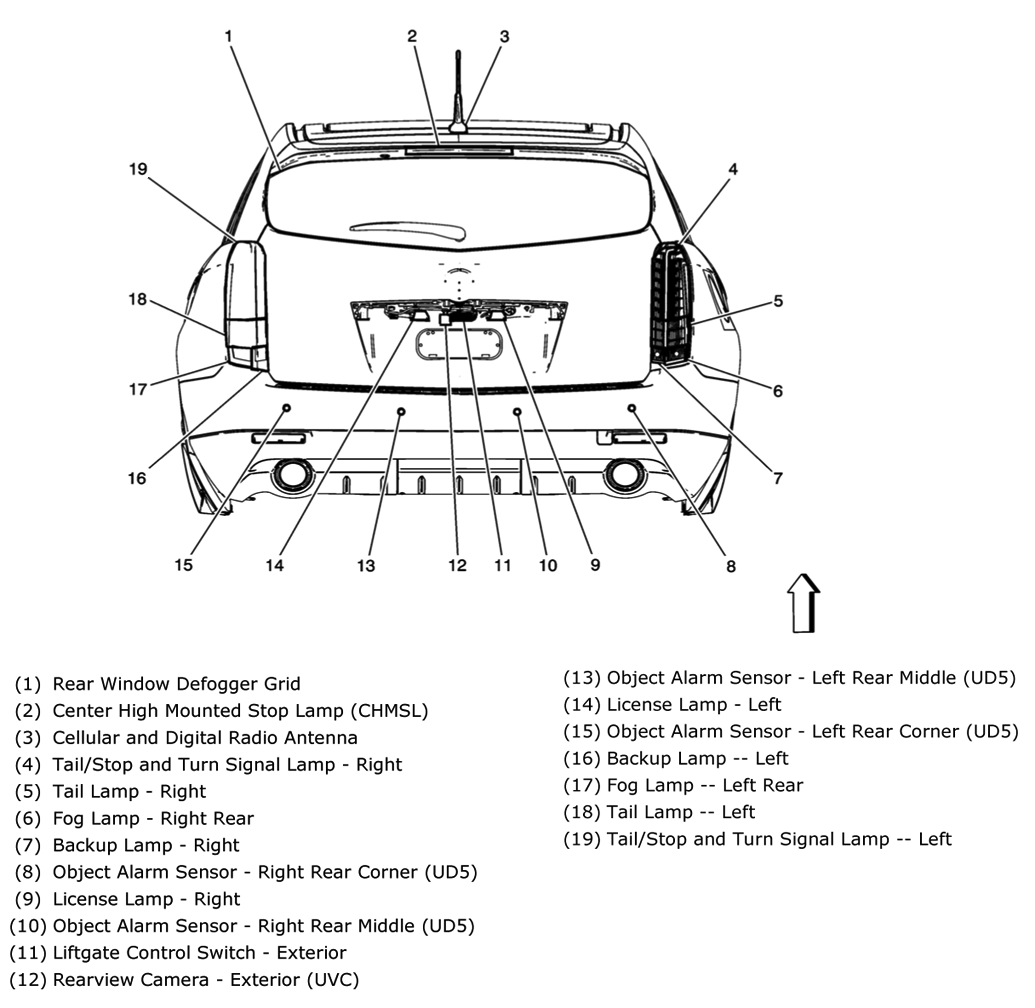

Fig 26: Liftgate & Rear Bumper

G00478116

Courtesy of GENERAL MOTORS CORP.

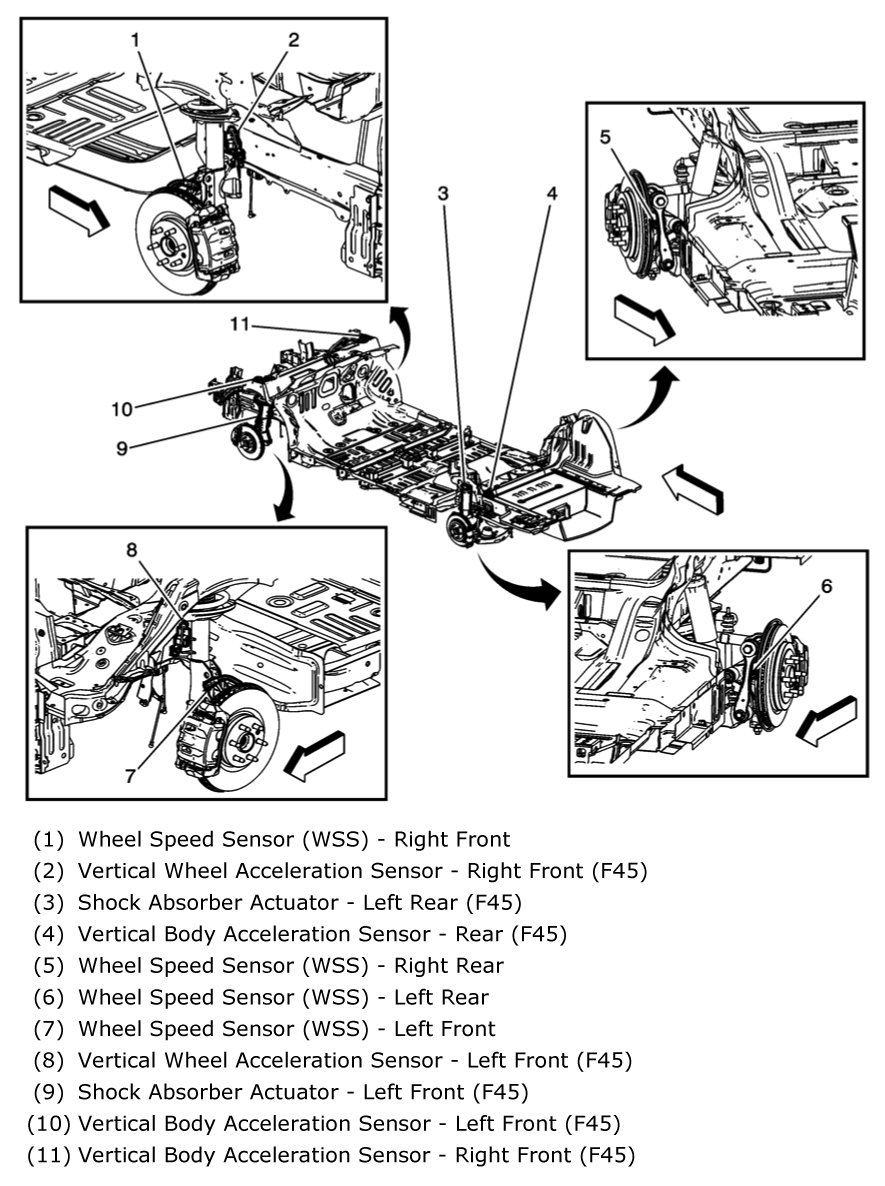

Fig 27: Chassis

G00478117

Courtesy of GENERAL MOTORS CORP.

Fig 28: Chassis

G00478118

Courtesy of GENERAL MOTORS CORP.

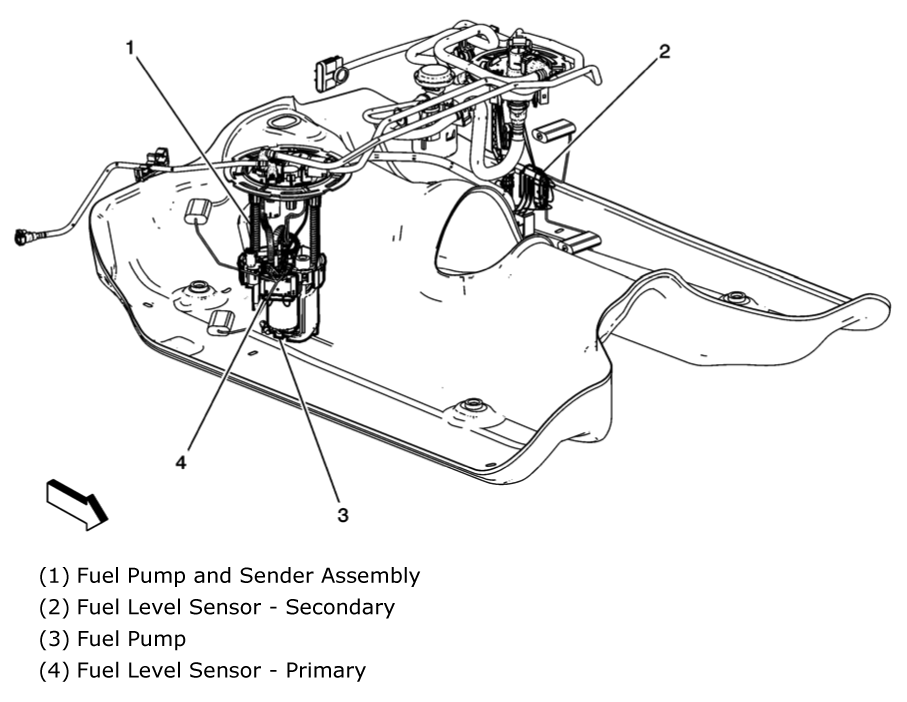

Fig 29: Fuel Tank

G00478119

Courtesy of GENERAL MOTORS CORP.

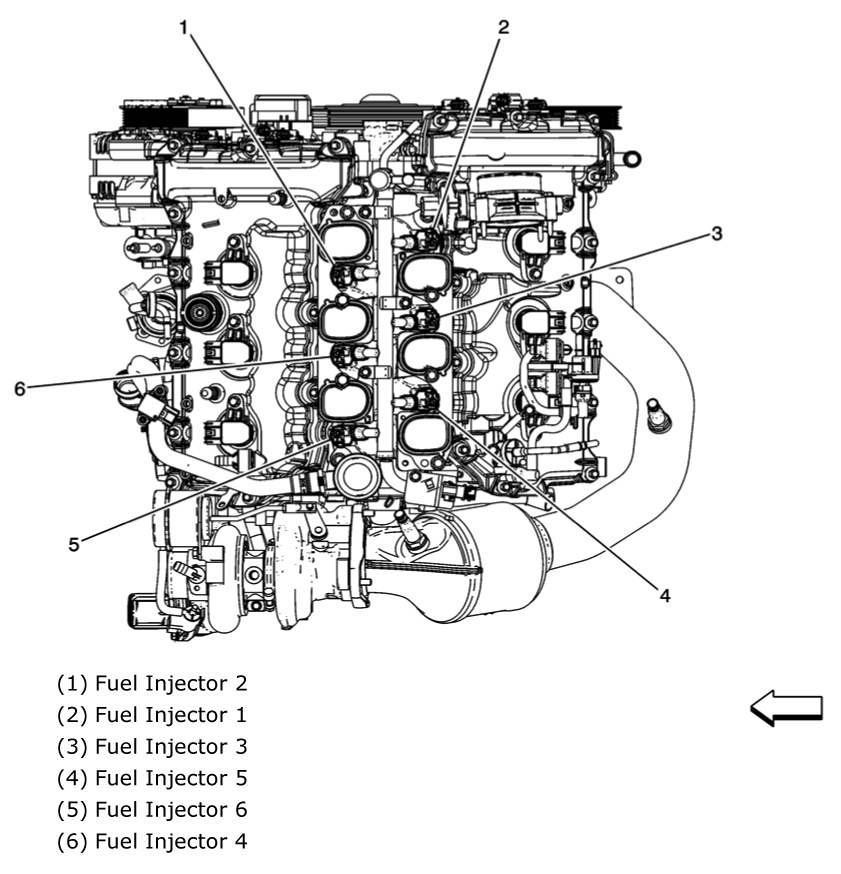

Fig 30: Top Engine (2.8L)

G00478120

Courtesy of GENERAL MOTORS CORP.

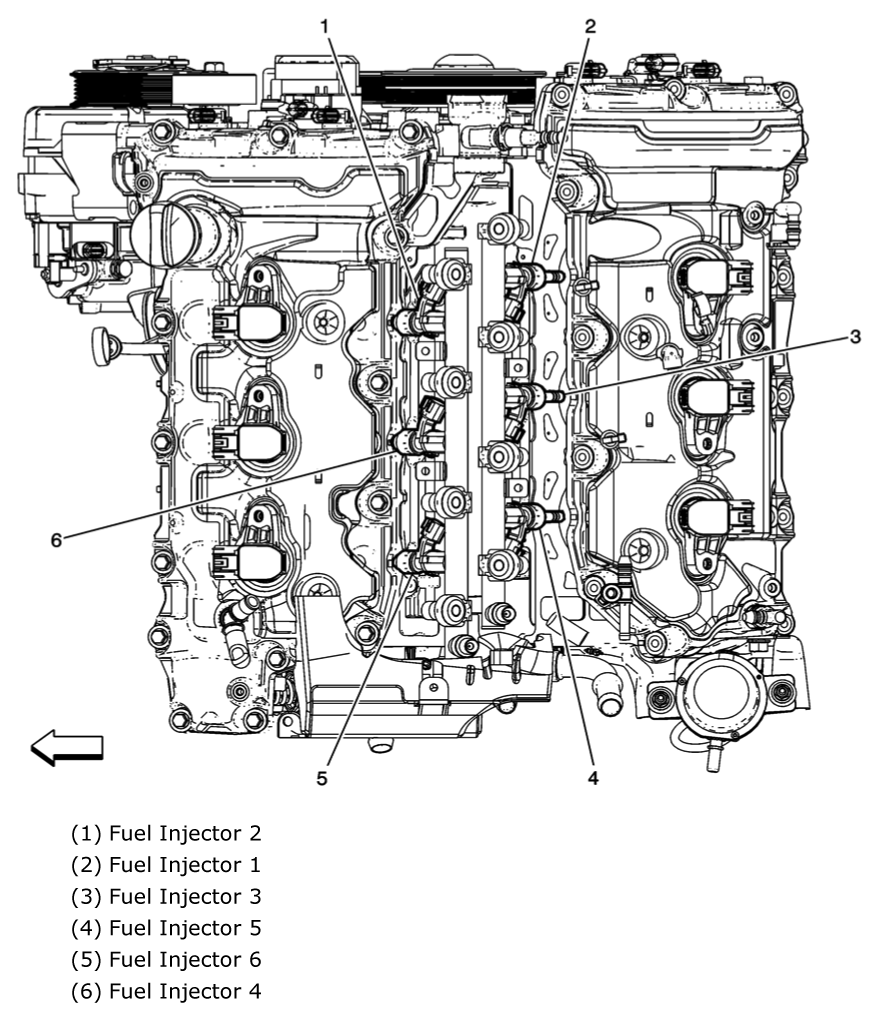

Fig 31: Top Engine (3.0L)

G00478121

Courtesy of GENERAL MOTORS CORP.

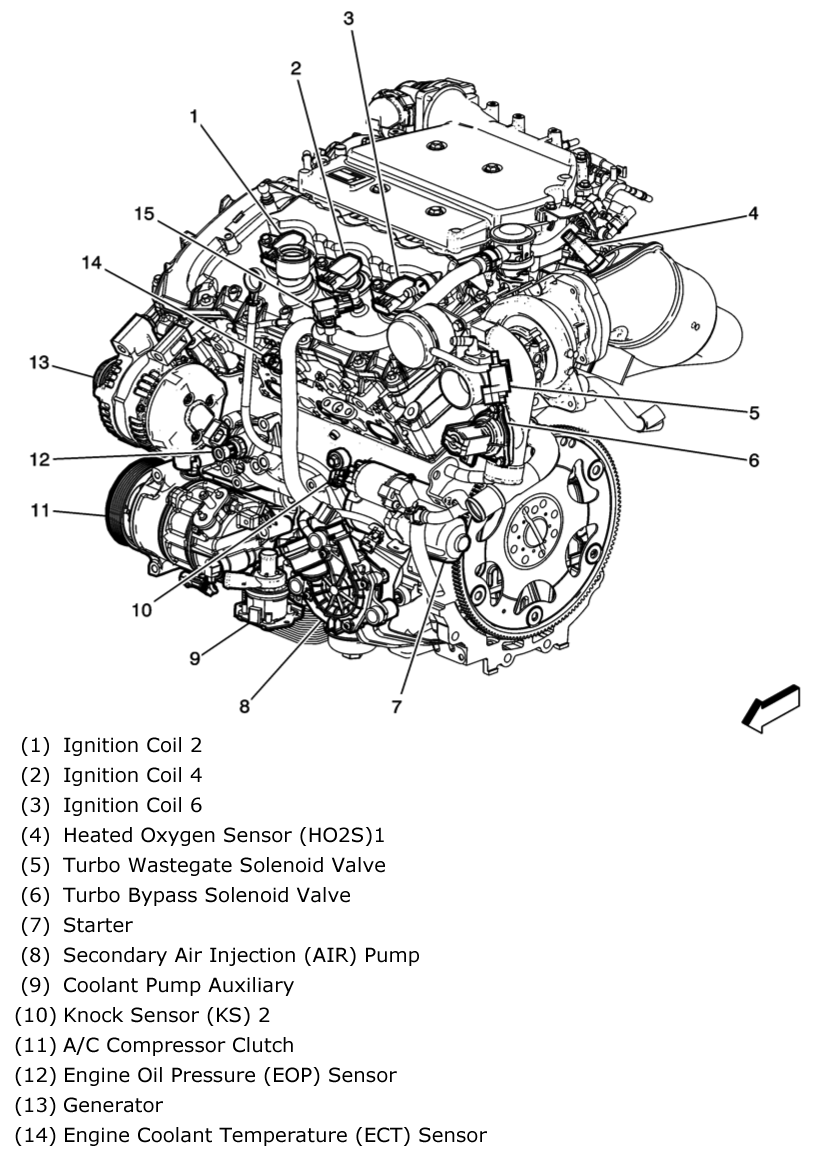

Fig 32: Engine (2.8L)

G00478122

Courtesy of GENERAL MOTORS CORP.

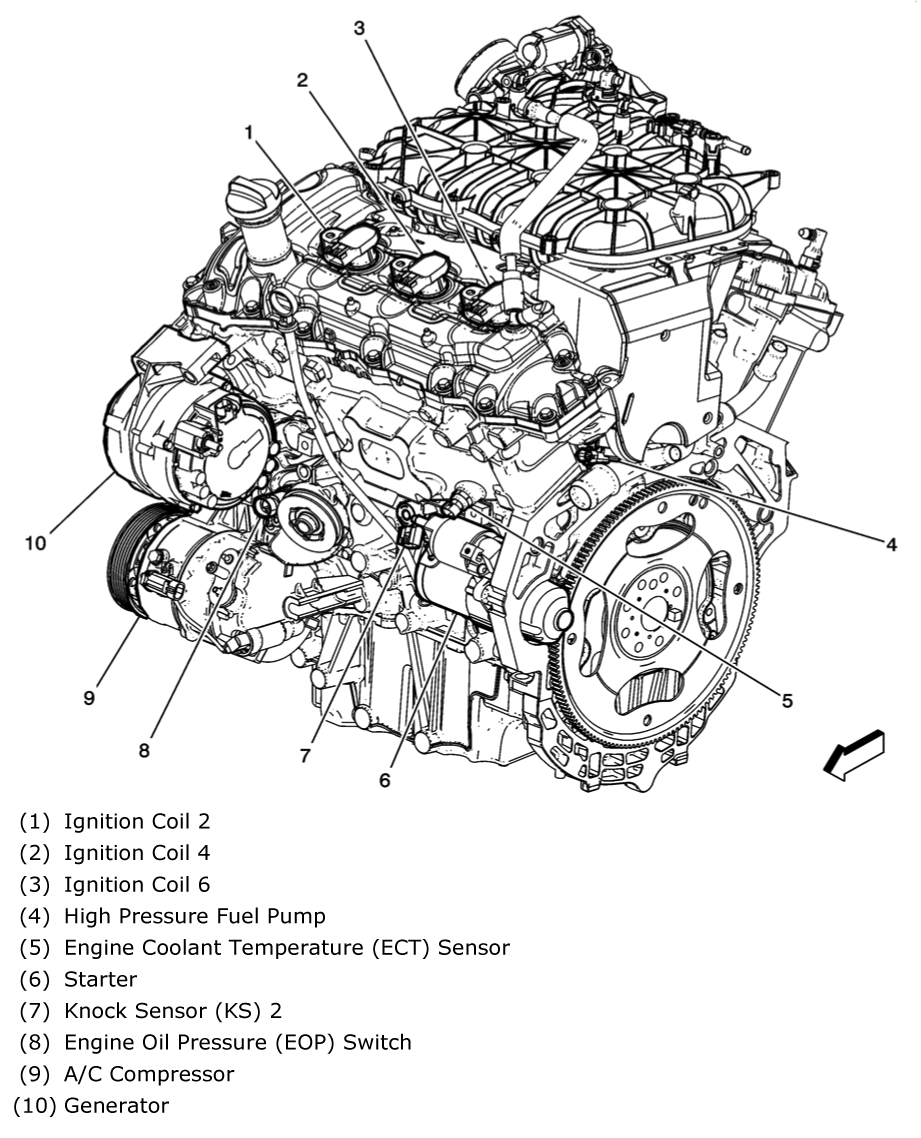

Fig 33: Engine (3.0L)

G00478123

Courtesy of GENERAL MOTORS CORP.

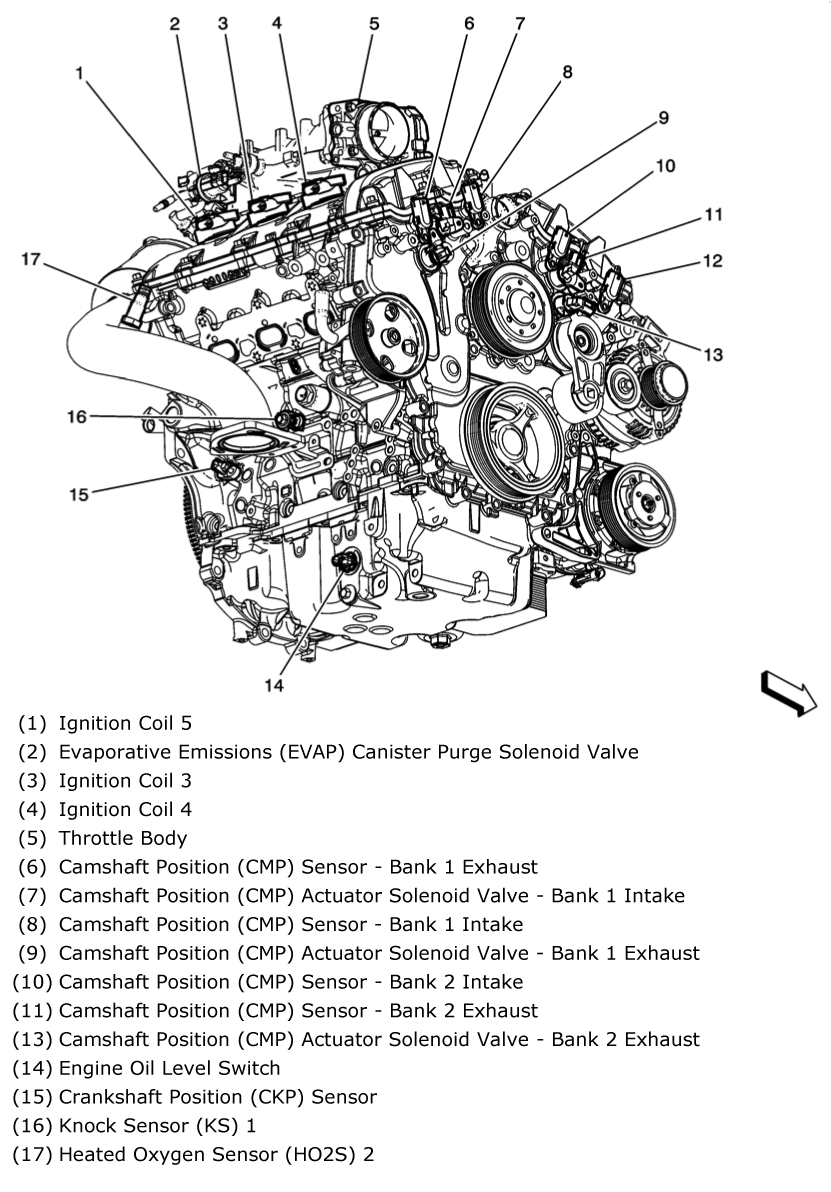

Fig 34: Engine (2.8L)

G00478124

Courtesy of GENERAL MOTORS CORP.

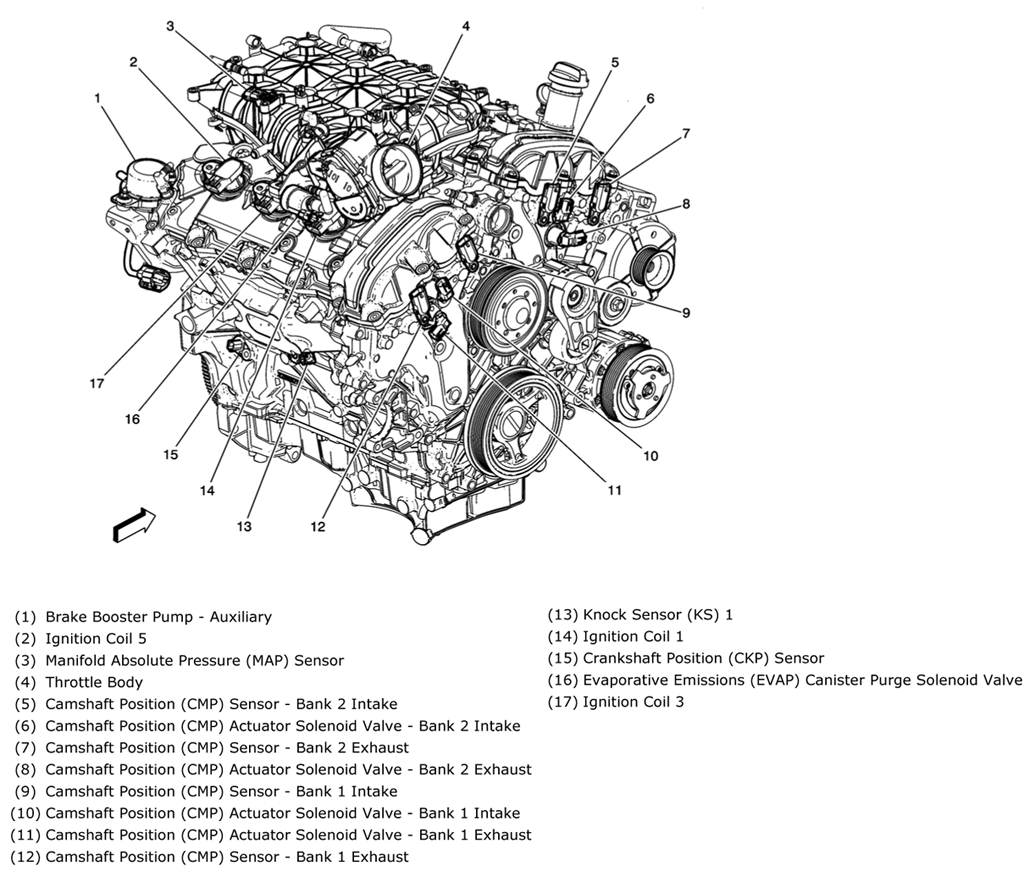

Fig 35: Engine (3.0L)

G00478125

Courtesy of GENERAL MOTORS CORP.

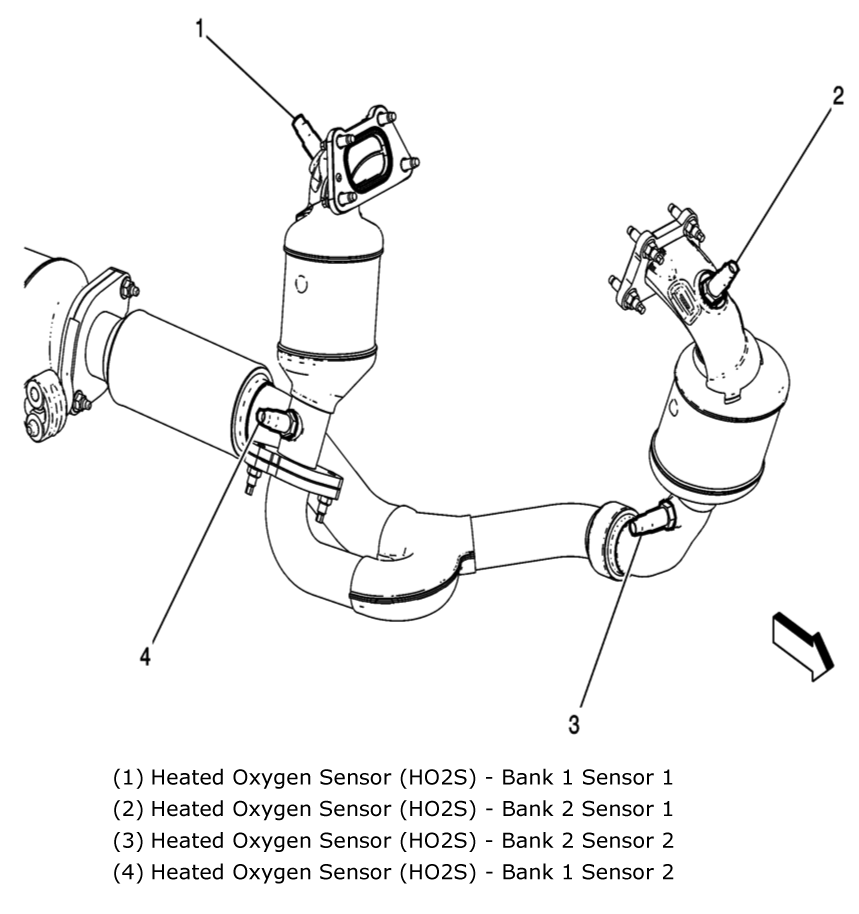

Fig 36: Catalytic Converters

G00478126

Courtesy of GENERAL MOTORS CORP.

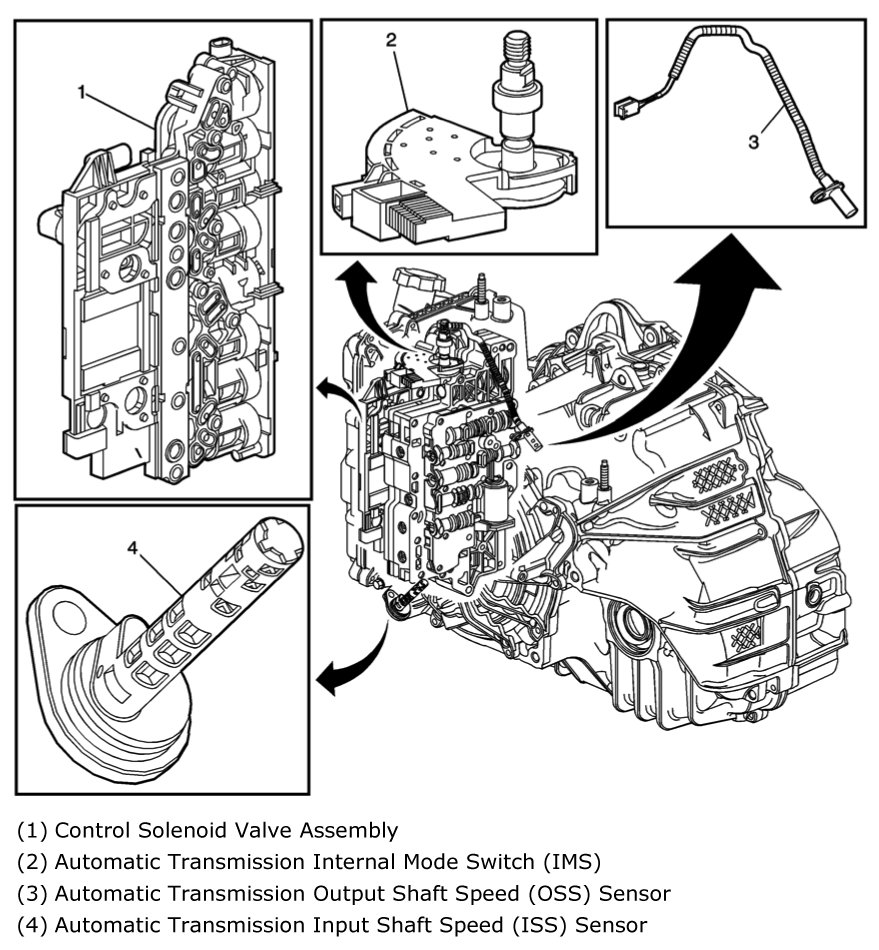

Fig 37: Transmission

G00478127

Courtesy of GENERAL MOTORS CORP.

Fig 38: Rear Compartment Fuse Block

G00478128

Courtesy of GENERAL MOTORS CORP.

Fig 39: Instrument Panel Fuse Block

G00478129

Courtesy of GENERAL MOTORS CORP.

Fig 40: Engine Compartment Fuse Block

G00478130

Courtesy of GENERAL MOTORS CORP.

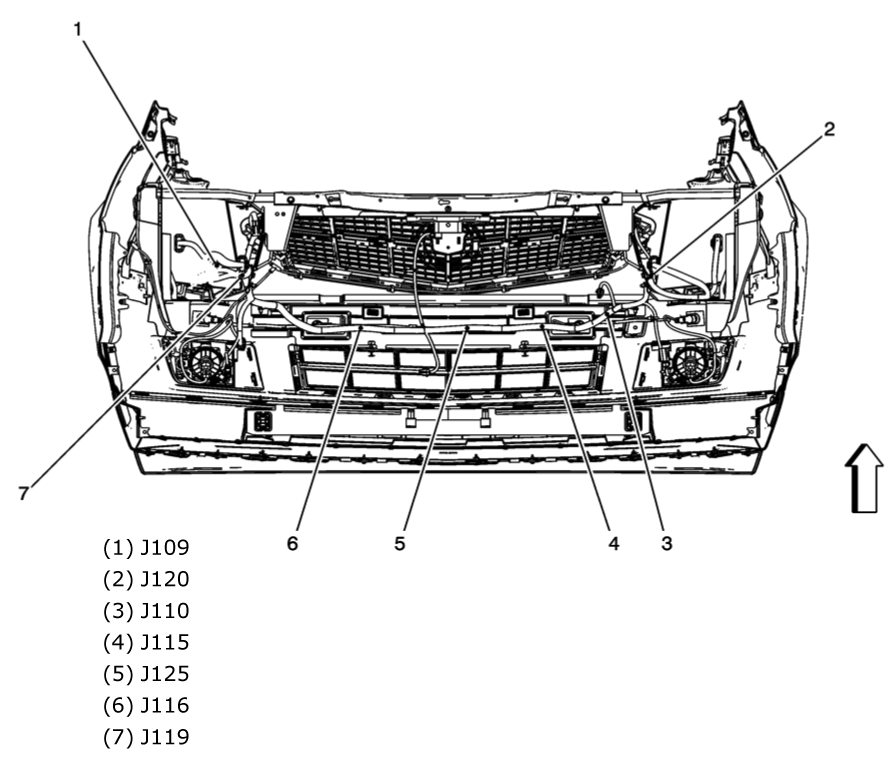

Fig 41: Front Engine Compartment

G00478131

Courtesy of GENERAL MOTORS CORP.

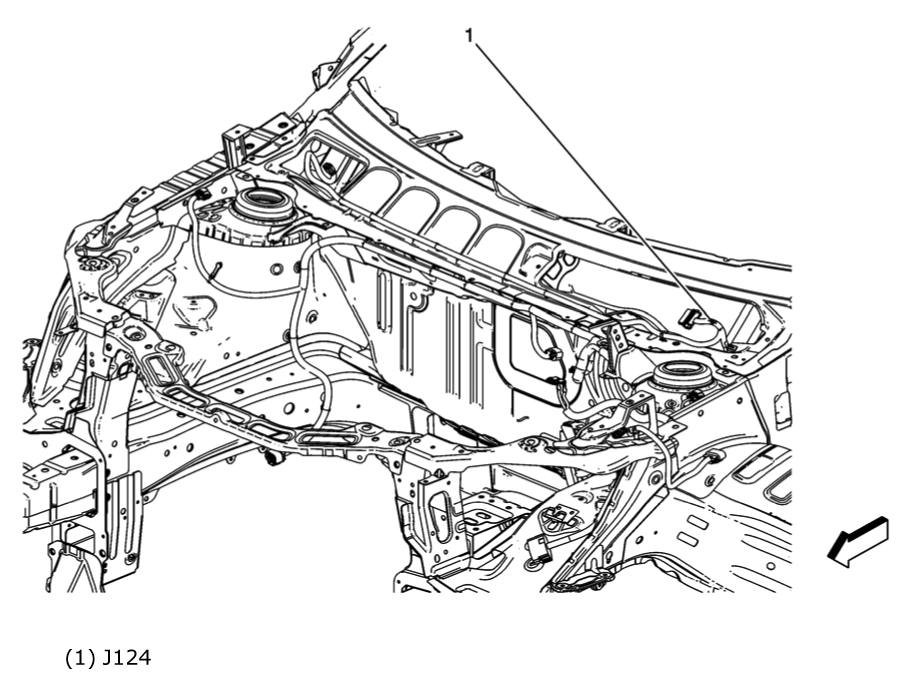

Fig 42: Bulkhead

G00478132

Courtesy of GENERAL MOTORS CORP.

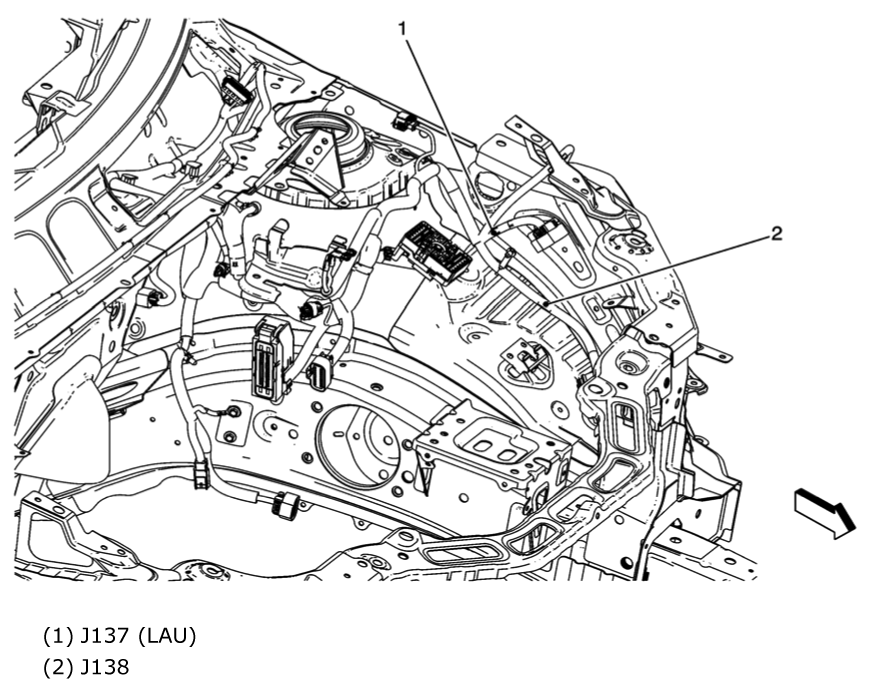

Fig 43: Engine Compartment

G00478133

Courtesy of GENERAL MOTORS CORP.

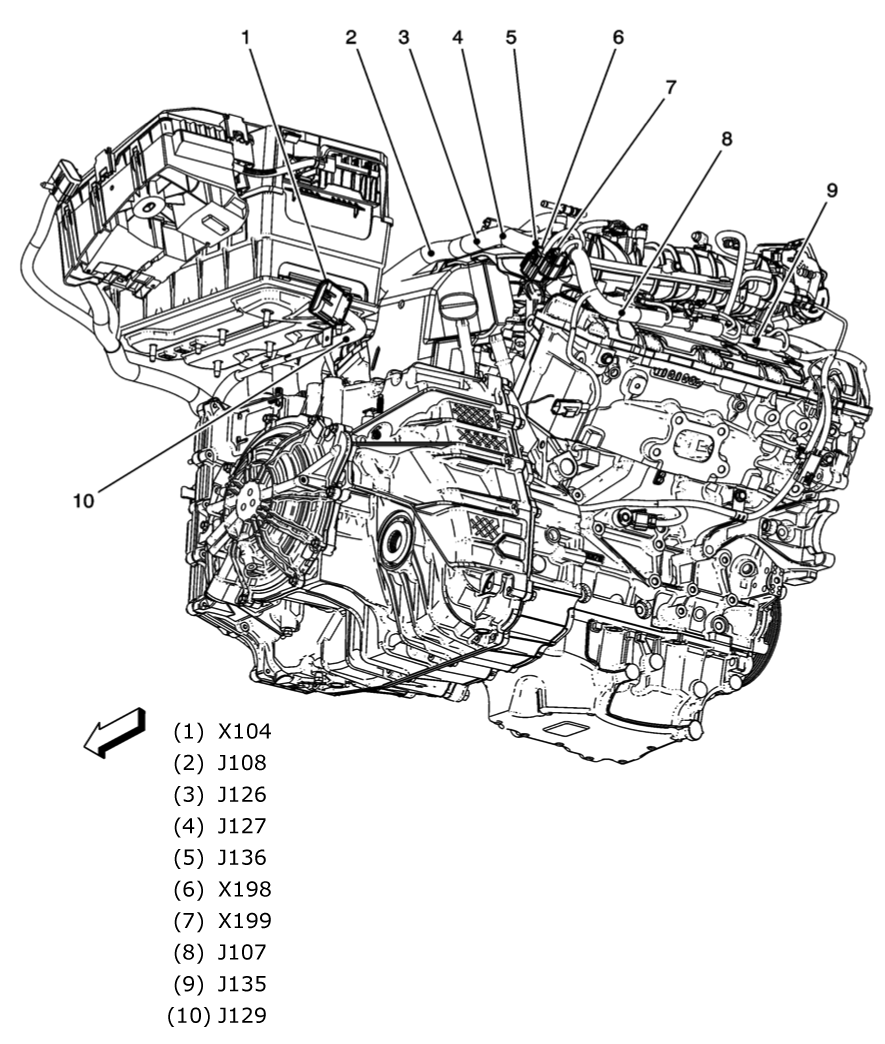

Fig 44: Engine (3.0L)

G00478134

Courtesy of GENERAL MOTORS CORP.

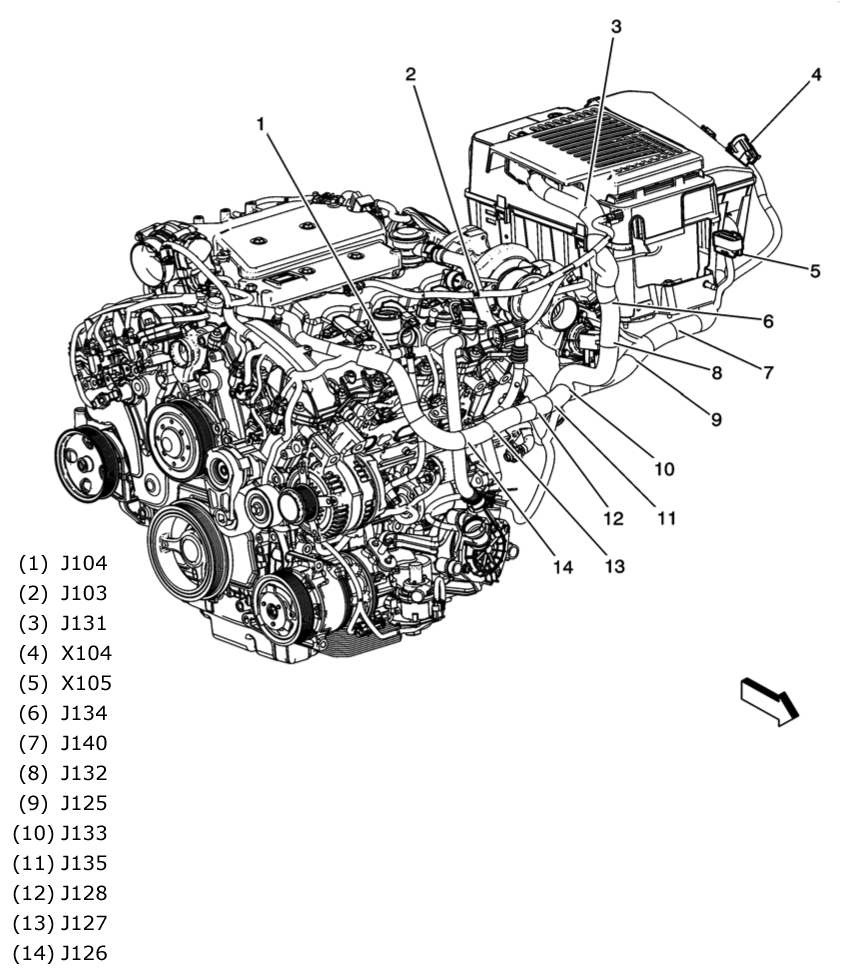

Fig 45: Engine (2.8L)

G00478135

Courtesy of GENERAL MOTORS CORP.

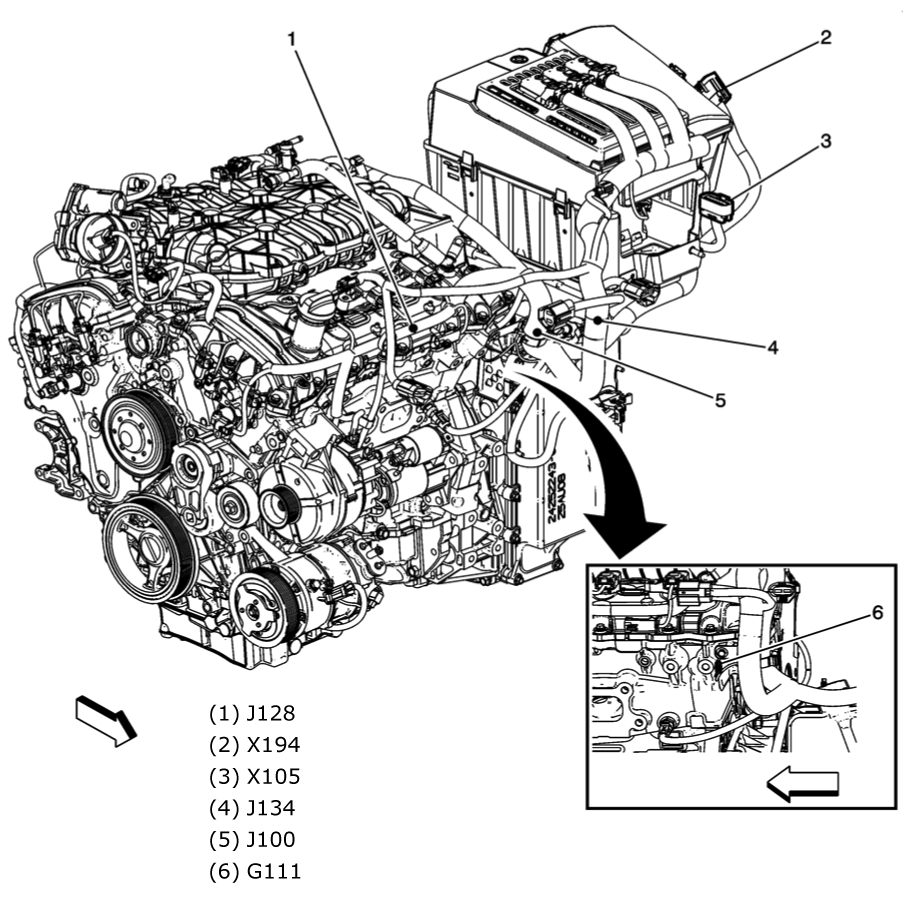

Fig 46: Engine (3.0L)

G00478136

Courtesy of GENERAL MOTORS CORP.

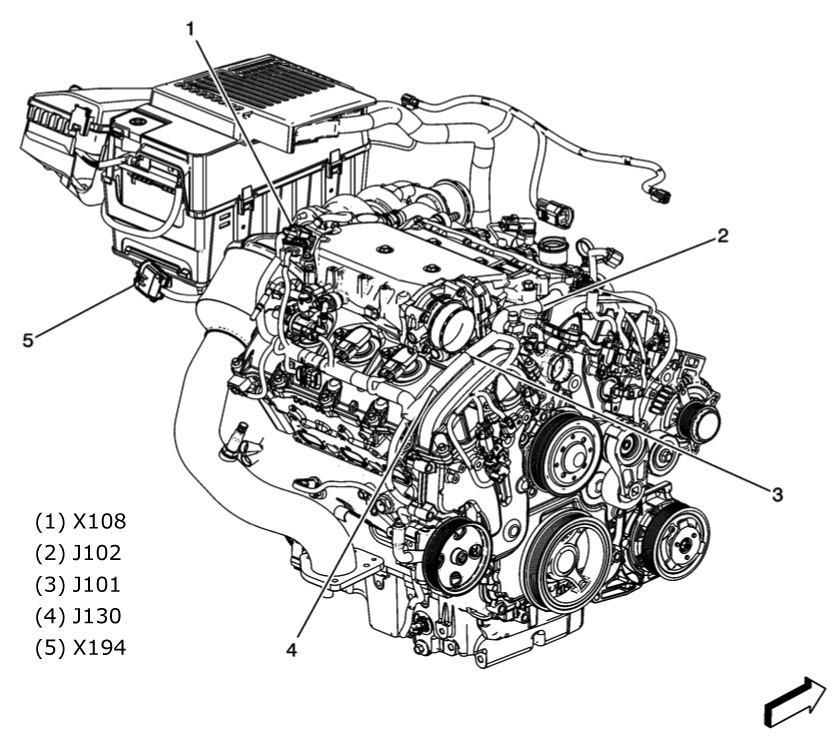

Fig 47: Engine (2.8L)

G00478137

Courtesy of GENERAL MOTORS CORP.

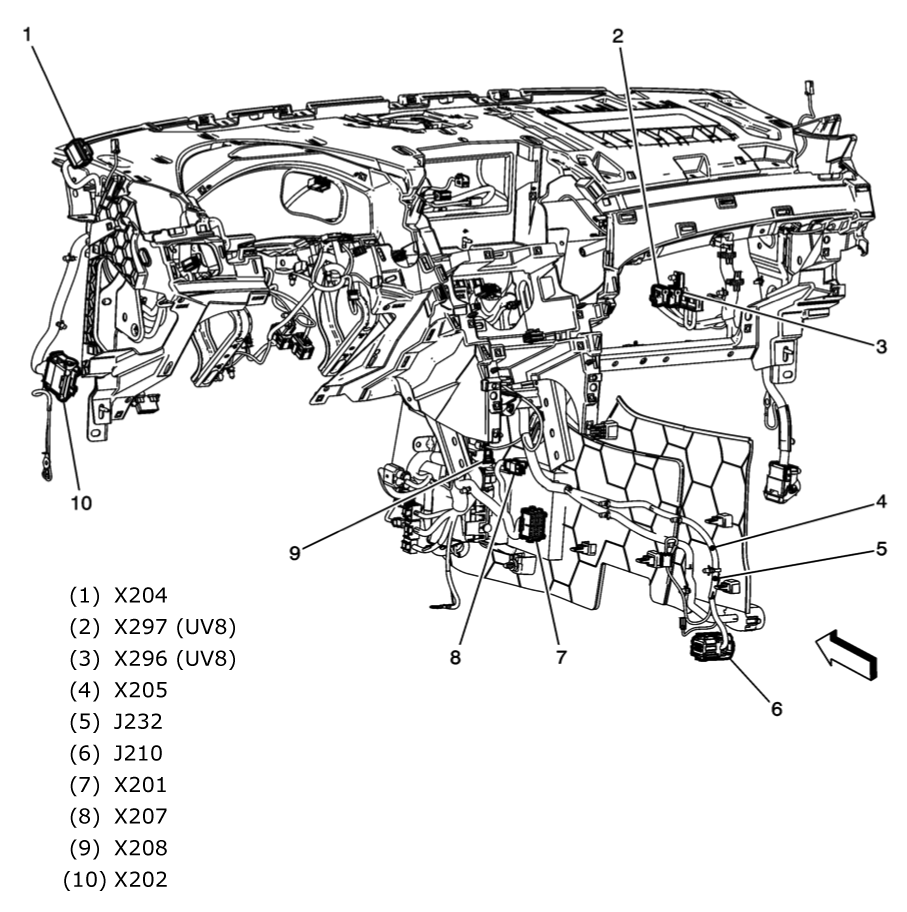

Fig 48: Dash & Center Console

G00478138

Courtesy of GENERAL MOTORS CORP.

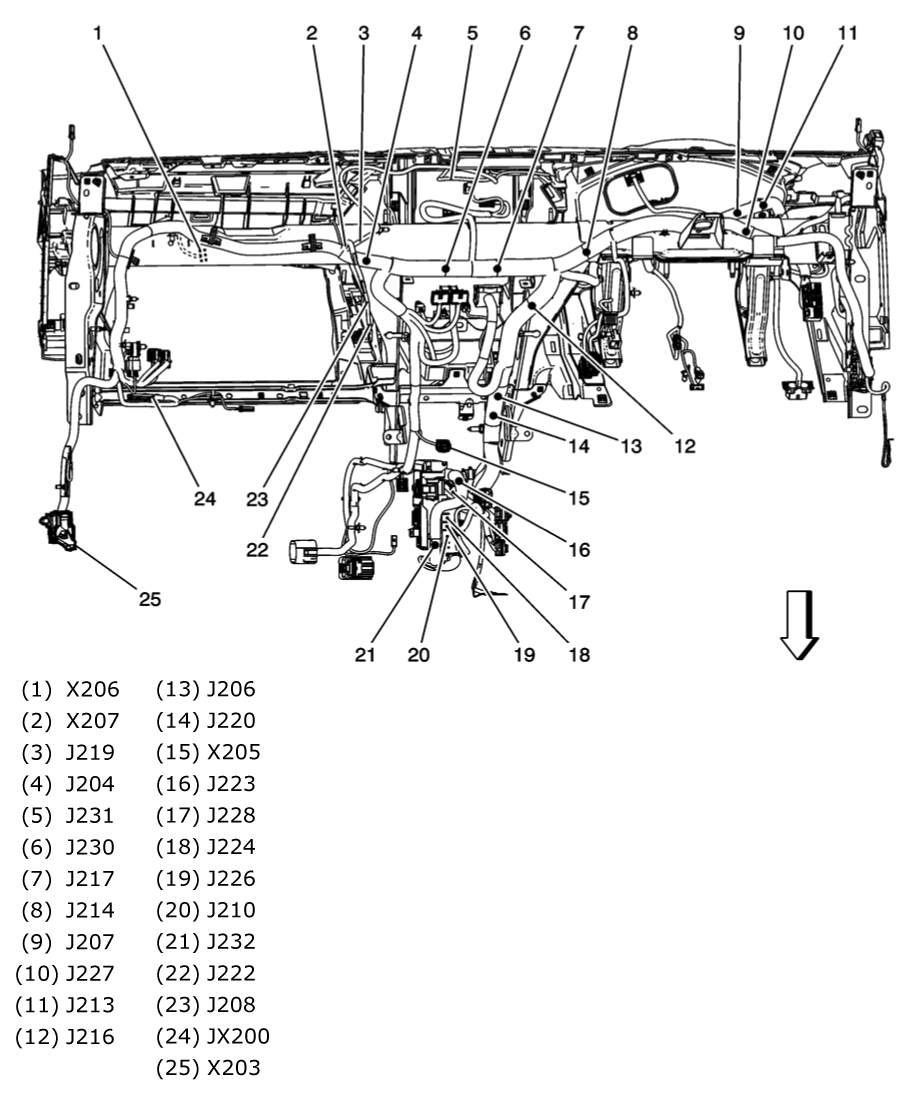

Fig 49: Dash

G00478139

Courtesy of GENERAL MOTORS CORP.

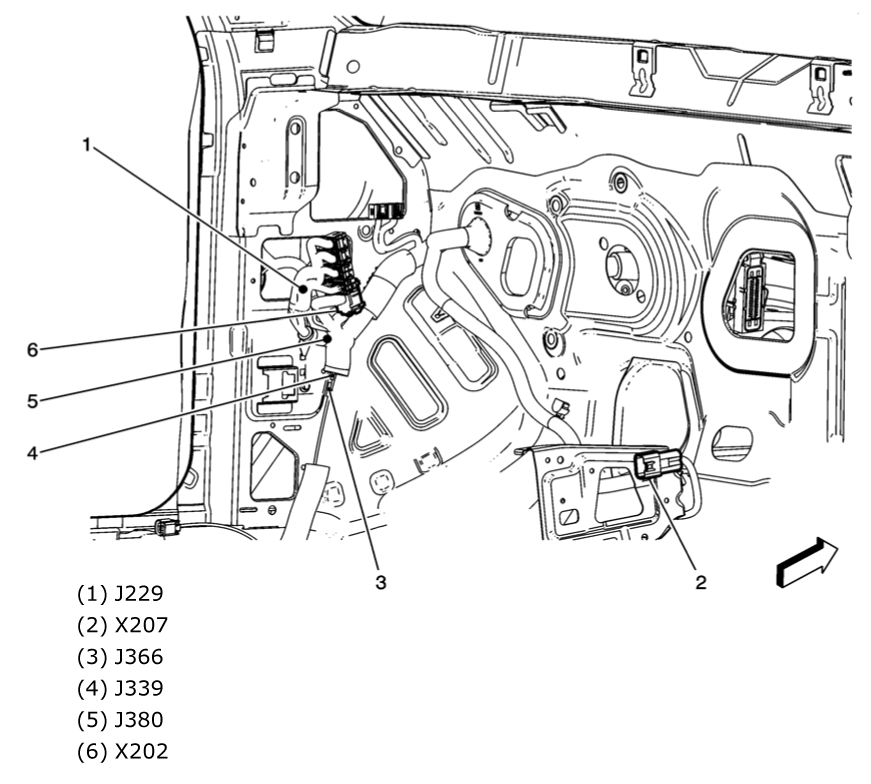

Fig 50: Left Bulkhead

G00478140

Courtesy of GENERAL MOTORS CORP.

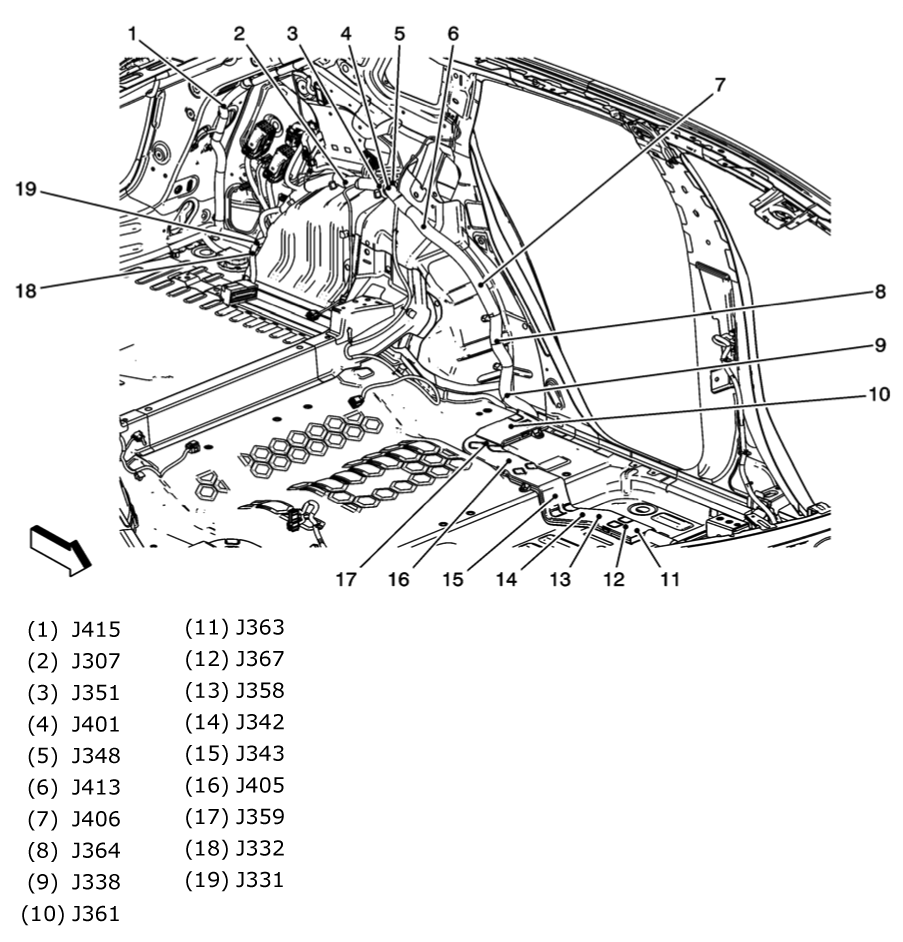

Fig 51: Left Rear Quarter

G00478141

Courtesy of GENERAL MOTORS CORP.

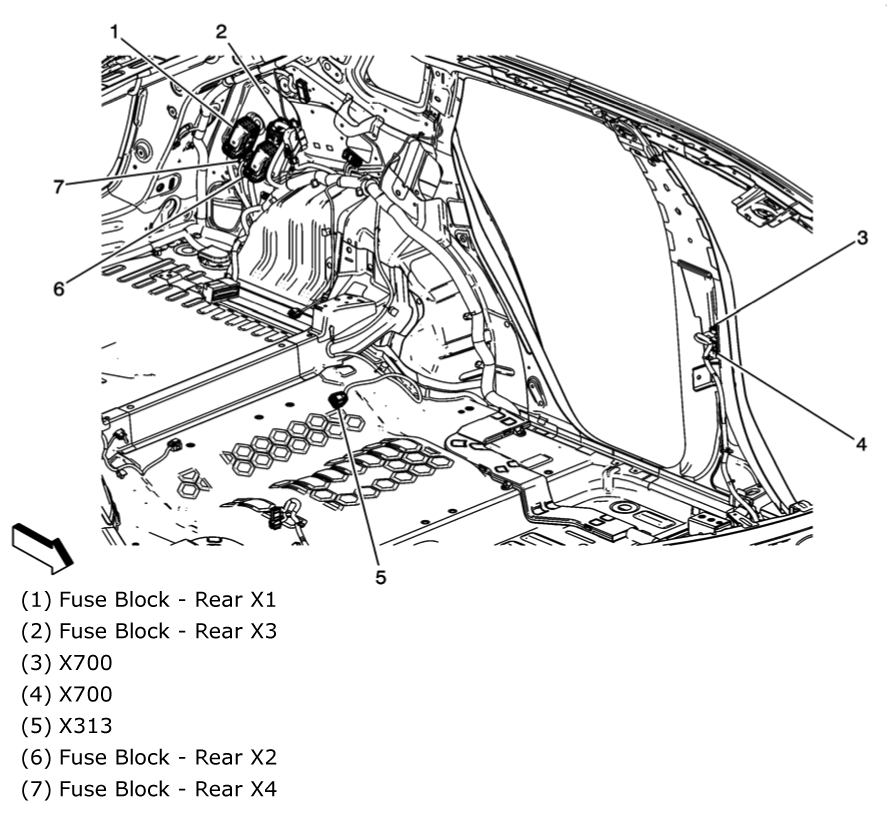

Fig 52: Left Rear Quarter

G00478142

Courtesy of GENERAL MOTORS CORP.

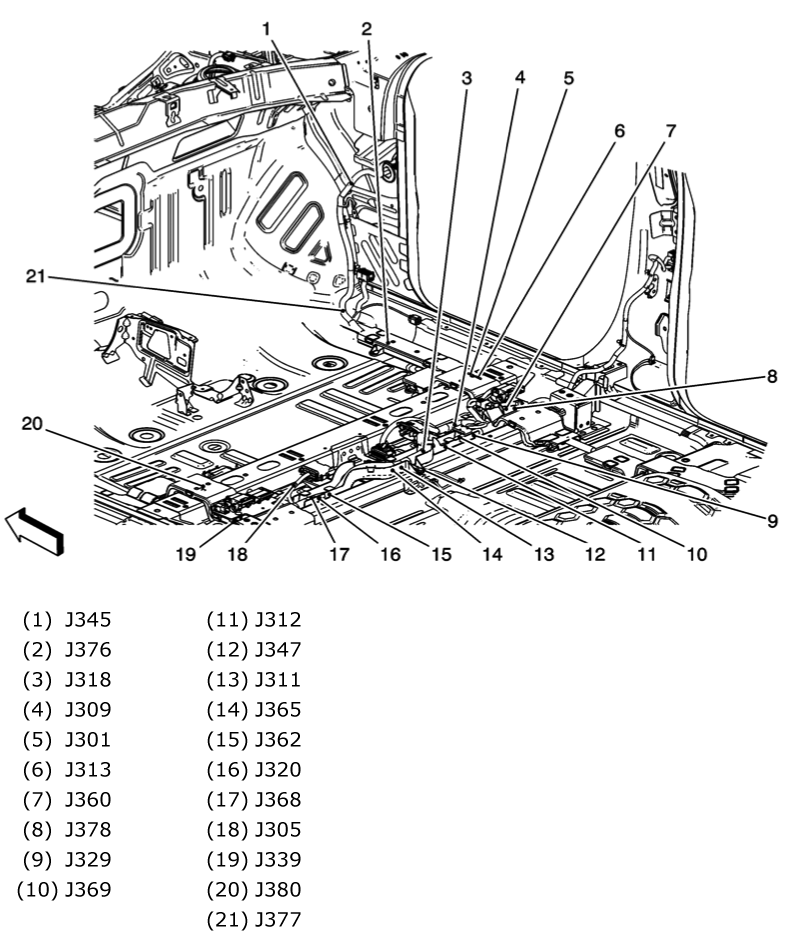

Fig 53: Right Front Floor Panel

G00478143

Courtesy of GENERAL MOTORS CORP.

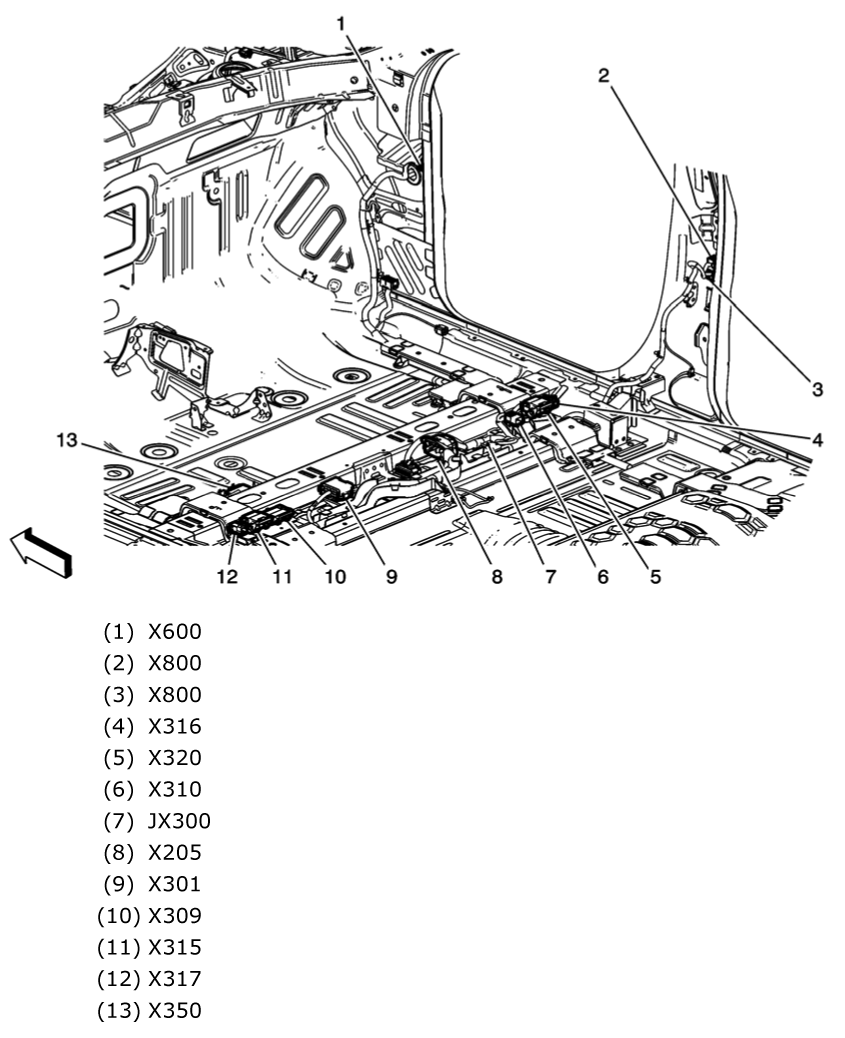

Fig 54: Front Floor Panel

G00478144

Courtesy of GENERAL MOTORS CORP.

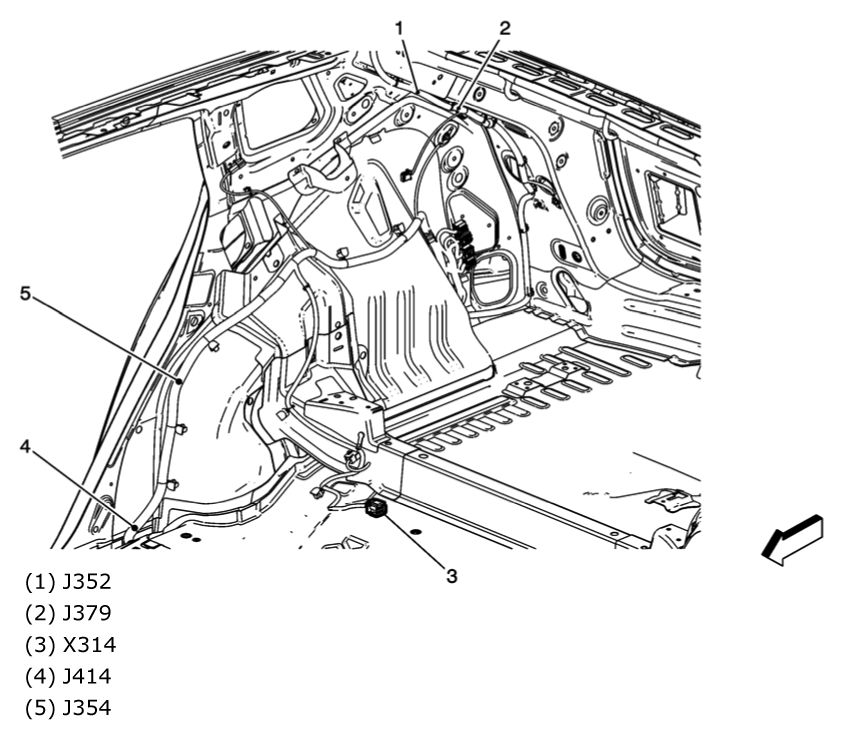

Fig 55: Right Rear Body Frame

G00478145

Courtesy of GENERAL MOTORS CORP.

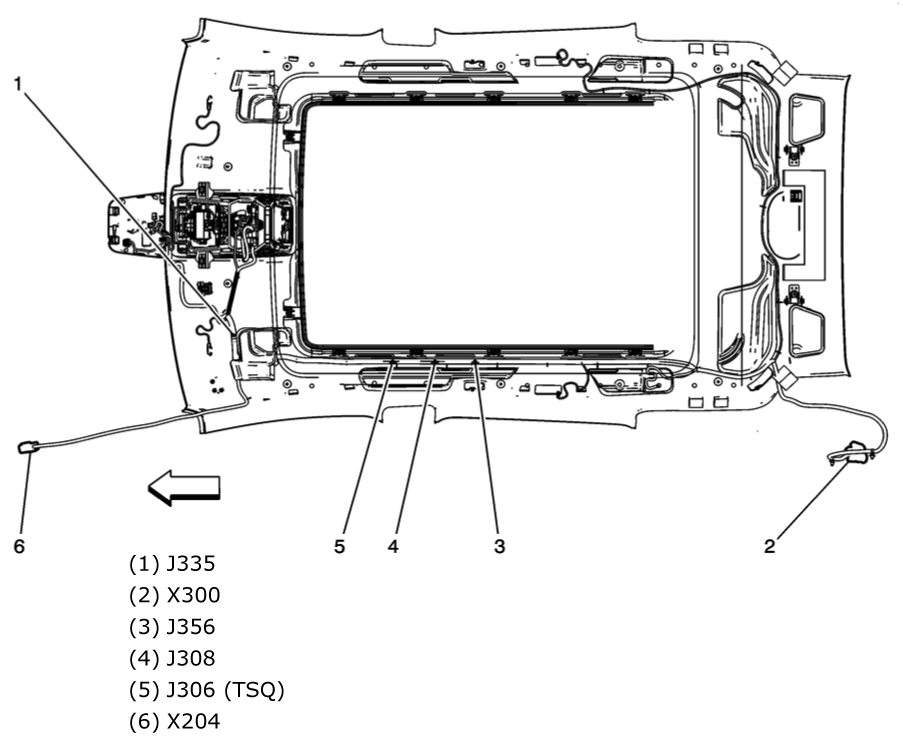

Fig 56: Headliner

G00478146

Courtesy of GENERAL MOTORS CORP.

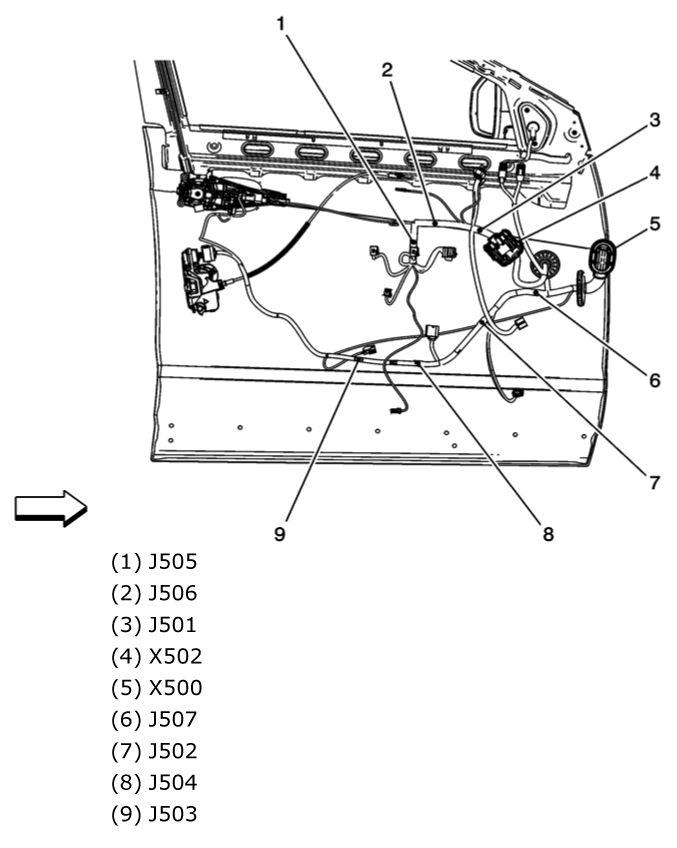

Fig 57: Driver Door

G00478147

Courtesy of GENERAL MOTORS CORP.

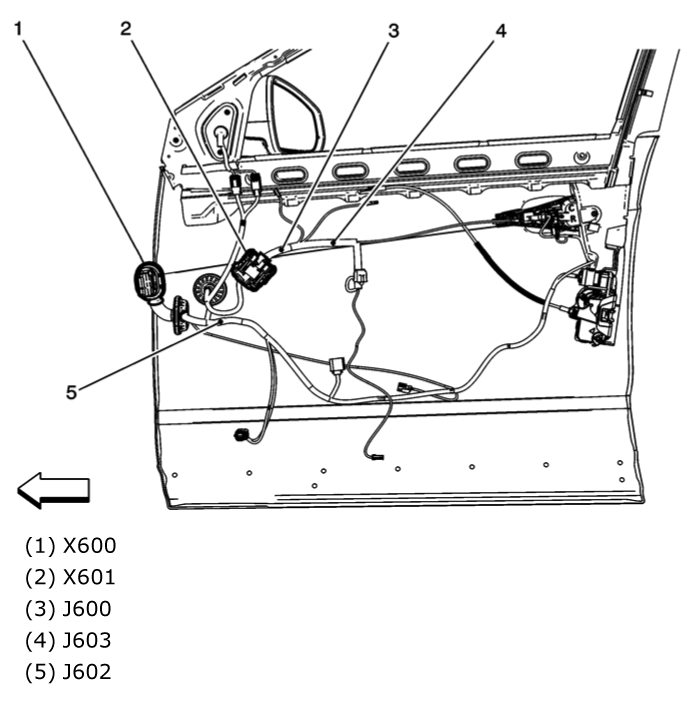

Fig 58: Passenger Door

G00478148

Courtesy of GENERAL MOTORS CORP.

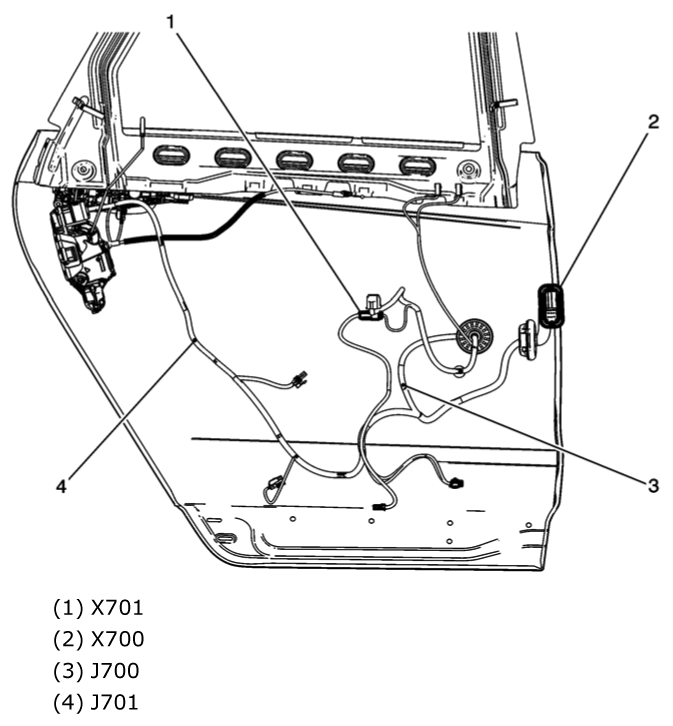

Fig 59: Left Rear Door

G00478149

Courtesy of GENERAL MOTORS CORP.

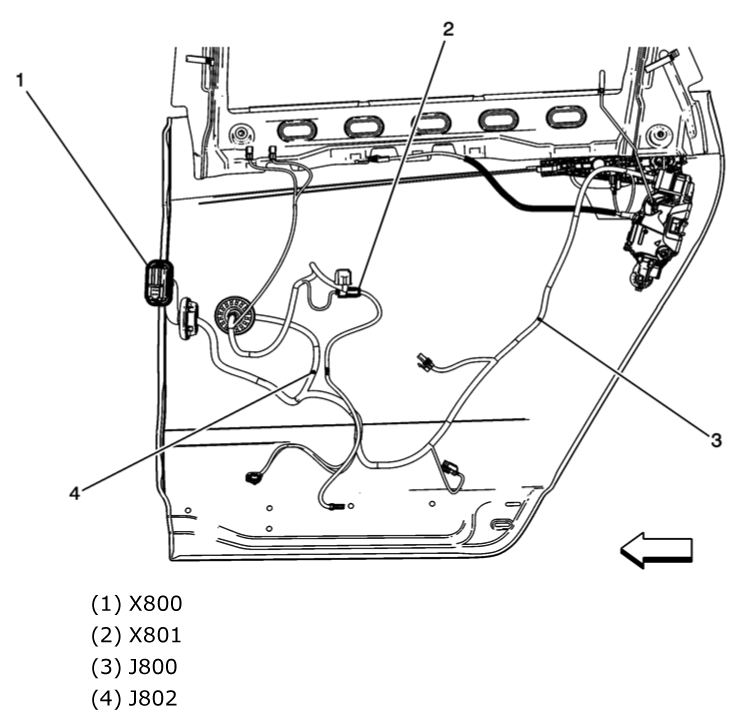

Fig 60: Right Rear Door

G00478150

Courtesy of GENERAL MOTORS CORP.

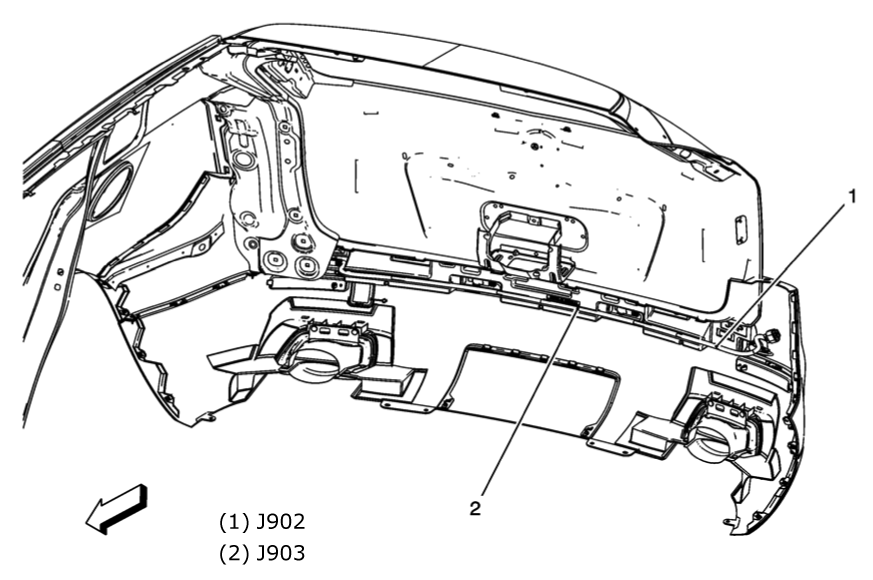

Fig 61: Left Rear Body Frame

G00478151

Courtesy of GENERAL MOTORS CORP.

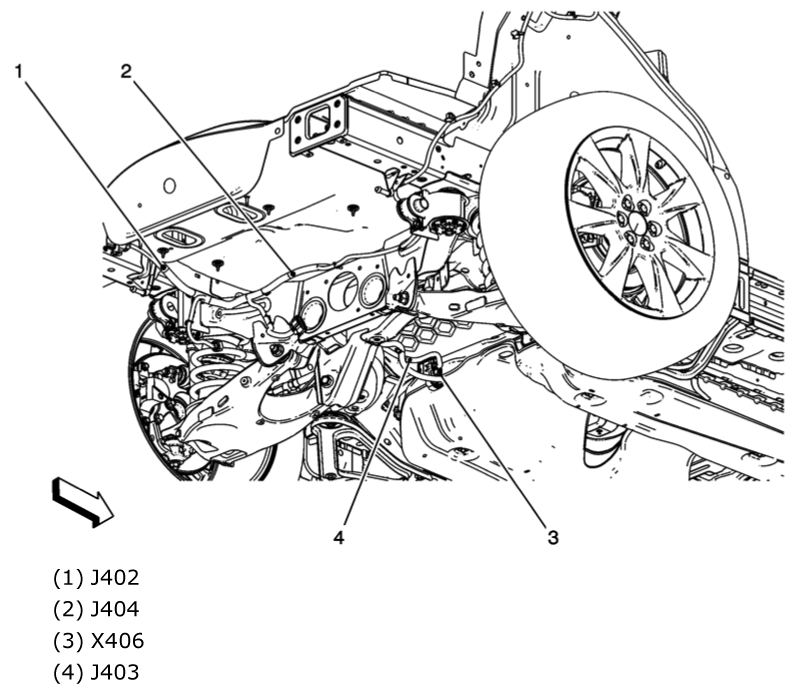

Fig 62: Rear Suspension

G00478152

Courtesy of GENERAL MOTORS CORP.

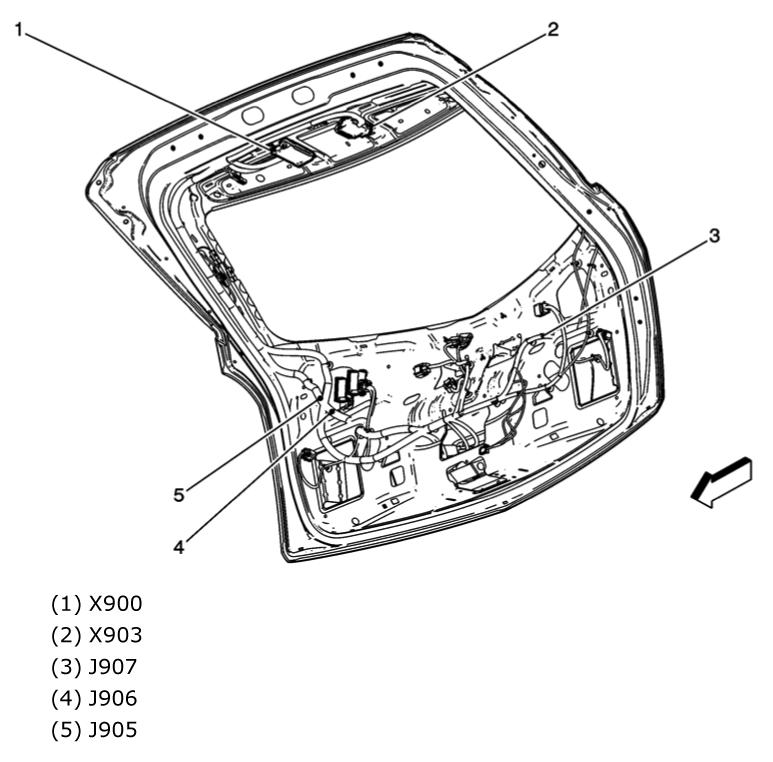

Fig 63: Liftgate

G00478153

Courtesy of GENERAL MOTORS CORP.

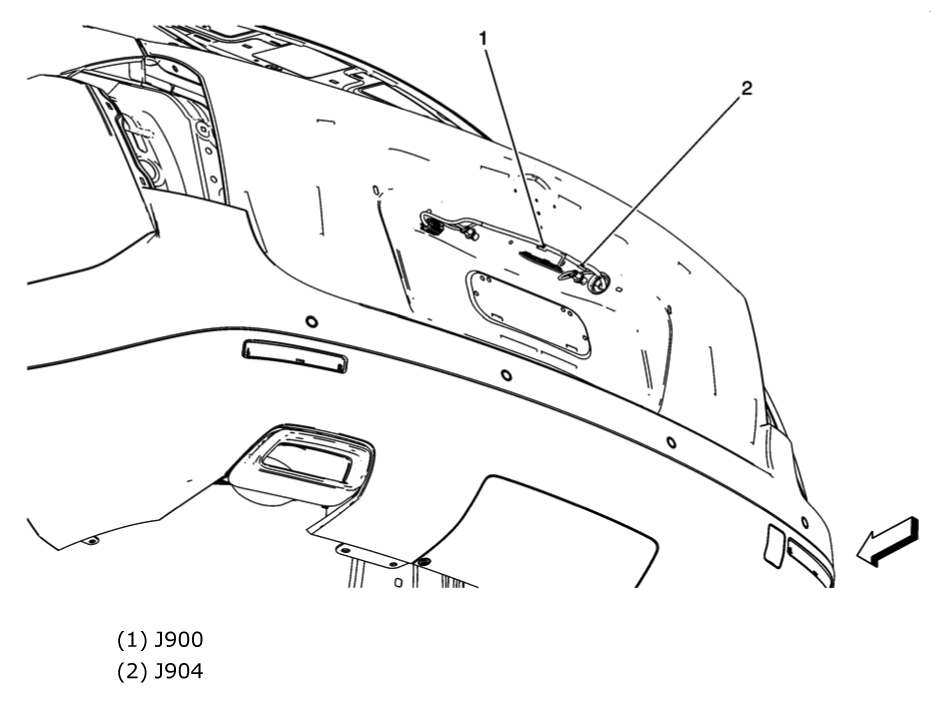

Fig 64: Liftgate

G00478154

Courtesy of GENERAL MOTORS CORP.

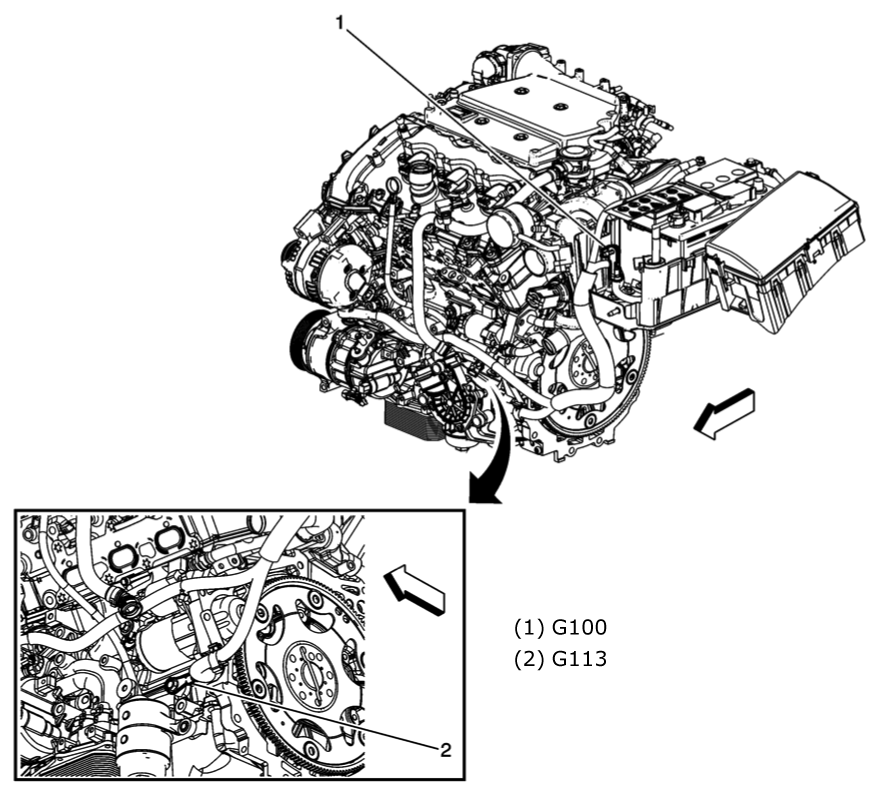

Fig 65: Engine (2.8L)

G00478155

Courtesy of GENERAL MOTORS CORP.

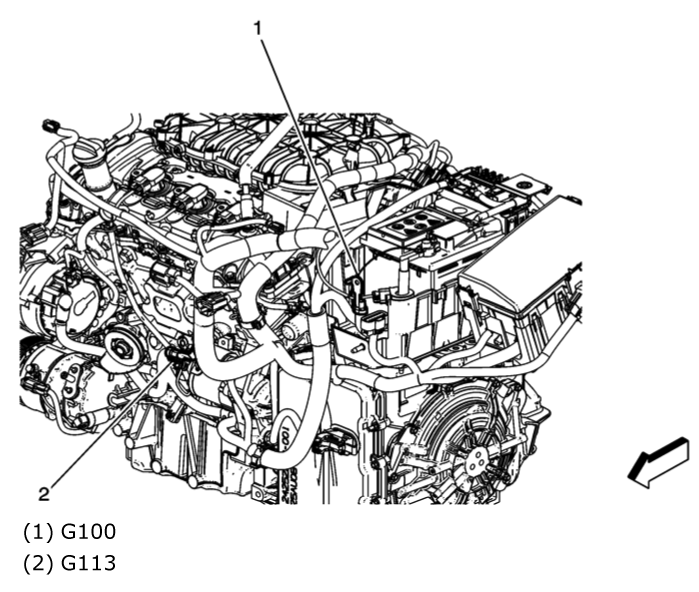

Fig 66: Engine (3.0L)

G00478156

Courtesy of GENERAL MOTORS CORP.

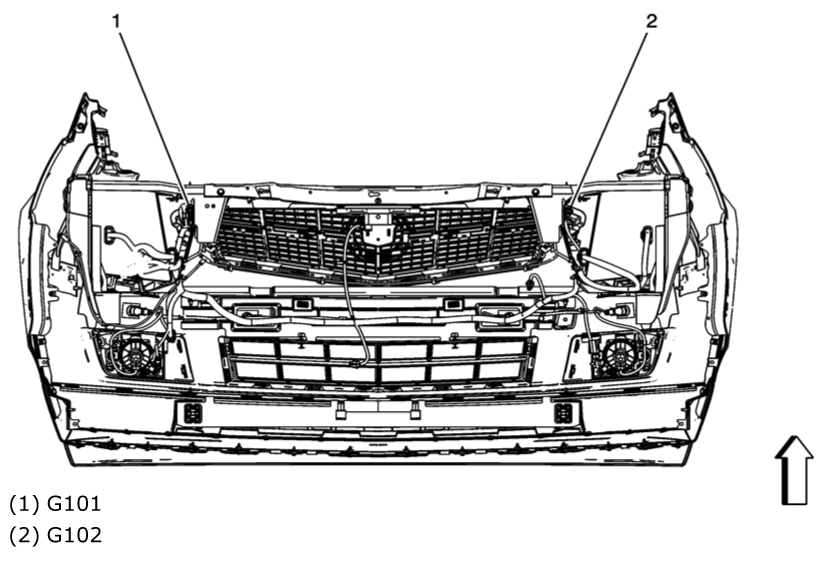

Fig 67: Front Of Engine Compartment

G00478157

Courtesy of GENERAL MOTORS CORP.

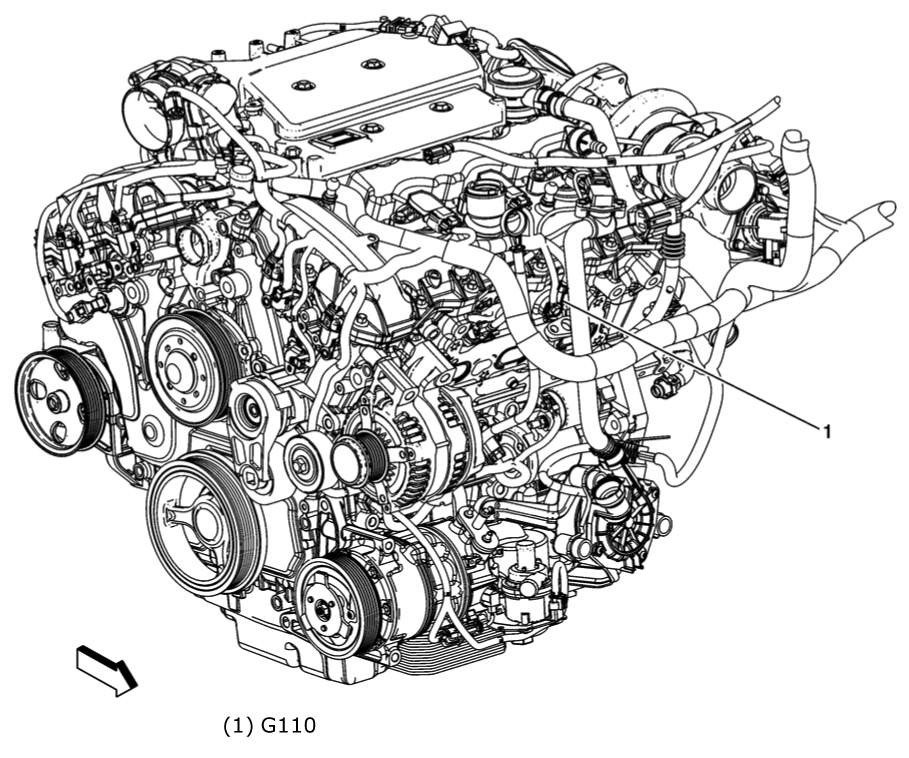

Fig 68: Engine (2.8L)

G00478158

Courtesy of GENERAL MOTORS CORP.

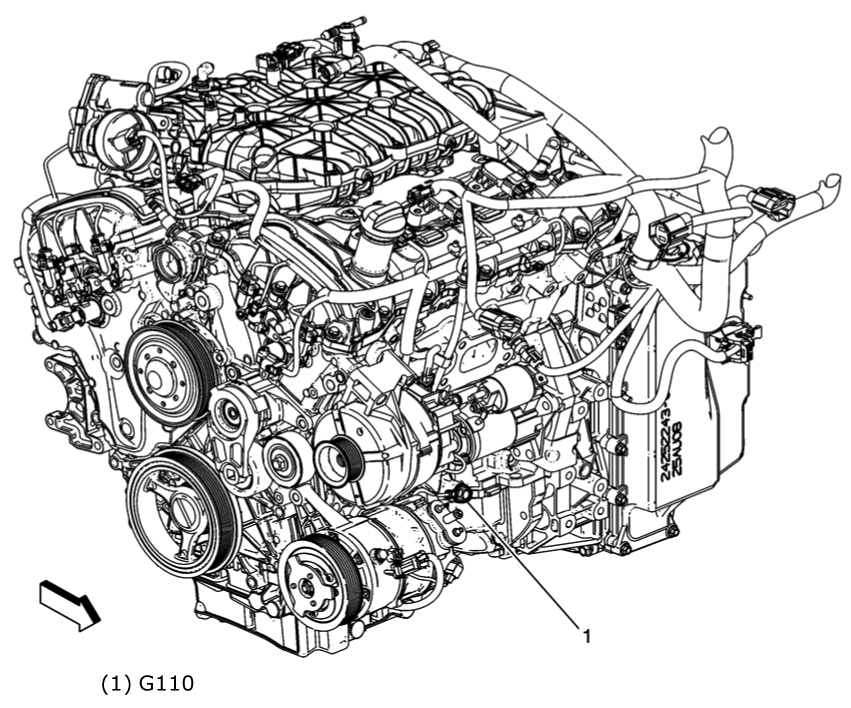

Fig 69: Engine (3.0L)

G00478159

Courtesy of GENERAL MOTORS CORP.

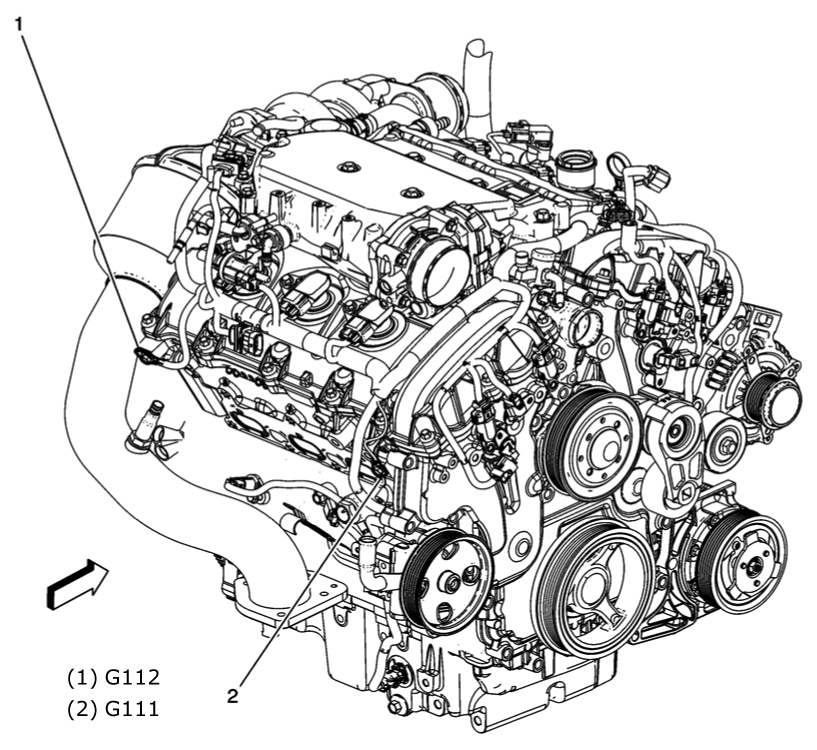

Fig 70: Engine (2.8L)

G00478160

Courtesy of GENERAL MOTORS CORP.

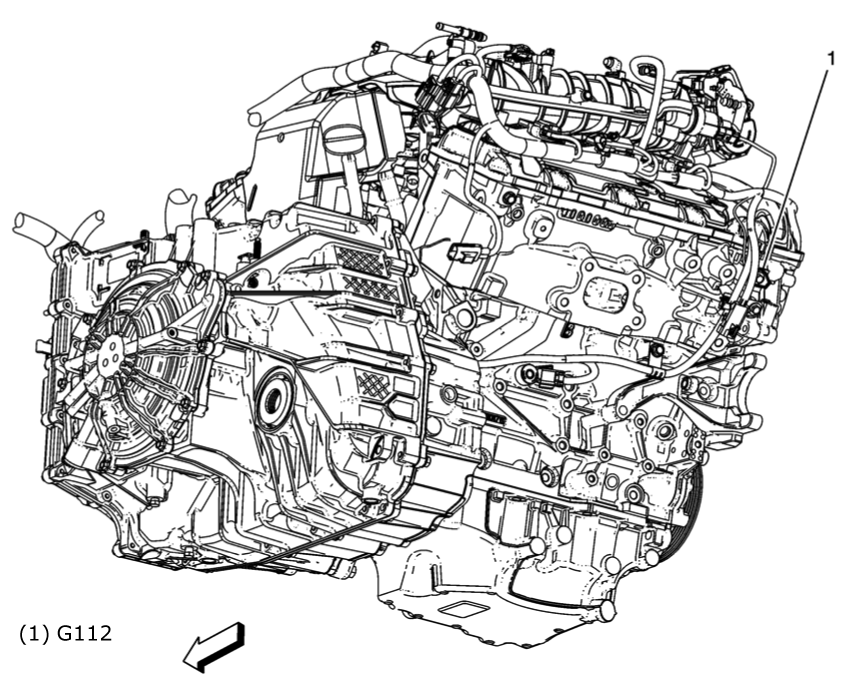

Fig 71: Engine (3.0L)

G00478161

Courtesy of GENERAL MOTORS CORP.

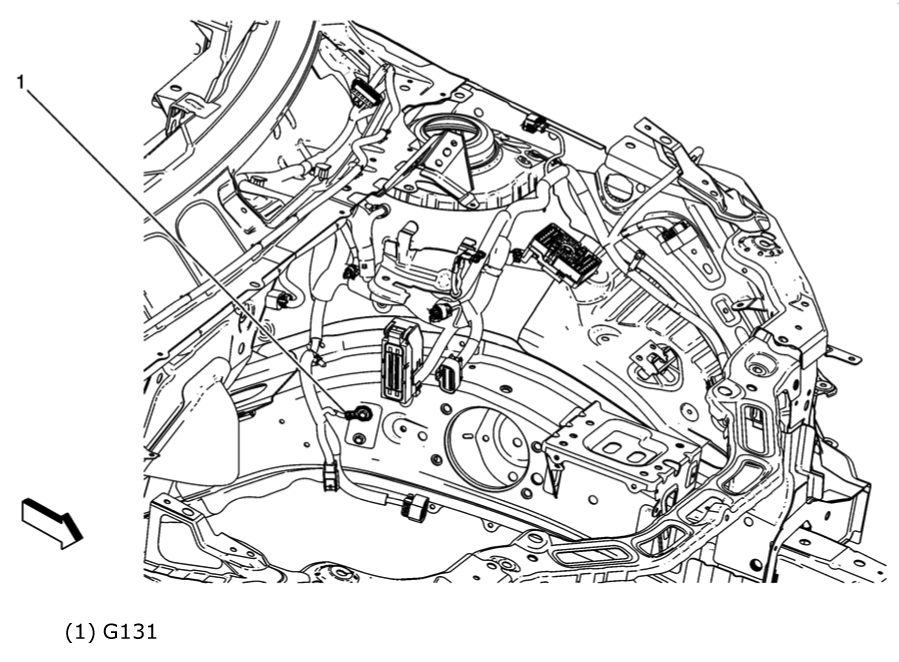

Fig 72: Engine Compartment

G00478162

Courtesy of GENERAL MOTORS CORP.

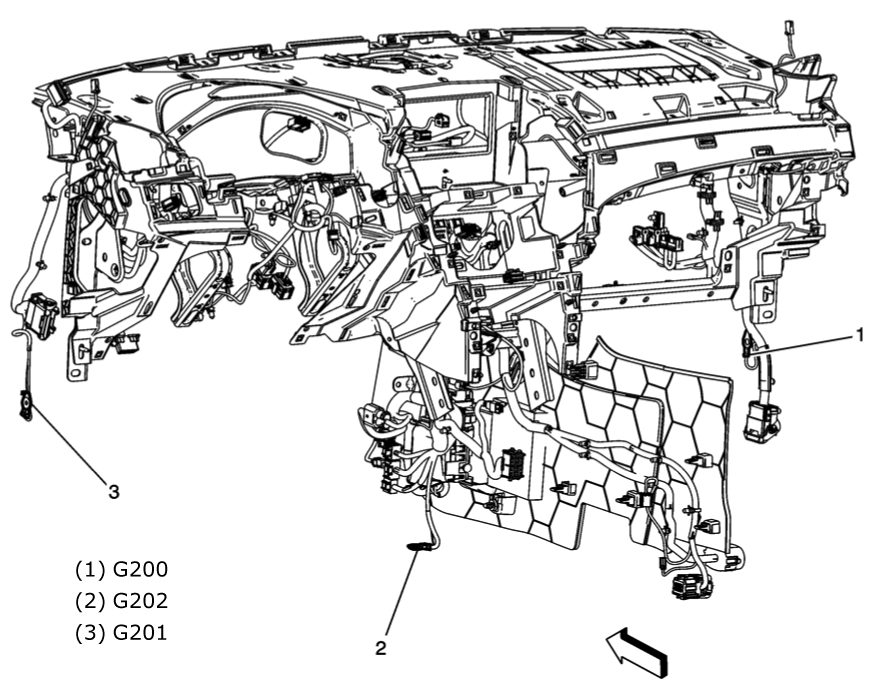

Fig 73: Dash & Console

G00478163

Courtesy of GENERAL MOTORS CORP.

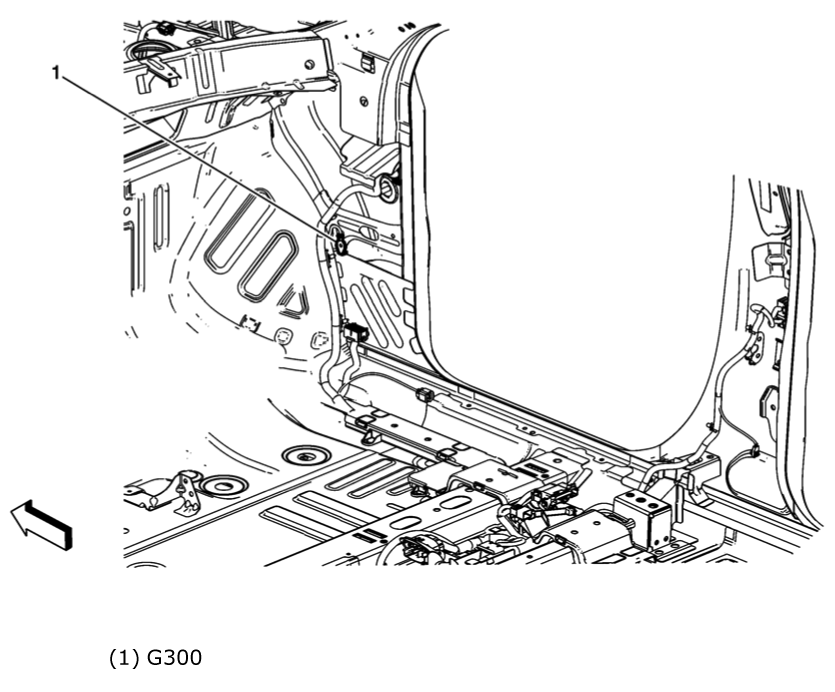

Fig 74: Right Foot Well

G00478164

Courtesy of GENERAL MOTORS CORP.

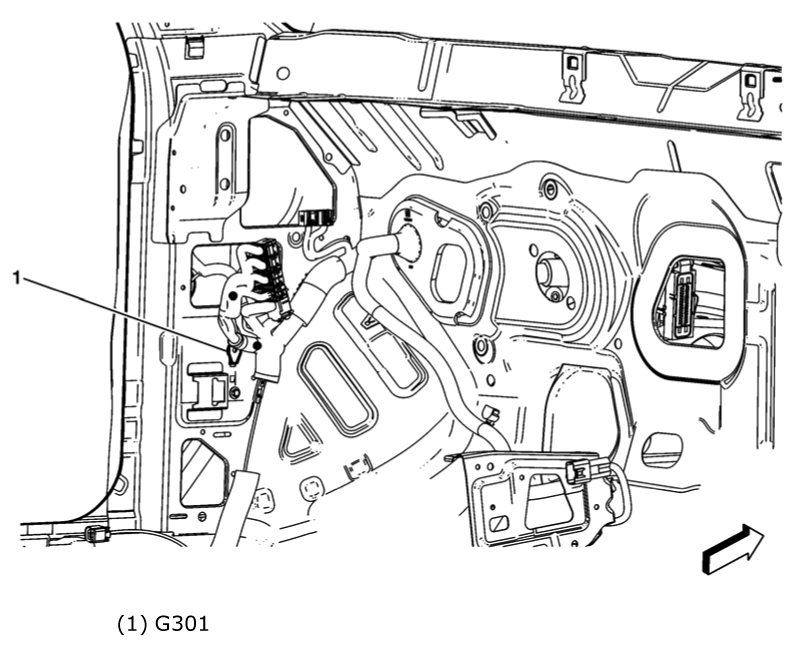

Fig 75: Left Toe board

G00478165

Courtesy of GENERAL MOTORS CORP.

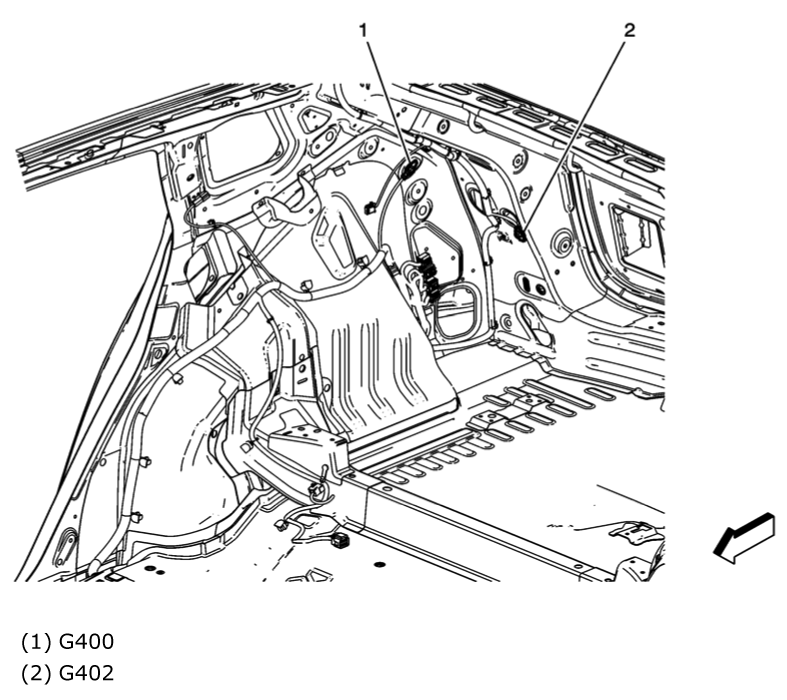

Fig 76: Right Rear Body Panel

G00478166

Courtesy of GENERAL MOTORS CORP.
