Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

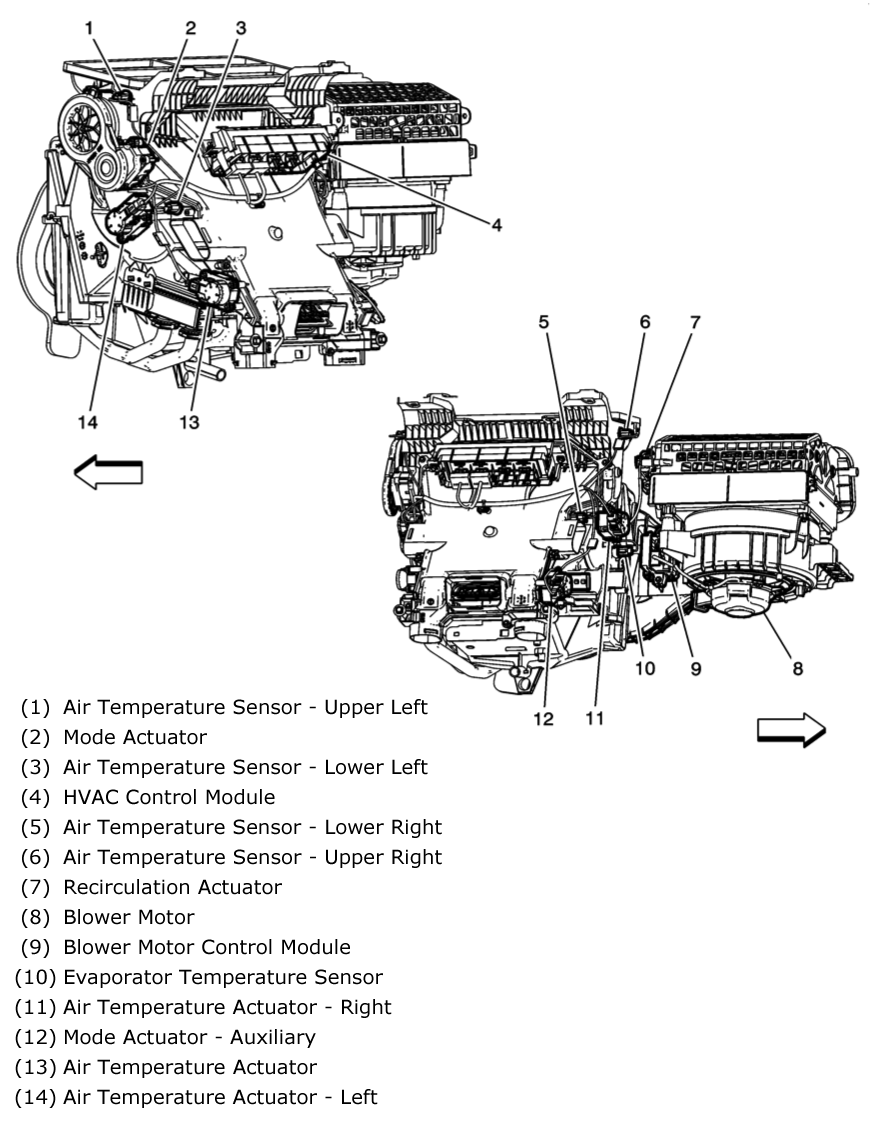

| Blower Motor Control Module | Lower left side of blower motor. See Figure. |

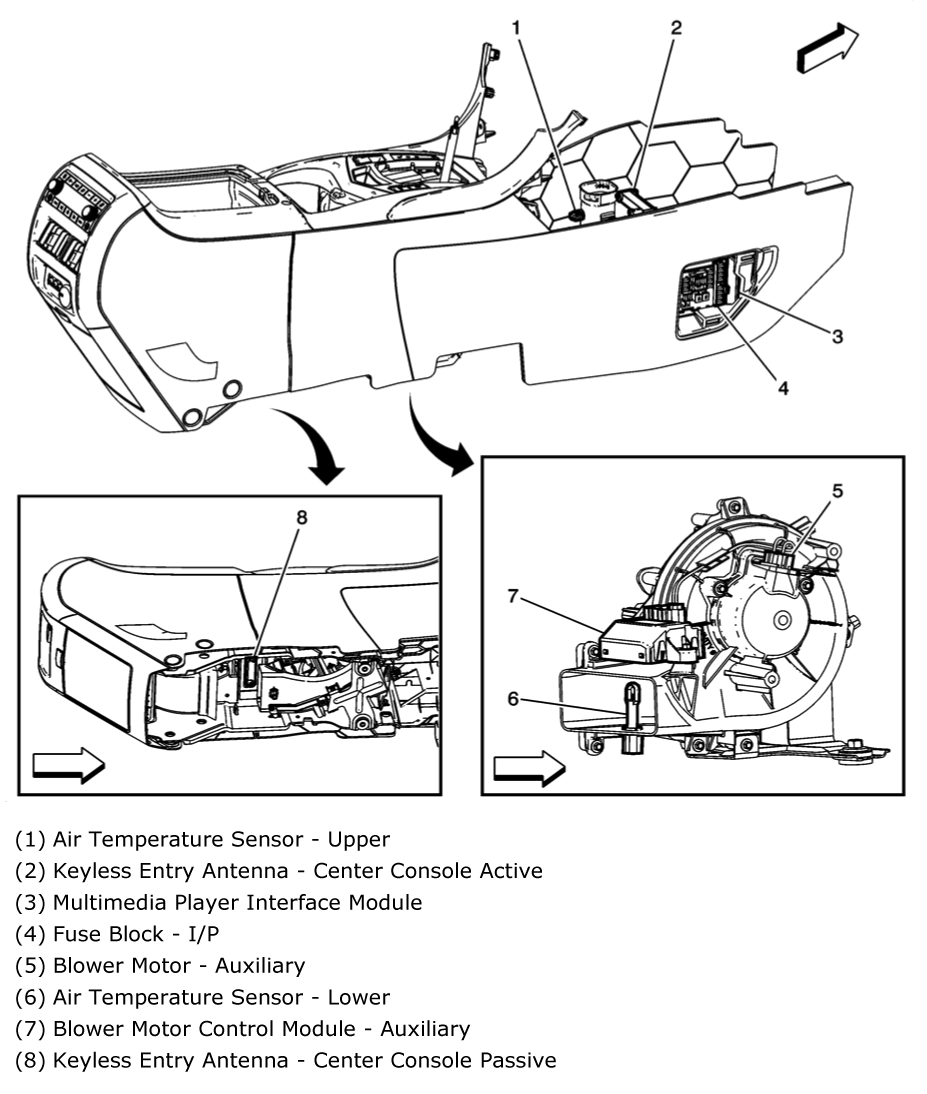

| Blower Motor Control Module - Auxiliary | Center console. See Figure. |

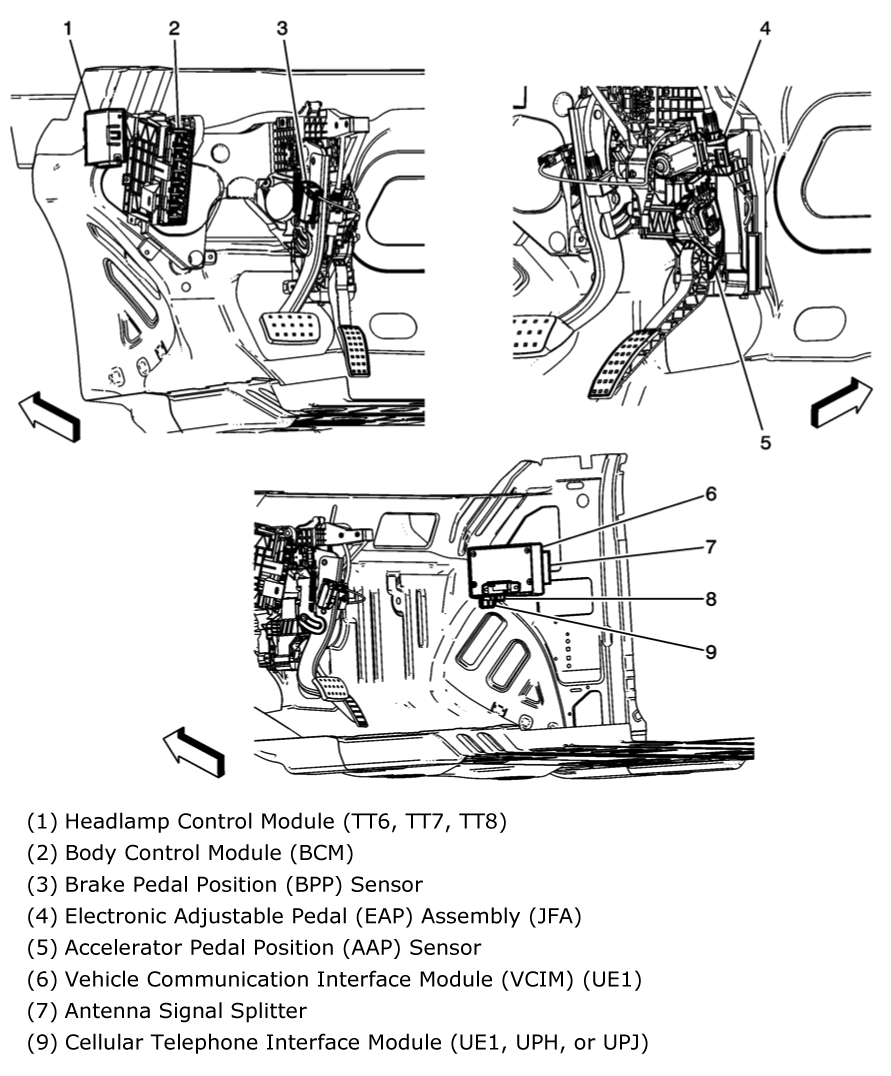

| Body Control Module | On lower left side of dash. See Figure. |
| Cellular Telephone Interface Module | Right side dash. See Figure. |

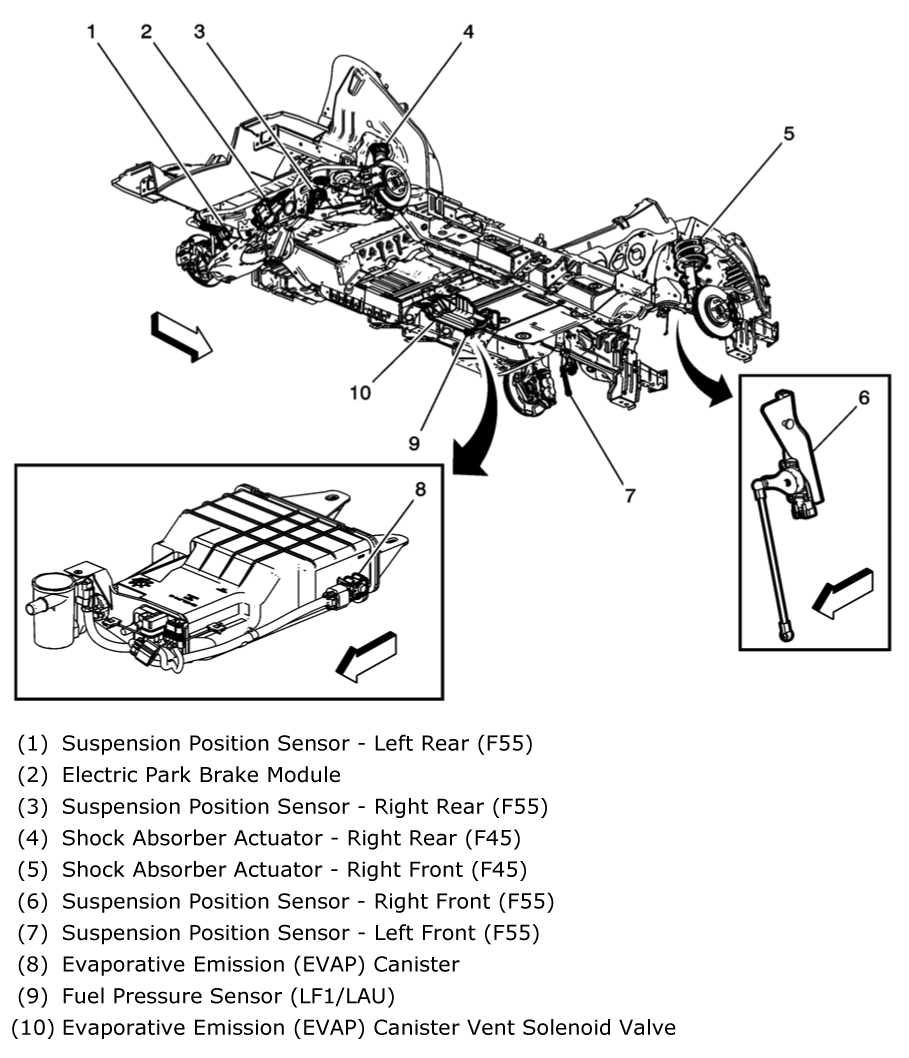

| Electric Park Brake Module | Right rear suspension. See Figure. |

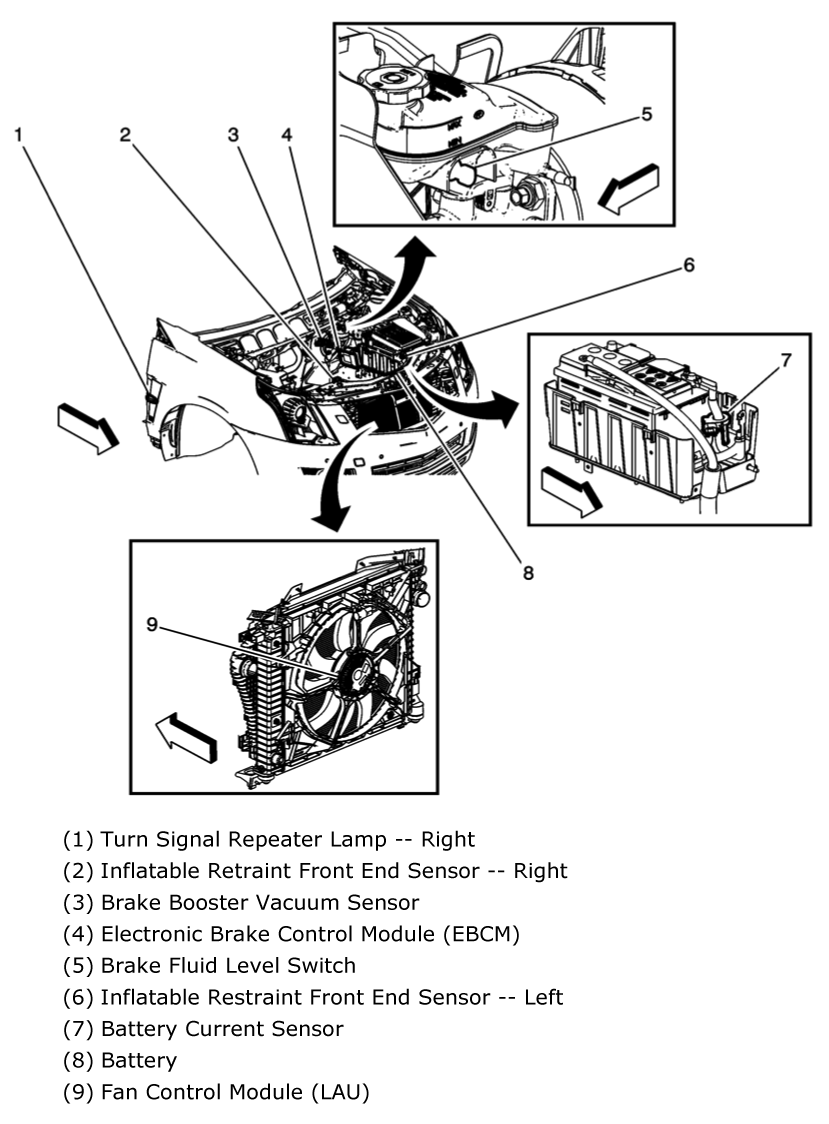

| Electronic Brake Control Module | Left rear engine compartment. See Figure. |

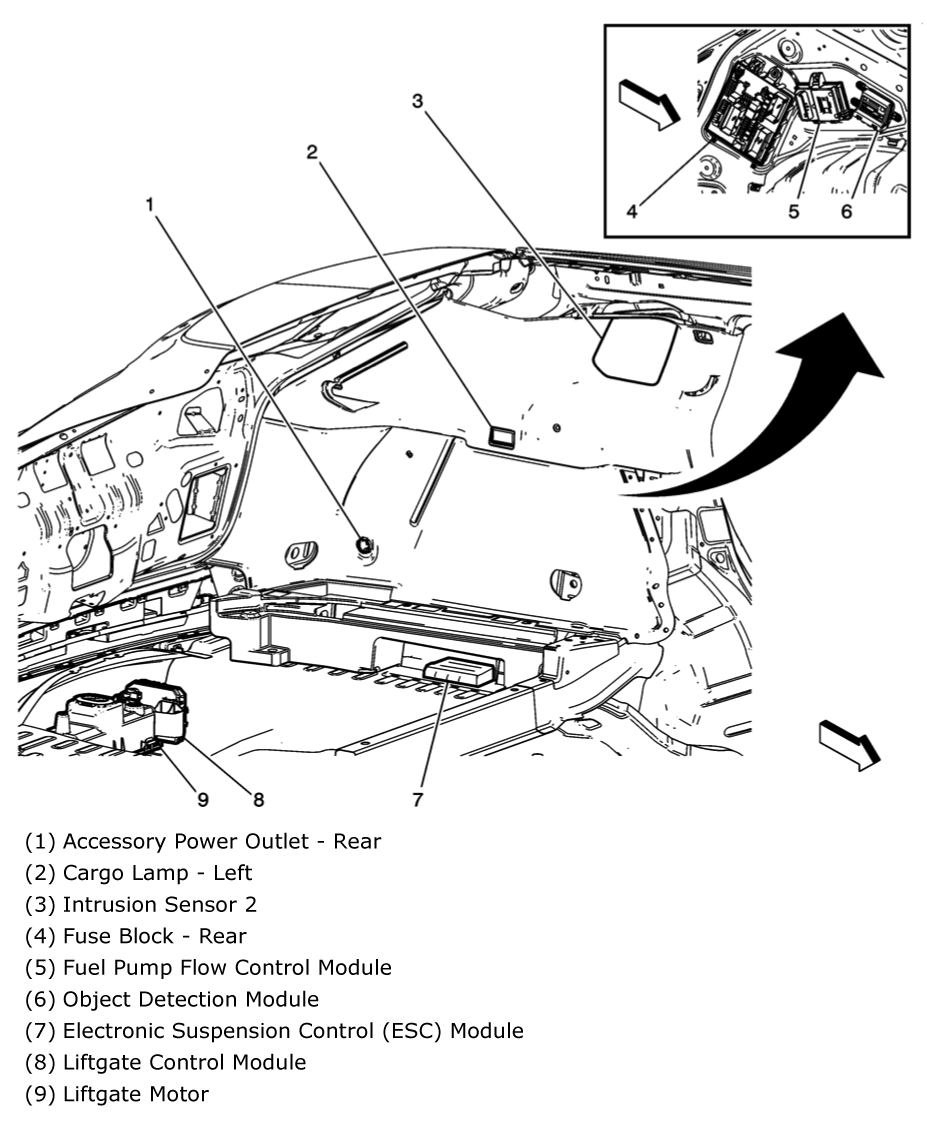

| Electronic Suspension Control Module | Cargo compartment. See Figure. |

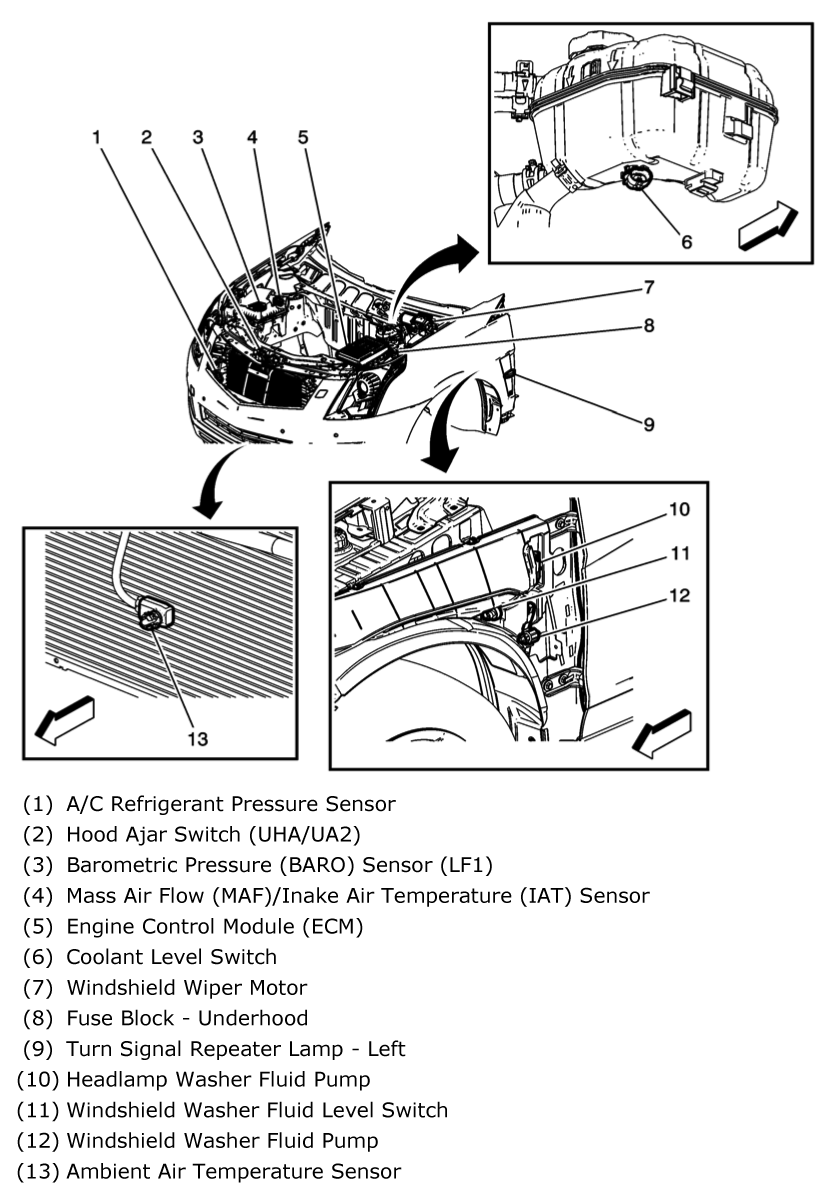

| Engine Control Module | Left front engine compartment. See Figure. |
| Fan Control Module | Behind fan. See Figure. |
| Fuel Pump Flow Control Module | Left rear cargo compartment. See Figure. |
| Headlamp Control Module | Left dash. See Figure. |

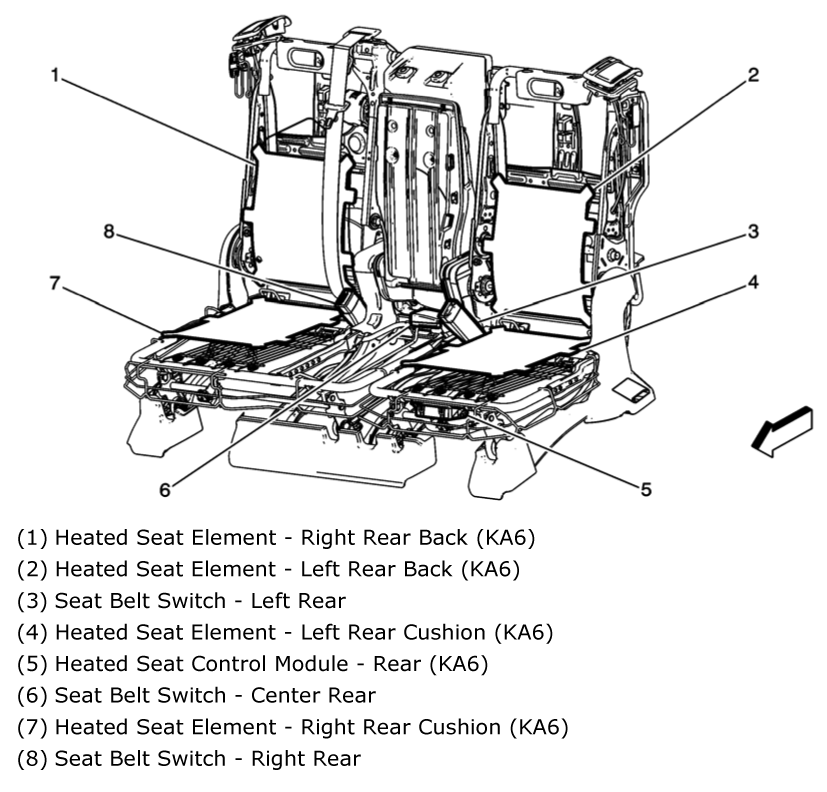

| Heated Seat Control Module - Rear | Left rear seat cushion. See Figure. |
| HVAC Control Module | Center of dash, under radio. See Figure. |

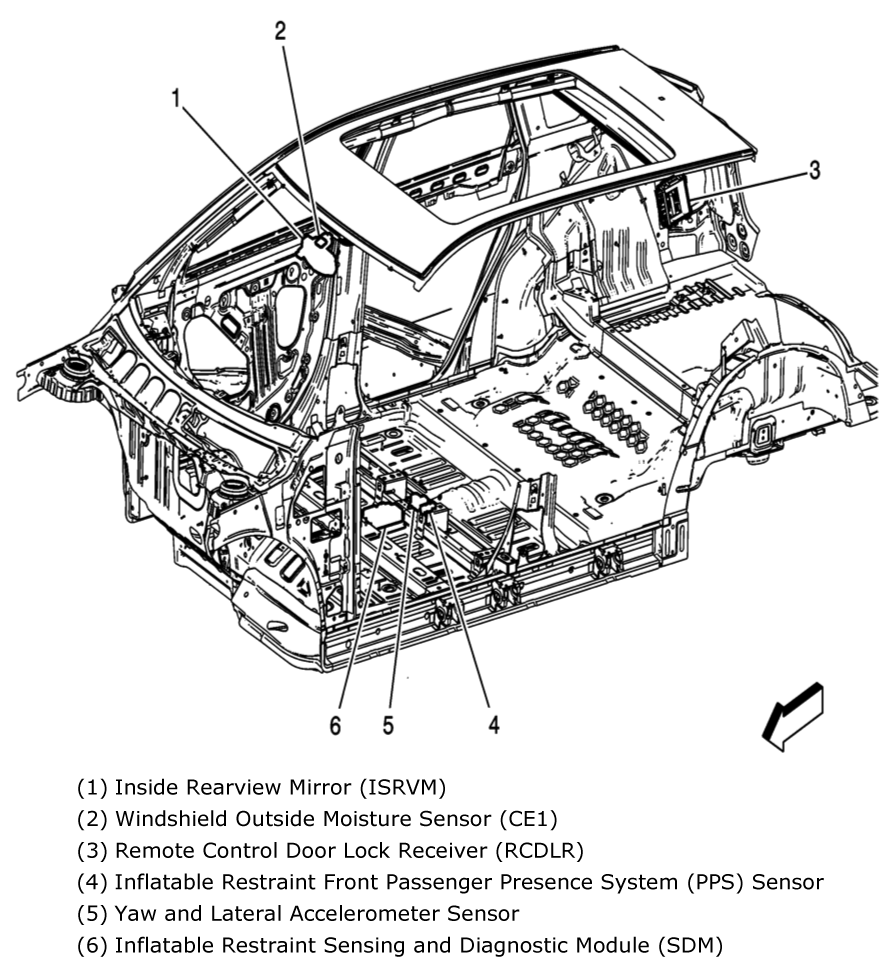

| Inflatable Restraint Front Passenger Presence System Sensor | Under passenger seat. See Figure. |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under center console. See Figure. |

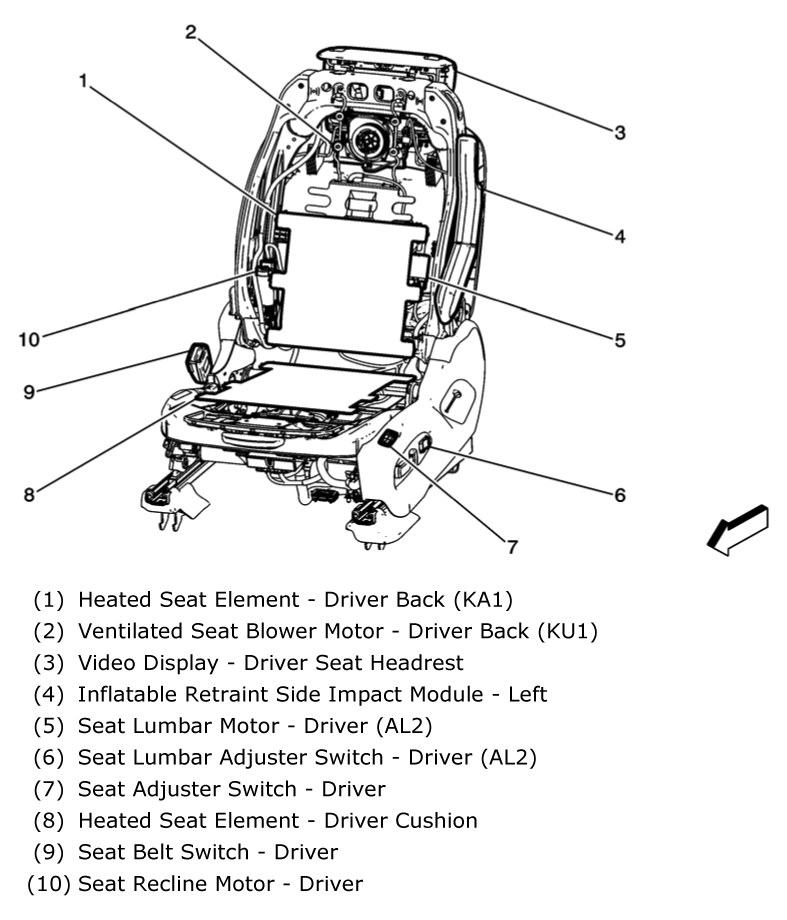

| Inflatable Restraint Side Impact Module - Left | Left side of driver's seat back. See Figure. |

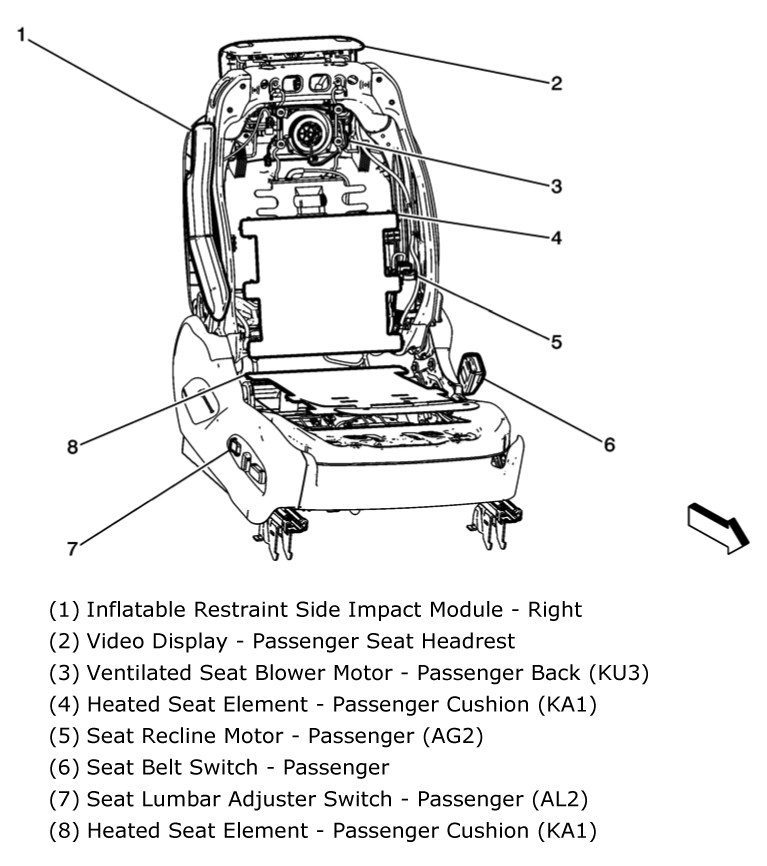

| Inflatable Restraint Side Impact Module - Right | Right side of passenger seat back. See Figure. |

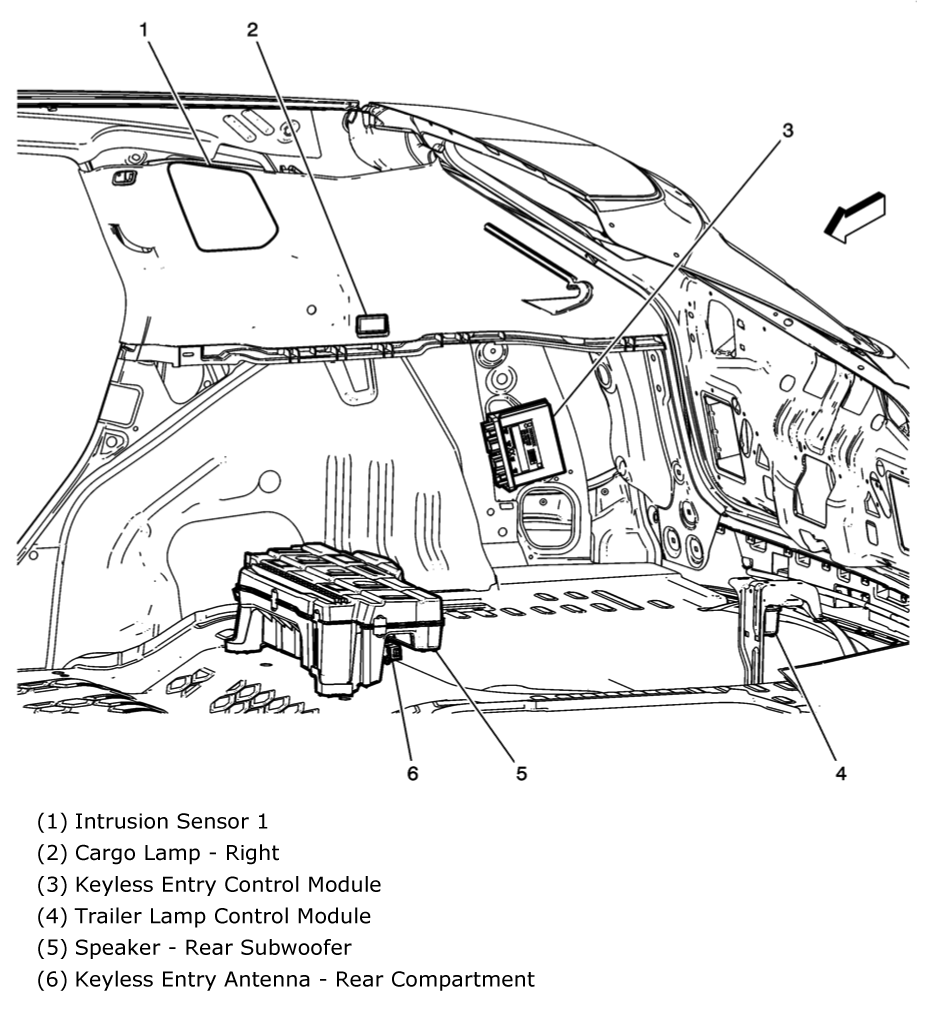

| Keyless Entry Control Module | Right cargo compartment. See Figure. |
| Liftgate Control Module | Cargo compartment. See Figure. |

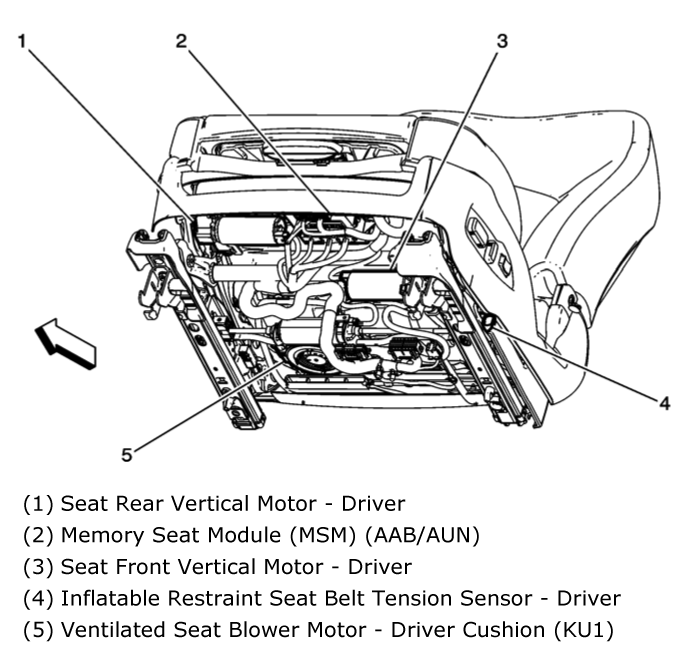

| Memory Seat Module (MSM) | Under driver's seat. See Figure. |

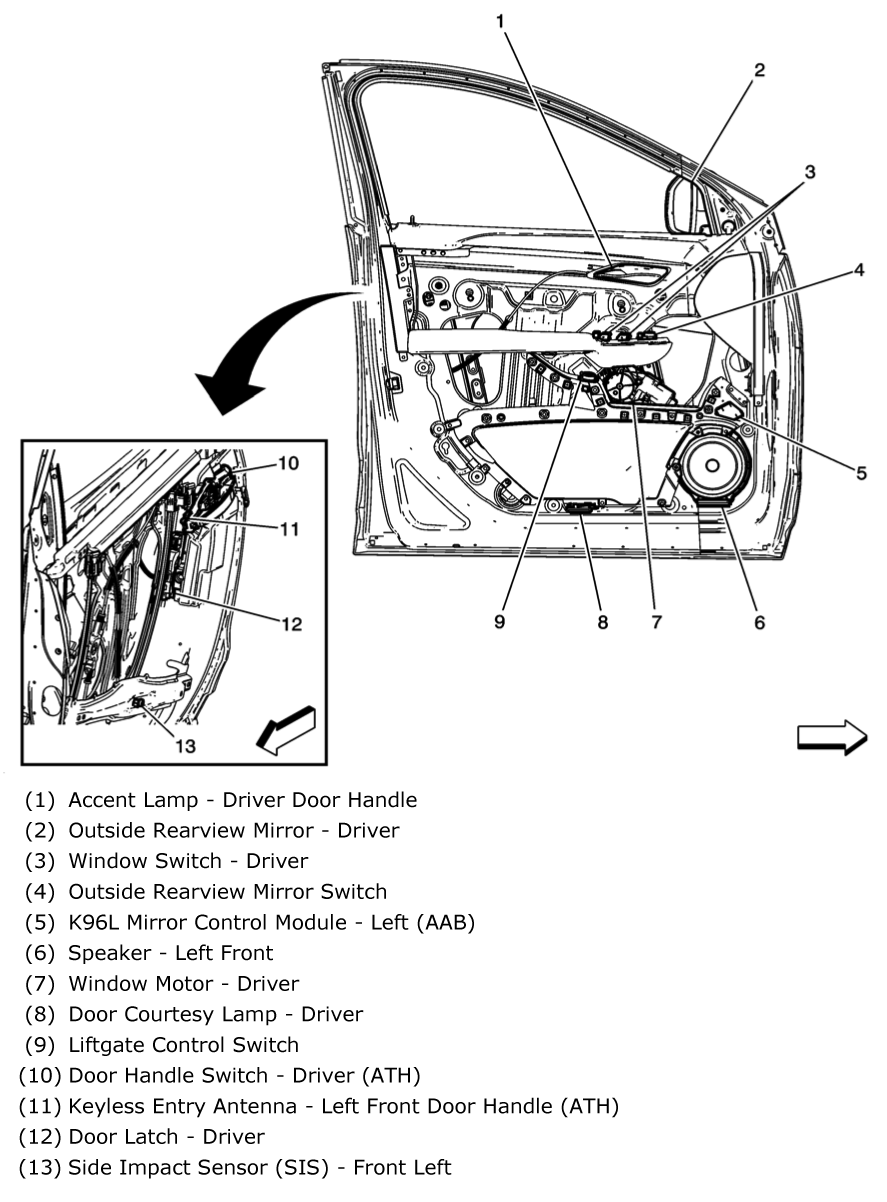

| Mirror Control Module - Left | Driver door. See Figure. |
| Object Detection Module | Left cargo compartment. See Figure. |
| Remote Control Door Lock Receiver (RCDLR) | Right rear quarterpanel. See Figure. |

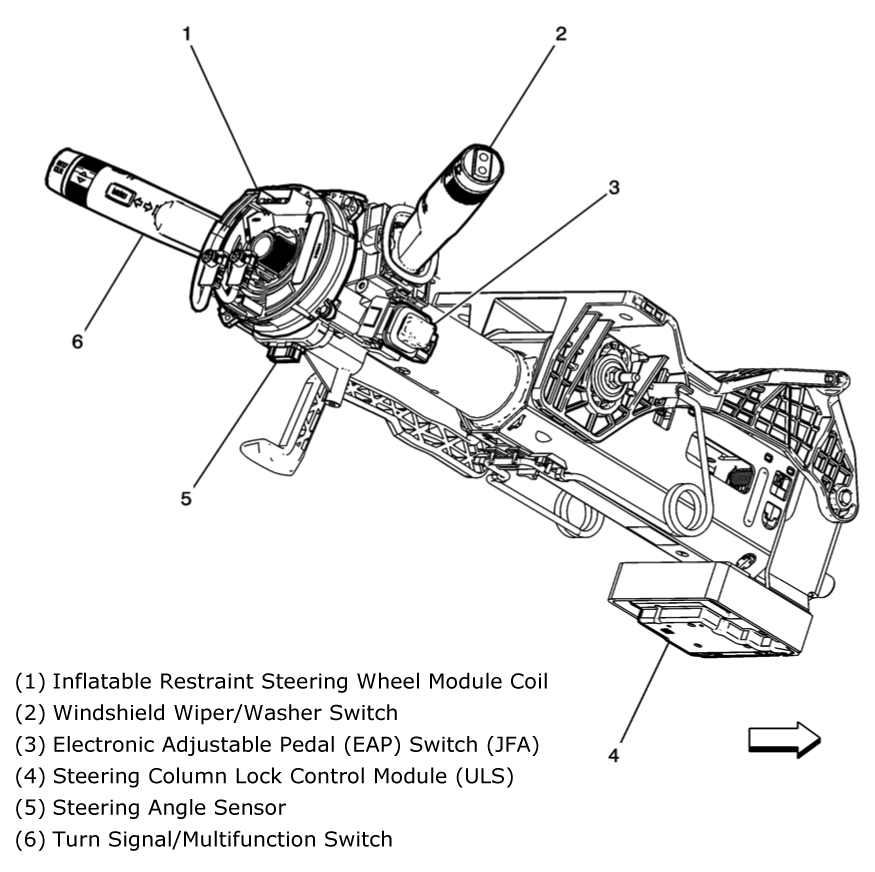

| Steering Column Lock Control Module | Steering column. See Figure. |

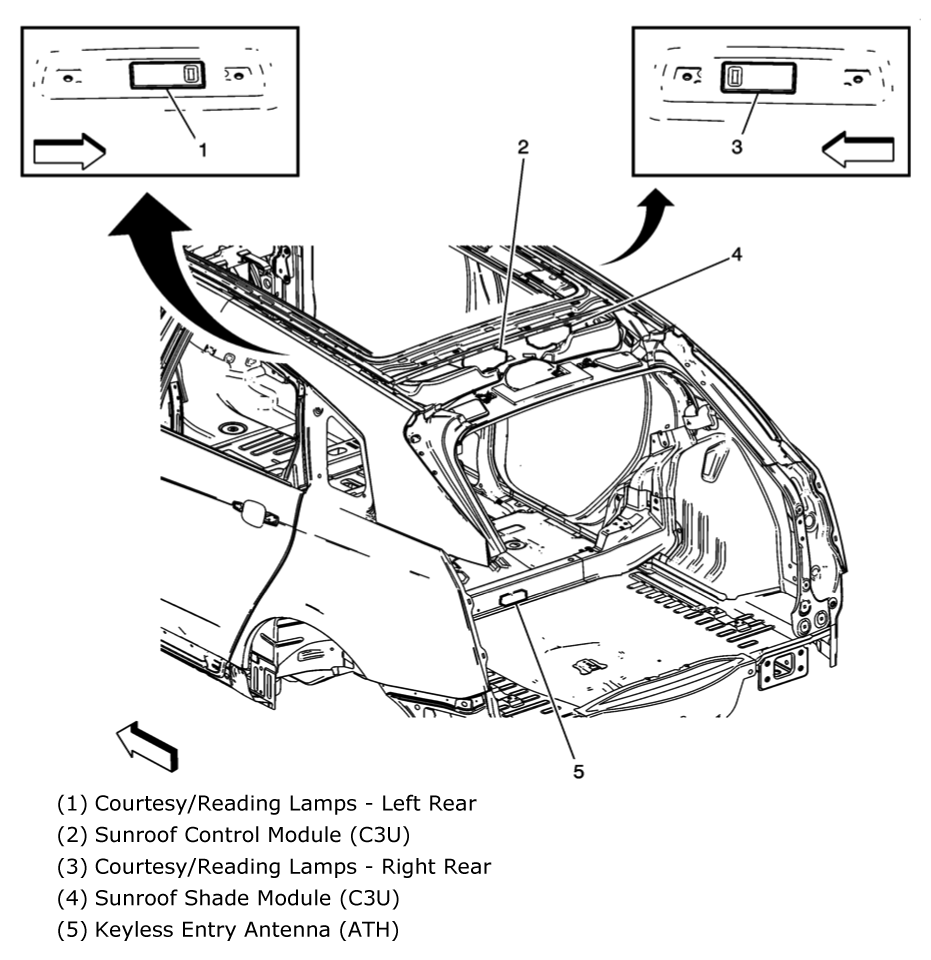

| Sunroof Control Module | Rear roof panel. See Figure. |
| Sunroof Shade Module | Rear roof panel. See Figure. |
| Trailer Lamp Control Module | Cargo compartment. See Figure. |
| Vehicle Communication Interface Module | Right side dash. See Figure. |
