Body Control System Schematics

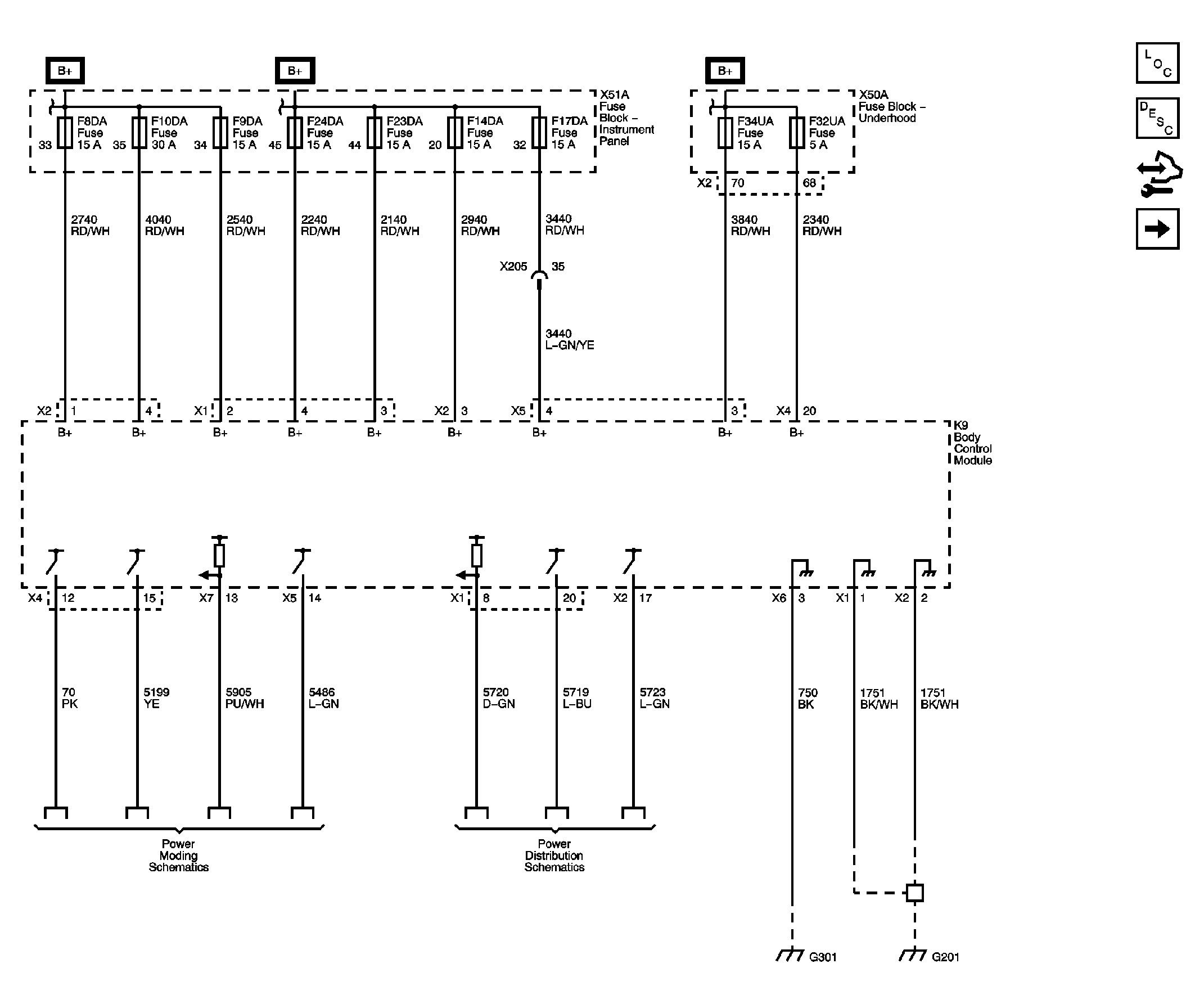

Fig 1: Power & Ground Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

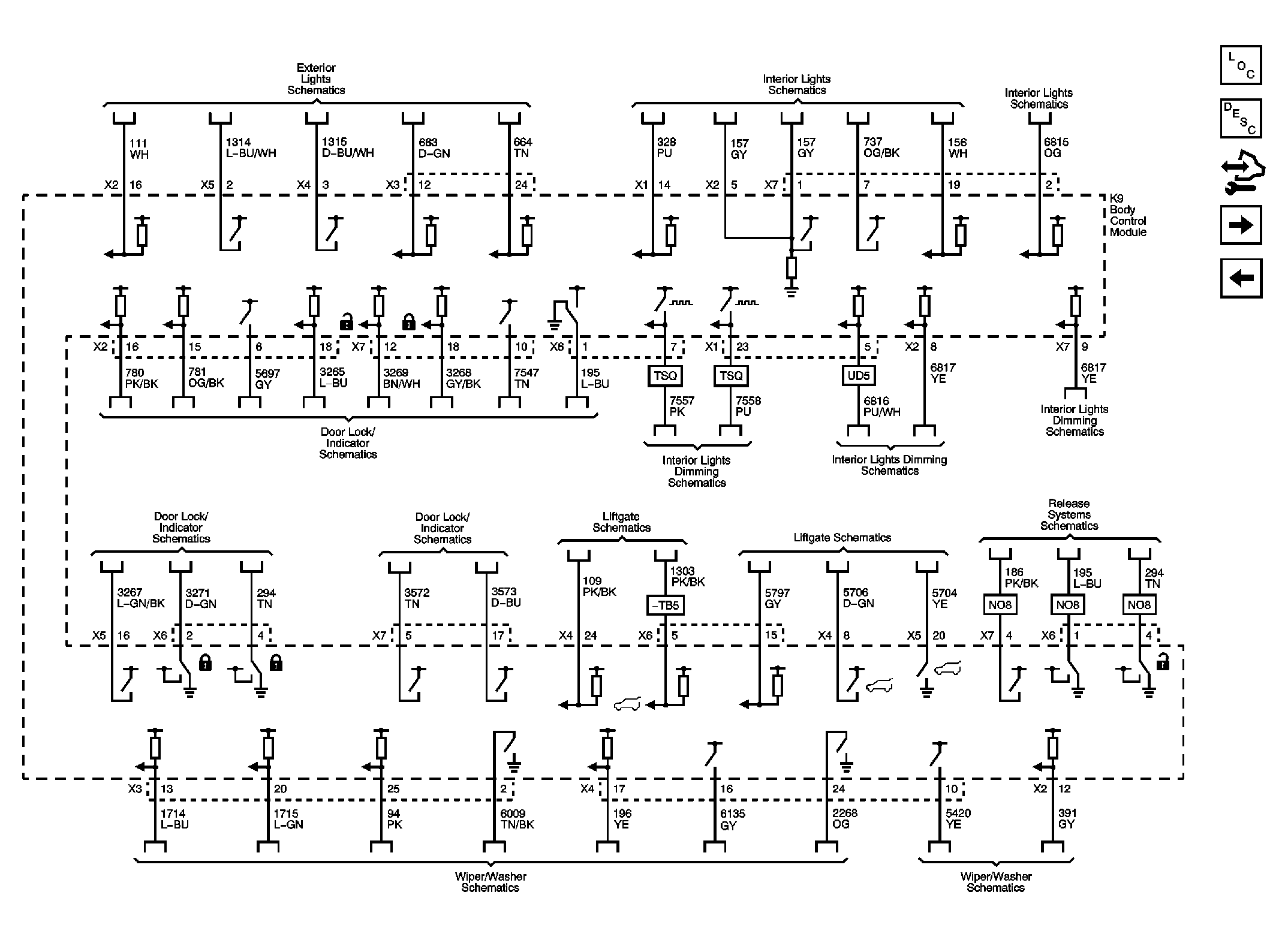

Fig 2: Subsystem References Circuit Schematic (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

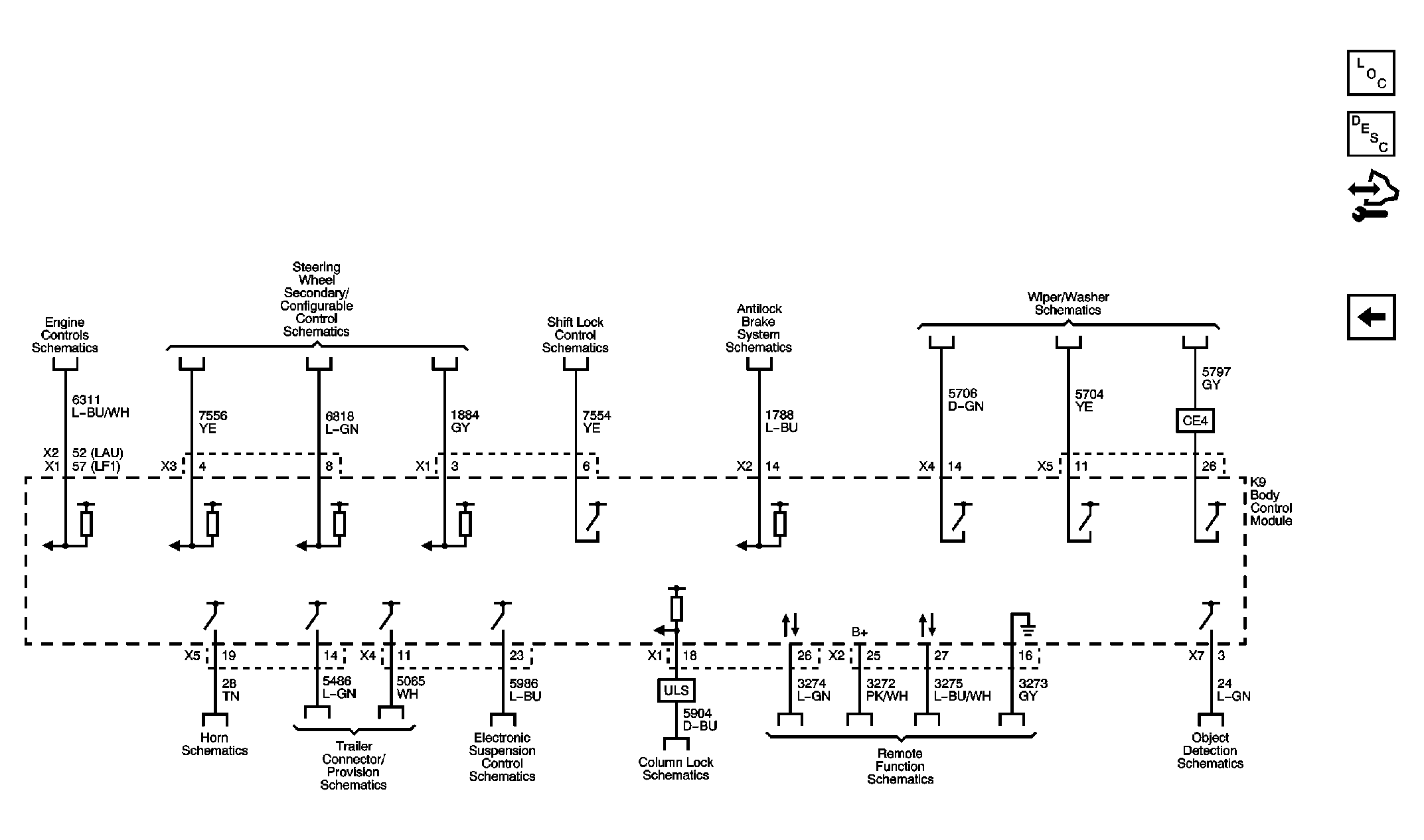

Fig 3: Subsystem References Circuit Schematic (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

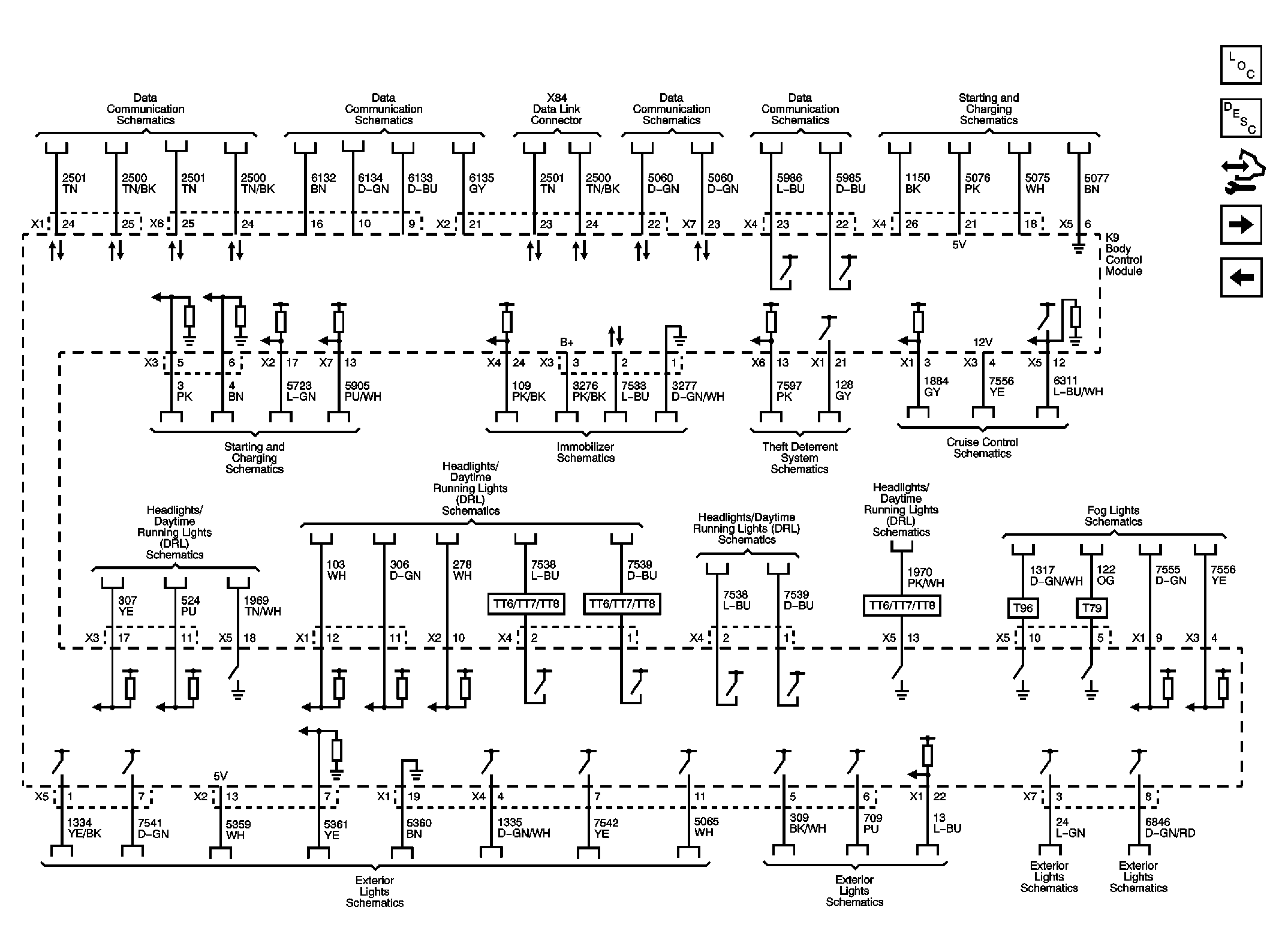

Fig 4: Subsystem References Circuit Schematic (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
