Data Communication Wiring Schematics
›
High Speed Serial Data, Wake Up
High Speed Serial Data, Wake Up

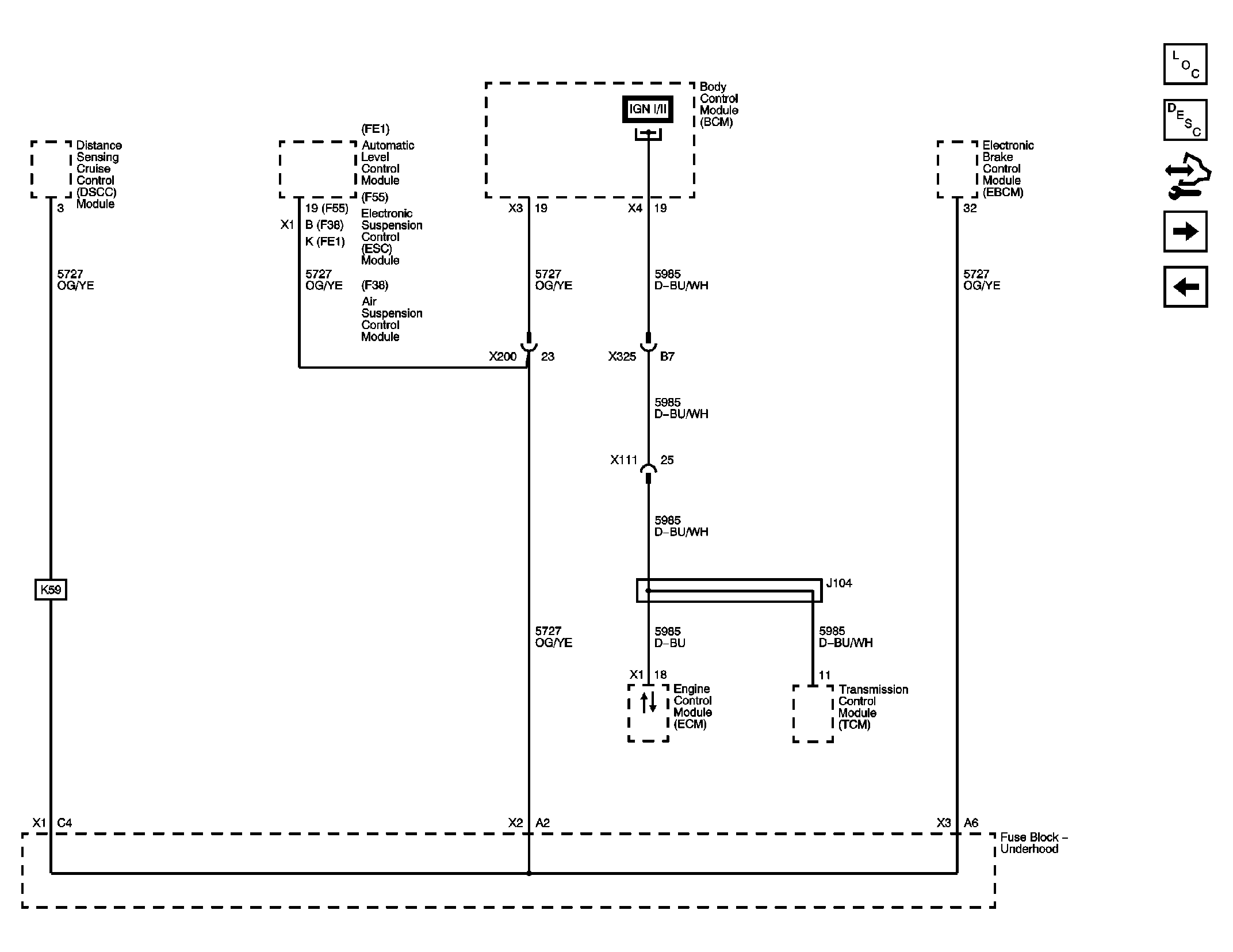

Fig 1: High Speed Serial Data, Wake Up Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
