Child Restraint Tether Anchor Replacement
Child Restraint Tether Anchor Replacement

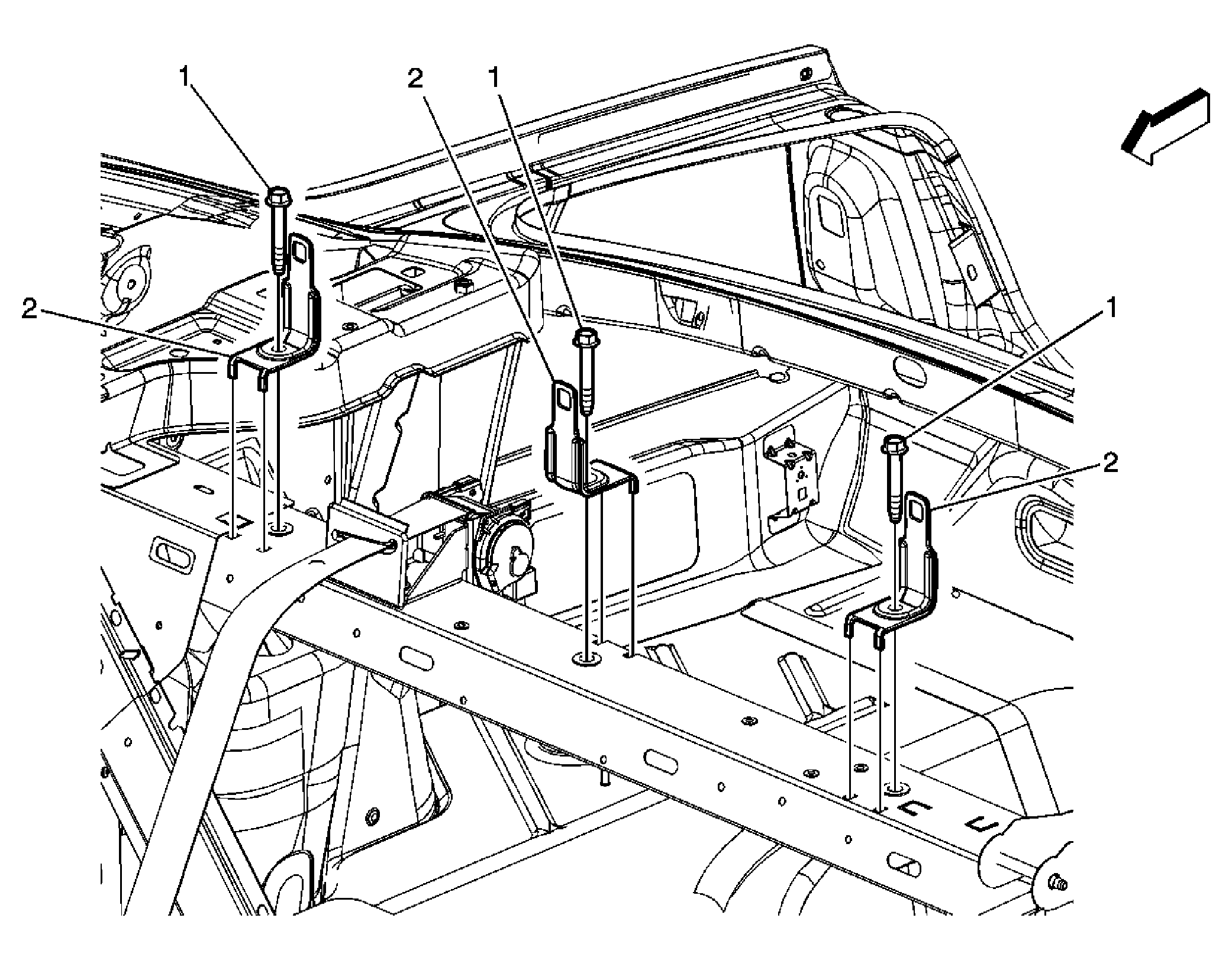

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the trim panel, rear window shelf. Refer to Rear Window Shelf Trim Panel Replacement . |
|
| 1 | Child Restraint Tether Anchor Bolt
CAUTION:
Refer to Fastener Caution . Tighten 30 N.m (22 lb ft) |
| 2 | Child Restraint Tether Anchor |
