Body Control System Wiring Schematics
›
Subsystem References (1 of 4)
Subsystem References (1 of 4)

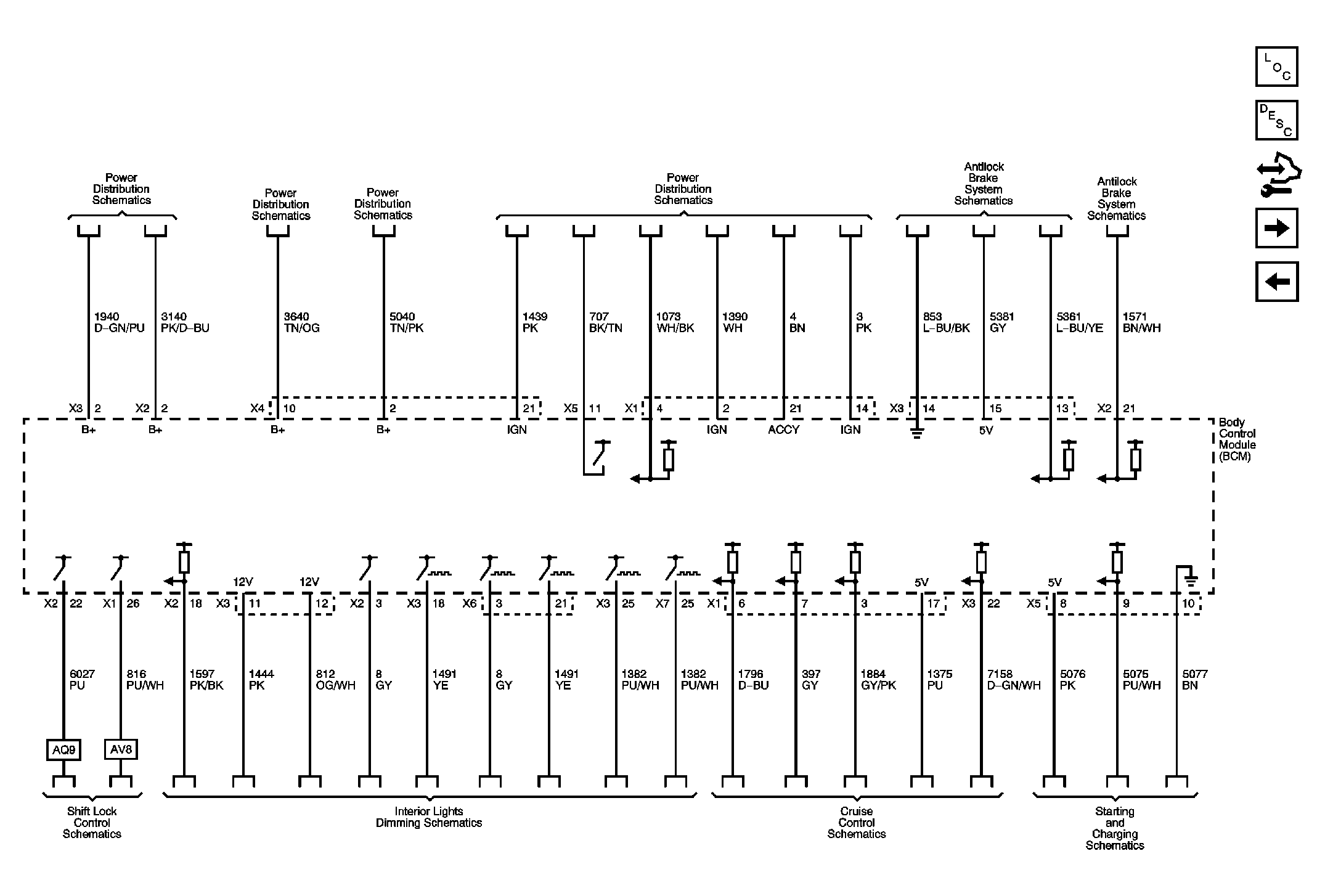

Fig 1: Subsystem References Wiring Schematic (1 of 4)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
