Home › Cadillac › 2011 › Escalade Base, AWD › Repair and Diagnosis › Body & Frame › Fixed And MOVEABLE Windows › Wiring Schematics › Defogger Schematics › C49

Defogger Schematics: C49

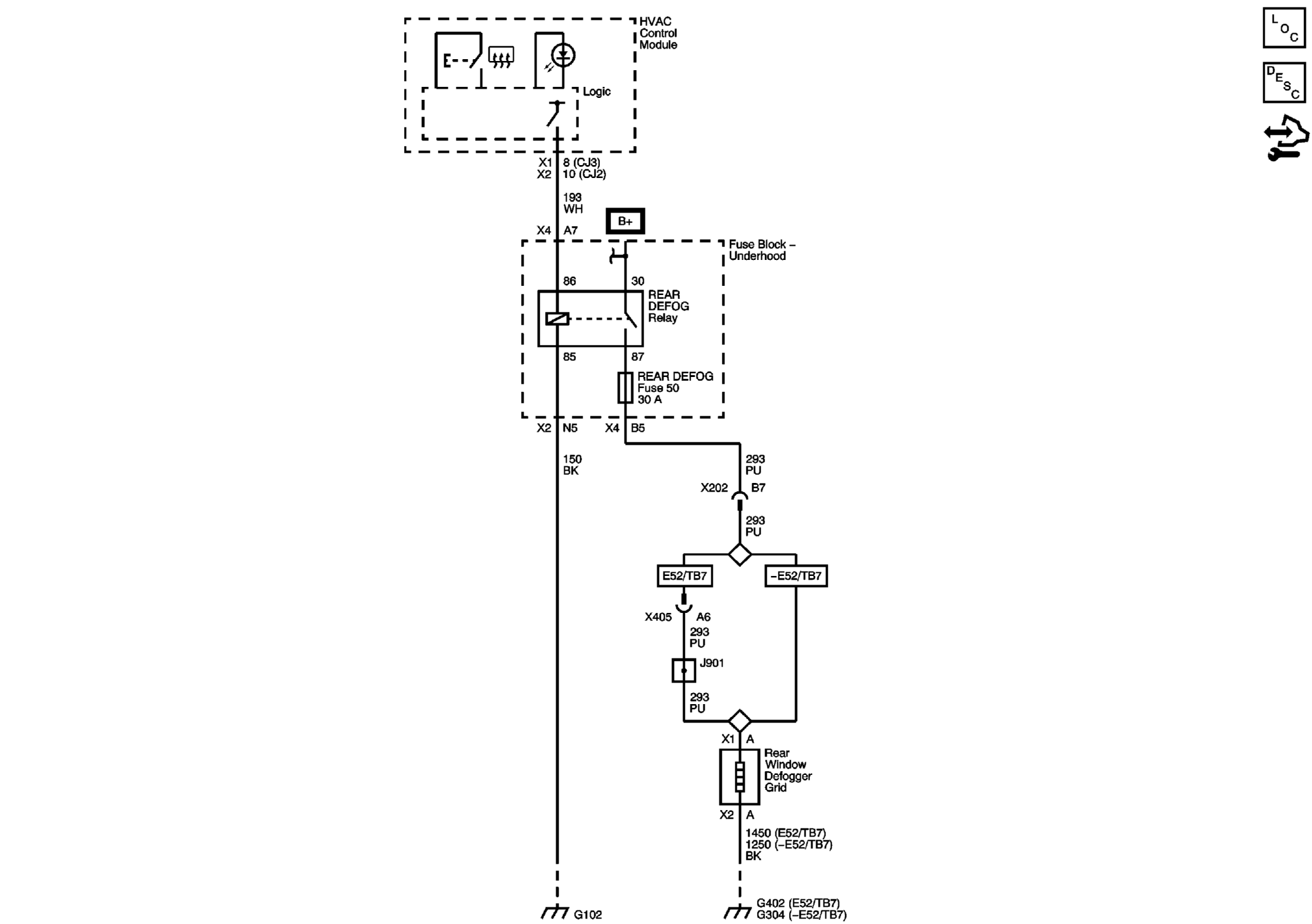

Fig 1: Defogger (C49) Wiring Schematic
GM2399823Courtesy of GENERAL MOTORS CORP.
