Home › Cadillac › 2011 › Escalade Base, AWD › Repair and Diagnosis › Body & Frame › Fixed And MOVEABLE Windows › Wiring Schematics › Moveable Window Wiring Schematics › Left

Moveable Window Wiring Schematics: Left

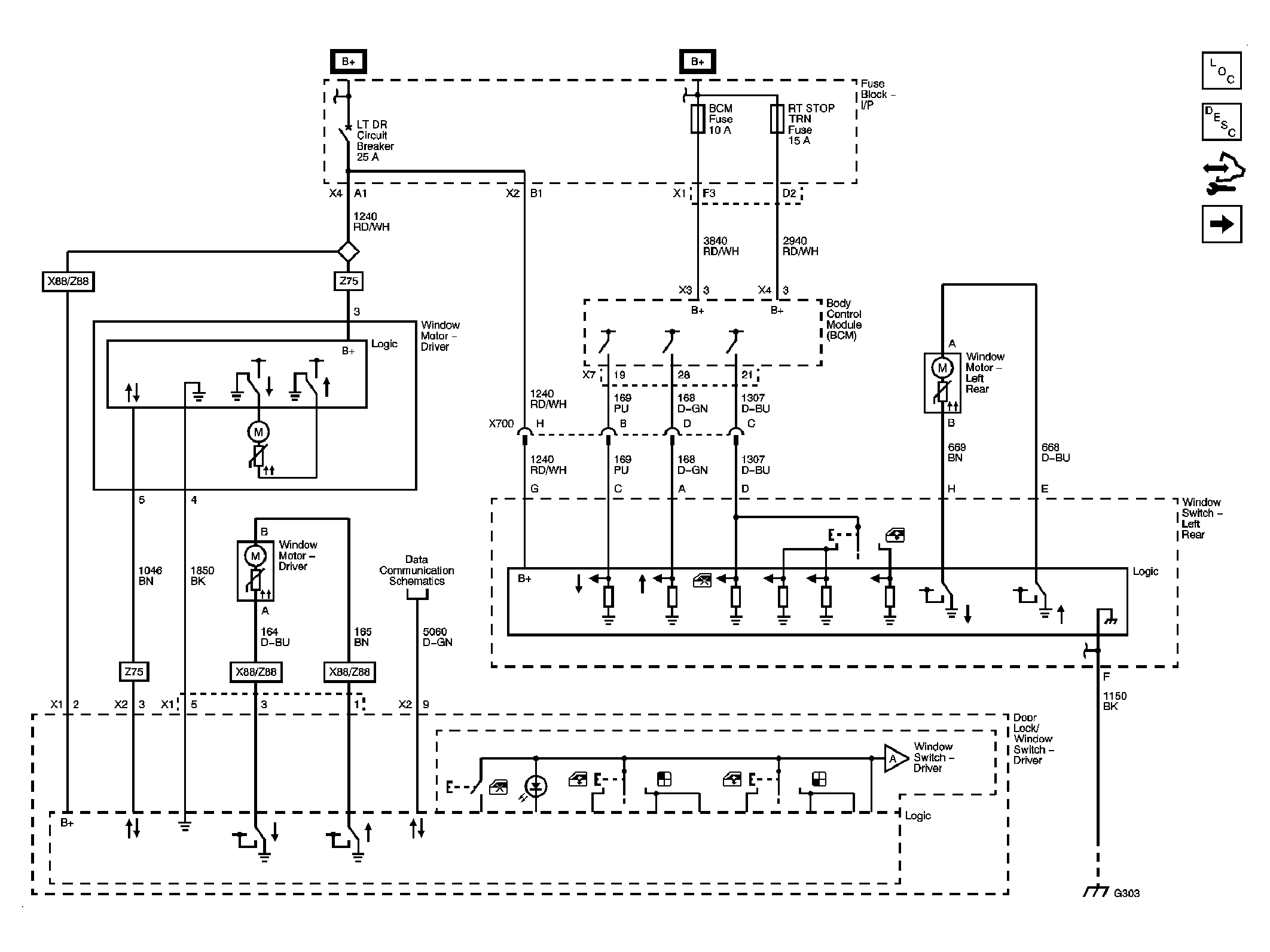

Fig 1: Left Wiring Schematic
GM2399172Courtesy of GENERAL MOTORS CORP.
