Cadillac
›
2011
›
Escalade EXT
›
Repair and Diagnosis
›
Accessories & Equipment
›
Drivers Assistance Systems - ADAS
›
Object Detection System - Park Assist System
›
Wiring Schematics
›
Object Detection Wiring Schematics
›
Side Object Detection (UFT)
Side Object Detection (UFT)

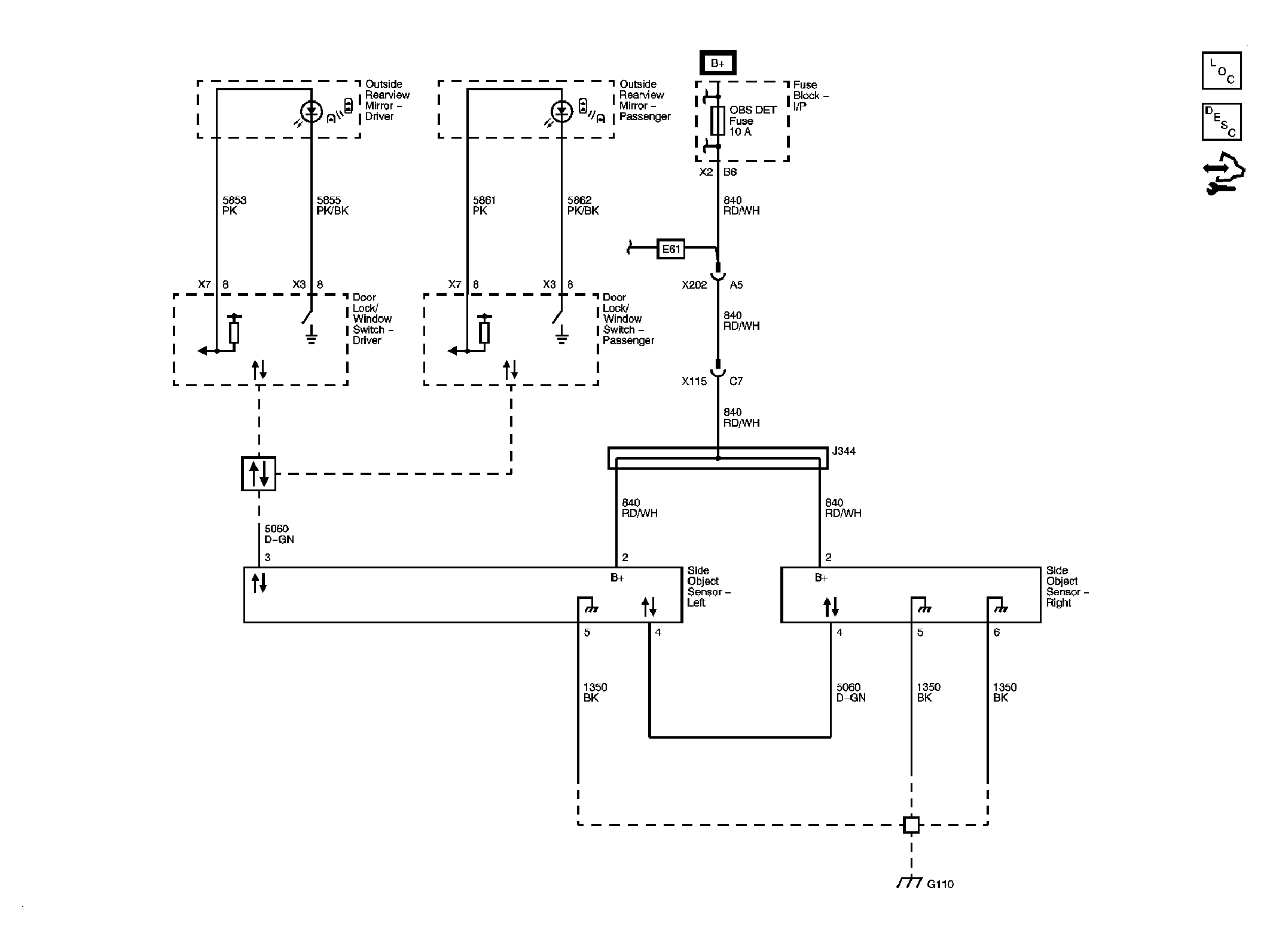

Fig 1: Side Object Detection (UFT) Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
