Moveable Window Wiring Schematics: Right

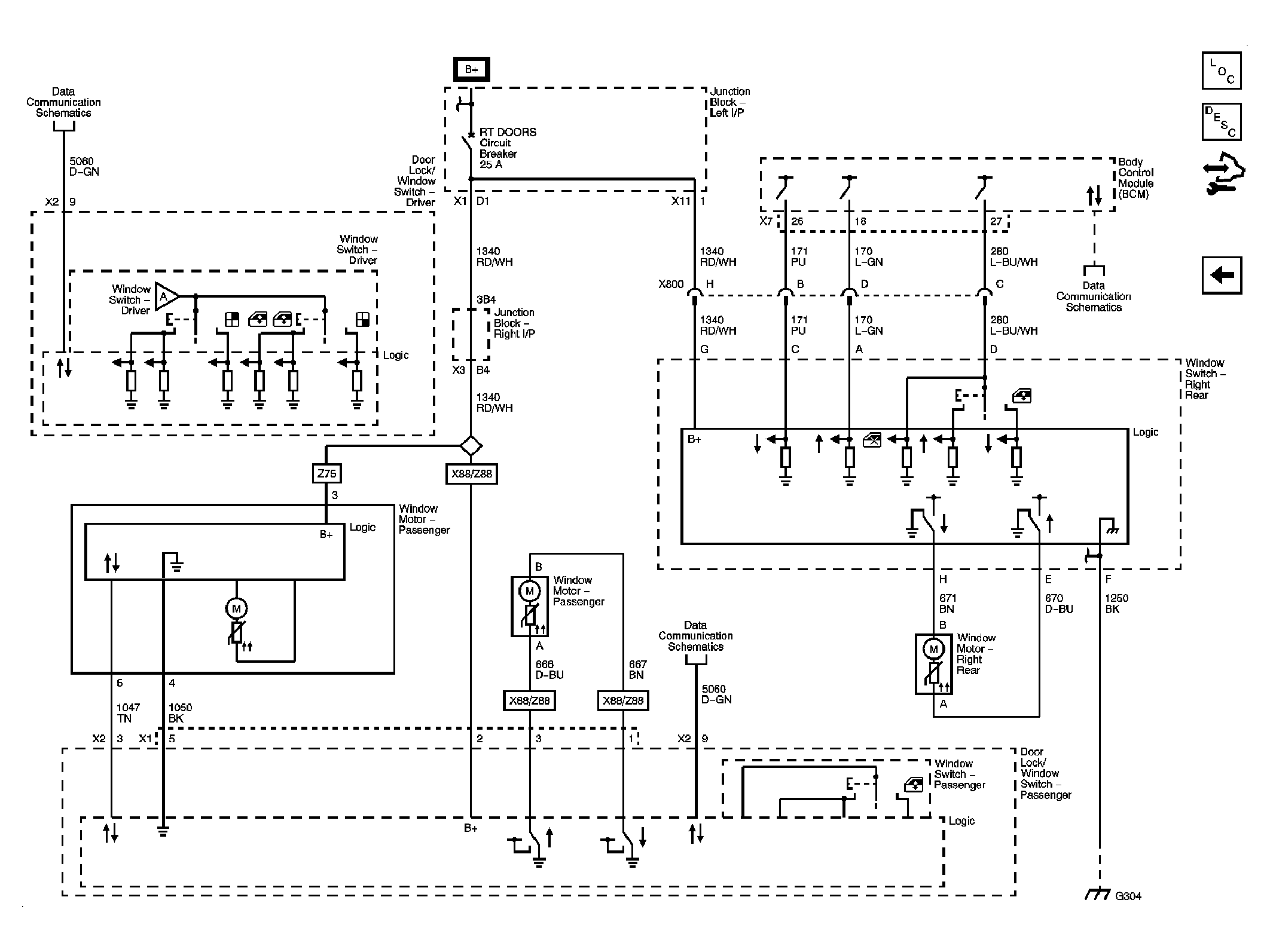

Fig 1: Right Wiring Schematic
GM2399178Courtesy of GENERAL MOTORS CORP.
