Immobilizer Wiring Schematics: Immobilizer

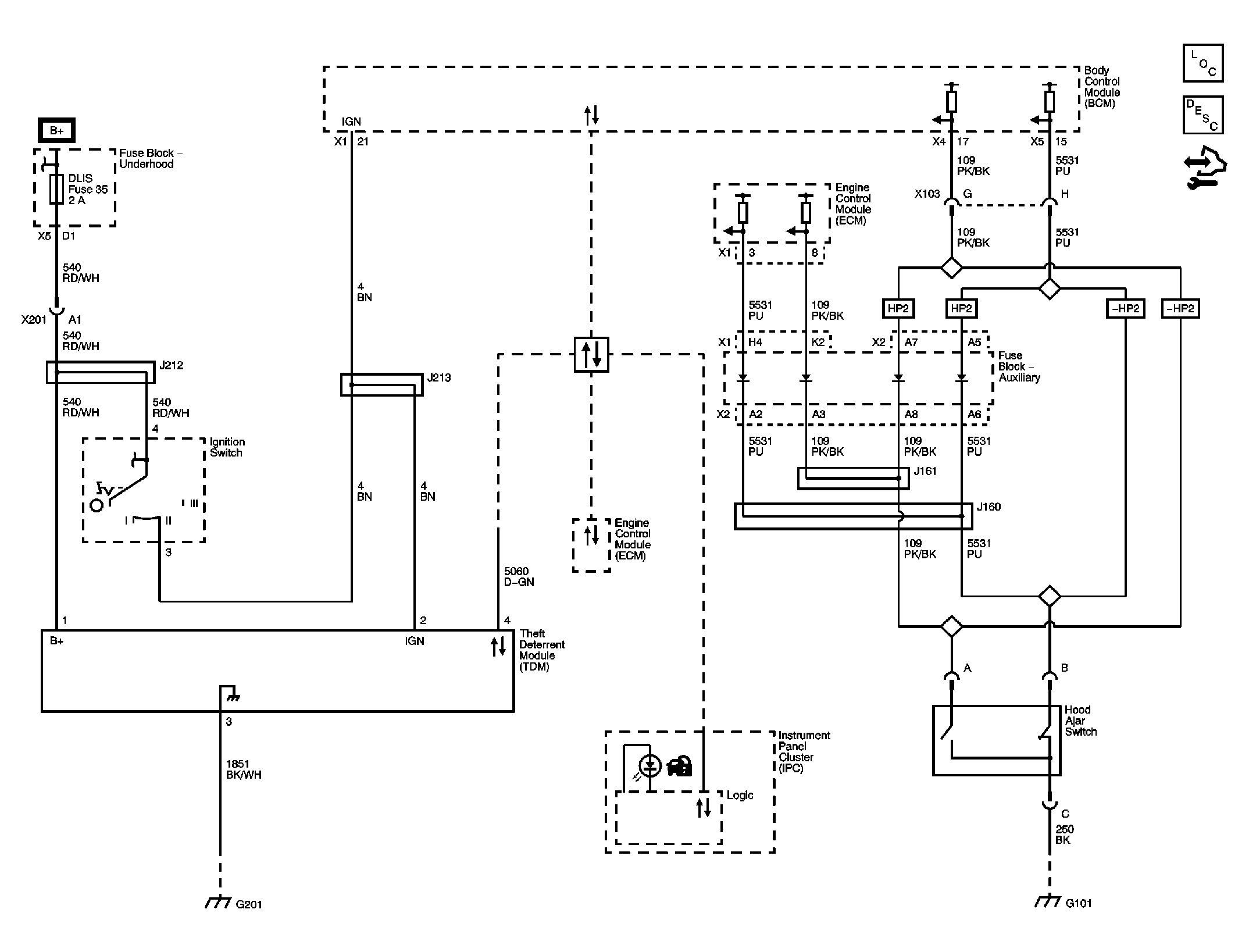

Fig 1: Immobilizer Wiring Schematic
GM2399410Courtesy of GENERAL MOTORS CORP.
