Outside Rearview Mirror Wiring Schematics: Driver

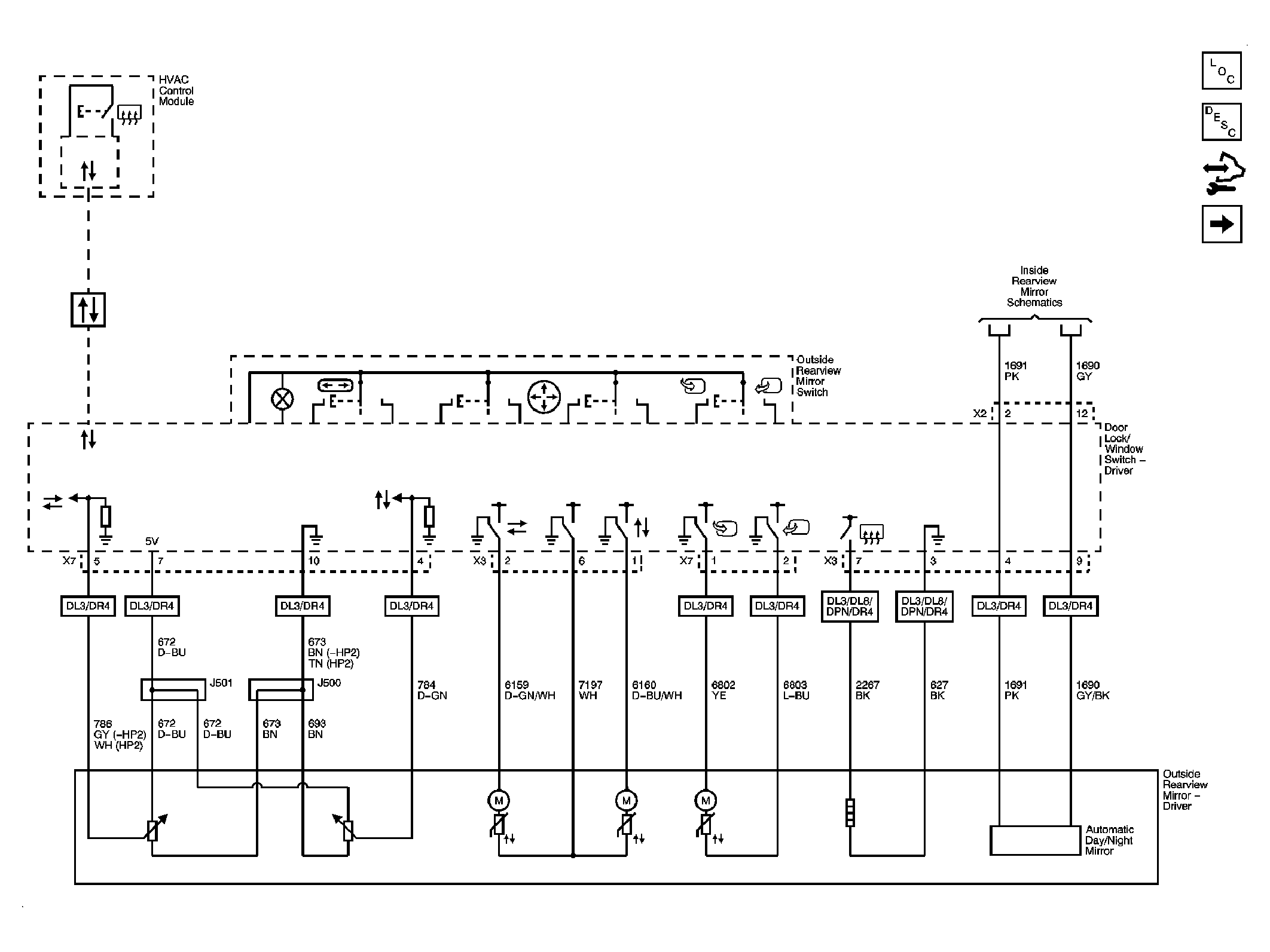

Fig 1: Driver Outside Rearview Mirror Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
