Power Seat System
›
Wiring Schematics
›
Driver Seat Wiring Schematics
›
Module Power, Ground, Serial Data, and Memory Switch
Module Power, Ground, Serial Data, and Memory Switch

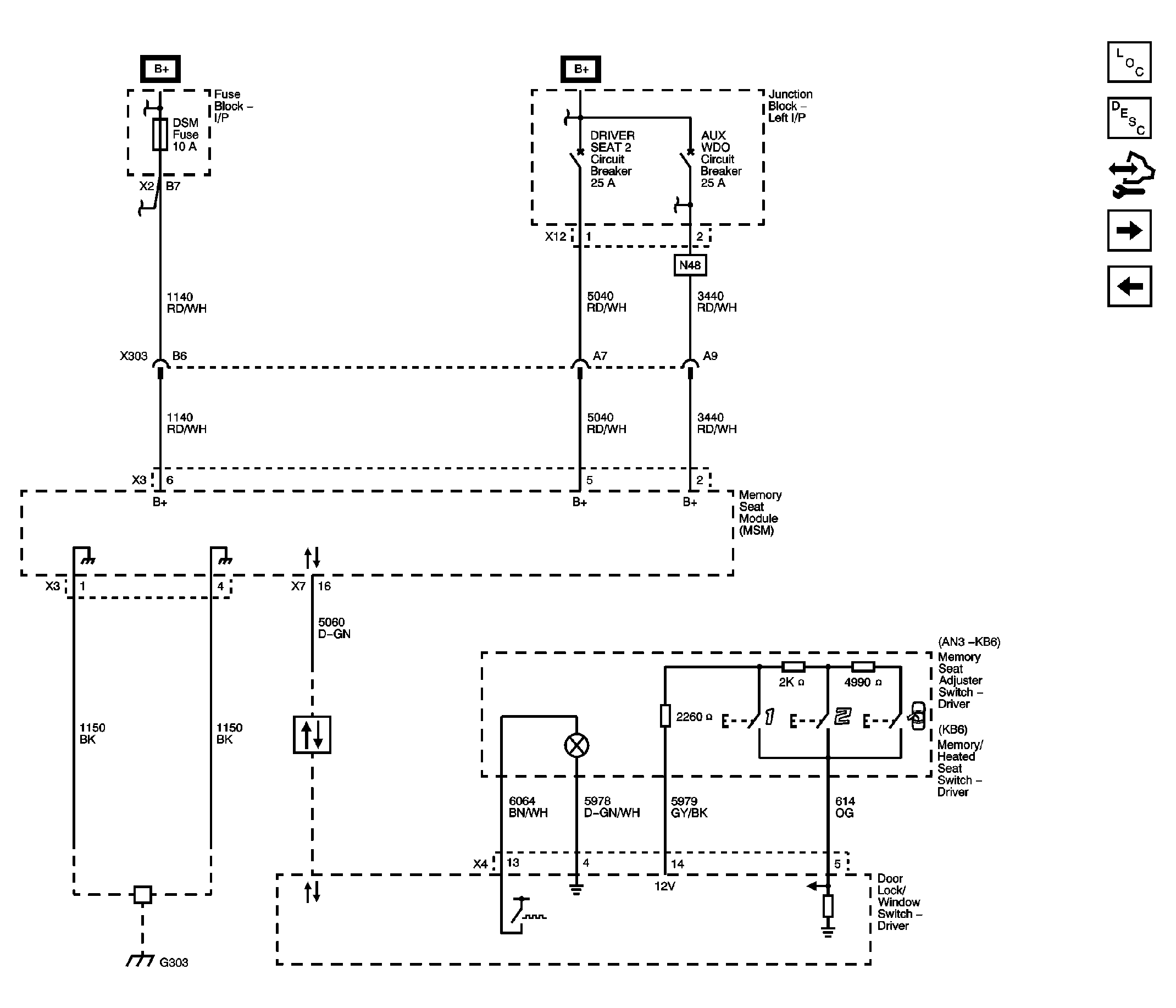

Fig 1: Module Power, Ground, Serial Data And Memory Switch Wiring Schematic
