Trailer Brake Control System
›
Wiring Schematics
›
Trailer Brake Control Wiring Schematics
›
JL1
Trailer Brake Control Wiring Schematics: JL1

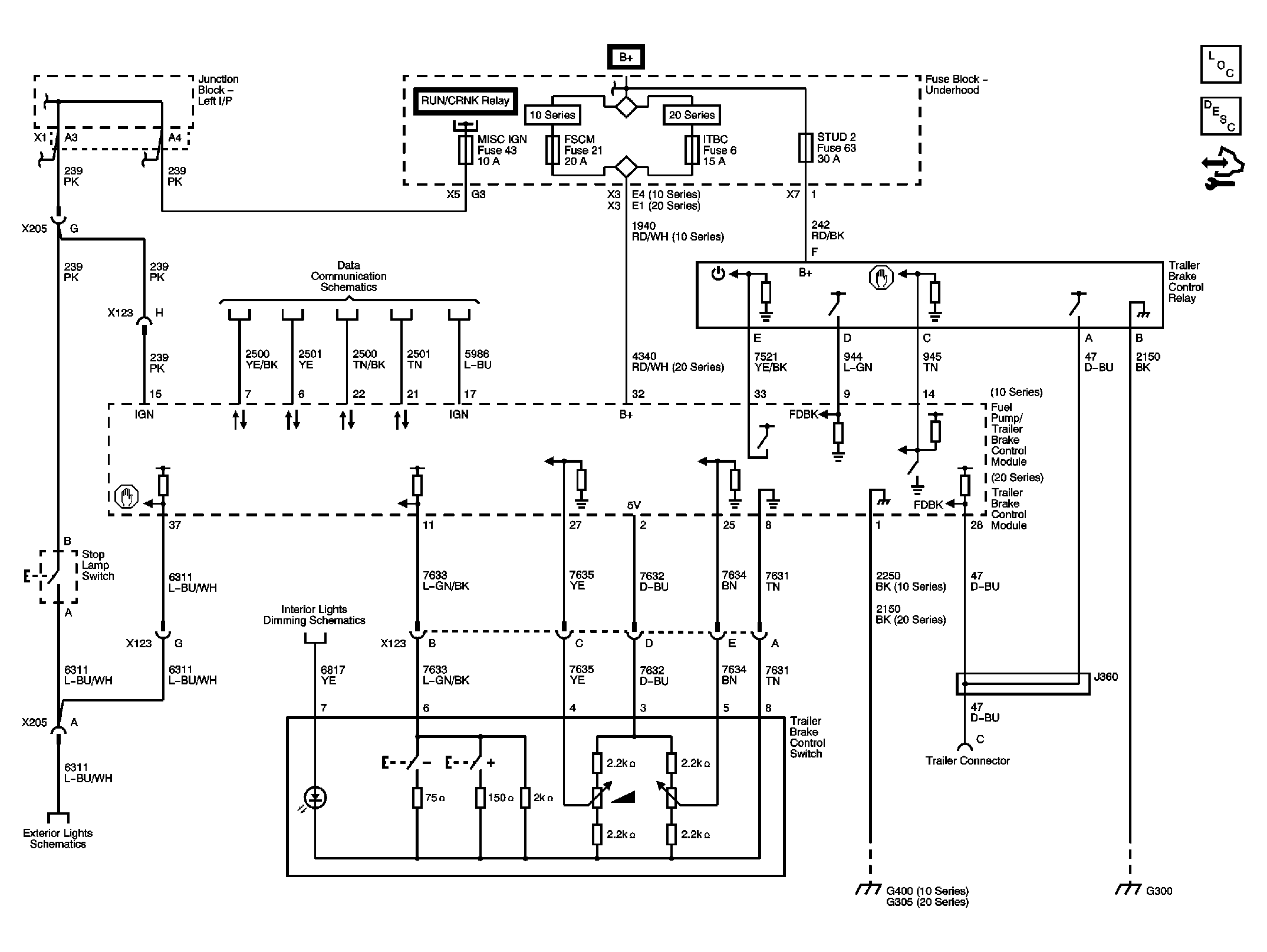

Fig 1: JL1 Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
