Cadillac
›
2011
›
Escalade EXT
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communications System
›
Wiring Schematics
›
Body Control System Schematics
›
Brake, Horn, Transmission, Theft, and Secondary/Configurable Control References
Brake, Horn, Transmission, Theft, and Secondary/Configurable Control References

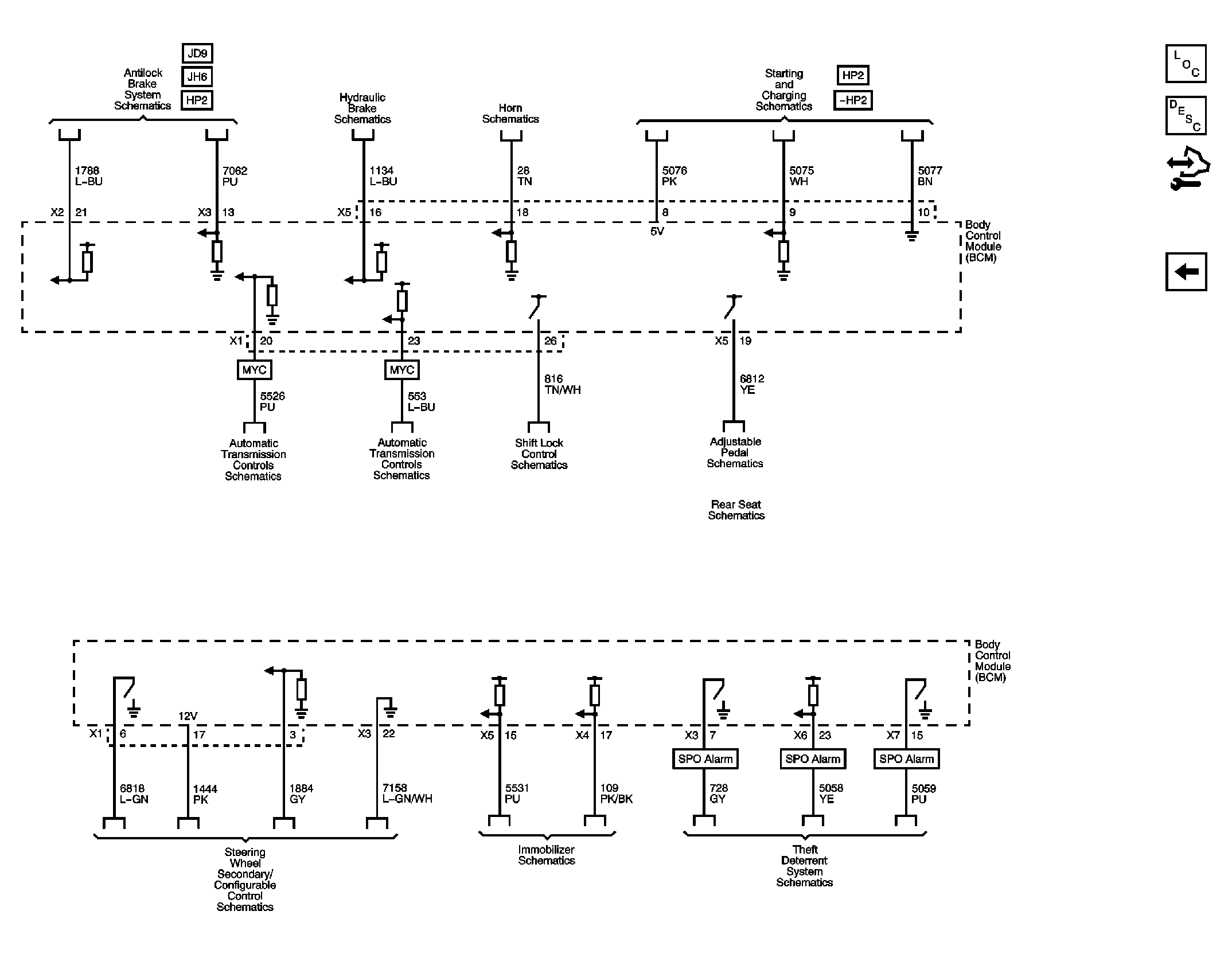

Fig 1: Brake, Horn, Transmission, Theft, and Secondary/Configurable Control References Wiring Schematic
