High Speed Bus- HP2 (2 of 2)
High Speed Bus- HP2 (2 of 2)

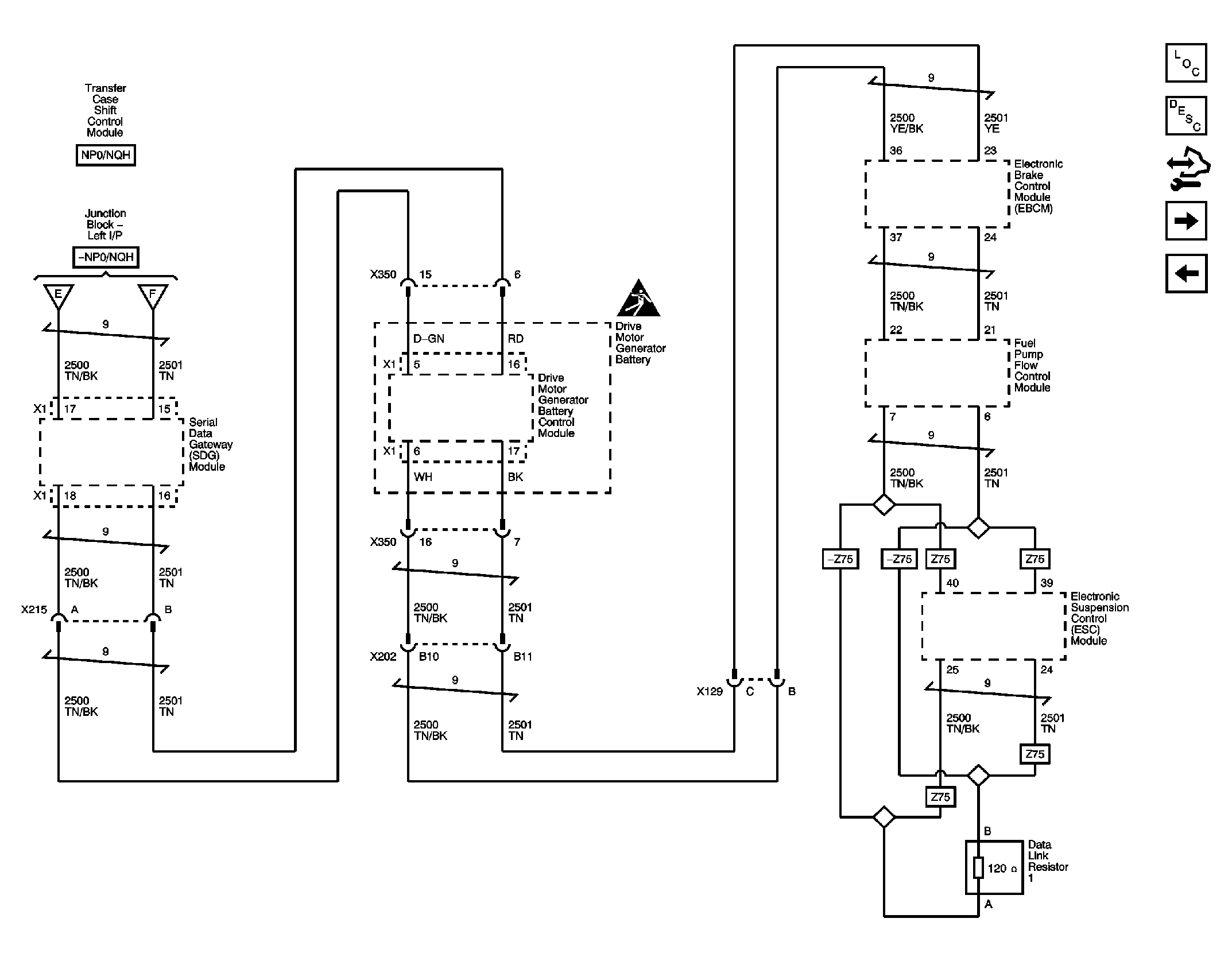

Fig 1: High Speed Bus- HP2 (2 of 2) Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
