Data Communications System
›
Wiring Schematics
›
Data Communication Wiring Schematics
›
Low Speed Bus- JX200 (1 of 3)
Low Speed Bus- JX200 (1 of 3)

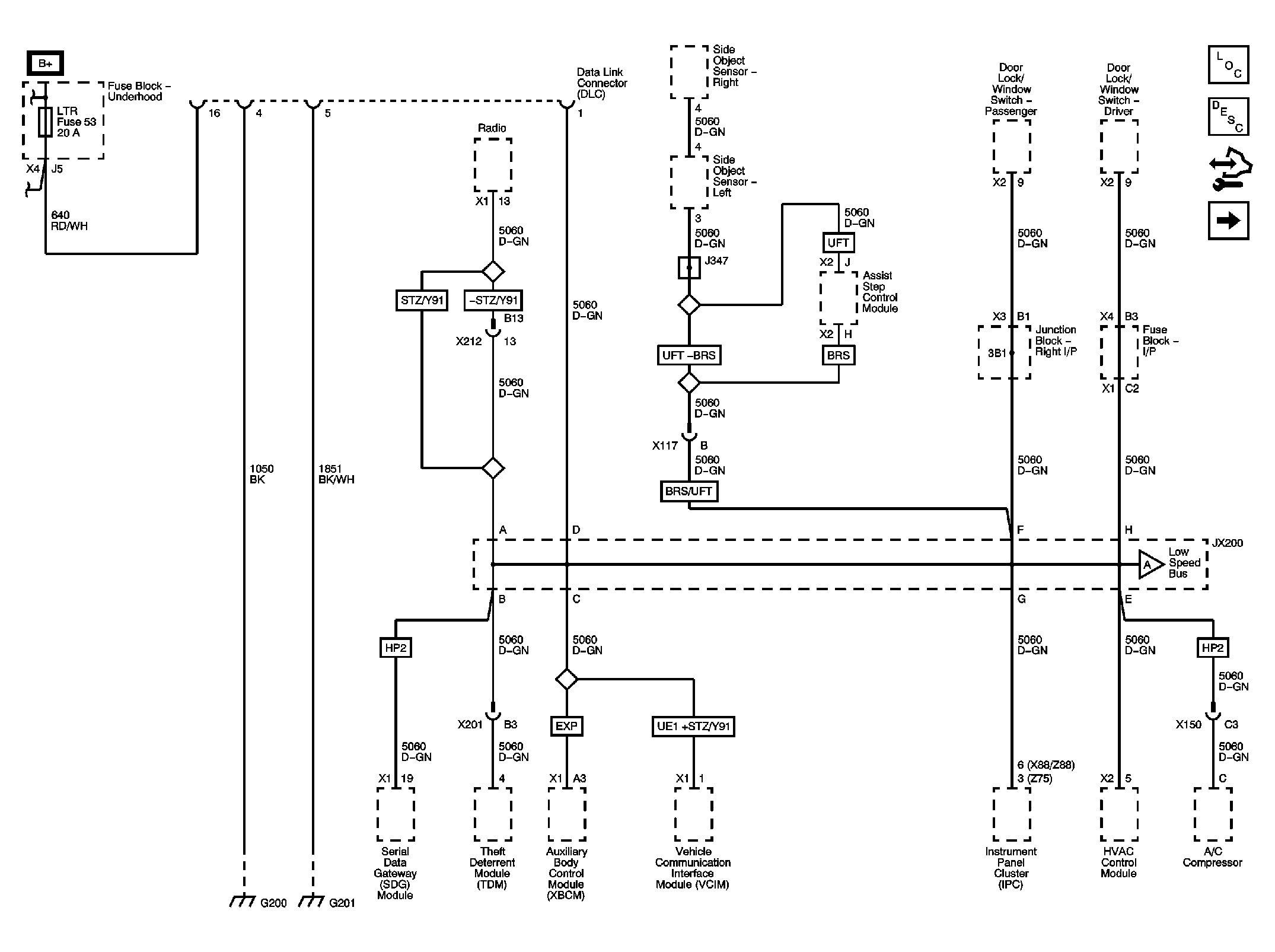

Fig 1: Low Speed Bus- JX200 (1 of 3) Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
