Cadillac
›
2011
›
Escalade EXT
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communications System
›
Wiring Schematics
›
Data Communication Wiring Schematics
›
Powertrain Expansion Bus (HP2)
Powertrain Expansion Bus (HP2)

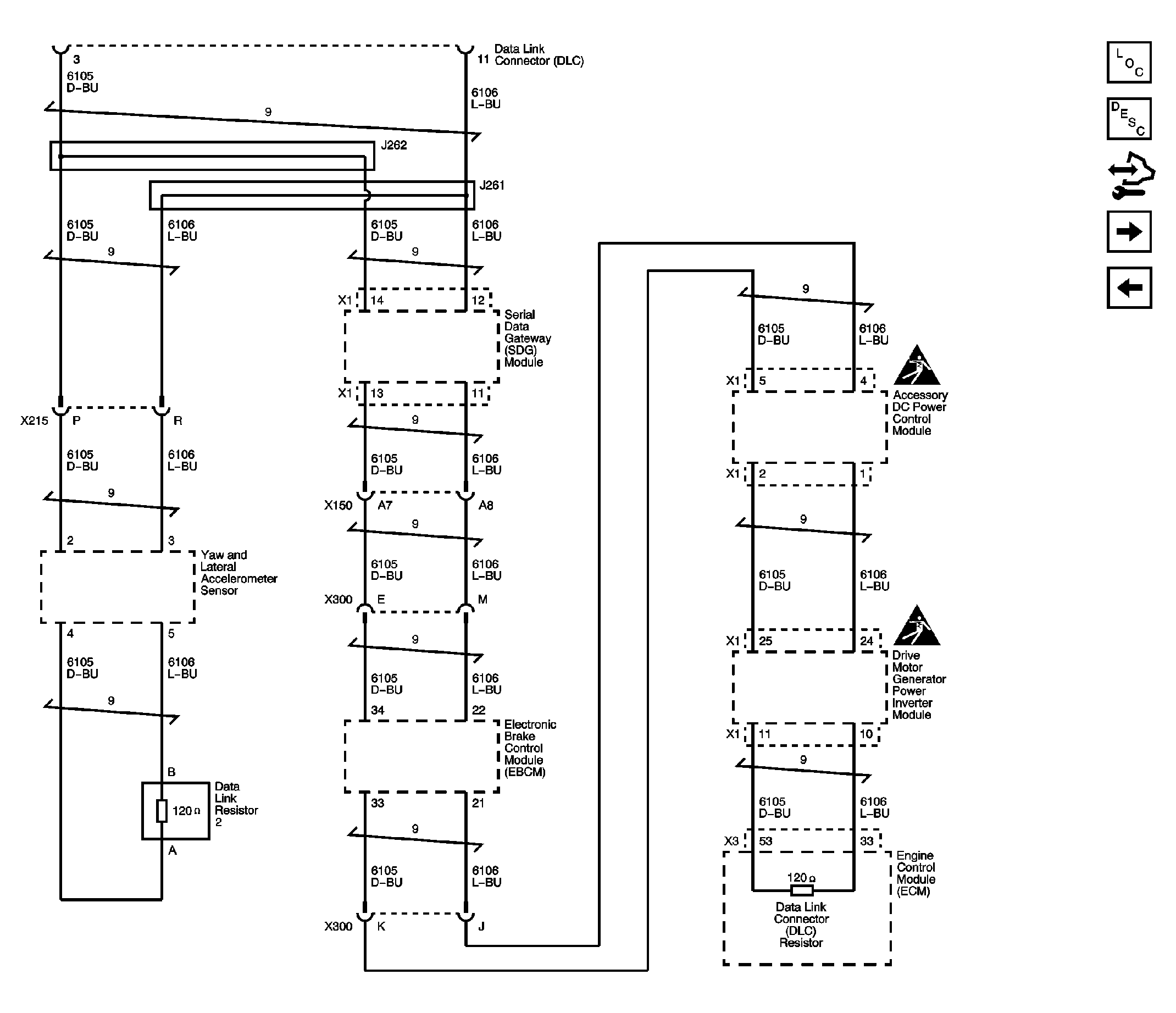

Fig 1: Powertrain Expansion Bus (HP2) Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
