Cadillac
›
2011
›
Escalade EXT
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communications System
›
Wiring Schematics
›
Data Communication Wiring Schematics
›
Serial Data Communication Enable and Wake-up Circuits
Serial Data Communication Enable and Wake-up Circuits

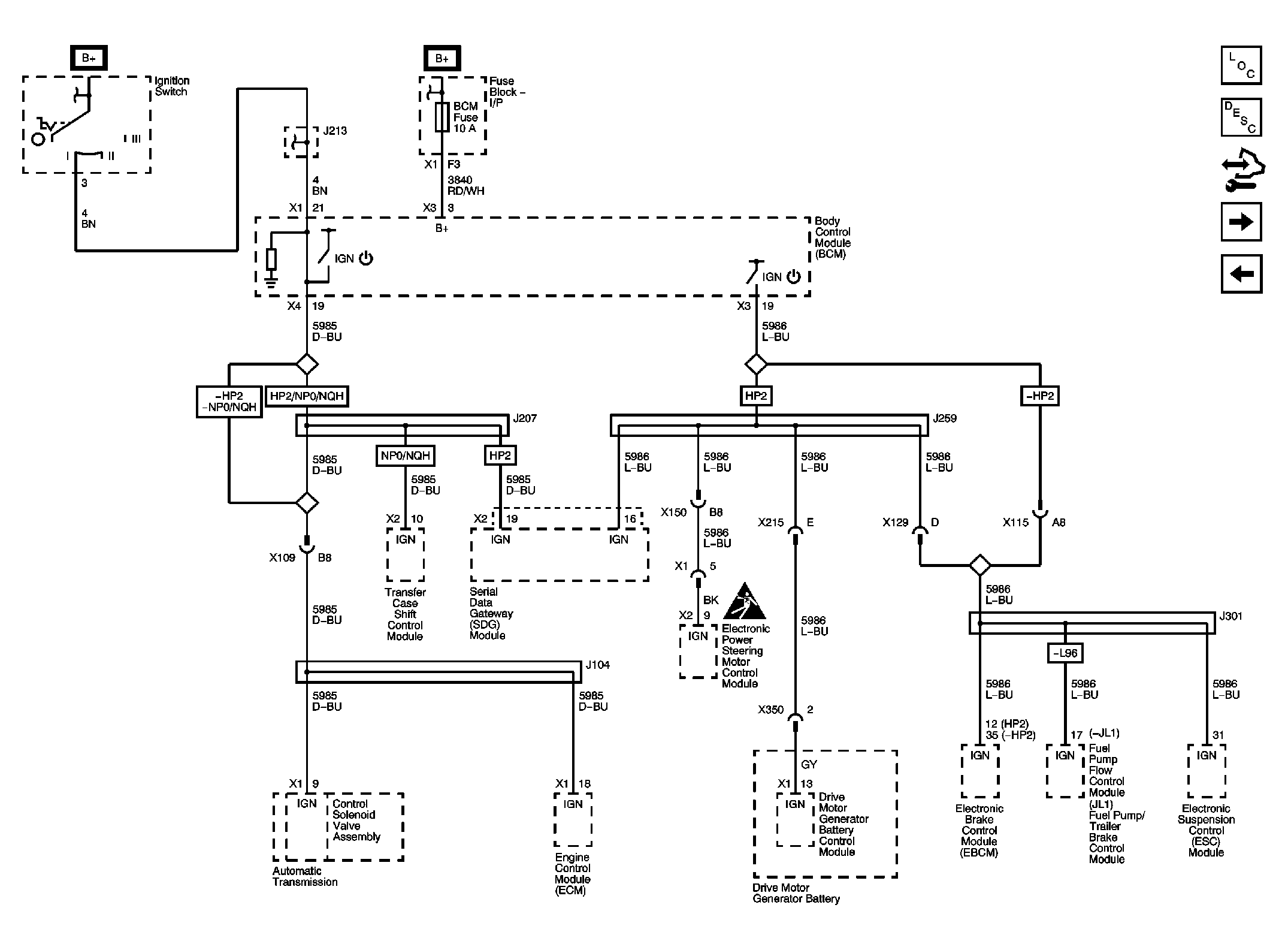

Fig 1: Serial Data Communication Enable and Wake-up Circuits Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
